Base class for variable conversion. More...

#include <TransformBase.h>

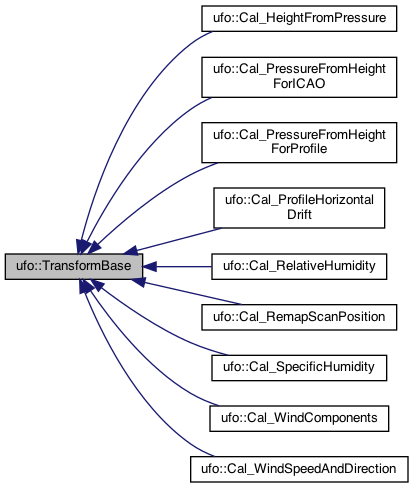

Inheritance diagram for ufo::TransformBase:

[legend]

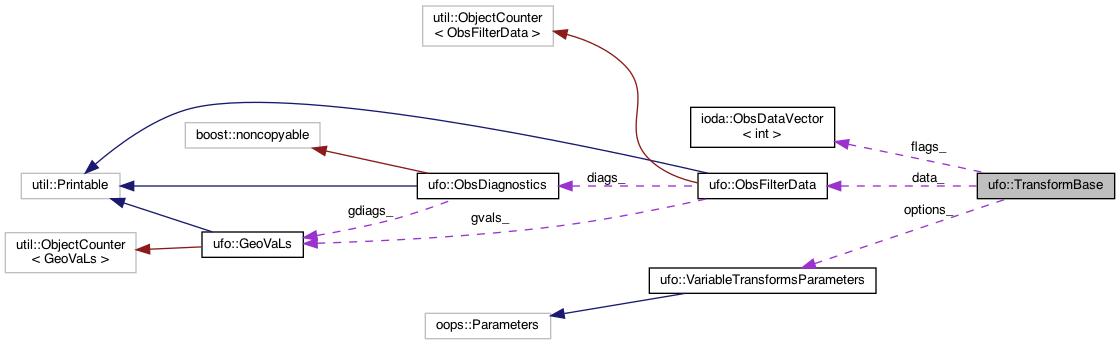

Collaboration diagram for ufo::TransformBase:

[legend]

Public Member Functions
	TransformBase (const VariableTransformsParameters &options, const ObsFilterData &data, const std::shared_ptr< ioda::ObsDataVector< int >> &flags)

virtual	~TransformBase ()
	Destructor. More...

virtual void	runTransform (const std::vector< bool > &apply)=0
	Run variable conversion. More...

virtual Variables	requiredVariables () const
	Return list of required geovals. More...

Protected Member Functions
template<typename T >
void	getObservation (const std::string &originalTag, const std::string &varName, std::vector< T > &obsVector, bool require=false) const
	templated function for float, int data types More...

template<typename T >
void	putObservation (const std::string &varName, const std::vector< T > &obsVector)
	Save a transformed variable to the `DerivedObsValue` group of the obs space. More...

formulas::MethodFormulation	method () const
	subclasses to access Method and formualtion used for the calculation More...

formulas::MethodFormulation	formulation () const

bool	UseValidDataOnly () const

bool	AllowSuperSaturation () const

void	SetUseValidDataOnly (bool t)

std::string	obsName () const
	subclasses to access the observation name More...

Protected Attributes
const VariableTransformsParameters &	options_
	Configurable parameters. More...

ObsFilterData	data_
	Observation and geoval data. More...

ioda::ObsSpace &	obsdb_ = data_.obsspace()
	Observation space. More...

ioda::ObsDataVector< int > &	flags_

const int	missingValueInt = util::missingValue(1)
	Missing value (int) More...

const float	missingValueFloat = util::missingValue(1.0f)
	Missing value (float) More...

const std::string	outputTag = "DerivedObsValue"
	output tag for derived parameters More...

Private Member Functions
template<typename T >
void	filterObservation (const std::string &variableName, std::vector< T > &obsVector) const
	templated function for float, int data types More...

Private Attributes
formulas::MethodFormulation	method_
	Method used for the calculation. More...

formulas::MethodFormulation	formulation_

bool	UseValidDataOnly_

bool	AllowSuperSaturation_

std::string	obsName_
	The observation name. More...

Detailed Description

Base class for variable conversion.

Definition at line 53 of file TransformBase.h.

Constructor & Destructor Documentation

◆ TransformBase()

ufo::TransformBase::TransformBase	(	const VariableTransformsParameters &	options,
		const ObsFilterData &	data,
		const std::shared_ptr< ioda::ObsDataVector< int >> &	flags
	)

Definition at line 15 of file TransformBase.cc.

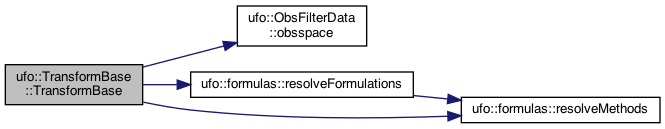

Here is the call graph for this function:

◆ ~TransformBase()

virtual ufo::TransformBase::~TransformBase ( )

inlinevirtual

Destructor.

Definition at line 59 of file TransformBase.h.

Member Function Documentation

◆ AllowSuperSaturation()

bool ufo::TransformBase::AllowSuperSaturation ( ) const

inlineprotected

Definition at line 140 of file TransformBase.h.

Here is the caller graph for this function:

◆ filterObservation()

template<typename T >

void ufo::TransformBase::filterObservation	(	const std::string &	variableName,
		std::vector< T > &	obsVector
	)		const

inlineprivate

templated function for float, int data types

Definition at line 68 of file TransformBase.h.

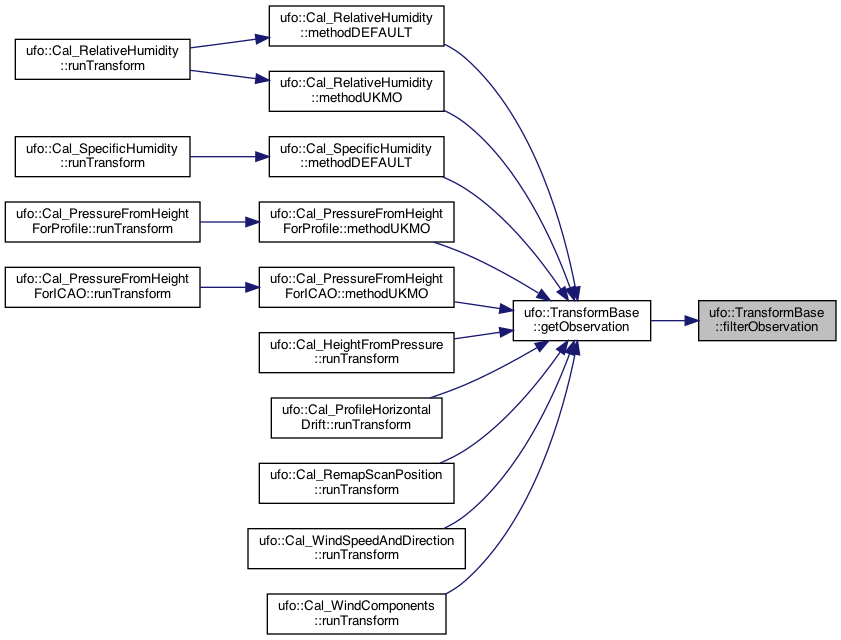

Here is the caller graph for this function:

◆ formulation()

formulas::MethodFormulation ufo::TransformBase::formulation ( ) const

inlineprotected

Definition at line 138 of file TransformBase.h.

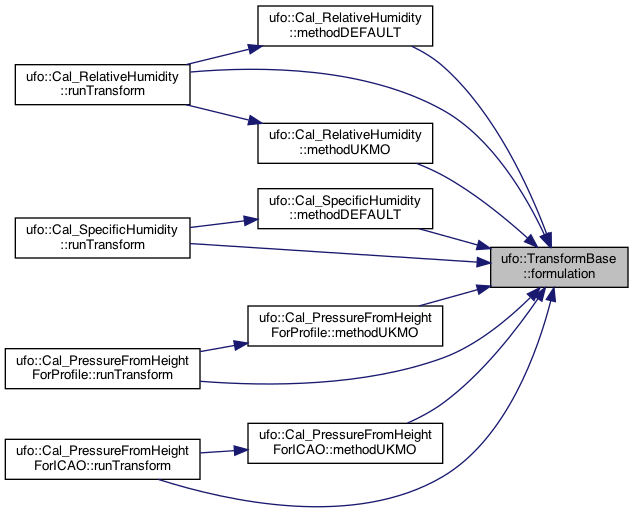

Here is the caller graph for this function:

◆ getObservation()

template<typename T >

void ufo::TransformBase::getObservation	(	const std::string &	originalTag,
		const std::string &	varName,
		std::vector< T > &	obsVector,
		bool	require = `false`
	)		const

inlineprotected

templated function for float, int data types

Definition at line 94 of file TransformBase.h.

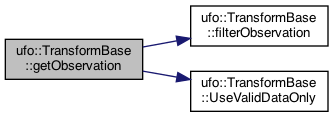

Here is the call graph for this function:

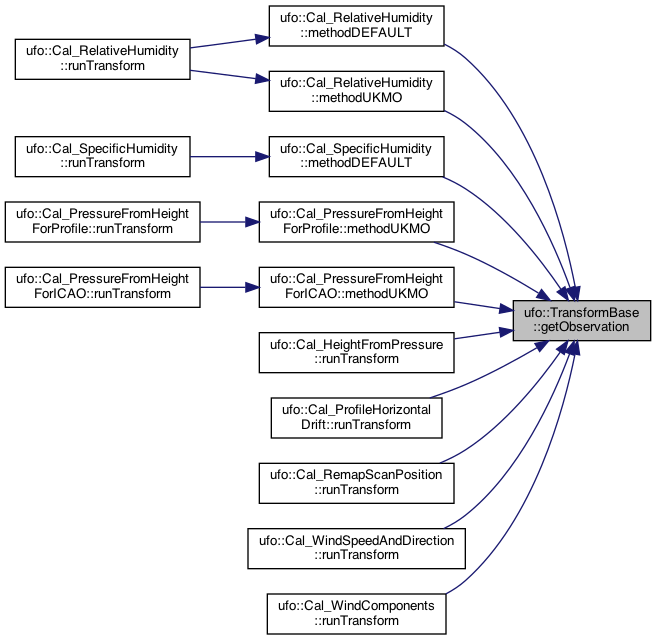

Here is the caller graph for this function:

◆ method()

formulas::MethodFormulation ufo::TransformBase::method ( ) const

inlineprotected

subclasses to access Method and formualtion used for the calculation

Definition at line 137 of file TransformBase.h.

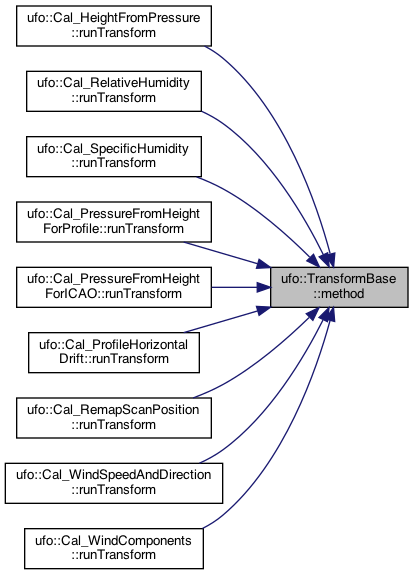

Here is the caller graph for this function:

◆ obsName()

std::string ufo::TransformBase::obsName ( ) const

inlineprotected

subclasses to access the observation name

Definition at line 143 of file TransformBase.h.

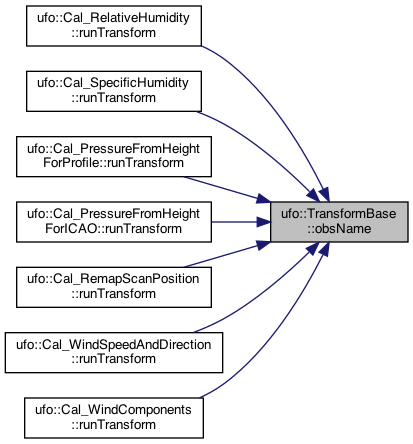

Here is the caller graph for this function:

◆ putObservation()

template<typename T >

void ufo::TransformBase::putObservation	(	const std::string &	varName,
		const std::vector< T > &	obsVector
	)

inlineprotected

Save a transformed variable to the DerivedObsValue group of the obs space.

If the saved variable is a simulated variable, QC flags previously set to missing are reset to pass at locations where a valid obs value has been assigned. Conversely, QC flags previously set to pass are reset to missing at locations where the variable is set to a missing value.

Parameters

varName	Variable name.
obsVactor	Variable values.

Definition at line 120 of file TransformBase.h.

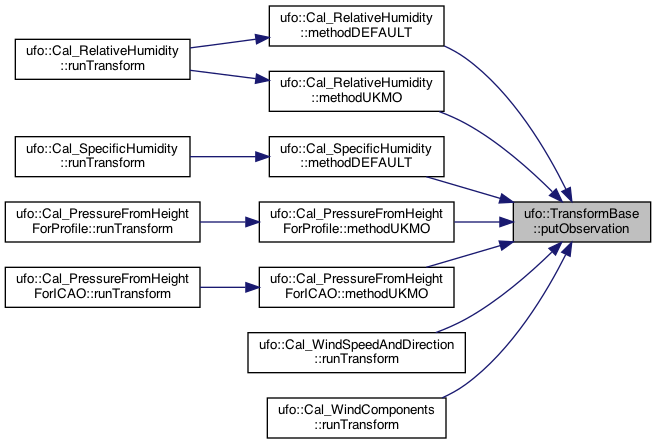

Here is the caller graph for this function:

◆ requiredVariables()

virtual Variables ufo::TransformBase::requiredVariables ( ) const

inlinevirtual

Return list of required geovals.

Definition at line 63 of file TransformBase.h.

◆ runTransform()

virtual void ufo::TransformBase::runTransform ( const std::vector< bool > & apply )

pure virtual

Run variable conversion.

Implemented in ufo::Cal_WindComponents, ufo::Cal_WindSpeedAndDirection, ufo::Cal_RemapScanPosition, ufo::Cal_ProfileHorizontalDrift, ufo::Cal_PressureFromHeightForICAO, ufo::Cal_PressureFromHeightForProfile, ufo::Cal_SpecificHumidity, ufo::Cal_RelativeHumidity, and ufo::Cal_HeightFromPressure.

◆ SetUseValidDataOnly()

void ufo::TransformBase::SetUseValidDataOnly ( bool t )

inlineprotected

Definition at line 141 of file TransformBase.h.

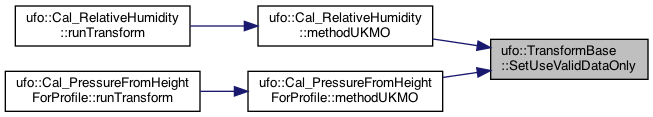

Here is the caller graph for this function:

◆ UseValidDataOnly()

bool ufo::TransformBase::UseValidDataOnly ( ) const

inlineprotected

Definition at line 139 of file TransformBase.h.

Here is the caller graph for this function:

Member Data Documentation

◆ AllowSuperSaturation_

bool ufo::TransformBase::AllowSuperSaturation_

private

Definition at line 87 of file TransformBase.h.

◆ data_

ObsFilterData ufo::TransformBase::data_

protected

Observation and geoval data.

Definition at line 148 of file TransformBase.h.

◆ flags_

ioda::ObsDataVector<int>& ufo::TransformBase::flags_

protected

Definition at line 151 of file TransformBase.h.

◆ formulation_

formulas::MethodFormulation ufo::TransformBase::formulation_

private

Definition at line 85 of file TransformBase.h.

◆ method_

formulas::MethodFormulation ufo::TransformBase::method_

private

Method used for the calculation.

Definition at line 84 of file TransformBase.h.

◆ missingValueFloat

const float ufo::TransformBase::missingValueFloat = util::missingValue(1.0f)

protected

Missing value (float)

Definition at line 155 of file TransformBase.h.

◆ missingValueInt

const int ufo::TransformBase::missingValueInt = util::missingValue(1)

protected

Missing value (int)

Definition at line 153 of file TransformBase.h.

◆ obsdb_

ioda::ObsSpace& ufo::TransformBase::obsdb_ = data_.obsspace()

protected

Observation space.

Definition at line 150 of file TransformBase.h.

◆ obsName_

std::string ufo::TransformBase::obsName_

private

The observation name.

Definition at line 89 of file TransformBase.h.

◆ options_

const VariableTransformsParameters& ufo::TransformBase::options_

protected

Configurable parameters.

Definition at line 145 of file TransformBase.h.

◆ outputTag

const std::string ufo::TransformBase::outputTag = "DerivedObsValue"

protected

output tag for derived parameters

Definition at line 157 of file TransformBase.h.

◆ UseValidDataOnly_

bool ufo::TransformBase::UseValidDataOnly_

private

Definition at line 86 of file TransformBase.h.

The documentation for this class was generated from the following files:
