Enumerations
enum	MethodFormulation { UKMO , NCAR , NOAA , DEFAULT , Murphy , Sonntag , LandoltBornstein , Walko , Rogers }
	Various Methods and Formulations available. More...

Functions
MethodFormulation	resolveMethods (const std::string &input)

MethodFormulation	resolveFormulations (const std::string &input, const std::string &method)

float	SatVaporPres_fromTemp (const float temp_K, const MethodFormulation formulation=formulas::MethodFormulation::DEFAULT)
	Calculates saturated vapour pressure from temperature. More...

float	SatVaporPres_correction (float e_sub_s, float temp_K, float pressure, const MethodFormulation formulation=formulas::MethodFormulation::DEFAULT)
	Calculates saturated vapour pressure from temperature. More...

float	Qsat_From_Psat (float Psat, float P, MethodFormulation formulation=formulas::MethodFormulation::DEFAULT)
	Calculates Saturated specific humidity or saturated vapour pressure using saturation vapour pressure. More...

float	VirtualTemp_From_Psat_P_T (float Psat, float P, float T, MethodFormulation formulation=formulas::MethodFormulation::DEFAULT)
	Derive Virtual Temperature from saturation vapour pressure, pressure and temperature. More...

float	VirtualTemp_From_Rh_Psat_P_T (float Rh, float Psat, float P, float T, MethodFormulation formulation=formulas::MethodFormulation::DEFAULT)
	Derive Virtual Tempreture using Relative humidity, sat. More...

float	Height_To_Pressure_ICAO_atmos (float Height, MethodFormulation formulation=formulas::MethodFormulation::DEFAULT)
	Converts height to pressure using the International Civil Aviation Organization (ICAO) atmosphere. More...

float	Pressure_To_Height (float pressure, MethodFormulation formulation=formulas::MethodFormulation::DEFAULT)
	Converts pressure to height. More...

float	GetWindDirection (float u, float v)
	Converts u and v wind component into wind direction. More...

float	GetWindSpeed (float u, float v)
	Converts u and v wind component into wind speed. More...

float	GetWind_U (float windSpeed, float windFromDirection)
	Get eastward (u) wind component from wind speed and direction. More...

float	GetWind_V (float windSpeed, float windFromDirection)
	Get northward (v) wind component from wind speed and direction. More...

int	RenumberScanPosition (int scanpos)
	Get renumbered scan position 1,2,3,... More...

void	horizontalDrift (const std::vector< size_t > &locs, const std::vector< bool > &apply, const std::vector< float > &lat_in, const std::vector< float > &lon_in, const std::vector< util::DateTime > &time_in, const std::vector< float > &height, const std::vector< float > &windspd, const std::vector< float > &winddir, std::vector< float > &lat_out, std::vector< float > &lon_out, std::vector< util::DateTime > &time_out, MethodFormulation formulation=formulas::MethodFormulation::DEFAULT)
	Compute horizontal drift latitude, longitude and time for an atmospheric profile. More...

Enumeration Type Documentation

◆ MethodFormulation

enum ufo::formulas::MethodFormulation

Various Methods and Formulations available.

Enumerator
UKMO	UKMO specific formulation.
NCAR	NCAR specific formulation.
NOAA	NOAA specific formulation.
DEFAULT	DEFAULT formulation.
Murphy
Sonntag
LandoltBornstein
Walko
Rogers

Definition at line 26 of file Formulas.h.

Function Documentation

◆ GetWind_U()

float ufo::formulas::GetWind_U	(	float	windSpeed,
		float	windFromDirection
	)

Get eastward (u) wind component from wind speed and direction.

Parameters

windSpeed	wind speed [m/s]
windFromDirection	wind direction [degree]

Returns: u

Definition at line 347 of file Formulas.cc.

Here is the caller graph for this function:

◆ GetWind_V()

float ufo::formulas::GetWind_V	(	float	windSpeed,
		float	windFromDirection
	)

Get northward (v) wind component from wind speed and direction.

Parameters

windSpeed	wind speed [m/s]
windFromDirection	wind direction [degree]

Returns: v

Definition at line 359 of file Formulas.cc.

Here is the caller graph for this function:

◆ GetWindDirection()

float ufo::formulas::GetWindDirection	(	float	u,
		float	v
	)

Converts u and v wind component into wind direction.

Wind direction is defined such that a northerly wind is 0°, an easterly wind is 90°, a southerly wind is 180°, and a westerly wind is 270°.

Parameters

u	eastward (u) wind component[m/s]
v	northward (v) wind component[m/s]

Returns: windDirection

Definition at line 323 of file Formulas.cc.

Here is the caller graph for this function:

◆ GetWindSpeed()

float ufo::formulas::GetWindSpeed	(	float	u,
		float	v
	)

Converts u and v wind component into wind speed.

Parameters

u	eastward (u) wind component[m/s]
v	northward (v) wind component[m/s]

Returns: windSpeed

Definition at line 337 of file Formulas.cc.

Here is the caller graph for this function:

◆ Height_To_Pressure_ICAO_atmos()

float ufo::formulas::Height_To_Pressure_ICAO_atmos	(	float	Height,
		MethodFormulation	formulation = `formulas::MethodFormulation::DEFAULT`
	)

Converts height to pressure using the International Civil Aviation Organization (ICAO) atmosphere.

Formulation available:

NCAR: as default
NOAA: as default
UKMO: as default
DEFAULT: using ICAO standard

Parameters

height observation height in geopotential metres [gpm]

Returns: pressure

Definition at line 224 of file Formulas.cc.

Here is the caller graph for this function:

◆ horizontalDrift()

void ufo::formulas::horizontalDrift	(	const std::vector< size_t > &	locs,
		const std::vector< bool > &	apply,
		const std::vector< float > &	lat_in,
		const std::vector< float > &	lon_in,
		const std::vector< util::DateTime > &	time_in,
		const std::vector< float > &	height,
		const std::vector< float > &	windspd,
		const std::vector< float > &	winddir,
		std::vector< float > &	lat_out,
		std::vector< float > &	lon_out,
		std::vector< util::DateTime > &	time_out,
		MethodFormulation	formulation = `formulas::MethodFormulation::DEFAULT`
	)

Compute horizontal drift latitude, longitude and time for an atmospheric profile.

This formula accepts input and output vectors that correspond to the entire data sample as well as a vector of the locations of the current profile in the entire sample. The latter vector is used to select the relevant observations from the entire sample prior to running the horizontal drift algorithm. The outputs of the algorithm are placed in the relevant locations in the entire sample.

Formulations available:

DEFAULT: Calculation is using Eq. 4. of Laroche and Sarrazin (2013). Reference: "Laroche, S. and Sarrazin, R., Impact of Radiosonde Balloon Drift on Numerical Weather Prediction and Verification, Weather and Forecasting, 28(3), 772-782, 2013."
UKMO: as default
NCAR: as default
NOAA: as default

Parameters

	locs	Vector of locations of the current profile in the entire data sample.
	apply	Vector specifying whether a location should be used or not (governed by the where clause).
	lat_in	Vector of input latitudes in the entire sample [degrees].
	lon_in	Vector of input longitudes in the entire sample [degrees].
	time_in	Vector of input datetimes in the entire sample [ISO 8601 format].
	height	Vector of input heights in the entire sample [m].
	windspd	Vector of input wind speeds in the entire sample [m/s].
	winddir	Vector of input wind directions in the entire sample [degrees]. Wind direction is defined such that a northerly wind is 0°, an easterly wind is 90°, a southerly wind is 180°, and a westerly wind is 270°.
[out]	lat_out	Vector of output latitudes in the entire sample [degrees].
[out]	lon_out	Vector of output longitudes in the entire sample [degress].
[out]	time_out	Vector of output datetimes in the entire sample [ISO 8601 format].
	formulation	Method used to determine the horizontal drift positions.

Definition at line 380 of file Formulas.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Pressure_To_Height()

float ufo::formulas::Pressure_To_Height	(	float	pressure,
		MethodFormulation	formulation = `formulas::MethodFormulation::DEFAULT`
	)

Converts pressure to height.

Formulation available:

NCAR: uses a fast approximation for pressures > 120 hPa and the ICAO atmosphere otherwise.
NOAA: as default
UKMO: as default
DEFAULT: uses the ICAO atmosphere for all pressures.

Parameters

pressure observation pressure in Pa

Returns: height in geopotential metres

Definition at line 271 of file Formulas.cc.

Here is the caller graph for this function:

◆ Qsat_From_Psat()

float ufo::formulas::Qsat_From_Psat	(	float	Psat,
		float	P,
		MethodFormulation	formulation = `formulas::MethodFormulation::DEFAULT`
	)

Calculates Saturated specific humidity or saturated vapour pressure using saturation vapour pressure.

Formulation available:

NCAR: as default
NOAA: as default
UKMO: as default
DEFAULT: Calculation is using the Sonntag (1994) formula. (With fix at low pressure)

Parameters

Psat	saturation vapour pressure of pure water vapour
P	Pressure

Returns: Saturated specific humidity or saturated vapour pressure

Definition at line 163 of file Formulas.cc.

Here is the caller graph for this function:

◆ RenumberScanPosition()

int ufo::formulas::RenumberScanPosition ( int scanpos )

Get renumbered scan position 1,2,3,...

for satellite instrument which has been spatially resampled and for which scan position is 2,5,8,...

Parameters

scanpos satellite instrument scan position

Returns: newpos

Definition at line 372 of file Formulas.cc.

Here is the caller graph for this function:

◆ resolveFormulations()

MethodFormulation ufo::formulas::resolveFormulations	(	const std::string &	input,
		const std::string &	method
	)

Definition at line 30 of file Formulas.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ resolveMethods()

MethodFormulation ufo::formulas::resolveMethods ( const std::string & input )

Definition at line 22 of file Formulas.cc.

Here is the caller graph for this function:

◆ SatVaporPres_correction()

float ufo::formulas::SatVaporPres_correction	(	float	e_sub_s,
		float	temp_K,
		float	pressure,
		const MethodFormulation	formulation = `formulas::MethodFormulation::DEFAULT`
	)

Calculates saturated vapour pressure from temperature.

Formulation available:

NCAR: as Sonntag 1997
NOAA: as Sonntag 1997
UKMO: as Sonntag 1997
Sonntag: Correct the the saturation vapour pressure of pure water vapour using an enhancement factor needed for moist air. Reference: eg eqns 20, 22 of Sonntag, but for consistency with QSAT the formula below is from eqn A4.6 of Adrian Gill's book.

Parameters

e_sub_s	saturation vapour pressure
temp_K	temperature [k]
pressure	air pressure [Pa]

Returns: saturated vapour pressure

Definition at line 132 of file Formulas.cc.

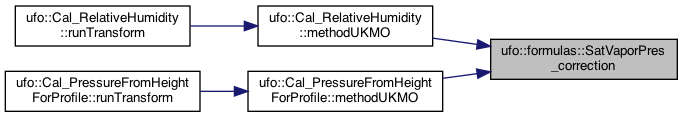

Here is the caller graph for this function:

◆ SatVaporPres_fromTemp()

float ufo::formulas::SatVaporPres_fromTemp	(	const float	temp_K,
		const MethodFormulation	formulation = `formulas::MethodFormulation::DEFAULT`
	)

Calculates saturated vapour pressure from temperature.

Formulation available:

UKMO: as Sonntag 1997
Sonntag: Calculation is using the Eqn 7 Sonntag (1997) Reference: "Sonntag, D., Advancements in the field of hygrometry, Meteorol. Zeitschrift, N. F., 3, 51-66, 1994." .
Walko: Polynomial fit of Goff-Gratch (1946) formulation. (Walko, 1991)
Murphy: Alternative method to Walko 1991 (costs more CPU, more accurate) Reference: "Murphy and Koop, Review of the vapour pressure of ice and supercooled water for atmospheric applications, Q. J. R. Meteorol. Soc (2005), 131, pp. 1539-1565."
NCAR: as default
NOAA: as default
DEFAULT: Classical formula from Rogers and Yau (1989; Eq2.17)

Parameters

temp_K Temperature [k]

Returns: saturated vapour pressure

Definition at line 45 of file Formulas.cc.

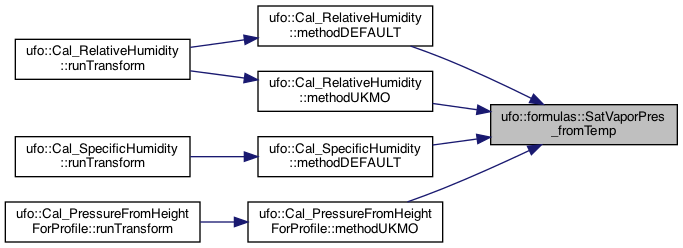

Here is the caller graph for this function:

◆ VirtualTemp_From_Psat_P_T()

float ufo::formulas::VirtualTemp_From_Psat_P_T	(	float	Psat,
		float	P,
		float	T,
		MethodFormulation	formulation = `formulas::MethodFormulation::DEFAULT`
	)

Derive Virtual Temperature from saturation vapour pressure, pressure and temperature.

Formulation available:

NCAR: as default
NOAA: as default
UKMO: as default
DEFAULT: \( Tv = T * ((P + Psat / \epsilon) / (P + Psat)) \)

Parameters

Psat	saturation vapour pressure of pure water vapour
T	Temperature
P	Pressure

Returns: Virtual Temperature

Definition at line 187 of file Formulas.cc.

Here is the caller graph for this function:

◆ VirtualTemp_From_Rh_Psat_P_T()

float ufo::formulas::VirtualTemp_From_Rh_Psat_P_T	(	float	Rh,
		float	Psat,
		float	P,
		float	T,
		MethodFormulation	formulation = `formulas::MethodFormulation::DEFAULT`
	)

Derive Virtual Tempreture using Relative humidity, sat.

vapour pressure, pressure and temperature

Formulation available:

NCAR: as default
NOAA: as default
UKMO: as default
DEFAULT: \( \alpha = Psat * Rh * 0.01 \)

Parameters

Rh	Relative humidity
Psat	saturation vapour pressure of pure water vapour
T	Temperature
P	Pressure

Returns: Virtual Temperature

Definition at line 204 of file Formulas.cc.

Here is the call graph for this function:

Here is the caller graph for this function:
