ufo::Cal_ProfileHorizontalDrift Class Reference
Profile horizontal drift calculation. More...
#include <Cal_ProfileHorizontalDrift.h>
Inheritance diagram for ufo::Cal_ProfileHorizontalDrift:

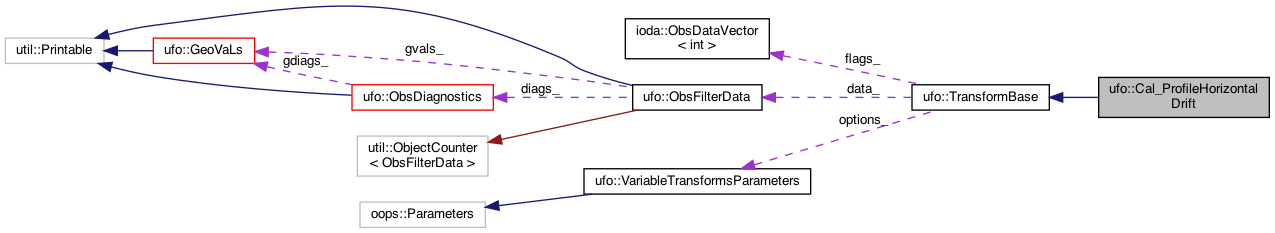

Collaboration diagram for ufo::Cal_ProfileHorizontalDrift:
Public Member Functions | |
| Cal_ProfileHorizontalDrift (const VariableTransformsParameters &options, const ObsFilterData &data, const std::shared_ptr< ioda::ObsDataVector< int >> &flags) | |
| void | runTransform (const std::vector< bool > &apply) override |
| Run variable conversion. More... | |
 Public Member Functions inherited from ufo::TransformBase | |
| TransformBase (const VariableTransformsParameters &options, const ObsFilterData &data, const std::shared_ptr< ioda::ObsDataVector< int >> &flags) | |
| virtual | ~TransformBase () |
| Destructor. More... | |
| virtual Variables | requiredVariables () const |
| Return list of required geovals. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ufo::TransformBase | |
| template<typename T > | |
| void | getObservation (const std::string &originalTag, const std::string &varName, std::vector< T > &obsVector, bool require=false) const |
| templated function for float, int data types More... | |
| template<typename T > | |
| void | putObservation (const std::string &varName, const std::vector< T > &obsVector) |
Save a transformed variable to the DerivedObsValue group of the obs space. More... | |
| formulas::MethodFormulation | method () const |
| subclasses to access Method and formualtion used for the calculation More... | |
| formulas::MethodFormulation | formulation () const |
| bool | UseValidDataOnly () const |
| bool | AllowSuperSaturation () const |
| void | SetUseValidDataOnly (bool t) |
| std::string | obsName () const |
| subclasses to access the observation name More... | |
| Protected Attributes inherited from ufo::TransformBase | |
| const VariableTransformsParameters & | options_ |
| Configurable parameters. More... | |
| ObsFilterData | data_ |
| Observation and geoval data. More... | |
| ioda::ObsSpace & | obsdb_ = data_.obsspace() |
| Observation space. More... | |
| ioda::ObsDataVector< int > & | flags_ |
| const int | missingValueInt = util::missingValue(1) |
| Missing value (int) More... | |
| const float | missingValueFloat = util::missingValue(1.0f) |
| Missing value (float) More... | |
| const std::string | outputTag = "DerivedObsValue" |
| output tag for derived parameters More... | |
Detailed Description
Profile horizontal drift calculation.
This computes the horizontal drift positions (and times) given the horizontal wind speeds, heights, and an assumed rate of ascent.
This function should only be applied to sondes whose horizontal position was not already measured (i.e. not to sondes reporting in BUFR format).
obs filters:
- filter: Variables Transform
Transform: ["ProfileHorizontalDrift"]
See VariableTransformsParameters for filter setup.
Definition at line 40 of file Cal_ProfileHorizontalDrift.h.
Constructor & Destructor Documentation
◆ Cal_ProfileHorizontalDrift()
| ufo::Cal_ProfileHorizontalDrift::Cal_ProfileHorizontalDrift | ( | const VariableTransformsParameters & | options, |
| const ObsFilterData & | data, | ||
| const std::shared_ptr< ioda::ObsDataVector< int >> & | flags | ||
| ) |
Definition at line 20 of file Cal_ProfileHorizontalDrift.cc.
Member Function Documentation
◆ runTransform()
|
overridevirtual |
Run variable conversion.
Implements ufo::TransformBase.
Definition at line 28 of file Cal_ProfileHorizontalDrift.cc.

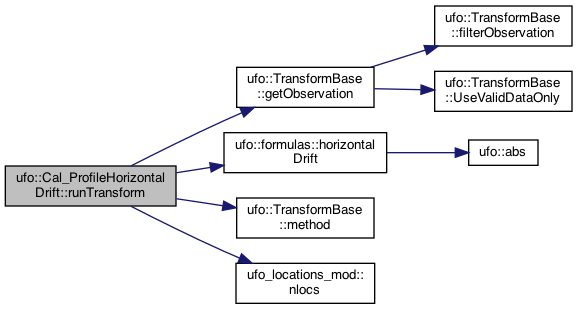

Here is the call graph for this function:
The documentation for this class was generated from the following files:
