Relative Humidity filter. More...

#include <Cal_Humidity.h>

Inheritance diagram for ufo::Cal_RelativeHumidity:

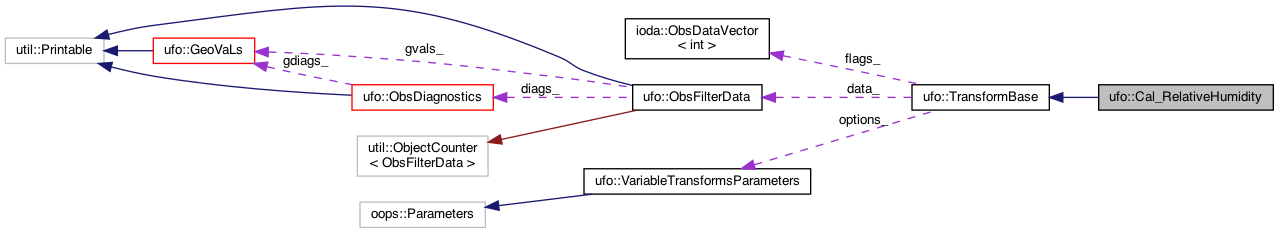

Collaboration diagram for ufo::Cal_RelativeHumidity:

[legend]

Public Member Functions
	Cal_RelativeHumidity (const VariableTransformsParameters &options, const ObsFilterData &data, const std::shared_ptr< ioda::ObsDataVector< int >> &flags)

void	runTransform (const std::vector< bool > &apply) override
	Run variable conversion. More...

Public Member Functions inherited from ufo::TransformBase
	TransformBase (const VariableTransformsParameters &options, const ObsFilterData &data, const std::shared_ptr< ioda::ObsDataVector< int >> &flags)

virtual	~TransformBase ()
	Destructor. More...

virtual Variables	requiredVariables () const
	Return list of required geovals. More...

Private Member Functions
void	methodDEFAULT (const std::vector< bool > &apply)

void	methodUKMO (const std::vector< bool > &apply)

Additional Inherited Members
Protected Member Functions inherited from ufo::TransformBase
template<typename T >
void	getObservation (const std::string &originalTag, const std::string &varName, std::vector< T > &obsVector, bool require=false) const
	templated function for float, int data types More...

template<typename T >
void	putObservation (const std::string &varName, const std::vector< T > &obsVector)
	Save a transformed variable to the `DerivedObsValue` group of the obs space. More...

formulas::MethodFormulation	method () const
	subclasses to access Method and formualtion used for the calculation More...

formulas::MethodFormulation	formulation () const

bool	UseValidDataOnly () const

bool	AllowSuperSaturation () const

void	SetUseValidDataOnly (bool t)

std::string	obsName () const
	subclasses to access the observation name More...

Protected Attributes inherited from ufo::TransformBase
const VariableTransformsParameters &	options_
	Configurable parameters. More...

ObsFilterData	data_
	Observation and geoval data. More...

ioda::ObsSpace &	obsdb_ = data_.obsspace()
	Observation space. More...

ioda::ObsDataVector< int > &	flags_

const int	missingValueInt = util::missingValue(1)
	Missing value (int) More...

const float	missingValueFloat = util::missingValue(1.0f)
	Missing value (float) More...

const std::string	outputTag = "DerivedObsValue"
	output tag for derived parameters More...

Detailed Description

Relative Humidity filter.

Performs a variable conversion from specific_humidity, temperature, and pressure to relative humidity. The newly calculated variable is included in the same obs space.

Example:

obs filters:
- filter: Variables Transform
  Transform: ["RelativeHumidity"]
  Formulation: Sonntag    # Using Sonntag formulation

See VariableTransformsParameters for filter setup.

Definition at line 40 of file Cal_Humidity.h.

Constructor & Destructor Documentation

◆ Cal_RelativeHumidity()

ufo::Cal_RelativeHumidity::Cal_RelativeHumidity	(	const VariableTransformsParameters &	options,
		const ObsFilterData &	data,
		const std::shared_ptr< ioda::ObsDataVector< int >> &	flags
	)
