#include <ObsOperatorBase.h>

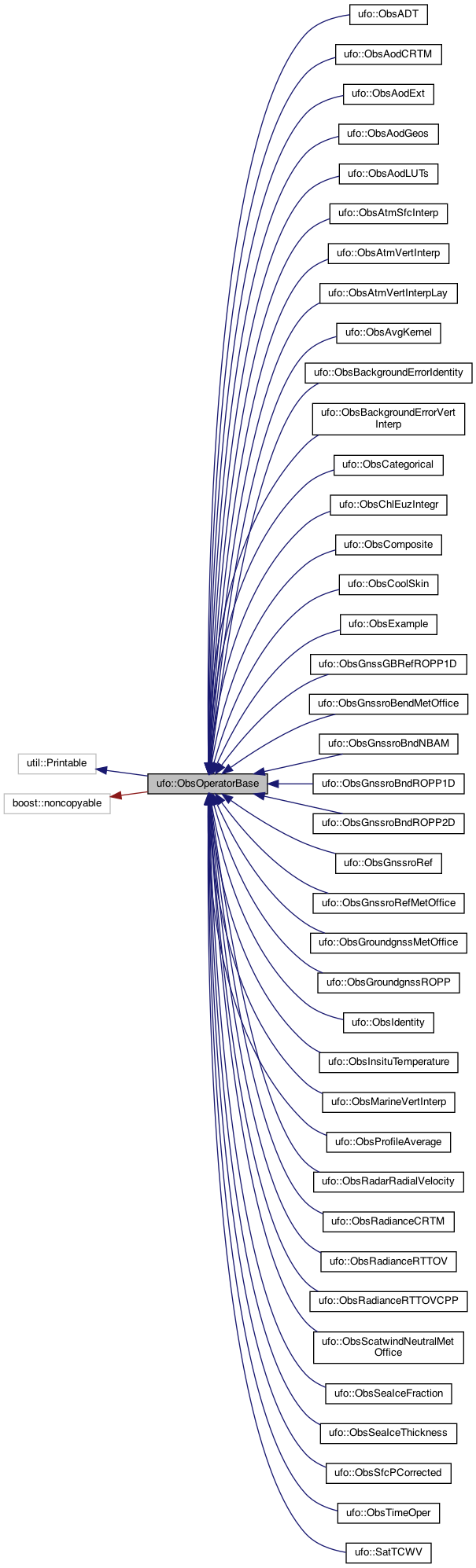

Inheritance diagram for ufo::ObsOperatorBase:

[legend]

Collaboration diagram for ufo::ObsOperatorBase:

Public Member Functions
	ObsOperatorBase (const ioda::ObsSpace &odb, const eckit::Configuration &=eckit::LocalConfiguration())

virtual	~ObsOperatorBase ()

virtual void	simulateObs (const GeoVaLs &, ioda::ObsVector &, ObsDiagnostics &) const =0
	Obs Operator. More...

virtual const oops::Variables &	requiredVars () const =0
	Operator input required from Model. More...

virtual std::unique_ptr< Locations >	locations () const
	Locations for GeoVaLs. More...

virtual oops::Variables	simulatedVars () const
	List of variables simulated by this operator. More...

Private Member Functions
virtual void	print (std::ostream &) const =0

Private Attributes
const ioda::ObsSpace &	odb_

Detailed Description

Base class for observation operators

Note: subclasses can opt to extract their settings either from a Configuration object or from a subclass of ObsOperatorParametersBase.

In the former case, they should provide a constructor with the following signature:

SubclassName(const ioda::ObsSpace &, const eckit::Configuration &);

In the latter case, the implementer should first define a subclass of ObsOperatorParametersBase holding the settings of the operator in question. The ObsOperatorBase subclass should then typedef Parameters_ to the name of the ObsOperatorParametersBase subclass and provide a constructor with the following signature:

SubclassName(const ioda::ObsSpace &, const Parameters_ &);

Definition at line 55 of file ObsOperatorBase.h.

Constructor & Destructor Documentation

◆ ObsOperatorBase()

ufo::ObsOperatorBase::ObsOperatorBase	(	const ioda::ObsSpace &	odb,
		const eckit::Configuration &	= `eckit::LocalConfiguration()`
	)

inlineexplicit

Definition at line 59 of file ObsOperatorBase.h.

◆ ~ObsOperatorBase()

virtual ufo::ObsOperatorBase::~ObsOperatorBase ( )

inlinevirtual

Definition at line 62 of file ObsOperatorBase.h.

Member Function Documentation

◆ locations()

std::unique_ptr< Locations > ufo::ObsOperatorBase::locations ( ) const

virtual

Locations for GeoVaLs.

Reimplemented in ufo::ObsTimeOper, and ufo::ObsGnssroBndROPP2D.

Definition at line 22 of file ObsOperatorBase.cc.

◆ print()

virtual void ufo::ObsOperatorBase::print ( std::ostream & ) const

privatepure virtual

Implemented in ufo::ObsExample, ufo::ObsTimeOper, ufo::ObsSfcPCorrected, ufo::ObsScatwindNeutralMetOffice, ufo::SatTCWV, ufo::ObsRadianceRTTOVCPP, ufo::ObsRadianceRTTOV, ufo::ObsRadarRadialVelocity, ufo::ObsProfileAverage, ufo::ObsSeaIceThickness, ufo::ObsSeaIceFraction, ufo::ObsMarineVertInterp, ufo::ObsInsituTemperature, ufo::ObsCoolSkin, ufo::ObsChlEuzIntegr, ufo::ObsADT, ufo::ObsIdentity, ufo::ObsGroundgnssROPP, ufo::ObsGroundgnssMetOffice, ufo::ObsGnssGBRefROPP1D, ufo::ObsGnssroRef, ufo::ObsGnssroRefMetOffice, ufo::ObsGnssroBndROPP2D, ufo::ObsGnssroBndROPP1D, ufo::ObsGnssroBndNBAM, ufo::ObsGnssroBendMetOffice, ufo::ObsRadianceCRTM, ufo::ObsAodLUTs, ufo::ObsAodCRTM, ufo::ObsComposite, ufo::ObsCategorical, ufo::ObsBackgroundErrorVertInterp, ufo::ObsBackgroundErrorIdentity, ufo::ObsAvgKernel, ufo::ObsAtmVertInterpLay, ufo::ObsAtmVertInterp, ufo::ObsAtmSfcInterp, ufo::ObsAodGeos, and ufo::ObsAodExt.

◆ requiredVars()

virtual const oops::Variables& ufo::ObsOperatorBase::requiredVars ( ) const

pure virtual

Operator input required from Model.

Implemented in ufo::ObsExample, ufo::ObsTimeOper, ufo::ObsSfcPCorrected, ufo::ObsScatwindNeutralMetOffice, ufo::SatTCWV, ufo::ObsRadianceRTTOVCPP, ufo::ObsRadianceRTTOV, ufo::ObsRadarRadialVelocity, ufo::ObsProfileAverage, ufo::ObsSeaIceThickness, ufo::ObsSeaIceFraction, ufo::ObsMarineVertInterp, ufo::ObsInsituTemperature, ufo::ObsCoolSkin, ufo::ObsChlEuzIntegr, ufo::ObsADT, ufo::ObsIdentity, ufo::ObsGroundgnssROPP, ufo::ObsGroundgnssMetOffice, ufo::ObsGnssGBRefROPP1D, ufo::ObsGnssroRef, ufo::ObsGnssroRefMetOffice, ufo::ObsGnssroBndROPP2D, ufo::ObsGnssroBndROPP1D, ufo::ObsGnssroBndNBAM, ufo::ObsGnssroBendMetOffice, ufo::ObsRadianceCRTM, ufo::ObsAodLUTs, ufo::ObsAodCRTM, ufo::ObsComposite, ufo::ObsCategorical, ufo::ObsBackgroundErrorVertInterp, ufo::ObsBackgroundErrorIdentity, ufo::ObsAvgKernel, ufo::ObsAtmVertInterpLay, ufo::ObsAtmVertInterp, ufo::ObsAtmSfcInterp, ufo::ObsAodGeos, and ufo::ObsAodExt.

◆ simulatedVars()

oops::Variables ufo::ObsOperatorBase::simulatedVars ( ) const

virtual

List of variables simulated by this operator.

The default implementation returns the list of all simulated variables in the ObsSpace.

Reimplemented in ufo::ObsSfcPCorrected, ufo::ObsProfileAverage, ufo::ObsIdentity, ufo::ObsComposite, ufo::ObsBackgroundErrorVertInterp, ufo::ObsBackgroundErrorIdentity, ufo::ObsAtmVertInterp, and ufo::ObsAtmSfcInterp.

Definition at line 34 of file ObsOperatorBase.cc.

◆ simulateObs()

virtual void ufo::ObsOperatorBase::simulateObs	(	const GeoVaLs &	,
		ioda::ObsVector &	,
		ObsDiagnostics &
	)		const

pure virtual

Obs Operator.

Implemented in ufo::ObsExample, ufo::ObsTimeOper, ufo::ObsSfcPCorrected, ufo::ObsScatwindNeutralMetOffice, ufo::SatTCWV, ufo::ObsRadianceRTTOVCPP, ufo::ObsRadianceRTTOV, ufo::ObsRadarRadialVelocity, ufo::ObsProfileAverage, ufo::ObsSeaIceThickness, ufo::ObsSeaIceFraction, ufo::ObsMarineVertInterp, ufo::ObsInsituTemperature, ufo::ObsCoolSkin, ufo::ObsChlEuzIntegr, ufo::ObsADT, ufo::ObsIdentity, ufo::ObsGroundgnssROPP, ufo::ObsGroundgnssMetOffice, ufo::ObsGnssGBRefROPP1D, ufo::ObsGnssroRef, ufo::ObsGnssroRefMetOffice, ufo::ObsGnssroBndROPP2D, ufo::ObsGnssroBndROPP1D, ufo::ObsGnssroBndNBAM, ufo::ObsGnssroBendMetOffice, ufo::ObsRadianceCRTM, ufo::ObsAodLUTs, ufo::ObsAodCRTM, ufo::ObsComposite, ufo::ObsCategorical, ufo::ObsBackgroundErrorVertInterp, ufo::ObsBackgroundErrorIdentity, ufo::ObsAvgKernel, ufo::ObsAtmVertInterpLay, ufo::ObsAtmVertInterp, ufo::ObsAtmSfcInterp, ufo::ObsAodGeos, and ufo::ObsAodExt.

Member Data Documentation

◆ odb_

const ioda::ObsSpace& ufo::ObsOperatorBase::odb_

private

Definition at line 80 of file ObsOperatorBase.h.

The documentation for this class was generated from the following files:
