ufo::Locations Class Reference

Locations class to handle simple lat-lon-time locations. More...

#include <Locations.h>

Inheritance diagram for ufo::Locations:

Collaboration diagram for ufo::Locations:

Public Member Functions
	Locations (const std::vector< float > &lons, const std::vector< float > &lats, const std::vector< util::DateTime > &times, std::shared_ptr< const ioda::Distribution >)
	constructor from passed lons, lats, times More...
	Locations (const eckit::Configuration &, const eckit::mpi::Comm &)
	constructor used in oops tests More...
Locations &	operator+= (const Locations &)
	append locations with more locations More...
std::vector< bool >	isInTimeWindow (const util::DateTime &t1, const util::DateTime &t2) const
	find which observations are in the (t1, t2] time window More...
size_t	size () const
	size of locations More...
const std::shared_ptr< const ioda::Distribution > &	distribution () const
	accessor to the observations MPI distribution More...
const std::vector< float > &	lons () const
	accessor to observation longitudes (on current MPI task) More...
const std::vector< float > &	lats () const
	accessor to observation latitudes (on current MPI task) More...
const std::vector< util::DateTime > &	times () const
	accessor to DateTimes (on current MPI task) More...

Static Public Member Functions
static const std::string	classname ()

Private Member Functions
void	print (std::ostream &os) const override

Private Attributes
std::shared_ptr< const ioda::Distribution >	dist_
std::vector< float >	lons_
	observations MPI distribution More...
std::vector< float >	lats_
	longitudes on current MPI task More...
std::vector< util::DateTime >	times_
	latitudes on current MPI task More...

Detailed Description

Locations class to handle simple lat-lon-time locations.

Definition at line 29 of file src/ufo/Locations.h.

Constructor & Destructor Documentation

Locations() [1/2]

ufo::Locations::Locations	(	const std::vector< float > &	lons,
		const std::vector< float > &	lats,
		const std::vector< util::DateTime > &	times,
		std::shared_ptr< const ioda::Distribution >	dist
	)

constructor from passed lons, lats, times

Definition at line 26 of file Locations.cc.

Locations() [2/2]

ufo::Locations::Locations	(	const eckit::Configuration &	conf,
		const eckit::mpi::Comm &	comm
	)

constructor used in oops tests

UFO Locations Constructor with Configuration.

This constructor can be used to generate user-specified and/or random locations for use with interpolation or other tests

To generate random locations, the relevant parameters specified in StateTest.Locations section of the config file are:

• lats user-specified latitudes (degrees)
• lons user-specified longitudes (degrees)
• Nrandom number of random locations desired
• random_seed (optional) random seed for reproducibility of results

Date

May, 2018 Created (M. Miesch, JCSDA)

See also

ufo::ufo_locs_create() ufo::ufo_loc_test() test::testStateInterpolation()

Definition at line 55 of file Locations.cc.

Here is the call graph for this function:

Member Function Documentation

classname()

static const std::string ufo::Locations::classname ( )

inlinestatic

Definition at line 32 of file src/ufo/Locations.h.

distribution()

const std::shared_ptr<const ioda::Distribution>& ufo::Locations::distribution ( ) const

inline

accessor to the observations MPI distribution

Definition at line 51 of file src/ufo/Locations.h.

isInTimeWindow()

std::vector< bool > ufo::Locations::isInTimeWindow	(	const util::DateTime &	t1,
		const util::DateTime &	t2
	)		const

find which observations are in the (t1, t2] time window

Definition at line 85 of file Locations.cc.

Here is the caller graph for this function:

lats()

const std::vector<float>& ufo::Locations::lats ( ) const

inline

accessor to observation latitudes (on current MPI task)

Definition at line 55 of file src/ufo/Locations.h.

Here is the caller graph for this function:

lons()

const std::vector<float>& ufo::Locations::lons ( ) const

inline

accessor to observation longitudes (on current MPI task)

Definition at line 53 of file src/ufo/Locations.h.

Here is the caller graph for this function:

operator+=()

Locations & ufo::Locations::operator+=

(

const Locations &

other

)

append locations with more locations

Definition at line 77 of file Locations.cc.

print()

void ufo::Locations::print ( std::ostream &  os ) const

overrideprivate

Definition at line 102 of file Locations.cc.

Here is the call graph for this function:

size()

size_t ufo::Locations::size

(

)

const

size of locations

Definition at line 96 of file Locations.cc.

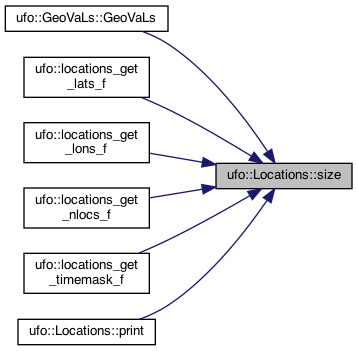

Here is the caller graph for this function:

times()

const std::vector<util::DateTime>& ufo::Locations::times ( ) const

inline

accessor to DateTimes (on current MPI task)

Definition at line 57 of file src/ufo/Locations.h.

Member Data Documentation

dist_

std::shared_ptr<const ioda::Distribution> ufo::Locations::dist_

private

Definition at line 63 of file src/ufo/Locations.h.

lats_

std::vector<float> ufo::Locations::lats_

private

longitudes on current MPI task

Definition at line 65 of file src/ufo/Locations.h.

lons_

std::vector<float> ufo::Locations::lons_

private

observations MPI distribution

Definition at line 64 of file src/ufo/Locations.h.

times_

std::vector<util::DateTime> ufo::Locations::times_

private

latitudes on current MPI task

Definition at line 66 of file src/ufo/Locations.h.

---

The documentation for this class was generated from the following files:

• src/ufo/Locations.h
• Locations.cc
