ufo::ObsTimeOper Class Reference

TimeInterp observation operator class. More...

#include <ObsTimeOper.h>

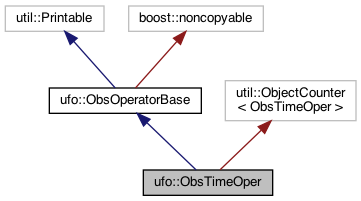

Inheritance diagram for ufo::ObsTimeOper:

Collaboration diagram for ufo::ObsTimeOper:

Public Member Functions
	ObsTimeOper (const ioda::ObsSpace &, const eckit::Configuration &)
virtual	~ObsTimeOper ()
void	simulateObs (const GeoVaLs &, ioda::ObsVector &, ObsDiagnostics &) const override
	Obs Operator. More...
std::unique_ptr< Locations >	locations () const override
	Locations for GeoVaLs. More...
const oops::Variables &	requiredVars () const override
	Operator input required from Model. More...
Public Member Functions inherited from ufo::ObsOperatorBase
	ObsOperatorBase (const ioda::ObsSpace &odb, const eckit::Configuration &=eckit::LocalConfiguration())
virtual	~ObsOperatorBase ()
virtual oops::Variables	simulatedVars () const
	List of variables simulated by this operator. More...

Static Public Member Functions
static const std::string	classname ()

Private Member Functions
void	print (std::ostream &) const override

Private Attributes
std::unique_ptr< ObsOperatorBase >	actualoperator_
const ioda::ObsSpace &	odb_
std::vector< std::vector< float > >	timeWeights_

Detailed Description

TimeInterp observation operator class.

Definition at line 42 of file ObsTimeOper.h.

Constructor & Destructor Documentation

ObsTimeOper()

ufo::ObsTimeOper::ObsTimeOper	(	const ioda::ObsSpace &	odb,
		const eckit::Configuration &	config
	)

Definition at line 33 of file ObsTimeOper.cc.

~ObsTimeOper()

ufo::ObsTimeOper::~ObsTimeOper ( )

virtual

Definition at line 59 of file ObsTimeOper.cc.

Member Function Documentation

classname()

static const std::string ufo::ObsTimeOper::classname ( )

inlinestatic

Definition at line 45 of file ObsTimeOper.h.

locations()

std::unique_ptr< Locations > ufo::ObsTimeOper::locations ( ) const

overridevirtual

Locations for GeoVaLs.

Reimplemented from ufo::ObsOperatorBase.

Definition at line 66 of file ObsTimeOper.cc.

print()

void ufo::ObsTimeOper::print ( std::ostream &  os ) const

overrideprivatevirtual

Implements ufo::ObsOperatorBase.

Definition at line 102 of file ObsTimeOper.cc.

requiredVars()

const oops::Variables& ufo::ObsTimeOper::requiredVars ( ) const

inlineoverridevirtual

Operator input required from Model.

Implements ufo::ObsOperatorBase.

Definition at line 56 of file ObsTimeOper.h.

simulateObs()

void ufo::ObsTimeOper::simulateObs ( const GeoVaLs &  , ioda::ObsVector &  , ObsDiagnostics &    ) const

overridevirtual

Obs Operator.

Implements ufo::ObsOperatorBase.

Definition at line 78 of file ObsTimeOper.cc.

Here is the call graph for this function:

Member Data Documentation

actualoperator_

std::unique_ptr<ObsOperatorBase> ufo::ObsTimeOper::actualoperator_

private

Definition at line 60 of file ObsTimeOper.h.

odb_

const ioda::ObsSpace& ufo::ObsTimeOper::odb_

private

Definition at line 61 of file ObsTimeOper.h.

timeWeights_

std::vector<std::vector<float> > ufo::ObsTimeOper::timeWeights_

private

Definition at line 62 of file ObsTimeOper.h.

---

The documentation for this class was generated from the following files:

• ObsTimeOper.h
• ObsTimeOper.cc
