ufo::ObsComposite Class Reference

A collection of observation operators used to simulate different variables. More...

#include <ObsComposite.h>

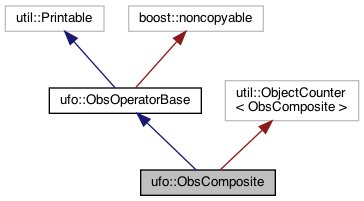

Inheritance diagram for ufo::ObsComposite:

Collaboration diagram for ufo::ObsComposite:

Public Types
typedef ObsCompositeParameters	Parameters_

Public Member Functions
	ObsComposite (const ioda::ObsSpace &, const Parameters_ &)
	~ObsComposite () override
void	simulateObs (const GeoVaLs &, ioda::ObsVector &, ObsDiagnostics &) const override
	Obs Operator. More...
const oops::Variables &	requiredVars () const override
	Operator input required from Model. More...
oops::Variables	simulatedVars () const override
	List of variables simulated by this operator. More...
Public Member Functions inherited from ufo::ObsOperatorBase
	ObsOperatorBase (const ioda::ObsSpace &odb, const eckit::Configuration &=eckit::LocalConfiguration())
virtual	~ObsOperatorBase ()
virtual std::unique_ptr< Locations >	locations () const
	Locations for GeoVaLs. More...

Static Public Member Functions
static const std::string	classname ()

Private Member Functions
void	print (std::ostream &) const override

Private Attributes
const ioda::ObsSpace &	odb_
std::vector< std::unique_ptr< ObsOperatorBase > >	components_
oops::Variables	requiredVars_

Detailed Description

A collection of observation operators used to simulate different variables.

Use this operator to split the list of simulated variables in the ObsSpace into groups, each of which should be simulated with a different operator. For example, if the list of simulated variables contains some upper-air variables that need to be vertically interpolated and some surface variables that don't, you can arrange the obs operator section in the input YAML file as in the following example:

obs operator:
  name: Composite
  components:
  - name: VertInterp
    variables:
    - name: relative_humidity
      name: northward_wind
      name: eastward_wind
  - name: Identity
    variables:
    - name: surface_pressure

Note

Only some operators (currently VertInterp and Identity) currently support the variables option and thus can be used to simulate only a subset of variables.

Definition at line 55 of file ObsComposite.h.

Member Typedef Documentation

Parameters_

typedef ObsCompositeParameters ufo::ObsComposite::Parameters_

The type of parameters accepted by the constructor of this operator. This typedef is used by the ObsOperatorFactory.

Definition at line 60 of file ObsComposite.h.

Constructor & Destructor Documentation

ObsComposite()

ufo::ObsComposite::ObsComposite	(	const ioda::ObsSpace &	odb,
		const Parameters_ &	parameters
	)

Definition at line 31 of file ObsComposite.cc.

Here is the call graph for this function:

~ObsComposite()

ufo::ObsComposite::~ObsComposite ( )

override

Definition at line 50 of file ObsComposite.cc.

Member Function Documentation

classname()

static const std::string ufo::ObsComposite::classname ( )

inlinestatic

Definition at line 62 of file ObsComposite.h.

print()

void ufo::ObsComposite::print ( std::ostream &  os ) const

overrideprivatevirtual

Implements ufo::ObsOperatorBase.

Definition at line 87 of file ObsComposite.cc.

requiredVars()

const oops::Variables& ufo::ObsComposite::requiredVars ( ) const

inlineoverridevirtual

Operator input required from Model.

Implements ufo::ObsOperatorBase.

Definition at line 69 of file ObsComposite.h.

simulatedVars()

oops::Variables ufo::ObsComposite::simulatedVars ( ) const

overridevirtual

List of variables simulated by this operator.

The default implementation returns the list of all simulated variables in the ObsSpace.

Reimplemented from ufo::ObsOperatorBase.

Definition at line 68 of file ObsComposite.cc.

simulateObs()

void ufo::ObsComposite::simulateObs ( const GeoVaLs &  , ioda::ObsVector &  , ObsDiagnostics &    ) const

overridevirtual

Obs Operator.

Implements ufo::ObsOperatorBase.

Definition at line 56 of file ObsComposite.cc.

Member Data Documentation

components_

std::vector<std::unique_ptr<ObsOperatorBase> > ufo::ObsComposite::components_

private

Definition at line 78 of file ObsComposite.h.

odb_

const ioda::ObsSpace& ufo::ObsComposite::odb_

private

Definition at line 77 of file ObsComposite.h.

requiredVars_

oops::Variables ufo::ObsComposite::requiredVars_

private

Definition at line 79 of file ObsComposite.h.

---

The documentation for this class was generated from the following files:

• ObsComposite.h
• ObsComposite.cc
