ufo::ObsOperatorFactory Class Reference

Obs Operator Factory. More...

#include <ObsOperatorBase.h>

Inheritance diagram for ufo::ObsOperatorFactory:

Public Member Functions
virtual	~ObsOperatorFactory ()=default

Static Public Member Functions
static ObsOperatorBase *	create (const ioda::ObsSpace &, const ObsOperatorParametersBase &params)
	Create and return a new observation operator. More...
static std::unique_ptr< ObsOperatorParametersBase >	createParameters (const std::string &name)
	Create and return an instance of the subclass of ObsOperatorParametersBase storing parameters of observation operators of the specified type. More...
static std::vector< std::string >	getMakerNames ()
	Return the names of all operators that can be created by one of the registered makers. More...

Protected Member Functions
	ObsOperatorFactory (const std::string &name)
	Register a maker able to create observation operators of type name. More...

Private Member Functions
virtual ObsOperatorBase *	make (const ioda::ObsSpace &, const ObsOperatorParametersBase &)=0
virtual std::unique_ptr< ObsOperatorParametersBase >	makeParameters () const =0

Static Private Member Functions
static std::map< std::string, ObsOperatorFactory * > &	getMakers ()

Detailed Description

Obs Operator Factory.

Definition at line 105 of file ObsOperatorBase.h.

Constructor & Destructor Documentation

~ObsOperatorFactory()

virtual ufo::ObsOperatorFactory::~ObsOperatorFactory ( )

virtualdefault

ObsOperatorFactory()

ufo::ObsOperatorFactory::ObsOperatorFactory ( const std::string &  name )

explicitprotected

Register a maker able to create observation operators of type name.

Definition at line 40 of file ObsOperatorBase.cc.

Here is the call graph for this function:

Member Function Documentation

create()

ObsOperatorBase * ufo::ObsOperatorFactory::create ( const ioda::ObsSpace &  odb, const ObsOperatorParametersBase &  params  )

static

Create and return a new observation operator.

The type of the operator is determined by the name attribute of params. params must be an instance of the subclass of ObsOperatorParametersBase associated with that operator, otherwise an exception will be thrown.

Definition at line 50 of file ObsOperatorBase.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

createParameters()

std::unique_ptr< ObsOperatorParametersBase > ufo::ObsOperatorFactory::createParameters ( const std::string &  name )

static

Create and return an instance of the subclass of ObsOperatorParametersBase storing parameters of observation operators of the specified type.

Definition at line 67 of file ObsOperatorBase.cc.

Here is the call graph for this function:

getMakerNames()

static std::vector<std::string> ufo::ObsOperatorFactory::getMakerNames ( )

inlinestatic

Return the names of all operators that can be created by one of the registered makers.

Definition at line 120 of file ObsOperatorBase.h.

Here is the call graph for this function:

getMakers()

static std::map< std::string, ObsOperatorFactory * >& ufo::ObsOperatorFactory::getMakers ( )

inlinestaticprivate

Definition at line 135 of file ObsOperatorBase.h.

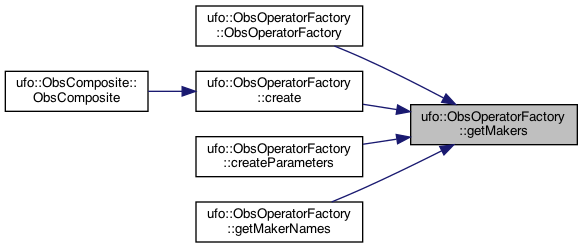

Here is the caller graph for this function:

make()

virtual ObsOperatorBase* ufo::ObsOperatorFactory::make ( const ioda::ObsSpace &  , const ObsOperatorParametersBase &    )

privatepure virtual

Implemented in ufo::ObsOperatorMaker< T >.

makeParameters()

virtual std::unique_ptr<ObsOperatorParametersBase> ufo::ObsOperatorFactory::makeParameters ( ) const

privatepure virtual

Implemented in ufo::ObsOperatorMaker< T >.

---

The documentation for this class was generated from the following files:

• ObsOperatorBase.h
• ObsOperatorBase.cc
