A predictor returning values produced by the DrawValueFromFile ObsFunction. More...

#include <InterpolateDataFromFile.h>

Inheritance diagram for ufo::InterpolateDataFromFile:

Collaboration diagram for ufo::InterpolateDataFromFile:

Public Types
typedef InterpolateDataFromFileParameters	Parameters_

Public Member Functions
	InterpolateDataFromFile (const Parameters_ &, const oops::Variables &)

void	compute (const ioda::ObsSpace &, const GeoVaLs &, const ObsDiagnostics &, ioda::ObsVector &) const override
	compute the predictor More...

Public Member Functions inherited from ufo::PredictorBase
	PredictorBase (const PredictorParametersBase &, const oops::Variables &)

virtual	~PredictorBase ()=default

const oops::Variables &	requiredGeovars () const
	geovars names required to compute the predictor More...

const oops::Variables &	requiredHdiagnostics () const
	hdiags names required to compute the predictor More...

std::string &	name ()
	predictor name More...

const std::string &	name () const

Private Attributes
std::map< std::string, std::unique_ptr< DrawValueFromFile< float > > >	obsFunctions_

Additional Inherited Members
Protected Attributes inherited from ufo::PredictorBase
oops::Variables	vars_
	variables that will be bias-corrected using this predictor More...

oops::Variables	geovars_
	required GeoVaLs More...

oops::Variables	hdiags_
	required ObsDiagnostics More...

Detailed Description

A predictor returning values produced by the DrawValueFromFile ObsFunction.

Let's start with a simple example. Suppose this predictor is configured with the following YAML snippet:

name: interpolate_data_from_file
options:
  corrected variables:
  - name: air_temperature
    file: Data/ufo/testinput_tier_1/air_temperature_bias.nc4
    interpolation:
    - name: station_id@MetaData
      method: exact

and the air_temperature_bias.nc4 file contains a 1D array air_temperature@ObsBias indexed by a station_id@MetaData coordinate. The DrawValueFromFile ObsFunction will then load this file and for each location produce the element of the air_temperature@ObsBias array corresponding to the element of the station_id@MetaData array matching the value of the station_id@MetaData ObsSpace variable at that location. This will also be the value produced by this predictor.

The predictor will produce zeros for all bias-corrected variables missing from the corrected variables list.

It is possible to make the bias correction dependent on more than one ObsSpace variable and to use a different matching method than exact. For more details, see the documentation of DrawValueFromFile and DataExtractor.

Definition at line 74 of file InterpolateDataFromFile.h.

Member Typedef Documentation

◆ Parameters_

typedef InterpolateDataFromFileParameters ufo::InterpolateDataFromFile::Parameters_

The type of parameters accepted by the constructor of this predictor. This typedef is used by the PredictorFactory.

Definition at line 78 of file InterpolateDataFromFile.h.

Constructor & Destructor Documentation

◆ InterpolateDataFromFile()

ufo::InterpolateDataFromFile::InterpolateDataFromFile	(	const Parameters_ &	parameters,
		const oops::Variables &	vars
	)

Definition at line 59 of file InterpolateDataFromFile.cc.

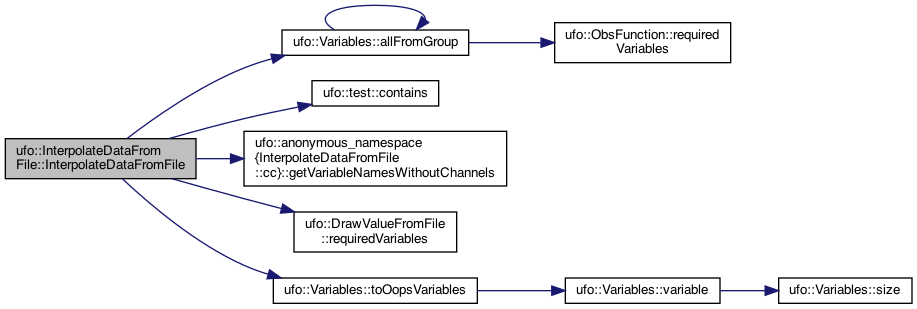

Here is the call graph for this function:

Member Function Documentation

◆ compute()

void ufo::InterpolateDataFromFile::compute	(	const ioda::ObsSpace &	,
		const GeoVaLs &	,
		const ObsDiagnostics &	,
		ioda::ObsVector &
	)		const

overridevirtual

compute the predictor

Implements ufo::PredictorBase.

Definition at line 81 of file InterpolateDataFromFile.cc.

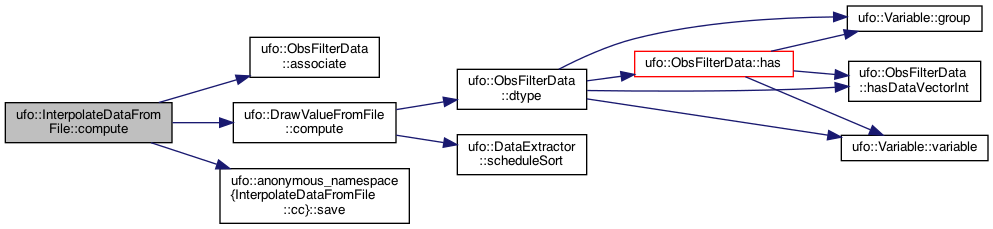

Here is the call graph for this function:

Member Data Documentation

◆ obsFunctions_

std::map<std::string, std::unique_ptr<DrawValueFromFile<float> > > ufo::InterpolateDataFromFile::obsFunctions_

private

obsFunctions_[varName] is the ObsFunction that will calculate the predictions for variable varName.

Definition at line 93 of file InterpolateDataFromFile.h.

The documentation for this class was generated from the following files:
