#include <ObsBias.h>

Inheritance diagram for ufo::ObsBias:

Collaboration diagram for ufo::ObsBias:

Public Types
typedef ObsBiasParameters	Parameters_

Public Member Functions
	ObsBias (ioda::ObsSpace &, const Parameters_ &)

	ObsBias (const ObsBias &, const bool)

ObsBias &	operator+= (const ObsBiasIncrement &)

ObsBias &	operator= (const ObsBias &)

void	read (const Parameters_ &)
	Read bias correction coefficients from file. More...

void	write (const Parameters_ &) const

double	norm () const

std::size_t	size () const

double	operator() (size_t jpred, size_t jvar) const

const Eigen::VectorXd &	data () const
	Return bias correction coefficients (for variable predictors) More...

const oops::Variables &	requiredVars () const

const oops::Variables &	requiredHdiagnostics () const

const std::vector< std::string > &	requiredPredictors () const

const Predictors &	predictors () const
	Return a reference to the vector of all (static and variable) predictors. More...

std::vector< std::shared_ptr< const PredictorBase > >	variablePredictors () const
	Return the vector of variable predictors. More...

const oops::Variables &	correctedVars () const
	Return the list of bias-corrected variables. More...

void	zero ()
	Set all variable predictors coefficients to zero (used in the test) More...

	operator bool () const

Static Public Member Functions
static const std::string	classname ()

Private Member Functions
void	print (std::ostream &) const override

size_t	index (size_t jpred, size_t jvar) const
	index in the flattened biascoeffs_ for predictor `jpred` and variable `jvar` More...

void	initPredictor (const PredictorParametersWrapper &params)

Private Attributes
Eigen::VectorXd	biascoeffs_
	bias correction coefficients (npredictors x nprimitivevariables) More...

Predictors	predictors_
	bias correction predictors More...

std::vector< std::string >	prednames_
	predictor names More...

std::size_t	numStaticPredictors_
	number of static predictors (i.e. predictors with fixed coefficients all equal to 1) More...

std::size_t	numVariablePredictors_
	number of variable predictors (i.e. predictors with variable coefficients) More...

oops::Variables	vars_
	corrected variables names (for now has to be same as "simulated variables") More...

oops::Variables	geovars_
	Variables that need to be requested from the model (for computation of predictors) More...

oops::Variables	hdiags_
	Diagnostics that need to be requested from the obs operator (for computation of predictors) More...

size_t	rank_
	MPI rank, used to determine whether the task should output bias coeffs to a file. More...

Detailed Description

Class to handle observation bias correction coefficients

contains information on what predictors are used for bias correction application

Definition at line 43 of file src/ufo/ObsBias.h.

Member Typedef Documentation

◆ Parameters_

typedef ObsBiasParameters ufo::ObsBias::Parameters_

Definition at line 46 of file src/ufo/ObsBias.h.

Constructor & Destructor Documentation

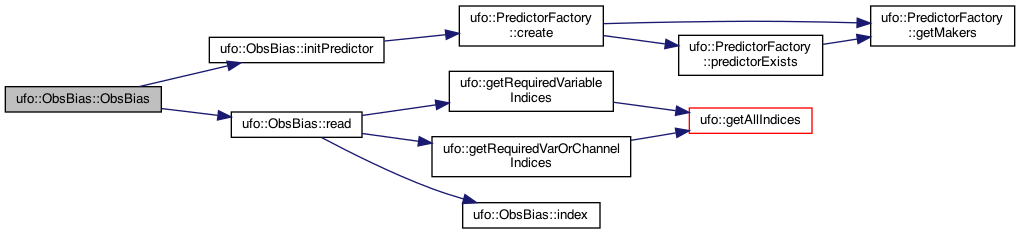

◆ ObsBias() [1/2]

ufo::ObsBias::ObsBias	(	ioda::ObsSpace &	odb,
		const Parameters_ &	params
	)

Definition at line 34 of file ObsBias.cc.

Here is the call graph for this function:

◆ ObsBias() [2/2]

ufo::ObsBias::ObsBias	(	const ObsBias &	other,
		const bool	copy
	)

Definition at line 64 of file ObsBias.cc.

Member Function Documentation

◆ classname()

static const std::string ufo::ObsBias::classname ( )

inlinestatic

Definition at line 48 of file src/ufo/ObsBias.h.

◆ correctedVars()

const oops::Variables& ufo::ObsBias::correctedVars ( ) const

inline

Return the list of bias-corrected variables.

Definition at line 85 of file src/ufo/ObsBias.h.

Here is the caller graph for this function:

◆ data()

const Eigen::VectorXd& ufo::ObsBias::data ( ) const

inline

Return bias correction coefficients (for variable predictors)

Definition at line 71 of file src/ufo/ObsBias.h.

Here is the caller graph for this function:

◆ index()

size_t ufo::ObsBias::index	(	size_t	jpred,
		size_t	jvar
	)		const

inlineprivate

index in the flattened biascoeffs_ for predictor jpred and variable jvar

Definition at line 99 of file src/ufo/ObsBias.h.

Here is the caller graph for this function:

◆ initPredictor()

void ufo::ObsBias::initPredictor ( const PredictorParametersWrapper & params )

private

Definition at line 294 of file ObsBias.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ norm()

double ufo::ObsBias::norm ( ) const

Definition at line 227 of file ObsBias.cc.

◆ operator bool()

ufo::ObsBias::operator bool ( ) const

inline

Definition at line 91 of file src/ufo/ObsBias.h.

◆ operator()()

double ufo::ObsBias::operator()	(	size_t	jpred,
		size_t	jvar
	)		const

inline

Return the coefficient of predictor jpred for variable jvar.

Note: jpred may be the index of a static or a variable predictor.

Definition at line 65 of file src/ufo/ObsBias.h.

Here is the call graph for this function:

◆ operator+=()

ObsBias & ufo::ObsBias::operator+= ( const ObsBiasIncrement & dx )

Definition at line 84 of file ObsBias.cc.

Here is the call graph for this function:

◆ operator=()

ObsBias & ufo::ObsBias::operator= ( const ObsBias & rhs )

Definition at line 91 of file ObsBias.cc.

Here is the call graph for this function:

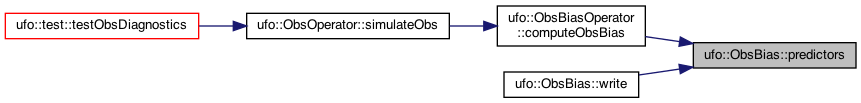

◆ predictors()

const Predictors& ufo::ObsBias::predictors ( ) const

inline

Return a reference to the vector of all (static and variable) predictors.

Definition at line 79 of file src/ufo/ObsBias.h.

Here is the caller graph for this function:

◆ print()

void ufo::ObsBias::print ( std::ostream & os ) const

overrideprivate

Definition at line 261 of file ObsBias.cc.

Here is the call graph for this function:

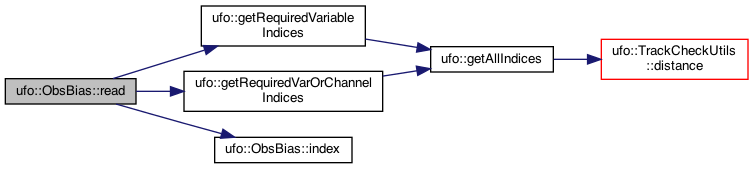

◆ read()

void ufo::ObsBias::read ( const Parameters_ & params )

Read bias correction coefficients from file.

Definition at line 108 of file ObsBias.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ requiredHdiagnostics()

const oops::Variables& ufo::ObsBias::requiredHdiagnostics ( ) const

inline

Definition at line 75 of file src/ufo/ObsBias.h.

Here is the caller graph for this function:

◆ requiredPredictors()

const std::vector<std::string>& ufo::ObsBias::requiredPredictors ( ) const

inline

Definition at line 76 of file src/ufo/ObsBias.h.

◆ requiredVars()

const oops::Variables& ufo::ObsBias::requiredVars ( ) const

inline

Definition at line 74 of file src/ufo/ObsBias.h.

◆ size()

std::size_t ufo::ObsBias::size ( ) const

inline

Definition at line 60 of file src/ufo/ObsBias.h.

Here is the caller graph for this function:

◆ variablePredictors()

std::vector< std::shared_ptr< const PredictorBase > > ufo::ObsBias::variablePredictors ( ) const

Return the vector of variable predictors.

Definition at line 254 of file ObsBias.cc.

Here is the caller graph for this function:

◆ write()

void ufo::ObsBias::write ( const Parameters_ & params ) const

Definition at line 194 of file ObsBias.cc.

Here is the call graph for this function:

◆ zero()

void ufo::ObsBias::zero ( )

Set all variable predictors coefficients to zero (used in the test)

Definition at line 248 of file ObsBias.cc.

Member Data Documentation

◆ biascoeffs_

Eigen::VectorXd ufo::ObsBias::biascoeffs_

private

bias correction coefficients (npredictors x nprimitivevariables)

Definition at line 104 of file src/ufo/ObsBias.h.

◆ geovars_

oops::Variables ufo::ObsBias::geovars_

private

Variables that need to be requested from the model (for computation of predictors)

Definition at line 119 of file src/ufo/ObsBias.h.

◆ hdiags_

oops::Variables ufo::ObsBias::hdiags_

private

Diagnostics that need to be requested from the obs operator (for computation of predictors)

Definition at line 121 of file src/ufo/ObsBias.h.

◆ numStaticPredictors_

std::size_t ufo::ObsBias::numStaticPredictors_

private

number of static predictors (i.e. predictors with fixed coefficients all equal to 1)

Definition at line 111 of file src/ufo/ObsBias.h.

◆ numVariablePredictors_

std::size_t ufo::ObsBias::numVariablePredictors_

private

number of variable predictors (i.e. predictors with variable coefficients)

Definition at line 113 of file src/ufo/ObsBias.h.

◆ predictors_

Predictors ufo::ObsBias::predictors_

private

bias correction predictors

Definition at line 107 of file src/ufo/ObsBias.h.

◆ prednames_

std::vector<std::string> ufo::ObsBias::prednames_

private

predictor names

Definition at line 109 of file src/ufo/ObsBias.h.

◆ rank_

size_t ufo::ObsBias::rank_

private

MPI rank, used to determine whether the task should output bias coeffs to a file.

Definition at line 124 of file src/ufo/ObsBias.h.

◆ vars_

oops::Variables ufo::ObsBias::vars_

private

corrected variables names (for now has to be same as "simulated variables")

Definition at line 116 of file src/ufo/ObsBias.h.

The documentation for this class was generated from the following files:
