ufo::DrawValueFromFile< T > Class Template Reference

Produce values by interpolating an array loaded from a file, indexed by coordinates whose names correspond to ObsSpace variables. More...

#include <DrawValueFromFile.h>

Inheritance diagram for ufo::DrawValueFromFile< T >:

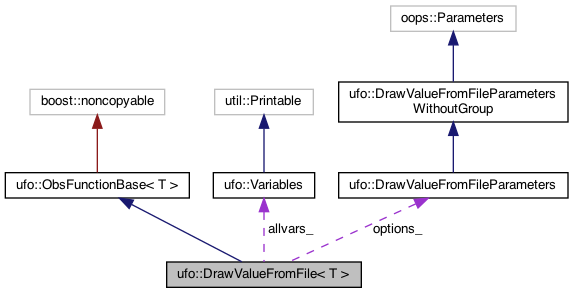

Collaboration diagram for ufo::DrawValueFromFile< T >:

Public Member Functions
	DrawValueFromFile (const eckit::LocalConfiguration &)
void	compute (const ObsFilterData &, ioda::ObsDataVector< T > &) const
	compute the result of the function More...
const ufo::Variables &	requiredVariables () const
	geovals required to compute the function More...
Public Member Functions inherited from ufo::ObsFunctionBase< T >
	ObsFunctionBase (const eckit::LocalConfiguration conf=eckit::LocalConfiguration())
virtual	~ObsFunctionBase ()

Private Attributes
Variables	allvars_
std::unordered_map< std::string, InterpMethod >	interpMethod_
std::string	fpath_
DrawValueFromFileParameters	options_
std::vector< int >	channels_

Additional Inherited Members
Public Types inherited from ufo::ObsFunctionBase< T >
typedef T	Value_
	Type of the values produced by the function. More...

Detailed Description

template<typename T>
class ufo::DrawValueFromFile< T >

Produce values by interpolating an array loaded from a file, indexed by coordinates whose names correspond to ObsSpace variables.

Template Parameters

T	Type of values produced by this ObsFunction. Must be float, int or std::string.

See DataExtractor for details on the format of this file.

example configurations:

- filter: Variable Assignment
  assignments:
  - name: interpolated_value@DerivedObsValue
    function:
      name: DrawValueFromFile@ObsFunction
      channels: 1-3
      options:
        file: <filepath>
        channels: 1-3
        group: DerivedObsValue
        interpolation:
        - name: satellite_id@MetaData
          method: exact
        - name: processing_center@MetaData
          method: exact
        - name: air_pressure@MetaData
          method: linear

Note that channel number extraction is implicit, using the channels selected and performed as an exact match before any user defined interpolation takes place.

Definition at line 145 of file DrawValueFromFile.h.

Constructor & Destructor Documentation

DrawValueFromFile()

template<typename T >

ufo::DrawValueFromFile< T >::DrawValueFromFile ( const eckit::LocalConfiguration &  config )

explicit

Definition at line 62 of file DrawValueFromFile.cc.

Member Function Documentation

compute()

template<typename T >

void ufo::DrawValueFromFile< T >::compute ( const ObsFilterData &  , ioda::ObsDataVector< T > &    ) const

virtual

compute the result of the function

Implements ufo::ObsFunctionBase< T >.

Definition at line 126 of file DrawValueFromFile.cc.

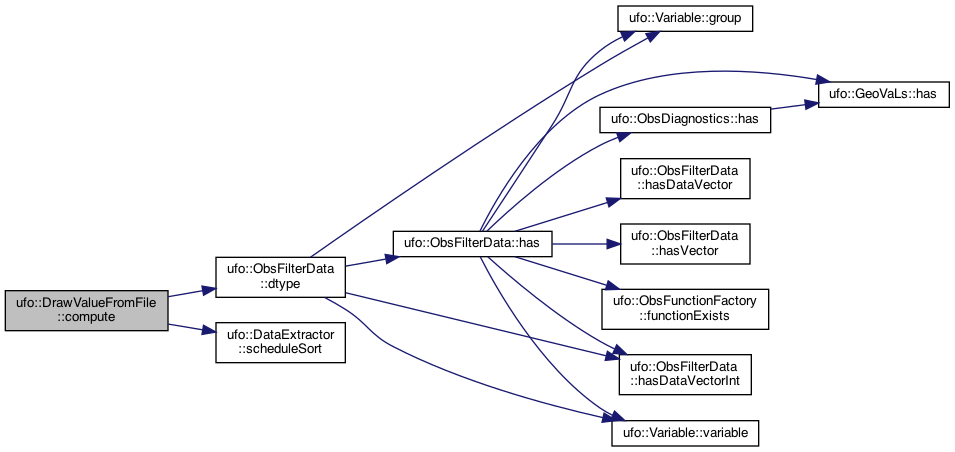

Here is the call graph for this function:

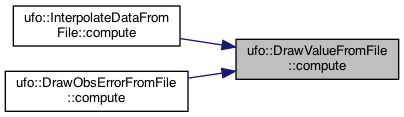

Here is the caller graph for this function:

requiredVariables()

template<typename T >

const ufo::Variables & ufo::DrawValueFromFile< T >::requiredVariables

virtual

geovals required to compute the function

Implements ufo::ObsFunctionBase< T >.

Definition at line 185 of file DrawValueFromFile.cc.

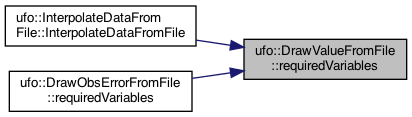

Here is the caller graph for this function:

Member Data Documentation

allvars_

template<typename T >

Variables ufo::DrawValueFromFile< T >::allvars_

private

Definition at line 154 of file DrawValueFromFile.h.

channels_

template<typename T >

std::vector<int> ufo::DrawValueFromFile< T >::channels_

private

Definition at line 158 of file DrawValueFromFile.h.

fpath_

template<typename T >

std::string ufo::DrawValueFromFile< T >::fpath_

private

Definition at line 156 of file DrawValueFromFile.h.

interpMethod_

template<typename T >

std::unordered_map<std::string, InterpMethod> ufo::DrawValueFromFile< T >::interpMethod_

private

Definition at line 155 of file DrawValueFromFile.h.

options_

template<typename T >

DrawValueFromFileParameters ufo::DrawValueFromFile< T >::options_

private

Definition at line 157 of file DrawValueFromFile.h.

---

The documentation for this class was generated from the following files:

• DrawValueFromFile.h
• DrawValueFromFile.cc
