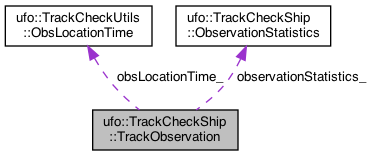

Collaboration diagram for ufo::TrackCheckShip::TrackObservation:

Public Member Functions
	TrackObservation (double latitude, double longitude, const util::DateTime &time, const std::shared_ptr< TrackStatistics > &trackStatistics, const std::shared_ptr< TrackCheckUtils::CheckCounter > &checkCounter, size_t observationNumber)

const TrackCheckUtils::Point &	getLocation () const

const util::DateTime &	getTime () const

void	setDistance (double dist)

void	setTimeDifference (util::Duration tDiff)

void	setSpeed (double speed)

void	setAngle (double angle)

void	setDistanceAveraged (double distAvg)

void	setSpeedAveraged (double speedAvg)

void	calculateTwoObservationValues (TrackObservation &prevObs, bool firstIteration, const TrackCheckShipParameters &options)
	Calculates all of the statistics that require only two adjacent `TrackObservations`, storing within the righthand observation. More...

void	resetObservationCalculations ()

void	calculateThreeObservationValues (const TrackObservation &prevObs, const TrackObservation &nextObs, bool firstIteration, const TrackCheckShipParameters &options)

void	adjustTwoObservationStatistics (const TrackCheckShipParameters &options) const
	Keeps track of 0-distanced, short, and fast track segments, as well as incrementing `sumSpeed_` for normal track segments. More...

void	adjustThreeObservationStatistics () const
	Increments number of bends if angle is greater than or equal to 90 degrees. More...

const std::shared_ptr< TrackStatistics >	getFullTrackStatistics () const

const ObservationStatistics &	getObservationStatistics () const

void	setRejected (bool rejectedInSweep)

size_t	getObservationNumber () const

bool	rejected () const

Private Attributes
std::shared_ptr< TrackStatistics >	fullTrackStatistics_

ObservationStatistics	observationStatistics_

TrackCheckUtils::ObsLocationTime	obsLocationTime_

size_t	observationNumber_

bool	rejected_

Detailed Description

Definition at line 124 of file src/ufo/filters/TrackCheckShip.h.

Constructor & Destructor Documentation

◆ TrackObservation()

ufo::TrackCheckShip::TrackObservation::TrackObservation	(	double	latitude,
		double	longitude,
		const util::DateTime &	time,
		const std::shared_ptr< TrackStatistics > &	trackStatistics,
		const std::shared_ptr< TrackCheckUtils::CheckCounter > &	checkCounter,
		size_t	observationNumber
	)

Definition at line 92 of file TrackCheckShip.cc.

Member Function Documentation

◆ adjustThreeObservationStatistics()

void ufo::TrackCheckShip::TrackObservation::adjustThreeObservationStatistics ( ) const

Increments number of bends if angle is greater than or equal to 90 degrees.

Definition at line 635 of file TrackCheckShip.cc.

Here is the call graph for this function:

◆ adjustTwoObservationStatistics()

void ufo::TrackCheckShip::TrackObservation::adjustTwoObservationStatistics ( const TrackCheckShipParameters & options ) const

Keeps track of 0-distanced, short, and fast track segments, as well as incrementing sumSpeed_ for normal track segments.

Definition at line 622 of file TrackCheckShip.cc.

◆ calculateThreeObservationValues()

void ufo::TrackCheckShip::TrackObservation::calculateThreeObservationValues	(	const TrackObservation &	prevObs,
		const TrackObservation &	nextObs,
		bool	firstIteration,
		const TrackCheckShipParameters &	options
	)

Calculates all of the statistics that require three consecutive TrackObservations, storing within the middle observation. This includes distance between two alternating observations, speed between these alternating observations (if the middle observation was not recorded), and the angle formed by the three-observation track segment. Calls function to increment track-wise counters based on results.

Definition at line 567 of file TrackCheckShip.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calculateTwoObservationValues()

void ufo::TrackCheckShip::TrackObservation::calculateTwoObservationValues	(	TrackObservation &	prevObs,
		bool	firstIteration,
		const TrackCheckShipParameters &	options
	)

Calculates all of the statistics that require only two adjacent TrackObservations, storing within the righthand observation.

Todo:: Trace output will need to be changed to match that of OPS (indices, LWin)

This includes distance between the two observations, time difference between the observations, speed between the observations, and if the observations are recorded for the same time. Calls function to increment track-wise counters based on results.

Definition at line 538 of file TrackCheckShip.cc.

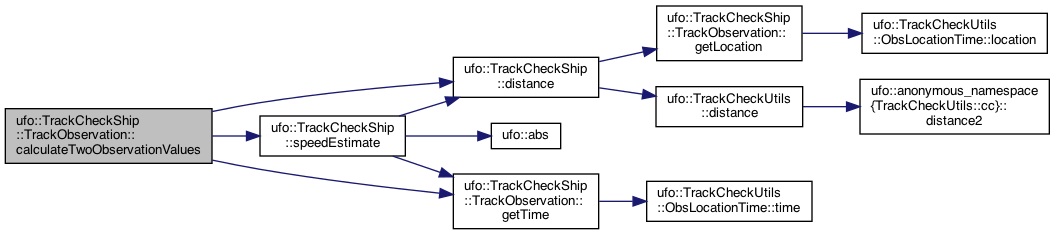

Here is the call graph for this function:
