ufo::TrackCheckUtils Namespace Reference

Classes
class	ObsGroupLocationTimes
	Locations/times of all observations processed by the track checking filter. More...
class	ObsLocationTime
class	CheckCounter

Typedefs
typedef std::array< float, 3 >	Point

Enumerations
enum class	CheckResult : char { FAILED = false , PASSED = true , SKIPPED }
enum class	SweepResult { NO_MORE_SWEEPS_REQUIRED , ANOTHER_SWEEP_REQUIRED }

Functions
float	distance (const Point &a, const Point &b)
	Returns the distance between the two cartesian-mapped Point arguments More...
ObsAccessor	createObsAccessor (const boost::optional< Variable > &stationIdVariable, const ioda::ObsSpace &obsdb)
	Create an ObsAccessor object providing access to observations that need to be checked by the current MPI task. More...
void	sortTracksChronologically (const std::vector< size_t > &validObsIds, const ObsAccessor &obsAccessor, RecursiveSplitter &splitter)
ObsGroupLocationTimes	collectObservationsLocations (const ObsAccessor &obsAccessor)

Typedef Documentation

Point

typedef std::array<float, 3> ufo::TrackCheckUtils::Point

Definition at line 41 of file TrackCheckUtils.h.

Enumeration Type Documentation

CheckResult

enum ufo::TrackCheckUtils::CheckResult : char

strong

Enumerator
FAILED
PASSED
SKIPPED

Definition at line 44 of file TrackCheckUtils.h.

SweepResult

enum ufo::TrackCheckUtils::SweepResult

strong

Enumerator
NO_MORE_SWEEPS_REQUIRED
ANOTHER_SWEEP_REQUIRED

Definition at line 51 of file TrackCheckUtils.h.

Function Documentation

collectObservationsLocations()

TrackCheckUtils::ObsGroupLocationTimes ufo::TrackCheckUtils::collectObservationsLocations

(

const ObsAccessor &

obsAccessor

)

Definition at line 80 of file TrackCheckUtils.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

createObsAccessor()

ObsAccessor ufo::TrackCheckUtils::createObsAccessor	(	const boost::optional< Variable > &	stationIdVariable,
		const ioda::ObsSpace &	obsdb
	)

Create an ObsAccessor object providing access to observations that need to be checked by the current MPI task.

The composition of this set of observations depends on the value of stationIdVariable.

If stationIdVariable is empty, observations are assumed to be grouped into tracks by the record ID. Each MPI rank is guaranteed to hold either all or no observations from a given record. Thus the returned ObsAccessor gives access to all observations from the records held on the current MPI rank.

Otherwise, observations are assumed to be grouped into tracks by the variable *stationIdVariable. If this variable was also used to group observations into records, the returned ObsAccessor is constructed as if stationIdVariable was empty; otherwise, it gives access to observations held on all MPI ranks.

Definition at line 55 of file TrackCheckUtils.cc.

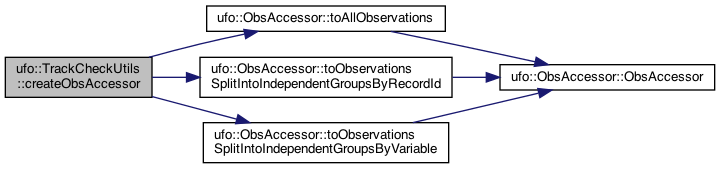

Here is the call graph for this function:

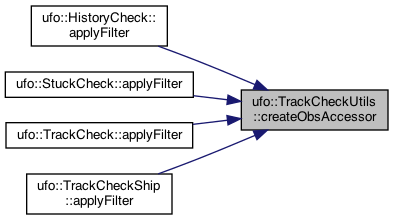

Here is the caller graph for this function:

distance()

float ufo::TrackCheckUtils::distance	(	const Point &	a,
		const Point &	b
	)

Returns the distance between the two cartesian-mapped Point arguments

Definition at line 51 of file TrackCheckUtils.cc.

Here is the call graph for this function:

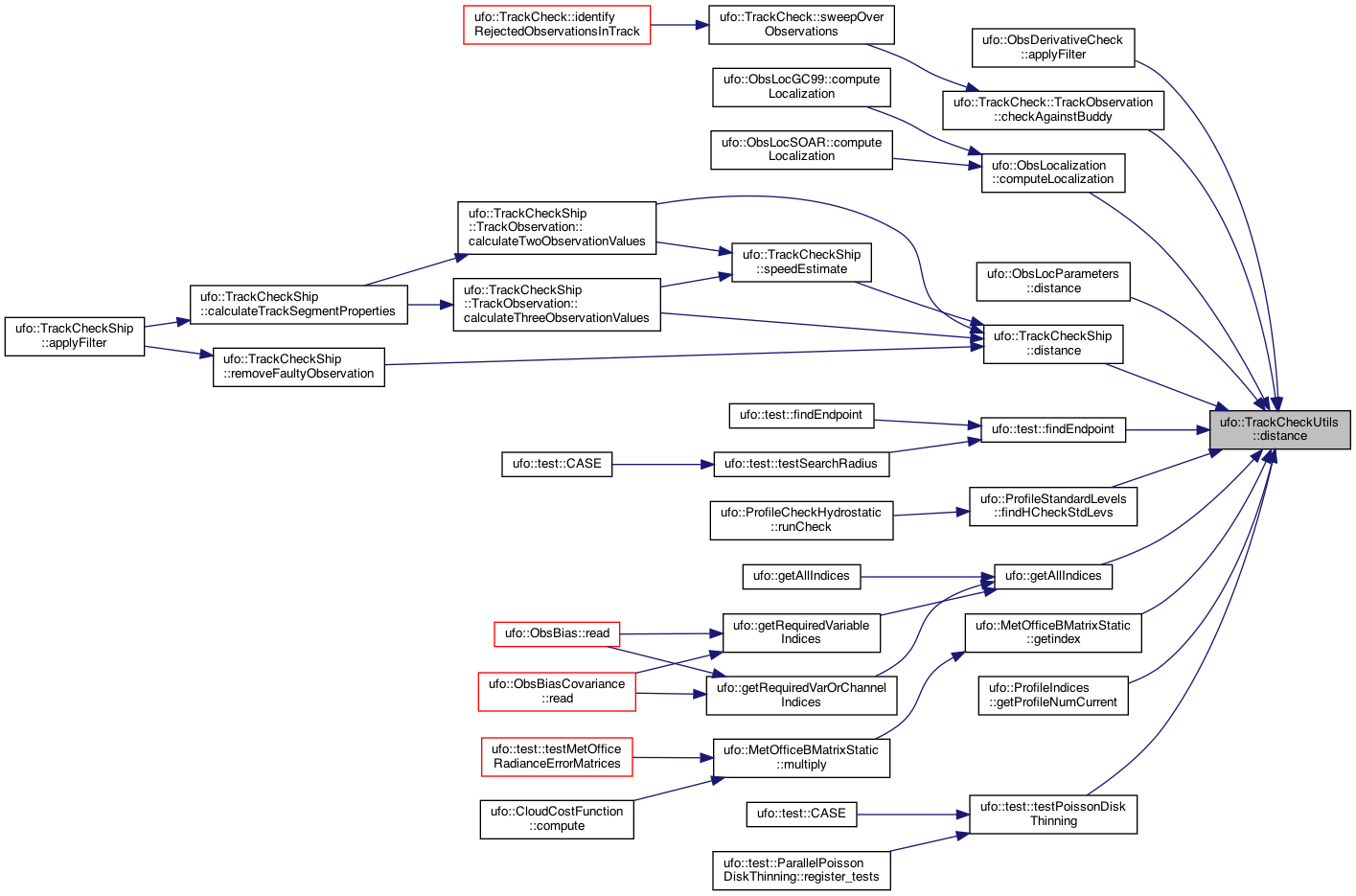

Here is the caller graph for this function:

sortTracksChronologically()

void ufo::TrackCheckUtils::sortTracksChronologically	(	const std::vector< size_t > &	validObsIds,
		const ObsAccessor &	obsAccessor,
		RecursiveSplitter &	splitter
	)

Definition at line 70 of file TrackCheckUtils.cc.

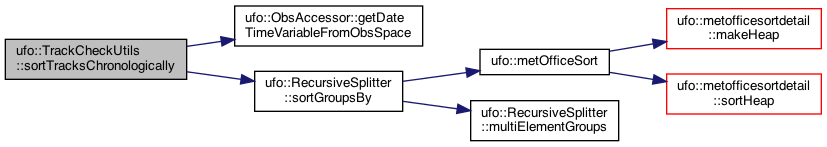

Here is the call graph for this function:

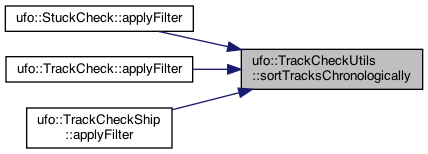

Here is the caller graph for this function:
