Checks tracks of mobile weather stations, rejecting observations inconsistent with the rest of the track. More...

#include <TrackCheck.h>

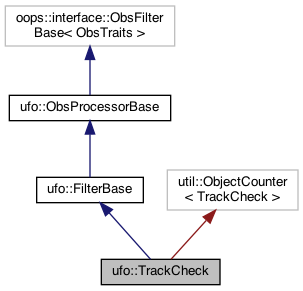

Inheritance diagram for ufo::TrackCheck:

[legend]

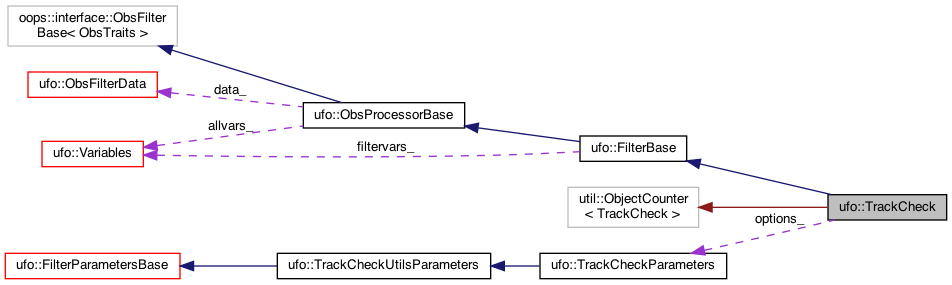

Collaboration diagram for ufo::TrackCheck:

[legend]

Classes
struct	CheckResults
	Results of cross-checking an observation with another (a "buddy"). More...

struct	ObsGroupPressureLocationTime

class	TrackObservation
	Attributes of an observation belonging to a track. More...

Public Types
typedef TrackCheckParameters	Parameters_

Public Member Functions
	TrackCheck (ioda::ObsSpace &obsdb, const Parameters_ &parameters, std::shared_ptr< ioda::ObsDataVector< int > > flags, std::shared_ptr< ioda::ObsDataVector< float > > obserr)

	~TrackCheck () override

Public Member Functions inherited from ufo::FilterBase
	FilterBase (ioda::ObsSpace &, const FilterParametersBaseWithAbstractAction &parameters, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)

	FilterBase (ioda::ObsSpace &, const eckit::Configuration &, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)

	~FilterBase ()

Public Member Functions inherited from ufo::ObsProcessorBase
	ObsProcessorBase (ioda::ObsSpace &, bool deferToPost, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)

	~ObsProcessorBase ()

void	preProcess () override

void	priorFilter (const GeoVaLs &) override

void	postFilter (const ioda::ObsVector &, const ioda::ObsVector &, const ObsDiagnostics &) override

oops::Variables	requiredVars () const override

oops::Variables	requiredHdiagnostics () const override

Static Public Member Functions
static const std::string	classname ()

Private Types
enum	Direction { FORWARD , BACKWARD , NUM_DIRECTIONS }

Private Member Functions
ObsGroupPressureLocationTime	collectObsPressuresLocationsTimes (const ObsAccessor &obsAccessor) const

void	flagRejectedTrackObservations (std::vector< size_t >::const_iterator trackObsIndicesBegin, std::vector< size_t >::const_iterator trackObsIndicesEnd, const std::vector< size_t > &validObsIds, const std::vector< TrackObservation > &trackObservations, std::vector< bool > &isRejected) const

void	print (std::ostream &) const override

void	applyFilter (const std::vector< bool > &, const Variables &, std::vector< std::vector< bool >> &) const override

int	qcFlag () const override

ObsAccessor	createObsAccessor () const

PiecewiseLinearInterpolation	makeMaxSpeedByPressureInterpolation () const
	Returns an interpolator mapping pressures (in Pa) to maximum accepted speeds (in km/s). More...

void	identifyRejectedObservationsInTrack (std::vector< size_t >::const_iterator trackObsIndicesBegin, std::vector< size_t >::const_iterator trackObsIndicesEnd, const std::vector< size_t > &validObsIds, const ObsGroupPressureLocationTime &obsPressureLoc, const PiecewiseLinearInterpolation &maxSpeedByPressure, std::vector< bool > &isRejected) const

std::vector< TrackObservation >	collectTrackObservations (std::vector< size_t >::const_iterator trackObsIndicesBegin, std::vector< size_t >::const_iterator trackObsIndicesEnd, const std::vector< size_t > &validObsIds, const ObsGroupPressureLocationTime &obsPressureLoc) const

TrackCheckUtils::SweepResult	sweepOverObservations (std::vector< TrackObservation > &trackObservations, const PiecewiseLinearInterpolation &maxValidSpeedAtPressure, std::vector< float > &workspace) const

Private Attributes
Parameters_	options_

Static Private Attributes
static const int	NO_PREVIOUS_SWEEP = -1

Additional Inherited Members
Protected Attributes inherited from ufo::FilterBase
const eckit::LocalConfiguration	config_

ufo::Variables	filtervars_

Protected Attributes inherited from ufo::ObsProcessorBase
ioda::ObsSpace &	obsdb_

std::shared_ptr< ioda::ObsDataVector< int > >	flags_

std::shared_ptr< ioda::ObsDataVector< float > >	obserr_

ufo::Variables	allvars_

ObsFilterData	data_

Detailed Description

Checks tracks of mobile weather stations, rejecting observations inconsistent with the rest of the track.

Each track is checked separately. The algorithm performs a series of sweeps over the observations from each track. For each observation, multiple estimates of the instantaneous speed and ascent/descent rate are obtained by comparing the reported position with the positions reported during a number a nearby (earlier and later) observations that haven't been rejected in previous sweeps. An observation is rejected if a certain fraction of these estimates lie outside the valid range. Sweeps continue until one of them fails to reject any observations, i.e. the set of retained observations is self-consistent.

See TrackCheckParameters for the documentation of this filter's parameters.

Note: this filter was originally written with aircraft observations in mind. However, it can potentially be useful also for other observation types.

Definition at line 54 of file src/ufo/filters/TrackCheck.h.

Member Typedef Documentation

◆ Parameters_

typedef TrackCheckParameters ufo::TrackCheck::Parameters_

Definition at line 81 of file src/ufo/filters/TrackCheck.h.

Member Enumeration Documentation

◆ Direction

enum ufo::TrackCheck::Direction

private

Enumerator
FORWARD
BACKWARD
NUM_DIRECTIONS

Definition at line 56 of file src/ufo/filters/TrackCheck.h.

Constructor & Destructor Documentation

◆ TrackCheck()

ufo::TrackCheck::TrackCheck	(	ioda::ObsSpace &	obsdb,
		const Parameters_ &	parameters,
		std::shared_ptr< ioda::ObsDataVector< int > >	flags,
		std::shared_ptr< ioda::ObsDataVector< float > >	obserr
	)

Definition at line 97 of file TrackCheck.cc.

◆ ~TrackCheck()

ufo::TrackCheck::~TrackCheck ( )

override

Definition at line 106 of file TrackCheck.cc.

Member Function Documentation

◆ applyFilter()

void ufo::TrackCheck::applyFilter	(	const std::vector< bool > &	apply,
		const Variables &	filtervars,
		std::vector< std::vector< bool >> &	flagged
	)		const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 109 of file TrackCheck.cc.

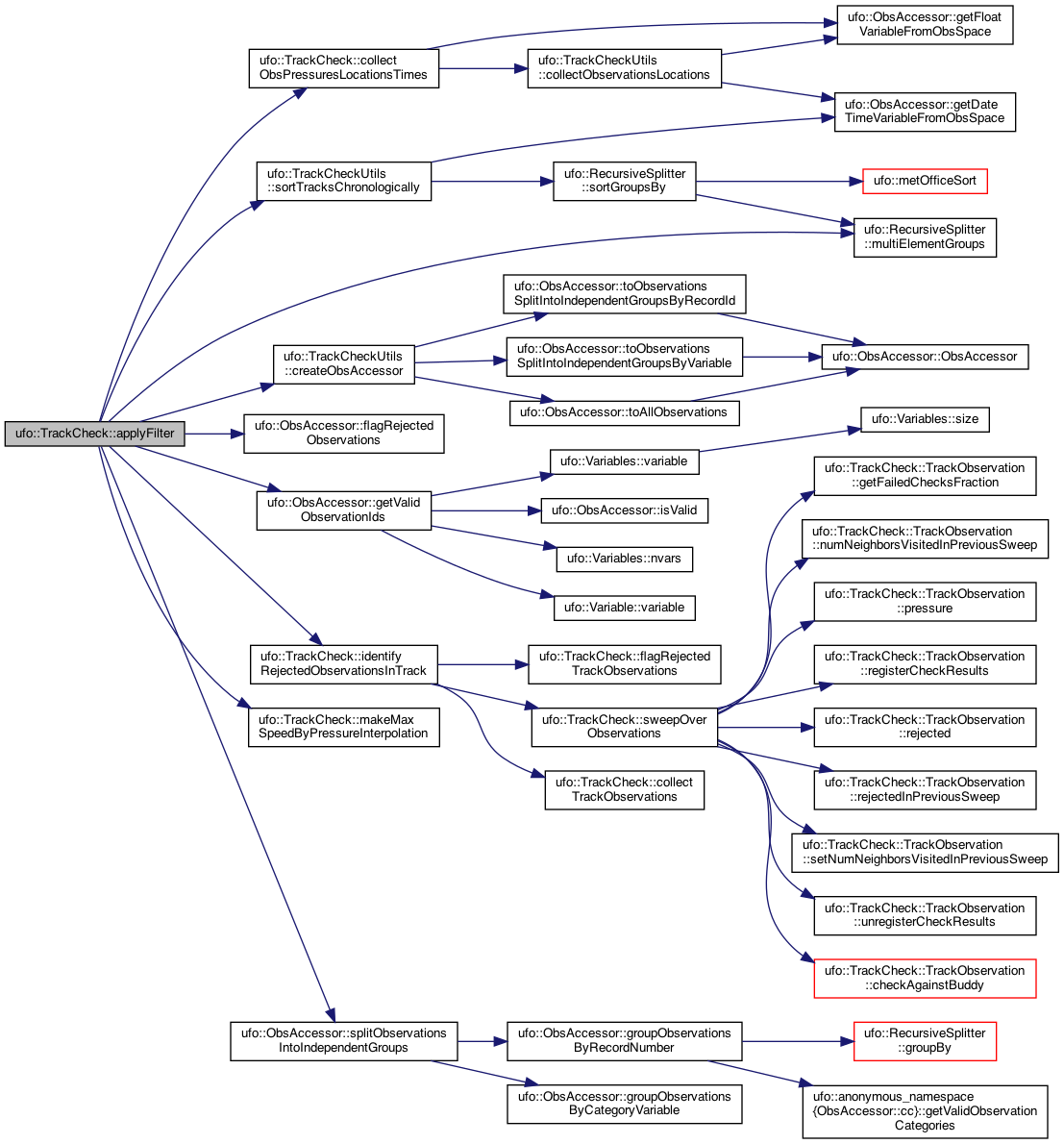

Here is the call graph for this function:

◆ classname()

static const std::string ufo::TrackCheck::classname ( )

inlinestatic

Definition at line 83 of file src/ufo/filters/TrackCheck.h.

◆ collectObsPressuresLocationsTimes()

TrackCheck::ObsGroupPressureLocationTime ufo::TrackCheck::collectObsPressuresLocationsTimes ( const ObsAccessor & obsAccessor ) const

private

Definition at line 131 of file TrackCheck.cc.

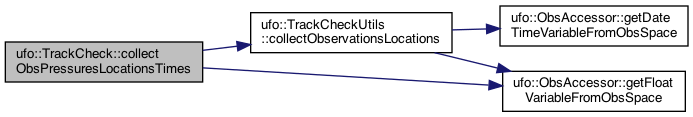

Here is the call graph for this function:

Here is the caller graph for this function:

◆ collectTrackObservations()

std::vector< TrackCheck::TrackObservation > ufo::TrackCheck::collectTrackObservations	(	std::vector< size_t >::const_iterator	trackObsIndicesBegin,
		std::vector< size_t >::const_iterator	trackObsIndicesEnd,
		const std::vector< size_t > &	validObsIds,
		const ObsGroupPressureLocationTime &	obsPressureLoc
	)		const

private

Definition at line 179 of file TrackCheck.cc.

Here is the caller graph for this function:

◆ createObsAccessor()

ObsAccessor ufo::TrackCheck::createObsAccessor ( ) const

private

◆ flagRejectedTrackObservations()

void ufo::TrackCheck::flagRejectedTrackObservations	(	std::vector< size_t >::const_iterator	trackObsIndicesBegin,
		std::vector< size_t >::const_iterator	trackObsIndicesEnd,
		const std::vector< size_t > &	validObsIds,
		const std::vector< TrackObservation > &	trackObservations,
		std::vector< bool > &	isRejected
	)		const

private

Definition at line 279 of file TrackCheck.cc.

Here is the caller graph for this function:

◆ identifyRejectedObservationsInTrack()

void ufo::TrackCheck::identifyRejectedObservationsInTrack	(	std::vector< size_t >::const_iterator	trackObsIndicesBegin,
		std::vector< size_t >::const_iterator	trackObsIndicesEnd,
		const std::vector< size_t > &	validObsIds,
		const ObsGroupPressureLocationTime &	obsPressureLoc,
		const PiecewiseLinearInterpolation &	maxSpeedByPressure,
		std::vector< bool > &	isRejected
	)		const

private

Definition at line 158 of file TrackCheck.cc.

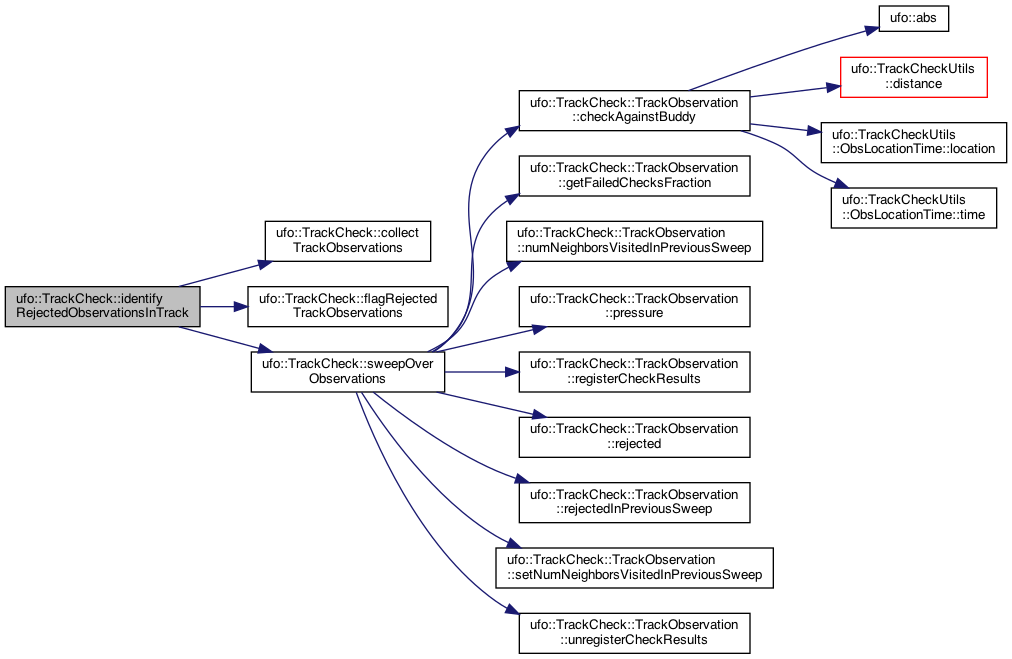

Here is the call graph for this function:

Here is the caller graph for this function:

◆ makeMaxSpeedByPressureInterpolation()

PiecewiseLinearInterpolation ufo::TrackCheck::makeMaxSpeedByPressureInterpolation ( ) const

private

Returns an interpolator mapping pressures (in Pa) to maximum accepted speeds (in km/s).

Definition at line 139 of file TrackCheck.cc.

Here is the caller graph for this function:

◆ print()

void ufo::TrackCheck::print ( std::ostream & os ) const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 292 of file TrackCheck.cc.

◆ qcFlag()

int ufo::TrackCheck::qcFlag ( ) const

inlineoverrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 150 of file src/ufo/filters/TrackCheck.h.

◆ sweepOverObservations()

TrackCheckUtils::SweepResult ufo::TrackCheck::sweepOverObservations	(	std::vector< TrackObservation > &	trackObservations,
		const PiecewiseLinearInterpolation &	maxValidSpeedAtPressure,
		std::vector< float > &	workspace
	)		const

private

Iterate once over all observations in trackObservations, rejecting those inconsistent with nearby observations.

Parameters

[in,out]	trackObservations	Attributes of all observations in a track. Modified in place.
[in]	Dependence	of the expected maximum speed on air pressure (and thus height).
[in,out]	workspace	A vector used internally by the function, passed by parameter to avoid repeated memory allocations and deallocations.

Definition at line 197 of file TrackCheck.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ NO_PREVIOUS_SWEEP

const int ufo::TrackCheck::NO_PREVIOUS_SWEEP = -1

staticprivate

Definition at line 70 of file src/ufo/filters/TrackCheck.h.

◆ options_

Parameters_ ufo::TrackCheck::options_

private

Definition at line 187 of file src/ufo/filters/TrackCheck.h.

The documentation for this class was generated from the following files:
