Represents a partition of a sphere into a number of subsets (bins). More...

#include <SpatialBinSelector.h>

Collaboration diagram for ufo::SpatialBinSelector:

Public Types
typedef float	ValueType

typedef int	IndexType

Public Member Functions
	SpatialBinSelector (IndexType numLatitudeBins, SpatialBinCountRoundingMode roundingMode, bool metOfficeOpsCompatibilityMode=false)
	Partition a sphere into bins whose centers lie on a reduced Gaussian grid. More...

	SpatialBinSelector (IndexType numLatitudeBins, IndexType numLongitudeBins, bool metOfficeOpsCompatibilityMode=false)
	Partition a sphere into bins whose centers lie on a regular Gaussian grid. More...

IndexType	latitudeBin (ValueType latitude) const
	Return the index of the zonal band of bins containing points with a given latitude (in degrees, assumed to lie in the interval [-90, 90]). More...

IndexType	longitudeBin (IndexType latitudeBin, ValueType longitude) const
	Return the index of the bin within the zonal band of index `latitudeBin` containing points with a given longitude (in degrees). More...

ValueType	latitudeBinCenter (IndexType latitudeBin) const
	Return the latitude at the center of the zonal band of bins with index `latitudeBin`. More...

ValueType	longitudeBinCenter (IndexType latitudeBin, IndexType longitudeBin) const
	Return the longitude at the center of the bin with index `latitudeBin` lying in the zonal band of bins with index `latitudeBin`. More...

IndexType	totalNumBins () const
	Return the number of bins into which the sphere is split. More...

ValueType	latitudeBinWidth () const
	Return the width of each zonal band of bins. More...

ValueType	longitudeBinWidth (IndexType latitudeBin) const
	Return the zonal width of each bin in the band of bins with index `latitudeBin`. More...

ValueType	inverseLatitudeBinWidth () const
	Return the inverse of the width of each zonal band of bins. More...

ValueType	inverseLongitudeBinWidth (IndexType latitudeBin) const
	Return the inverse of the zonal width of each bin in the band of bins with index `latitudeBin`. More...

Static Public Member Functions
static IndexType	roundNumBins (float idealNumBins, SpatialBinCountRoundingMode roundingMode)
	Return `idealNumBins` rounded to a positive integer according to the rounding strategy `roundingMode`. More...

Private Attributes
bool	metOfficeOpsCompatibilityMode_

TruncatingEquispacedBinSelector	latitudeBinSelector_

std::vector< TruncatingEquispacedBinSelector >	longitudeBinSelectors_

Static Private Attributes
static constexpr ValueType	latitudeLowerBound_ = -90

static constexpr ValueType	latitudeUpperBound_ = 90

static constexpr ValueType	longitudeLowerBound_ = 0

static constexpr ValueType	longitudeUpperBound_ = 360

static constexpr ValueType	opsCompatibilityModeLongitudeLowerBound_ = -360

static constexpr ValueType	opsCompatibilityModeLongitudeUpperBound_ = 720

static constexpr int	opsCompatibilityModeRelativeLongitudeRange_ = 3

Detailed Description

Represents a partition of a sphere into a number of subsets (bins).

Definition at line 25 of file SpatialBinSelector.h.

Member Typedef Documentation

◆ IndexType

typedef int ufo::SpatialBinSelector::IndexType

Definition at line 29 of file SpatialBinSelector.h.

◆ ValueType

typedef float ufo::SpatialBinSelector::ValueType

Definition at line 28 of file SpatialBinSelector.h.

Constructor & Destructor Documentation

◆ SpatialBinSelector() [1/2]

ufo::SpatialBinSelector::SpatialBinSelector	(	IndexType	numLatitudeBins,
		SpatialBinCountRoundingMode	roundingMode,
		bool	metOfficeOpsCompatibilityMode = `false`
	)

Partition a sphere into bins whose centers lie on a reduced Gaussian grid.

Parameters

numLatitudeBins	The number of zonal bands of bins into which the sphere is split.
roundingMode	If set to NEAREST, the number of bins in each zonal band is chosen so that the bin width in the zonal direction is as close as possible to that in the meridional direction. If set to DOWN, the number of bins is chosen so that the bin width in the zonal direction is as small as possible, but no smaller than in the meridional direction.
metOfficeOpsCompatibilityMode	If true, the compatibility mode with the Met Office OPS system will be activated. This will stop longitudeBin() from clamping longitudes to the interval [0, 360] deg.

Activation of this mode in new code is discouraged; even if input longitudes are e.g. in the range [-180, 180] deg, it is normally better to wrap them to the [0, 360] deg range before passing them to longitudeBin(). Otherwise there's a risk that points lying exactly at -180 or 180 deg will be put into a bin of their own.

Definition at line 18 of file SpatialBinSelector.cc.

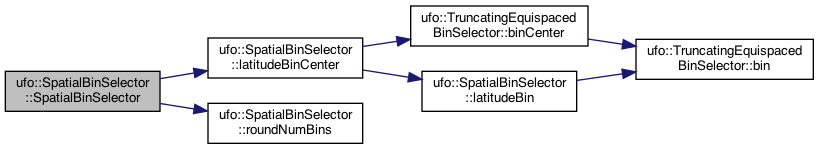

Here is the call graph for this function:

◆ SpatialBinSelector() [2/2]

ufo::SpatialBinSelector::SpatialBinSelector	(	IndexType	numLatitudeBins,
		IndexType	numLongitudeBins,
		bool	metOfficeOpsCompatibilityMode = `false`
	)

Partition a sphere into bins whose centers lie on a regular Gaussian grid.

Parameters

numLatitudeBins	The number of zonal bands of bins into which the sphere is split.
numLongitudeBins	The number of meridional bands of bins into which the sphere is split.

Definition at line 45 of file SpatialBinSelector.cc.

Member Function Documentation

◆ inverseLatitudeBinWidth()

ValueType ufo::SpatialBinSelector::inverseLatitudeBinWidth ( ) const

inline

Return the inverse of the width of each zonal band of bins.

Definition at line 110 of file SpatialBinSelector.h.

Here is the call graph for this function:

◆ inverseLongitudeBinWidth()

ValueType ufo::SpatialBinSelector::inverseLongitudeBinWidth ( IndexType latitudeBin ) const

inline

Return the inverse of the zonal width of each bin in the band of bins with index latitudeBin.

Definition at line 116 of file SpatialBinSelector.h.

Here is the call graph for this function:

◆ latitudeBin()

IndexType ufo::SpatialBinSelector::latitudeBin ( ValueType latitude ) const

inline

Return the index of the zonal band of bins containing points with a given latitude (in degrees, assumed to lie in the interval [-90, 90]).

Definition at line 72 of file SpatialBinSelector.h.

Here is the call graph for this function:

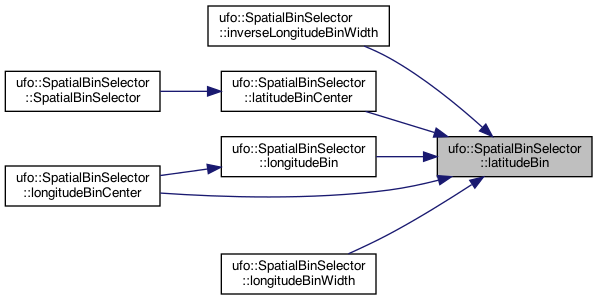

Here is the caller graph for this function:

◆ latitudeBinCenter()

ValueType ufo::SpatialBinSelector::latitudeBinCenter ( IndexType latitudeBin ) const

inline

Return the latitude at the center of the zonal band of bins with index latitudeBin.

Definition at line 86 of file SpatialBinSelector.h.

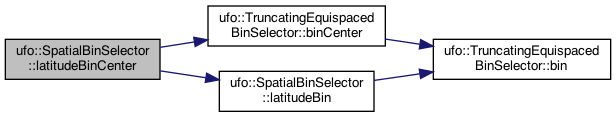

Here is the call graph for this function:

Here is the caller graph for this function:

◆ latitudeBinWidth()

ValueType ufo::SpatialBinSelector::latitudeBinWidth ( ) const

inline

Return the width of each zonal band of bins.

Definition at line 100 of file SpatialBinSelector.h.

Here is the call graph for this function:

◆ longitudeBin()

IndexType ufo::SpatialBinSelector::longitudeBin	(	IndexType	latitudeBin,
		ValueType	longitude
	)		const

inline

Return the index of the bin within the zonal band of index latitudeBin containing points with a given longitude (in degrees).

The longitude is assumed to lie in the interval [0, 360] unless the compatibility mode with the Met Office OPS system is in effect.

Definition at line 81 of file SpatialBinSelector.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ longitudeBinCenter()

ValueType ufo::SpatialBinSelector::longitudeBinCenter	(	IndexType	latitudeBin,
		IndexType	longitudeBin
	)		const

inline

Return the longitude at the center of the bin with index latitudeBin lying in the zonal band of bins with index latitudeBin.

Definition at line 92 of file SpatialBinSelector.h.

Here is the call graph for this function:

◆ longitudeBinWidth()

ValueType ufo::SpatialBinSelector::longitudeBinWidth ( IndexType latitudeBin ) const

inline

Return the zonal width of each bin in the band of bins with index latitudeBin.

Definition at line 105 of file SpatialBinSelector.h.

Here is the call graph for this function:

◆ roundNumBins()

SpatialBinSelector::IndexType ufo::SpatialBinSelector::roundNumBins	(	float	idealNumBins,
		SpatialBinCountRoundingMode	roundingMode
	)

static

Return idealNumBins rounded to a positive integer according to the rounding strategy roundingMode.

Definition at line 70 of file SpatialBinSelector.cc.

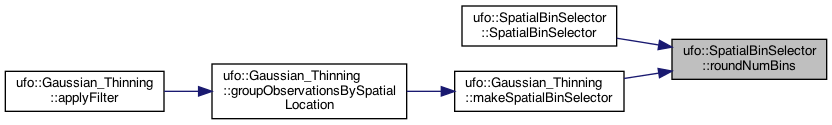

Here is the caller graph for this function:

◆ totalNumBins()

SpatialBinSelector::IndexType ufo::SpatialBinSelector::totalNumBins ( ) const

Return the number of bins into which the sphere is split.

Definition at line 61 of file SpatialBinSelector.cc.

Member Data Documentation

◆ latitudeBinSelector_

TruncatingEquispacedBinSelector ufo::SpatialBinSelector::latitudeBinSelector_

private

Definition at line 126 of file SpatialBinSelector.h.

◆ latitudeLowerBound_

constexpr ValueType ufo::SpatialBinSelector::latitudeLowerBound_ = -90

staticconstexprprivate

Definition at line 32 of file SpatialBinSelector.h.

◆ latitudeUpperBound_

constexpr ValueType ufo::SpatialBinSelector::latitudeUpperBound_ = 90

staticconstexprprivate

Definition at line 33 of file SpatialBinSelector.h.

◆ longitudeBinSelectors_

std::vector<TruncatingEquispacedBinSelector> ufo::SpatialBinSelector::longitudeBinSelectors_

private

Definition at line 127 of file SpatialBinSelector.h.

◆ longitudeLowerBound_

constexpr ValueType ufo::SpatialBinSelector::longitudeLowerBound_ = 0

staticconstexprprivate

Definition at line 34 of file SpatialBinSelector.h.

◆ longitudeUpperBound_

constexpr ValueType ufo::SpatialBinSelector::longitudeUpperBound_ = 360

staticconstexprprivate

Definition at line 35 of file SpatialBinSelector.h.

◆ metOfficeOpsCompatibilityMode_

bool ufo::SpatialBinSelector::metOfficeOpsCompatibilityMode_

private

Definition at line 125 of file SpatialBinSelector.h.

◆ opsCompatibilityModeLongitudeLowerBound_

constexpr ValueType ufo::SpatialBinSelector::opsCompatibilityModeLongitudeLowerBound_ = -360

staticconstexprprivate

Definition at line 36 of file SpatialBinSelector.h.

◆ opsCompatibilityModeLongitudeUpperBound_

constexpr ValueType ufo::SpatialBinSelector::opsCompatibilityModeLongitudeUpperBound_ = 720

staticconstexprprivate

Definition at line 37 of file SpatialBinSelector.h.

◆ opsCompatibilityModeRelativeLongitudeRange_

constexpr int ufo::SpatialBinSelector::opsCompatibilityModeRelativeLongitudeRange_ = 3

staticconstexprprivate

Definition at line 38 of file SpatialBinSelector.h.

The documentation for this class was generated from the following files:
