ufo::ObsCoolSkinTLAD Class Reference

ADT for observation operator TL and AD class. More...

#include <ObsCoolSkinTLAD.h>

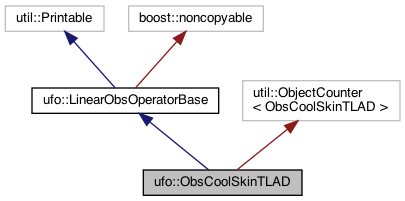

Inheritance diagram for ufo::ObsCoolSkinTLAD:

Collaboration diagram for ufo::ObsCoolSkinTLAD:

Public Member Functions
	ObsCoolSkinTLAD (const ioda::ObsSpace &, const eckit::Configuration &)
virtual	~ObsCoolSkinTLAD ()
void	setTrajectory (const GeoVaLs &, ObsDiagnostics &) override
	Obs Operator. More...
void	simulateObsTL (const GeoVaLs &, ioda::ObsVector &) const override
void	simulateObsAD (GeoVaLs &, const ioda::ObsVector &) const override
const oops::Variables &	requiredVars () const override
	Operator input required from Model. More...
int &	toFortran ()
const int &	toFortran () const
Public Member Functions inherited from ufo::LinearObsOperatorBase
	LinearObsOperatorBase (const ioda::ObsSpace &odb)
virtual	~LinearObsOperatorBase ()
virtual oops::Variables	simulatedVars () const
	List of variables simulated by this operator. More...
const ioda::ObsSpace &	obsspace () const
	The space containing the observations to be simulated by this operator. More...

Static Public Member Functions
static const std::string	classname ()

Private Member Functions
void	print (std::ostream &) const override

Private Attributes
F90hop	keyOper_
std::unique_ptr< const oops::Variables >	varin_

Detailed Description

ADT for observation operator TL and AD class.

Definition at line 37 of file ObsCoolSkinTLAD.h.

Constructor & Destructor Documentation

ObsCoolSkinTLAD()

ufo::ObsCoolSkinTLAD::ObsCoolSkinTLAD	(	const ioda::ObsSpace &	odb,
		const eckit::Configuration &	config
	)

Definition at line 26 of file ObsCoolSkinTLAD.cc.

Here is the call graph for this function:

~ObsCoolSkinTLAD()

ufo::ObsCoolSkinTLAD::~ObsCoolSkinTLAD ( )

virtual

Definition at line 42 of file ObsCoolSkinTLAD.cc.

Here is the call graph for this function:

Member Function Documentation

classname()

static const std::string ufo::ObsCoolSkinTLAD::classname ( )

inlinestatic

Definition at line 40 of file ObsCoolSkinTLAD.h.

print()

void ufo::ObsCoolSkinTLAD::print ( std::ostream &  os ) const

overrideprivatevirtual

Implements ufo::LinearObsOperatorBase.

Definition at line 72 of file ObsCoolSkinTLAD.cc.

requiredVars()

const oops::Variables& ufo::ObsCoolSkinTLAD::requiredVars ( ) const

inlineoverridevirtual

Operator input required from Model.

Implements ufo::LinearObsOperatorBase.

Definition at line 51 of file ObsCoolSkinTLAD.h.

setTrajectory()

void ufo::ObsCoolSkinTLAD::setTrajectory ( const GeoVaLs &  , ObsDiagnostics &    )

overridevirtual

Obs Operator.

Implements ufo::LinearObsOperatorBase.

Definition at line 49 of file ObsCoolSkinTLAD.cc.

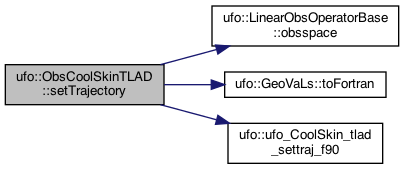

Here is the call graph for this function:

simulateObsAD()

void ufo::ObsCoolSkinTLAD::simulateObsAD ( GeoVaLs &  geovals, const ioda::ObsVector &  ovec  ) const

overridevirtual

Implements ufo::LinearObsOperatorBase.

Definition at line 64 of file ObsCoolSkinTLAD.cc.

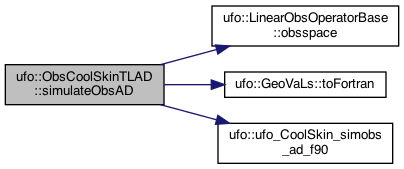

Here is the call graph for this function:

simulateObsTL()

void ufo::ObsCoolSkinTLAD::simulateObsTL ( const GeoVaLs &  geovals, ioda::ObsVector &  ovec  ) const

overridevirtual

Implements ufo::LinearObsOperatorBase.

Definition at line 56 of file ObsCoolSkinTLAD.cc.

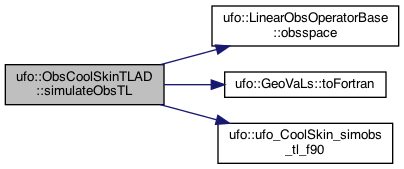

Here is the call graph for this function:

toFortran() [1/2]

int& ufo::ObsCoolSkinTLAD::toFortran ( )

inline

Definition at line 53 of file ObsCoolSkinTLAD.h.

toFortran() [2/2]

const int& ufo::ObsCoolSkinTLAD::toFortran ( ) const

inline

Definition at line 54 of file ObsCoolSkinTLAD.h.

Member Data Documentation

keyOper_

F90hop ufo::ObsCoolSkinTLAD::keyOper_

private

Definition at line 58 of file ObsCoolSkinTLAD.h.

varin_

std::unique_ptr<const oops::Variables> ufo::ObsCoolSkinTLAD::varin_

private

Definition at line 59 of file ObsCoolSkinTLAD.h.

---

The documentation for this class was generated from the following files:

• ObsCoolSkinTLAD.h
• ObsCoolSkinTLAD.cc
