UFO
|
#include <LinearObsOperatorBase.h>
Public Member Functions | |
LinearObsOperatorBase (const ioda::ObsSpace &odb) | |
virtual | ~LinearObsOperatorBase () |
virtual void | setTrajectory (const GeoVaLs &, ObsDiagnostics &)=0 |
Obs Operator. More... | |
virtual void | simulateObsTL (const GeoVaLs &, ioda::ObsVector &) const =0 |
virtual void | simulateObsAD (GeoVaLs &, const ioda::ObsVector &) const =0 |
virtual const oops::Variables & | requiredVars () const =0 |
Operator input required from Model. More... | |
virtual oops::Variables | simulatedVars () const |
List of variables simulated by this operator. More... | |
const ioda::ObsSpace & | obsspace () const |
The space containing the observations to be simulated by this operator. More... | |
Private Member Functions | |
virtual void | print (std::ostream &) const =0 |
Private Attributes | |
const ioda::ObsSpace & | odb_ |
Base class for linear observation operators
Note: subclasses can opt to extract their settings either from a Configuration object or from a subclass of ObsOperatorParametersBase.
In the former case, they should provide a constructor with the following signature:
SubclassName(const ioda::ObsSpace &, const eckit::Configuration &);
In the latter case, the implementer should first define a subclass of ObsOperatorParametersBase holding the settings of the operator in question. The LinearObsOperatorBase subclass should then typedef Parameters_
to the name of the ObsOperatorParametersBase subclass and provide a constructor with the following signature:
SubclassName(const ioda::ObsSpace &, const Parameters_ &);
Definition at line 54 of file LinearObsOperatorBase.h.
|
inlineexplicit |
Definition at line 57 of file LinearObsOperatorBase.h.
|
inlinevirtual |
Definition at line 59 of file LinearObsOperatorBase.h.
|
inline |
The space containing the observations to be simulated by this operator.
Definition at line 75 of file LinearObsOperatorBase.h.
|
privatepure virtual |

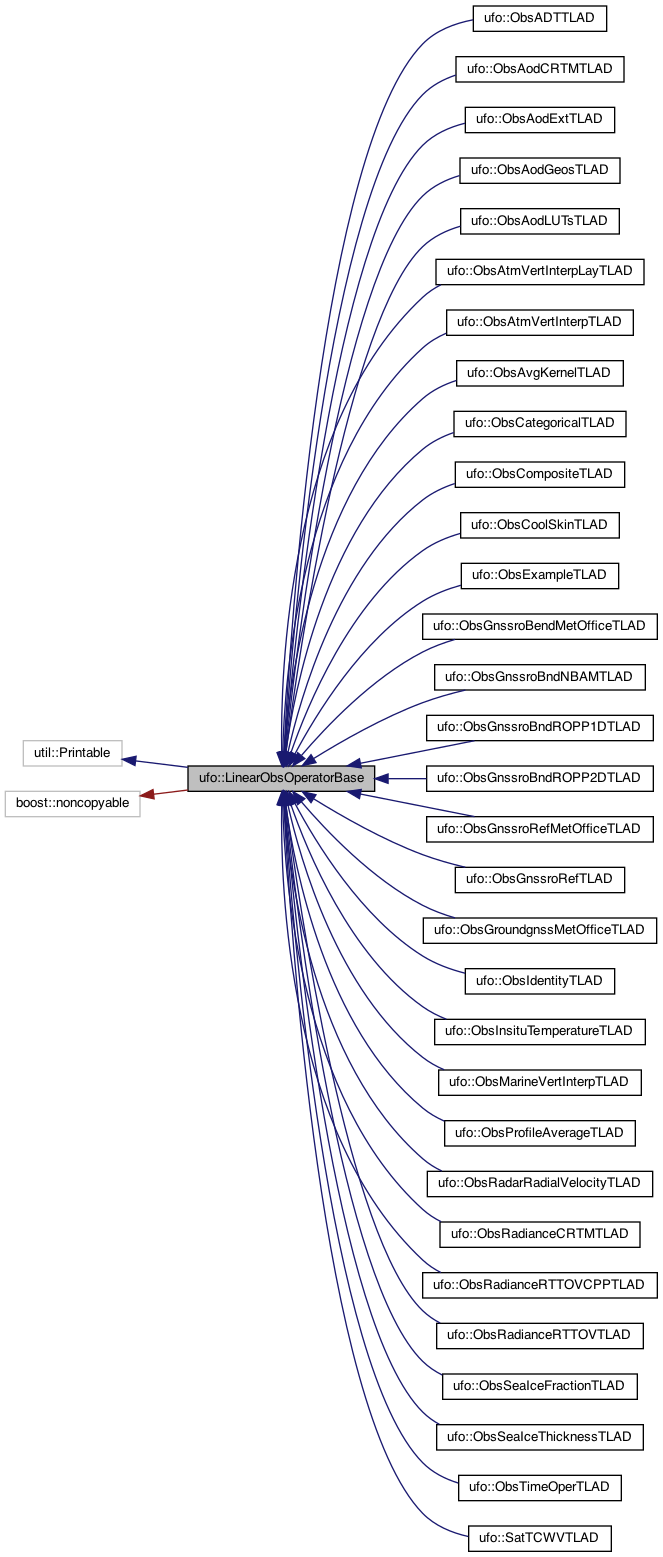

Implemented in ufo::ObsExampleTLAD, ufo::ObsTimeOperTLAD, ufo::SatTCWVTLAD, ufo::ObsRadianceRTTOVCPPTLAD, ufo::ObsRadianceRTTOVTLAD, ufo::ObsRadarRadialVelocityTLAD, ufo::ObsProfileAverageTLAD, ufo::ObsSeaIceThicknessTLAD, ufo::ObsSeaIceFractionTLAD, ufo::ObsMarineVertInterpTLAD, ufo::ObsInsituTemperatureTLAD, ufo::ObsCoolSkinTLAD, ufo::ObsADTTLAD, ufo::ObsIdentityTLAD, ufo::ObsGroundgnssMetOfficeTLAD, ufo::ObsGnssroRefTLAD, ufo::ObsGnssroRefMetOfficeTLAD, ufo::ObsGnssroBndROPP2DTLAD, ufo::ObsGnssroBndROPP1DTLAD, ufo::ObsGnssroBndNBAMTLAD, ufo::ObsGnssroBendMetOfficeTLAD, ufo::ObsRadianceCRTMTLAD, ufo::ObsAodLUTsTLAD, ufo::ObsAodCRTMTLAD, ufo::ObsCompositeTLAD, ufo::ObsCategoricalTLAD, ufo::ObsAvgKernelTLAD, ufo::ObsAtmVertInterpLayTLAD, ufo::ObsAtmVertInterpTLAD, ufo::ObsAodGeosTLAD, and ufo::ObsAodExtTLAD.
|
pure virtual |
Operator input required from Model.
Implemented in ufo::ObsExampleTLAD, ufo::ObsTimeOperTLAD, ufo::SatTCWVTLAD, ufo::ObsRadianceRTTOVCPPTLAD, ufo::ObsRadianceRTTOVTLAD, ufo::ObsRadarRadialVelocityTLAD, ufo::ObsProfileAverageTLAD, ufo::ObsSeaIceThicknessTLAD, ufo::ObsSeaIceFractionTLAD, ufo::ObsMarineVertInterpTLAD, ufo::ObsInsituTemperatureTLAD, ufo::ObsCoolSkinTLAD, ufo::ObsADTTLAD, ufo::ObsIdentityTLAD, ufo::ObsGroundgnssMetOfficeTLAD, ufo::ObsGnssroRefTLAD, ufo::ObsGnssroRefMetOfficeTLAD, ufo::ObsGnssroBndROPP2DTLAD, ufo::ObsGnssroBndROPP1DTLAD, ufo::ObsGnssroBndNBAMTLAD, ufo::ObsGnssroBendMetOfficeTLAD, ufo::ObsRadianceCRTMTLAD, ufo::ObsAodLUTsTLAD, ufo::ObsAodCRTMTLAD, ufo::ObsCompositeTLAD, ufo::ObsCategoricalTLAD, ufo::ObsAvgKernelTLAD, ufo::ObsAtmVertInterpLayTLAD, ufo::ObsAtmVertInterpTLAD, ufo::ObsAodGeosTLAD, and ufo::ObsAodExtTLAD.
|
pure virtual |
Obs Operator.
Implemented in ufo::ObsExampleTLAD, ufo::ObsTimeOperTLAD, ufo::SatTCWVTLAD, ufo::ObsRadianceRTTOVCPPTLAD, ufo::ObsRadianceRTTOVTLAD, ufo::ObsRadarRadialVelocityTLAD, ufo::ObsProfileAverageTLAD, ufo::ObsSeaIceThicknessTLAD, ufo::ObsSeaIceFractionTLAD, ufo::ObsMarineVertInterpTLAD, ufo::ObsInsituTemperatureTLAD, ufo::ObsCoolSkinTLAD, ufo::ObsADTTLAD, ufo::ObsIdentityTLAD, ufo::ObsGroundgnssMetOfficeTLAD, ufo::ObsGnssroRefTLAD, ufo::ObsGnssroRefMetOfficeTLAD, ufo::ObsGnssroBndROPP2DTLAD, ufo::ObsGnssroBndROPP1DTLAD, ufo::ObsGnssroBndNBAMTLAD, ufo::ObsGnssroBendMetOfficeTLAD, ufo::ObsRadianceCRTMTLAD, ufo::ObsAodLUTsTLAD, ufo::ObsAodCRTMTLAD, ufo::ObsCompositeTLAD, ufo::ObsCategoricalTLAD, ufo::ObsAvgKernelTLAD, ufo::ObsAtmVertInterpLayTLAD, ufo::ObsAtmVertInterpTLAD, ufo::ObsAodGeosTLAD, and ufo::ObsAodExtTLAD.
|
virtual |
List of variables simulated by this operator.
The default implementation returns the list of all simulated variables in the ObsSpace.
Reimplemented in ufo::ObsProfileAverageTLAD, ufo::ObsIdentityTLAD, ufo::ObsCompositeTLAD, and ufo::ObsAtmVertInterpTLAD.
Definition at line 20 of file LinearObsOperatorBase.cc.
|
pure virtual |
Implemented in ufo::ObsExampleTLAD, ufo::ObsTimeOperTLAD, ufo::SatTCWVTLAD, ufo::ObsRadianceRTTOVCPPTLAD, ufo::ObsRadianceRTTOVTLAD, ufo::ObsRadarRadialVelocityTLAD, ufo::ObsProfileAverageTLAD, ufo::ObsSeaIceThicknessTLAD, ufo::ObsSeaIceFractionTLAD, ufo::ObsMarineVertInterpTLAD, ufo::ObsInsituTemperatureTLAD, ufo::ObsCoolSkinTLAD, ufo::ObsADTTLAD, ufo::ObsIdentityTLAD, ufo::ObsGroundgnssMetOfficeTLAD, ufo::ObsGnssroRefTLAD, ufo::ObsGnssroRefMetOfficeTLAD, ufo::ObsGnssroBndROPP2DTLAD, ufo::ObsGnssroBndROPP1DTLAD, ufo::ObsGnssroBndNBAMTLAD, ufo::ObsGnssroBendMetOfficeTLAD, ufo::ObsRadianceCRTMTLAD, ufo::ObsAodLUTsTLAD, ufo::ObsAodCRTMTLAD, ufo::ObsCompositeTLAD, ufo::ObsCategoricalTLAD, ufo::ObsAvgKernelTLAD, ufo::ObsAtmVertInterpLayTLAD, ufo::ObsAtmVertInterpTLAD, ufo::ObsAodGeosTLAD, and ufo::ObsAodExtTLAD.
|
pure virtual |
Implemented in ufo::ObsExampleTLAD, ufo::ObsTimeOperTLAD, ufo::SatTCWVTLAD, ufo::ObsRadianceRTTOVCPPTLAD, ufo::ObsRadianceRTTOVTLAD, ufo::ObsRadarRadialVelocityTLAD, ufo::ObsProfileAverageTLAD, ufo::ObsSeaIceThicknessTLAD, ufo::ObsSeaIceFractionTLAD, ufo::ObsMarineVertInterpTLAD, ufo::ObsInsituTemperatureTLAD, ufo::ObsCoolSkinTLAD, ufo::ObsADTTLAD, ufo::ObsIdentityTLAD, ufo::ObsGroundgnssMetOfficeTLAD, ufo::ObsGnssroRefTLAD, ufo::ObsGnssroRefMetOfficeTLAD, ufo::ObsGnssroBndROPP2DTLAD, ufo::ObsGnssroBndROPP1DTLAD, ufo::ObsGnssroBndNBAMTLAD, ufo::ObsGnssroBendMetOfficeTLAD, ufo::ObsRadianceCRTMTLAD, ufo::ObsAodLUTsTLAD, ufo::ObsAodCRTMTLAD, ufo::ObsCompositeTLAD, ufo::ObsCategoricalTLAD, ufo::ObsAvgKernelTLAD, ufo::ObsAtmVertInterpLayTLAD, ufo::ObsAtmVertInterpTLAD, ufo::ObsAodGeosTLAD, and ufo::ObsAodExtTLAD.
|
private |
Definition at line 81 of file LinearObsOperatorBase.h.
