Finds pairs of close observations ("buddies") to check against each other. More...

#include <MetOfficeBuddyPairFinder.h>

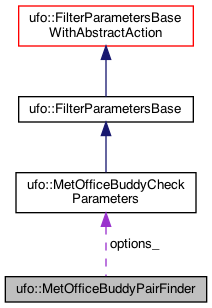

Collaboration diagram for ufo::MetOfficeBuddyPairFinder:

[legend]

Public Member Functions
	MetOfficeBuddyPairFinder (const MetOfficeBuddyCheckParameters &options, const std::vector< float > &latitudes, const std::vector< float > &longitudes, const std::vector< util::DateTime > &datetimes, const std::vector< float > *pressures, const std::vector< int > &stationIds)
	Constructor. More...

std::vector< MetOfficeBuddyPair >	findBuddyPairs (const std::vector< size_t > &validObsIds)
	Returns a list of MetOfficeBuddyPair objects representing pairs of "buddy" observations that should be checked against each other. More...

Private Member Functions
void	sortObservations (const std::vector< size_t > &validObsIds, std::vector< int > &validObsIdsInSortOrder, std::vector< int > &bandLbounds)
	Sorts observations in an order facilitating rapid search for buddies. More...

std::vector< MetOfficeBuddyPair >	pairObservations (const std::vector< int > &validObsIdsInSortOrder, const std::vector< int > &bandLbounds)
	Finds pairs of observations to be considered as buddies. Calculates the distance and mutual orientation of each pair of buddies. More...

std::unique_ptr< MetOfficeBuddyCollector >	makeBuddyCollector () const

float	getLongitudeSearchRangeHalfWidth (int bandIndex, float bandWidth) const

Private Attributes
const MetOfficeBuddyCheckParameters &	options_

const std::vector< float > &	latitudes_

const std::vector< float > &	longitudes_

const std::vector< util::DateTime > &	datetimes_

const std::vector< float > *	pressures_

const std::vector< int > &	stationIds_

Detailed Description

Finds pairs of close observations ("buddies") to check against each other.

Definition at line 26 of file src/ufo/filters/MetOfficeBuddyPairFinder.h.

Constructor & Destructor Documentation

◆ MetOfficeBuddyPairFinder()

ufo::MetOfficeBuddyPairFinder::MetOfficeBuddyPairFinder	(	const MetOfficeBuddyCheckParameters &	options,
		const std::vector< float > &	latitudes,
		const std::vector< float > &	longitudes,
		const std::vector< util::DateTime > &	datetimes,
		const std::vector< float > *	pressures,
		const std::vector< int > &	stationIds
	)

Constructor.

Parameters

pressures Optional – may be null.

Definition at line 30 of file MetOfficeBuddyPairFinder.cc.

Member Function Documentation

◆ findBuddyPairs()

std::vector< MetOfficeBuddyPair > ufo::MetOfficeBuddyPairFinder::findBuddyPairs ( const std::vector< size_t > & validObsIds )

Returns a list of MetOfficeBuddyPair objects representing pairs of "buddy" observations that should be checked against each other.

Definition at line 40 of file MetOfficeBuddyPairFinder.cc.

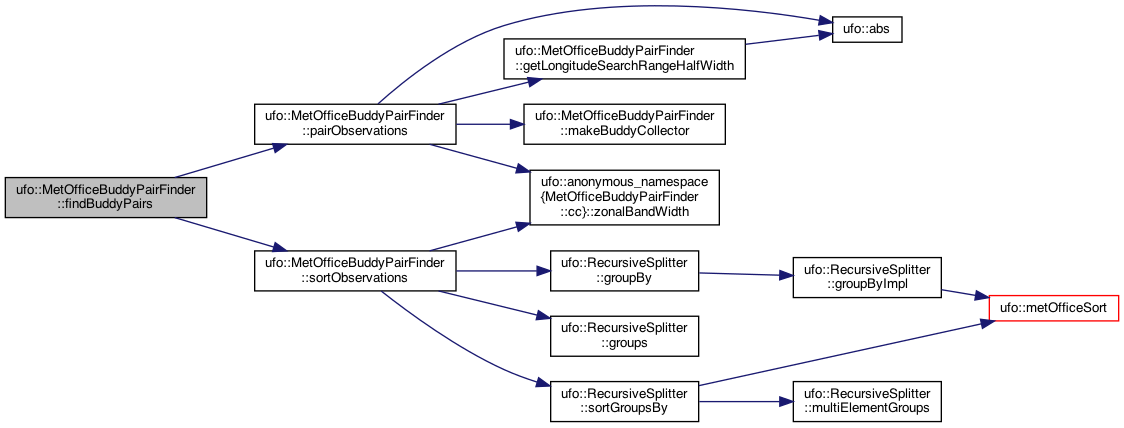

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getLongitudeSearchRangeHalfWidth()

float ufo::MetOfficeBuddyPairFinder::getLongitudeSearchRangeHalfWidth	(	int	bandIndex,
		float	bandWidth
	)		const

private

Definition at line 240 of file MetOfficeBuddyPairFinder.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ makeBuddyCollector()

std::unique_ptr< MetOfficeBuddyCollector > ufo::MetOfficeBuddyPairFinder::makeBuddyCollector ( ) const

private

Definition at line 231 of file MetOfficeBuddyPairFinder.cc.

Here is the caller graph for this function:

◆ pairObservations()

std::vector< MetOfficeBuddyPair > ufo::MetOfficeBuddyPairFinder::pairObservations	(	const std::vector< int > &	validObsIdsInSortOrder,
		const std::vector< int > &	bandLbounds
	)

private

Finds pairs of observations to be considered as buddies. Calculates the distance and mutual orientation of each pair of buddies.

See the OPS Scientific Documentation Paper 2, sections 3.4 and 3.5.

Parameters

validObsIdsInSortOrder,bandLbounds Outputs produced by sortObservations().

Returns: Vector of pairs of observations to be considered as buddies.

Definition at line 102 of file MetOfficeBuddyPairFinder.cc.

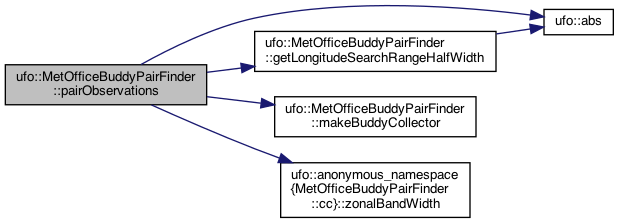

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sortObservations()

void ufo::MetOfficeBuddyPairFinder::sortObservations	(	const std::vector< size_t > &	validObsIds,
		std::vector< int > &	validObsIdsInSortOrder,
		std::vector< int > &	bandLbounds
	)

private

Sorts observations in an order facilitating rapid search for buddies.

See the OPS Scientific Documentation Paper 2, section 3.3.

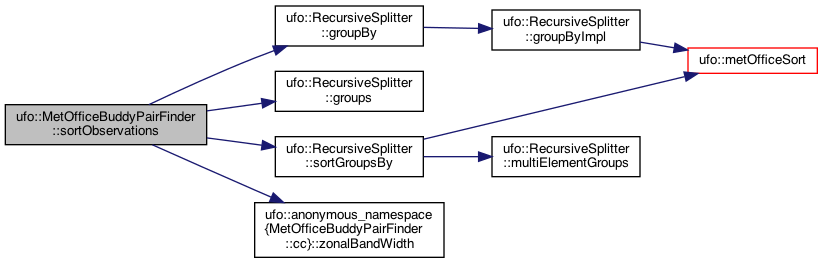

Parameters

[in]	validObsIds	IDs of valid observations.
[out]	validObsIdsInSortOrder	IDs of valid observations sorted by zonal band index, longitude, -latitude, air pressure (if available) and time.
[out]	bandLbounds	On output, a vector of length (options_.numZonalBands + 1) such that [`bandLbounds`[i], `bandLbounds`[i + 1]) is the half-open range of indices of elements of `validObsIdsInSortOrder` representing the IDs of observations from ith zonal band.
