Interface of classes used by MetOfficeBuddyPairFinder to select observations used as buddies of other observations during the buddy check. More...

#include <MetOfficeBuddyCollector.h>

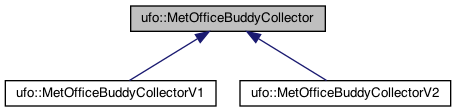

Inheritance diagram for ufo::MetOfficeBuddyCollector:

[legend]

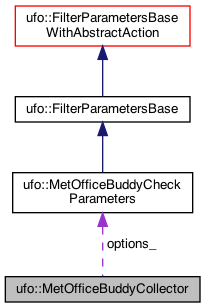

Collaboration diagram for ufo::MetOfficeBuddyCollector:

[legend]

Public Member Functions
	MetOfficeBuddyCollector (const MetOfficeBuddyCheckParameters &options, const std::vector< float > &latitudes, const std::vector< float > &longitudes, const std::vector< int > &stationIds)
	Constructor. More...

virtual	~MetOfficeBuddyCollector ()=default

	MetOfficeBuddyCollector (const MetOfficeBuddyCollector &)=delete

	MetOfficeBuddyCollector (MetOfficeBuddyCollector &&)=delete

MetOfficeBuddyCollector &	operator= (const MetOfficeBuddyCollector &)=delete

MetOfficeBuddyCollector &	operator= (MetOfficeBuddyCollector &&)=delete

virtual void	reset (int obsIdA)=0
	Prepare the object for examination of potential buddies of the observation with ID `obsIdA`. More...

virtual void	examinePotentialBuddy (int obsIdB)=0
	Check if the observation with ID `obsIdB` can be selected as a buddy of obsIdB. If so, record its ID internally. More...

void	startProcessingNextBand ()
	Called to indicate that observations passed to subsequent calls to examinePotentialBuddy() will belong to a new zonal band. More...

bool	foundEnoughBuddiesInCurrentBand () const
	Returns true if the number of observations selected as buddies of the observation passed to reset() since the last call to startProcessingNextBand() has reached the limit set by the `max_num_buddies_from_single_band` parameter. More...

bool	foundEnoughBuddies () const
	Returns true if the number of observations selected as buddies of the observation passed to reset() since the last call to startProcessingNextBand() has reached the limit set by the `max_total_num_buddies` parameter. More...

virtual void	appendBuddyPairsTo (std::vector< MetOfficeBuddyPair > &buddyPairs) const =0
	Extend `buddyPairs` with MetOfficeBuddyPair objects storing the properies of all buddy pairs found since the last call to reset(). More...

Protected Member Functions
void	calcDeltaLatLonAndDistanceTo (int obsIdB, double &deltaLatInRad, double &deltaLonInRad, double &distanceInKm) const

MetOfficeBuddyPair	createBuddyPair (int obsIdB, double deltaLatInRad, double deltaLonInRad, double distanceInKm) const

Protected Attributes
const MetOfficeBuddyCheckParameters &	options_

const std::vector< float > &	latitudes_

const std::vector< float > &	longitudes_

const std::vector< int > &	stationIds_

double	maxLatDifferenceBetweenBuddiesInDeg_

int	obsIdA_ = 0

int	numBuddiesInCurrentBand_ = 0

int	numBuddiesWithSameStationId_ = 0

int	totalNumBuddies_ = 0

Detailed Description

Interface of classes used by MetOfficeBuddyPairFinder to select observations used as buddies of other observations during the buddy check.

Definition at line 22 of file MetOfficeBuddyCollector.h.

Constructor & Destructor Documentation

◆ MetOfficeBuddyCollector() [1/3]

ufo::MetOfficeBuddyCollector::MetOfficeBuddyCollector	(	const MetOfficeBuddyCheckParameters &	options,
		const std::vector< float > &	latitudes,
		const std::vector< float > &	longitudes,
		const std::vector< int > &	stationIds
	)

Constructor.

Parameters

options	Buddy check parameters.
latitudes	Observation latitudes.
longitudes	Observation longitudes.
stationIds	IDs of stations that have collected the observations.

Definition at line 19 of file MetOfficeBuddyCollector.cc.

◆ ~MetOfficeBuddyCollector()

virtual ufo::MetOfficeBuddyCollector::~MetOfficeBuddyCollector ( )

virtualdefault

◆ MetOfficeBuddyCollector() [2/3]

ufo::MetOfficeBuddyCollector::MetOfficeBuddyCollector ( const MetOfficeBuddyCollector & )

delete

◆ MetOfficeBuddyCollector() [3/3]

ufo::MetOfficeBuddyCollector::MetOfficeBuddyCollector ( MetOfficeBuddyCollector && )

delete

Member Function Documentation

◆ appendBuddyPairsTo()

virtual void ufo::MetOfficeBuddyCollector::appendBuddyPairsTo ( std::vector< MetOfficeBuddyPair > & buddyPairs ) const

pure virtual

Extend buddyPairs with MetOfficeBuddyPair objects storing the properies of all buddy pairs found since the last call to reset().

Implemented in ufo::MetOfficeBuddyCollectorV2, and ufo::MetOfficeBuddyCollectorV1.

◆ calcDeltaLatLonAndDistanceTo()

void ufo::MetOfficeBuddyCollector::calcDeltaLatLonAndDistanceTo	(	int	obsIdB,
		double &	deltaLatInRad,
		double &	deltaLonInRad,
		double &	distanceInKm
	)		const

protected

Definition at line 30 of file MetOfficeBuddyCollector.cc.

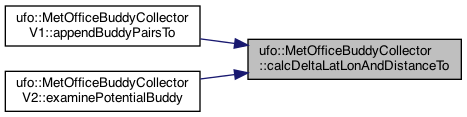

Here is the caller graph for this function:

◆ createBuddyPair()

MetOfficeBuddyPair ufo::MetOfficeBuddyCollector::createBuddyPair	(	int	obsIdB,
		double	deltaLatInRad,
		double	deltaLonInRad,
		double	distanceInKm
	)		const

protected

Definition at line 49 of file MetOfficeBuddyCollector.cc.

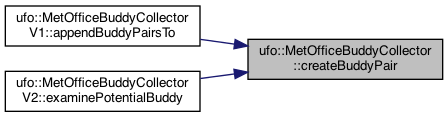

Here is the caller graph for this function:

◆ examinePotentialBuddy()

virtual void ufo::MetOfficeBuddyCollector::examinePotentialBuddy ( int obsIdB )

pure virtual

Check if the observation with ID obsIdB can be selected as a buddy of obsIdB. If so, record its ID internally.

Implemented in ufo::MetOfficeBuddyCollectorV2, and ufo::MetOfficeBuddyCollectorV1.

◆ foundEnoughBuddies()

bool ufo::MetOfficeBuddyCollector::foundEnoughBuddies ( ) const

inline

Returns true if the number of observations selected as buddies of the observation passed to reset() since the last call to startProcessingNextBand() has reached the limit set by the max_total_num_buddies parameter.

Definition at line 106 of file MetOfficeBuddyCollector.h.

◆ foundEnoughBuddiesInCurrentBand()

bool ufo::MetOfficeBuddyCollector::foundEnoughBuddiesInCurrentBand ( ) const

inline

Returns true if the number of observations selected as buddies of the observation passed to reset() since the last call to startProcessingNextBand() has reached the limit set by the max_num_buddies_from_single_band parameter.

Definition at line 101 of file MetOfficeBuddyCollector.h.

◆ operator=() [1/2]

MetOfficeBuddyCollector& ufo::MetOfficeBuddyCollector::operator= ( const MetOfficeBuddyCollector & )

delete

◆ operator=() [2/2]

MetOfficeBuddyCollector& ufo::MetOfficeBuddyCollector::operator= ( MetOfficeBuddyCollector && )

delete

◆ reset()

void ufo::MetOfficeBuddyCollector::reset ( int obsIdA )

inlinepure virtual

Prepare the object for examination of potential buddies of the observation with ID obsIdA.

Note: This function must be called before any calls to other member functions.

Implemented in ufo::MetOfficeBuddyCollectorV2, and ufo::MetOfficeBuddyCollectorV1.

Definition at line 111 of file MetOfficeBuddyCollector.h.

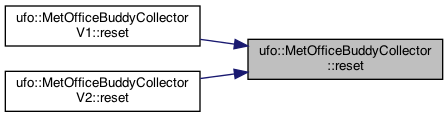

Here is the caller graph for this function:

◆ startProcessingNextBand()

void ufo::MetOfficeBuddyCollector::startProcessingNextBand ( )

inline

Called to indicate that observations passed to subsequent calls to examinePotentialBuddy() will belong to a new zonal band.

Definition at line 97 of file MetOfficeBuddyCollector.h.

Member Data Documentation

◆ latitudes_

const std::vector<float>& ufo::MetOfficeBuddyCollector::latitudes_

protected

Definition at line 86 of file MetOfficeBuddyCollector.h.

◆ longitudes_

const std::vector<float>& ufo::MetOfficeBuddyCollector::longitudes_

protected

Definition at line 87 of file MetOfficeBuddyCollector.h.

◆ maxLatDifferenceBetweenBuddiesInDeg_

double ufo::MetOfficeBuddyCollector::maxLatDifferenceBetweenBuddiesInDeg_

protected

Definition at line 89 of file MetOfficeBuddyCollector.h.

◆ numBuddiesInCurrentBand_

int ufo::MetOfficeBuddyCollector::numBuddiesInCurrentBand_ = 0

protected

Definition at line 91 of file MetOfficeBuddyCollector.h.

◆ numBuddiesWithSameStationId_

int ufo::MetOfficeBuddyCollector::numBuddiesWithSameStationId_ = 0

protected

Definition at line 92 of file MetOfficeBuddyCollector.h.

◆ obsIdA_

int ufo::MetOfficeBuddyCollector::obsIdA_ = 0

protected

Definition at line 90 of file MetOfficeBuddyCollector.h.

◆ options_

const MetOfficeBuddyCheckParameters& ufo::MetOfficeBuddyCollector::options_

protected

Definition at line 85 of file MetOfficeBuddyCollector.h.

◆ stationIds_

const std::vector<int>& ufo::MetOfficeBuddyCollector::stationIds_

protected

Definition at line 88 of file MetOfficeBuddyCollector.h.

◆ totalNumBuddies_

int ufo::MetOfficeBuddyCollector::totalNumBuddies_ = 0

protected

Definition at line 93 of file MetOfficeBuddyCollector.h.

The documentation for this class was generated from the following files:
