Layout for ObsGroup-like data. More...

#include <Layout_ObsGroup.h>

Inheritance diagram for ioda::detail::DataLayoutPolicy_ObsGroup:

Collaboration diagram for ioda::detail::DataLayoutPolicy_ObsGroup:

Public Member Functions
virtual	~DataLayoutPolicy_ObsGroup ()

void	initializeStructure (Group_Base &) const override

std::string	doMap (const std::string &) const override
	Map a user-specified Variable path to the correct location. More...

	DataLayoutPolicy_ObsGroup ()

std::string	name () const override
	A descriptive name for the policy. More...

Public Member Functions inherited from ioda::detail::DataLayoutPolicy
virtual	~DataLayoutPolicy ()

virtual bool	isComplementary (const std::string &) const
	Check if the named variable will be a part of a derived variable. More...

virtual bool	isMapped (const std::string &) const
	Check if the named variable is in the Variables section of the ODB mapping file. More...

virtual bool	isMapOutput (const std::string &) const
	Check if the named variable matches one of the output (ioda) names. More...

virtual size_t	getComplementaryPosition (const std::string &) const

virtual std::string	getOutputNameFromComponent (const std::string &) const

virtual std::type_index	getOutputVariableDataType (const std::string &) const

virtual MergeMethod	getMergeMethod (const std::string &) const

virtual size_t	getInputsNeeded (const std::string &) const

virtual std::pair< bool, std::string >	getUnit (const std::string &) const

	DataLayoutPolicy ()

Static Private Attributes
static const int32_t	ObsGroup_Layout_Version = 0
	Record versioning information for this layout in the ioda object. Provides forward compatability. More...

Additional Inherited Members
Public Types inherited from ioda::detail::DataLayoutPolicy
enum class	Policies { None , ObsGroup , ObsGroupODB }

enum class	MergeMethod { Concat }

Static Public Member Functions inherited from ioda::detail::DataLayoutPolicy
static std::shared_ptr< const DataLayoutPolicy >	generate (const std::string &polid="")
	Factory generator. More...

static std::shared_ptr< const DataLayoutPolicy >	generate (const std::string &polid, const std::string &mapPath, const std::vector< std::string > &nonODBVariables={})

static std::shared_ptr< const DataLayoutPolicy >	generate (Policies pol=Policies::None)
	Factory generator. More...

static std::shared_ptr< const DataLayoutPolicy >	generate (Policies pol, const std::string &mapPath, const std::vector< std::string > &nonODBVariables={})

static std::shared_ptr< const DataLayoutPolicy >	_py_generate1 (const std::string &polid)

static std::shared_ptr< const DataLayoutPolicy >	_py_generate2 (Policies pol)

Detailed Description

Layout for ObsGroup-like data.

Definition at line 26 of file Layout_ObsGroup.h.

Constructor & Destructor Documentation

◆ ~DataLayoutPolicy_ObsGroup()

ioda::detail::DataLayoutPolicy_ObsGroup::~DataLayoutPolicy_ObsGroup ( )

virtualdefault

◆ DataLayoutPolicy_ObsGroup()

ioda::detail::DataLayoutPolicy_ObsGroup::DataLayoutPolicy_ObsGroup ( )

default

Member Function Documentation

◆ doMap()

std::string ioda::detail::DataLayoutPolicy_ObsGroup::doMap ( const std::string & str ) const

overridevirtual

Map a user-specified Variable path to the correct location.

This allows us to keep the frontend paths consistent, and we can instead do a path transformation to hide implementation details from end users.

The default policy is to pass paths expressed with forward slashes ("MetaData/Longitude") unchanged. If we pass paths using '@' notation, then reverse the path component (i.e. "TB@ObsValue" becomes "ObsValue/TB").

Note: We can apply these policies in both the frontend and inside of the engines.

Parameters

inStr is the user-provided string. Ex: "TB@ObsValue" or "MetaData/Latitude", or even a fundamental dimension ("ChannelNumber").

Returns: A canonical path, always of the form "Group/Variable". In case of a dimension scale, then there is no group name, but for every other Variable, there is a Group name.

Reimplemented from ioda::detail::DataLayoutPolicy.

Definition at line 39 of file Layout_ObsGroup.cpp.

Here is the call graph for this function:

◆ initializeStructure()

void ioda::detail::DataLayoutPolicy_ObsGroup::initializeStructure ( Group_Base & ) const

overridevirtual

Create default groups and write default attributes upon object creation / initialization.

Reimplemented from ioda::detail::DataLayoutPolicy.

Definition at line 22 of file Layout_ObsGroup.cpp.

◆ name()

std::string ioda::detail::DataLayoutPolicy_ObsGroup::name ( ) const

overridevirtual

A descriptive name for the policy.

Reimplemented from ioda::detail::DataLayoutPolicy.

Definition at line 47 of file Layout_ObsGroup.cpp.

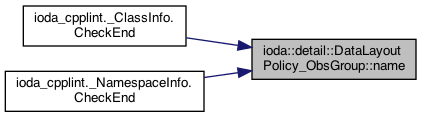

Here is the caller graph for this function:

Member Data Documentation

◆ ObsGroup_Layout_Version

const int32_t ioda::detail::DataLayoutPolicy_ObsGroup::ObsGroup_Layout_Version = 0

staticprivate

Record versioning information for this layout in the ioda object. Provides forward compatability.

Definition at line 29 of file Layout_ObsGroup.h.

The documentation for this class was generated from the following files:
