src/ufo/utils/dataextractor/DataExtractor.h File Reference

#include <array>
#include <limits>
#include <memory>
#include <string>
#include <unordered_map>
#include <vector>
#include <boost/multi_array.hpp>
#include <boost/optional.hpp>
#include <boost/variant.hpp>
#include "eckit/exception/Exceptions.h"
#include "oops/util/missingValues.h"
#include "ufo/utils/dataextractor/ConstrainedRange.h"
#include "ufo/utils/RecursiveSplitter.h"

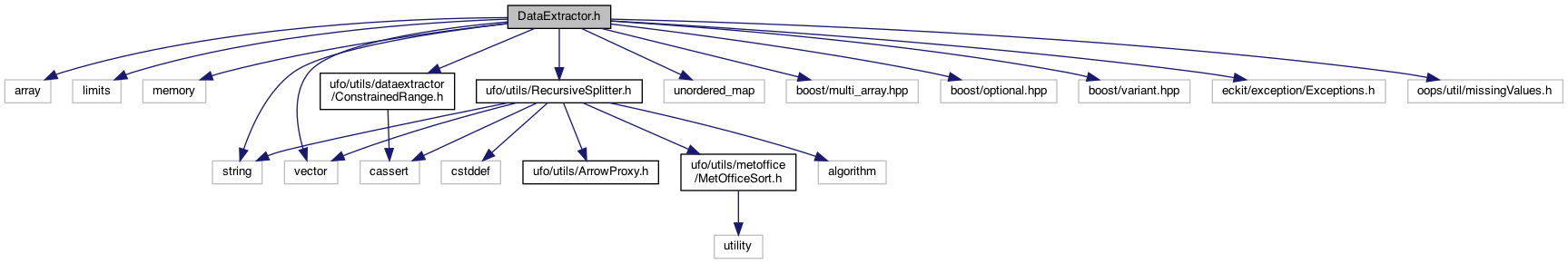

Include dependency graph for src/ufo/utils/dataextractor/DataExtractor.h:

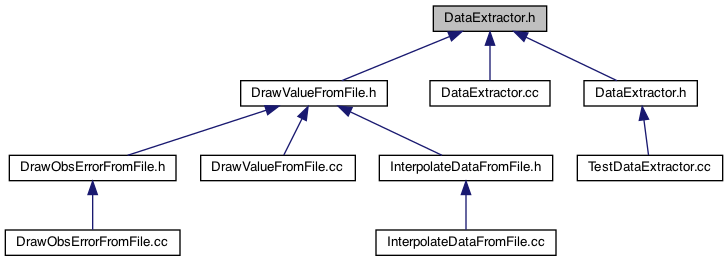

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	ufo::DataExtractor< ExtractedValue >
	This class makes it possible to extract and interpolate data loaded from a file. More...
struct	ufo::DataExtractor< ExtractedValue >::Coordinate
	Coordinate used for data extraction from the payload array. More...

Namespaces
	ioda
	Forward declarations.
	ufo

Typedefs
template<typename T >
using	ufo::DataExtractorPayload = boost::multi_array< T, 3 >

Enumerations
enum class	ufo::InterpMethod {   ufo::EXACT , ufo::NEAREST , ufo::LEAST_UPPER_BOUND , ufo::GREATEST_LOWER_BOUND ,   ufo::LINEAR , ufo::BILINEAR }
	Method used by the DataExtractor to map the value of an ObsSpace variable to a range of slices of the interpolated array along the dimension indexed by that variable. More...

Functions
template<typename T >
const DataExtractorPayload< T >::template const_array_view< 1 >::type	ufo::get1DSlice (const DataExtractorPayload< T > &array, const size_t dimIndex, const std::array< ConstrainedRange, 3 > &ranges)
	Fetch a 1D sliced view of a boost multi_array object. More...
template<typename T >
const DataExtractorPayload< T >::template const_array_view< 2 >::type	ufo::get2DSlice (const DataExtractorPayload< T > &array, const size_t dimIndex0, const size_t dimIndex1, const std::array< ConstrainedRange, 3 > &ranges)
	Fetch a 2D sliced view of a boost multi_array object. More...
template<typename T , typename R >
float	ufo::bilinearInterpolation (const std::string &varName0, const std::vector< T > &varValues0, const T &obVal0, const ConstrainedRange &range0, const std::string &varName1, const std::vector< R > &varValues1, const R &obVal1, const ConstrainedRange &range1, const DataExtractorPayload< float >::const_array_view< 2 >::type &interpolatedArray)
	Perform bilinear interpolation at 'location' at location obVal0 and obVal1, corresponding to the first and second axes. More...
template<typename T >
float	ufo::bilinearInterpolation (const std::string &varName0, const std::vector< T > &varValues0, const T &obVal0, const ConstrainedRange &range0, const std::string &varName1, const std::vector< std::string > &varValues1, const std::string &obVal1, const ConstrainedRange &range1, const DataExtractorPayload< float >::const_array_view< 2 >::type &interpolatedArray)
	Bilinear interpolation template, templated coord1, string coord2. More...
template<typename T >
float	ufo::bilinearInterpolation (const std::string &varName0, const std::vector< std::string > &varValues0, const std::string &obVal0, const ConstrainedRange &range0, const std::string &varName1, const std::vector< T > &varValues1, const T &obVal1, const ConstrainedRange &range1, const DataExtractorPayload< float >::const_array_view< 2 >::type &interpolatedArray)
	Bilinear interpolation template, string coord1, templated coord2. More...
float	ufo::bilinearInterpolation (const std::string &varName0, const std::vector< std::string > &varValues0, const std::string &obVal0, const ConstrainedRange &range0, const std::string &varName1, const std::vector< std::string > &varValues1, const std::string &obVal1, const ConstrainedRange &range1, const DataExtractorPayload< float >::const_array_view< 2 >::type &interpolatedArray)
	Bilinear interpolation template, string coord1, string coord2. More...
