ufo_utils_refractivity_calculator Module Reference
Module for containing a general refractivity forward operator and its K-matrix. More...
Functions/Subroutines | |
| subroutine, public | ufo_calculate_refractivity (nlevP, nlevq, za, zb, P, q, vert_interp_ops, pseudo_ops, min_temp_grad, refracerr, nRefLevels, refractivity, model_heights, temperature, interp_pressure) |
| Calculation of the refractivity from the pressure and specific humidity. More... | |
| subroutine, public | ufo_refractivity_kmat (nlevP, nlevq, nRefLevels, za, zb, P, q, pseudo_ops, vert_interp_ops, min_temp_grad, dref_dP, dref_dq, dPb_dP, refractivity) |
| Calculate general refractivity K matrix. More... | |
| subroutine | ufo_refractivity_partial_derivatives (nlevP, nlevq, za, zb, P, q, vert_interp_ops, dT_dTv, dT_dq, dref_dPb, dref_dT, dref_dq, refractivity, T, Pb, dEx_dP, dExtheta_dPb, dTv_dExtheta, dPb_dP_local, dTv_dEx) |
| Calculate some partial derivatives of refractivity on model levels. More... | |
Detailed Description
Module for containing a general refractivity forward operator and its K-matrix.
- Date
- 6 May 2021
Function/Subroutine Documentation
◆ ufo_calculate_refractivity()
| subroutine, public ufo_utils_refractivity_calculator::ufo_calculate_refractivity | ( | integer, intent(in) | nlevP, |
| integer, intent(in) | nlevq, | ||
| real(kind_real), dimension(nlevp), intent(in) | za, | ||
| real(kind_real), dimension(nlevq), intent(in) | zb, | ||
| real(kind_real), dimension(nlevp), intent(in) | P, | ||
| real(kind_real), dimension(nlevq), intent(in) | q, | ||
| logical, intent(in) | vert_interp_ops, | ||
| logical, intent(in) | pseudo_ops, | ||
| real(kind_real), intent(in) | min_temp_grad, | ||
| logical, intent(out) | refracerr, | ||
| integer, intent(out) | nRefLevels, | ||
| real(kind_real), dimension(:), intent(out), allocatable | refractivity, | ||
| real(kind_real), dimension(:), intent(out), allocatable | model_heights, | ||
| real(kind_real), dimension(nlevq), intent(out), optional | temperature, | ||
| real(kind_real), dimension(nlevq), intent(out), optional | interp_pressure | ||
| ) |
Calculation of the refractivity from the pressure and specific humidity.
ufo_calculate_refractivity
- Checks the inputs that the pressure is not missing, is monotonically decreasing and not negative.
- Perform the calculation on the model temperature levels. It first calculates the exner function and virtual temperature from the inputs. Then using these calculates the wet and dry components of the refractivity.
- If pseudo-level processing is being used, then calculate the temperature, pressure and specific humidity on the pseudo-levels by interpolation. Then calculate the refractivity on all levels.
- Date
- 6 May 2021
- Parameters
-
[in] nlevp no. of p levels in state vec. [in] nlevq no. of theta levels [in] za heights of rho levs [in] zb heights of theta levs [in] p state vector [in] q state vector [in] vert_interp_ops Use log(p) for vertical interpolation? [in] pseudo_ops Use pseudo-levels to reduce errors? [in] min_temp_grad Minimum value for the vertical temperature gradient [out] refracerr refractivity error [out] nreflevels no. of pseudo levs [out] refractivity Ref. on pseudo levs [out] model_heights height of pseudo levs [out] temperature Calculated temperature on model levels [out] interp_pressure Model pressure, interpolated to temperature levels
Definition at line 66 of file RefractivityCalculator.F90.

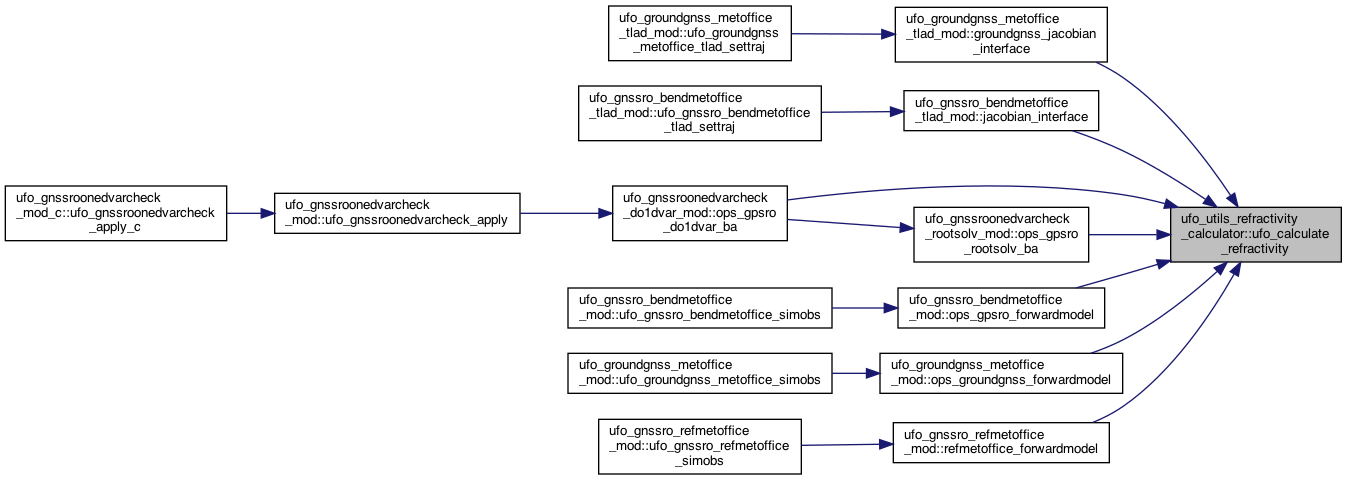

Here is the caller graph for this function:
◆ ufo_refractivity_kmat()
| subroutine, public ufo_utils_refractivity_calculator::ufo_refractivity_kmat | ( | integer, intent(in) | nlevP, |
| integer, intent(in) | nlevq, | ||
| integer, intent(in) | nRefLevels, | ||
| real(kind_real), dimension(nlevp), intent(in) | za, | ||
| real(kind_real), dimension(nlevq), intent(in) | zb, | ||
| real(kind_real), dimension(nlevp), intent(in) | P, | ||
| real(kind_real), dimension(nlevq), intent(in) | q, | ||
| logical, intent(in) | pseudo_ops, | ||
| logical, intent(in) | vert_interp_ops, | ||
| real(kind_real), intent(in) | min_temp_grad, | ||
| real(kind_real), dimension(:,:), intent(out), allocatable | dref_dP, | ||
| real(kind_real), dimension(:,:), intent(out), allocatable | dref_dq, | ||
| real(kind_real), dimension(nlevq,nlevp), intent(out), optional | dPb_dP, | ||
| real(kind_real), dimension(:), intent(out), optional, allocatable | refractivity | ||
| ) |
Calculate general refractivity K matrix.
ufo_refractivity_kmat
- Allocate intermediate matrices used in calculation.
- Calculate the refractivity and basic gradients on the temperature/theta levels.
- If using pseudo-levels, then calculate the partial matrices on these levels, and use these to calculate the final matrices (dref_dp and dref_dq).
- If not using pseudo-levels, then calculate the final matrices.
- Deallocate the temporary matrices.
- Date
- 6 May 2021 Calculate general refractivity K matrix.
- Parameters
-
[in] nlevp no. of pressure levels [in] nlevq no. of specific humidity levels [in] nreflevels no. of refractivity levels [in] za Height of the pressure levels [in] zb Height of the specific humidity levels [in] p Pressure [in] q Specific humidity [in] pseudo_ops Whether to use pseudo-levels in calculation [in] vert_interp_ops Whether to interpolate vertically using exner or ln(p) [in] min_temp_grad Minimum value for the vertical temperature gradient [out] dref_dp kmatrix for p [out] dref_dq kmatrix for q [out] dpb_dp Gradient of pressure on theta levels wrt pressure on pressure levels [out] refractivity Calculated refractivity
Definition at line 300 of file RefractivityCalculator.F90.
Here is the call graph for this function:

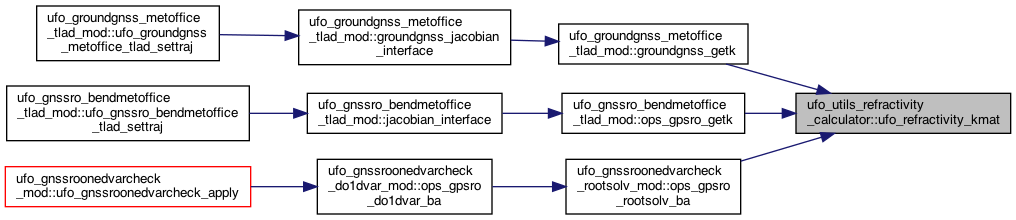

Here is the caller graph for this function:
◆ ufo_refractivity_partial_derivatives()
| subroutine ufo_utils_refractivity_calculator::ufo_refractivity_partial_derivatives | ( | integer, intent(in) | nlevP, |
| integer, intent(in) | nlevq, | ||
| real(kind_real), dimension(nlevp), intent(in) | za, | ||
| real(kind_real), dimension(nlevq), intent(in) | zb, | ||
| real(kind_real), dimension(nlevp), intent(in) | P, | ||
| real(kind_real), dimension(nlevq), intent(in) | q, | ||
| logical, intent(in) | vert_interp_ops, | ||
| real(kind_real), dimension(nlevq,nlevq), intent(out) | dT_dTv, | ||
| real(kind_real), dimension(nlevq,nlevq), intent(out) | dT_dq, | ||
| real(kind_real), dimension(nlevq,nlevq), intent(out) | dref_dPb, | ||
| real(kind_real), dimension(nlevq,nlevq), intent(out) | dref_dT, | ||
| real(kind_real), dimension(nlevq,nlevq), intent(out) | dref_dq, | ||
| real(kind_real), dimension(nlevq), intent(out) | refractivity, | ||
| real(kind_real), dimension(nlevq), intent(out) | T, | ||
| real(kind_real), dimension(nlevq), intent(out) | Pb, | ||
| real(kind_real), dimension(nlevp,nlevp), intent(out) | dEx_dP, | ||
| real(kind_real), dimension(nlevq,nlevq), intent(out) | dExtheta_dPb, | ||
| real(kind_real), dimension(nlevq,nlevq), intent(out) | dTv_dExtheta, | ||
| real(kind_real), dimension(nlevq,nlevp), intent(out) | dPb_dP_local, | ||
| real(kind_real), dimension(nlevq,nlevp), intent(out) | dTv_dEx | ||
| ) |
Calculate some partial derivatives of refractivity on model levels.
ufo_refractivity_partial_derivatives
- Calculate the pressure on model theta levels
- Calculate exner on model theta level
- Calculate mean layer T_virtual, and then various partial derivatives
- Date
- 26 May 2021
- Parameters
-
[in] nlevp no. of pressure levels [in] nlevq no. of specific humidity levels [in] za Height of the pressure levels [in] zb Height of the specific humidity levels [in] p Pressure [in] q Specific humidity [in] vert_interp_ops Whether to interpolate vertically using exner or ln(p) [out] dt_dtv Partial derivative of temperature wrt virtual temperature [out] dt_dq Partial derivative of temperature wrt specific humidity [out] dref_dpb Partial derivative of refractivity wrt pressure on model theta levels [out] dref_dt Partial derivative of refractivity wrt temperature [out] dref_dq Partial derivative of refractivity wrt specific humidity [out] refractivity Calculated refractivity [out] t Calculated temperature [out] pb Pressure on model theta levels [out] dex_dp Partial derivative of exner wrt pressure [out] dextheta_dpb Partial derivative of refractivity wrt pressure (at ob location) [out] dtv_dextheta Virtual temperature divided by exner on theta levels [out] dpb_dp_local Partial derivative of pressure on theta levels wrt pressure on pressure levels [out] dtv_dex Partial derivative of virtual temperature wrt exner
Definition at line 650 of file RefractivityCalculator.F90.

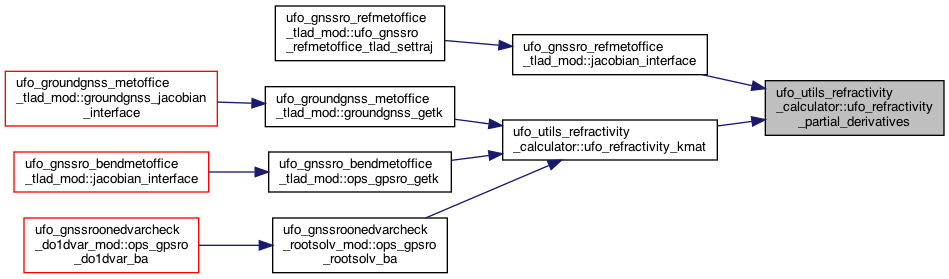

Here is the caller graph for this function:
