ufo_rttovonedvarcheck_obs_mod Module Reference

Fortran module which contains the observation data for a all the obs space. More...

Data Types
type	ufo_rttovonedvarcheck_obs

Functions/Subroutines
subroutine	ufo_rttovonedvarcheck_obs_setup (self, config, nprofelements, geovals, vars, ir_pcemis)
	Initialize observation object. More...
subroutine	ufo_rttovonedvarcheck_obs_delete (self)
	Delete the observation object. More...
subroutine	ufo_rttovonedvarcheck_obs_initmwemiss (self, config)
	Initialize the microwave emissivity array. More...
subroutine	ufo_rttovonedvarcheck_obs_initiremiss (self, nchans, ir_pcemis)
	Initialize the infrared emissivity array. More...
subroutine	ufo_rttovonedvarcheck_obs_output (self, obsdb, prof_index, vars, nchans)
	Store the 1D-Var analysis variables in obsspace for future assessment. More...

Detailed Description

Fortran module which contains the observation data for a all the obs space.

Function/Subroutine Documentation

ufo_rttovonedvarcheck_obs_delete()

subroutine ufo_rttovonedvarcheck_obs_mod::ufo_rttovonedvarcheck_obs_delete ( class(ufo_rttovonedvarcheck_obs), intent(inout)  self )

private

Delete the observation object.

Author

Met Office

Date

09/06/2020: Created

Parameters

[in,out]

self

observation metadata type

Definition at line 232 of file ufo_rttovonedvarcheck_obs_mod.f90.

ufo_rttovonedvarcheck_obs_initiremiss()

subroutine ufo_rttovonedvarcheck_obs_mod::ufo_rttovonedvarcheck_obs_initiremiss ( class(ufo_rttovonedvarcheck_obs), intent(inout)  self, integer, intent(in)  nchans, type(ufo_rttovonedvarcheck_pcemis)  ir_pcemis  )

private

Initialize the infrared emissivity array.

Heritage: Ops_SatRad_InitEmissivity.f90 - the IR part only

Author

Met Office

Date

06/08/2020: Created

Parameters

[in,out]	self	observation metadata type
[in]	nchans	total number of channels
	ir_pcemis	Infrared principal components object

Definition at line 319 of file ufo_rttovonedvarcheck_obs_mod.f90.

Here is the caller graph for this function:

ufo_rttovonedvarcheck_obs_initmwemiss()

subroutine ufo_rttovonedvarcheck_obs_mod::ufo_rttovonedvarcheck_obs_initmwemiss ( type(ufo_rttovonedvarcheck_obs), intent(inout)  self, type(ufo_rttovonedvarcheck), intent(in)  config  )

private

Initialize the microwave emissivity array.

Heritage: Ops_SatRad_InitEmissivity.f90 - the MW part only

Author

Met Office

Date

06/08/2020: Created

Parameters

[in,out]	self	observation metadata type
[in]	config	main rttovonedvarcheck type

Definition at line 273 of file ufo_rttovonedvarcheck_obs_mod.f90.

Here is the caller graph for this function:

ufo_rttovonedvarcheck_obs_output()

subroutine ufo_rttovonedvarcheck_obs_mod::ufo_rttovonedvarcheck_obs_output ( class(ufo_rttovonedvarcheck_obs), intent(inout)  self, type(c_ptr), intent(in), value  obsdb, type(ufo_rttovonedvarcheck_profindex), intent(in)  prof_index, type(oops_variables), intent(in)  vars, integer, intent(in)  nchans  )

private

Store the 1D-Var analysis variables in obsspace for future assessment.

Heritage: Ops_SatRad_SetOutput_RTTOV12

Author

Met Office

Date

02/09/2020: Created

Parameters

[in,out]	self	observation metadata type
[in]	obsdb	pointer to the observation space
[in]	prof_index	index to elements in the profile
[in]	vars	channels for 1D-Var

Definition at line 406 of file ufo_rttovonedvarcheck_obs_mod.f90.

ufo_rttovonedvarcheck_obs_setup()

subroutine ufo_rttovonedvarcheck_obs_mod::ufo_rttovonedvarcheck_obs_setup	(	class(ufo_rttovonedvarcheck_obs), intent(out)	self,
		type(ufo_rttovonedvarcheck), intent(in)	config,
		integer, intent(in)	nprofelements,
		type(ufo_geovals), intent(in)	geovals,
		type(oops_variables), intent(in)	vars,
		type(ufo_rttovonedvarcheck_pcemis)	ir_pcemis
	)

Initialize observation object.

Author

Met Office

Date

09/06/2020: Created

Parameters

[out]	self	observation metadata type
[in]	config	observation metadata type
[in]	nprofelements	number of profile elements
[in]	geovals	model data at obs location
[in]	vars	channels for 1D-Var
	ir_pcemis	Infrared principal components object

Definition at line 67 of file ufo_rttovonedvarcheck_obs_mod.f90.

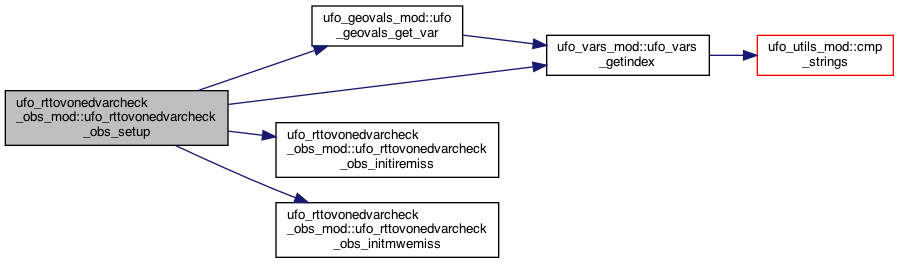

Here is the call graph for this function:
