The main Fortran module for implementing the rttov onedvar check. More...

Functions/Subroutines
subroutine, public	ufo_rttovonedvarcheck_create (self, obsspace, f_conf, channels, onedvarflag, passflag)
	Setup the main rttov onedvar object in Fortran. More...

subroutine, public	ufo_rttovonedvarcheck_delete (self)
	Delete the main rttov onedvar object in Fortran. More...

subroutine, public	ufo_rttovonedvarcheck_apply (self, f_conf, vars, hofxdiags_vars, geovals, apply)
	The main routine that applys the rttov onedvar filter. More...

Detailed Description

The main Fortran module for implementing the rttov onedvar check.

Function/Subroutine Documentation

subroutine, public ufo_rttovonedvarcheck_mod::ufo_rttovonedvarcheck_apply	(	type(ufo_rttovonedvarcheck), intent(inout)	self,
		type(fckit_configuration), intent(in)	f_conf,
		type(oops_variables), intent(in)	vars,
		type(oops_variables), intent(in)	hofxdiags_vars,
		type(ufo_geovals), intent(in)	geovals,
		logical, dimension(:), intent(in)	apply
	)

The main routine that applys the rttov onedvar filter.

Heritage : Ops_SatRad_Do1DVar_RTTOV12.f90

This routine is called from the c++ apply method. The filter performs a 1D-Var minimization using rttov

Parameters

[in,out]	self	rttovonedvarcheck main object
[in]	f_conf	yaml file contents
[in]	vars	channels for 1D-Var
[in]	hofxdiags_vars	retrieval variables for 1D-Var
[in]	geovals	model values at observation space
[in]	apply	qc manager flags

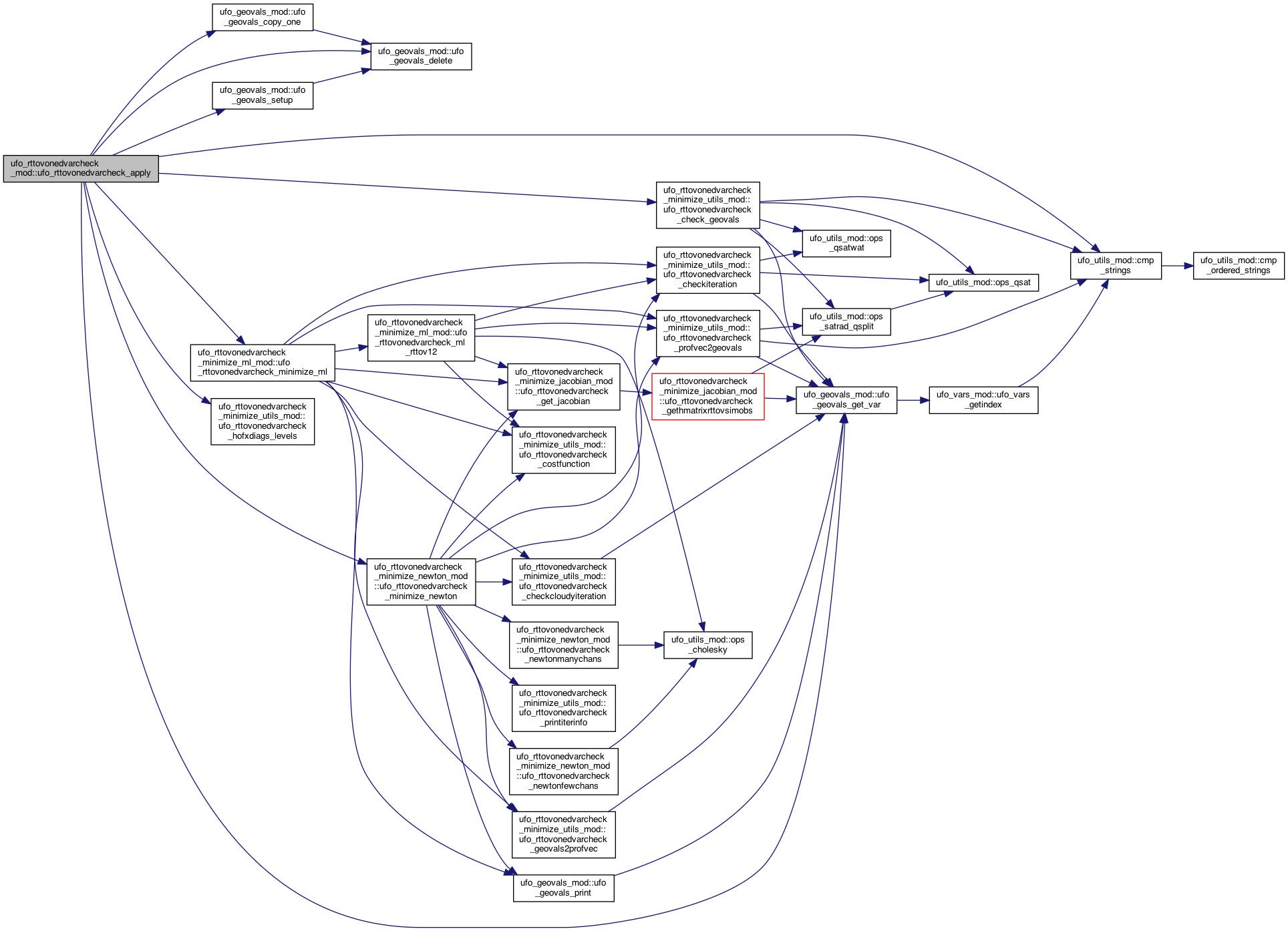

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine, public ufo_rttovonedvarcheck_mod::ufo_rttovonedvarcheck_create	(	type(ufo_rttovonedvarcheck), intent(inout)	self,
		type(c_ptr), intent(in), value	obsspace,
		type(fckit_configuration), intent(in)	f_conf,
		integer(c_int), dimension(:), intent(in)	channels,
		integer(c_int), intent(in)	onedvarflag,
		integer(c_int), intent(in)	passflag
	)

Setup the main rttov onedvar object in Fortran.

Makes a call to the main setup routine.

Parameters

[in,out]	self	rttovonedvarcheck main object
[in]	obsspace	observation database pointer
[in]	f_conf	yaml file contents
[in]	channels	all channels that can be used in 1D-Var
[in]	onedvarflag	flag from qc flags
[in]	passflag	pass flag from qc flags
