Fortran module containing subroutines used by both minimizers. More...

Functions/Subroutines
subroutine, public	ufo_rttovonedvarcheck_geovals2profvec (geovals, profindex, ob, prof_x)
	Copy geovals data (and ob) to profile. More...

subroutine, public	ufo_rttovonedvarcheck_profvec2geovals (geovals, profindex, ob, prof_x, UseQtsplitRain)
	Copy profile data to geovals (and ob). More...

subroutine, public	ufo_rttovonedvarcheck_check_geovals (self, geovals, profindex, surface_type)
	Check the geovals are ready for the first iteration. More...

subroutine, public	ufo_rttovonedvarcheck_costfunction (DeltaProf, b_inv, DeltaObs, r_matrix, Jcost)
	Calculate the cost function. More...

subroutine, public	ufo_rttovonedvarcheck_checkiteration (self, geovals, profindex, profile, OutOfRange)
	Constrain profile humidity and check temperature values are okay. More...

subroutine, public	ufo_rttovonedvarcheck_checkcloudyiteration (geovals, profindex, nlevels_1dvar, OutOfRange, OutLWP)
	Check cloud during iteration. More...

subroutine, public	ufo_rttovonedvarcheck_printiterinfo (yob, hofx, channels, guessprofile, backprofile, diffprofile, binv, hmatrix)
	Print detailed information for each iteration for diagnostics. More...

subroutine, public	ufo_rttovonedvarcheck_hofxdiags_levels (retrieval_vars, nlevels, ret_nlevs)

Variables
character(len=max_string)	message

Detailed Description

Fortran module containing subroutines used by both minimizers.

Function/Subroutine Documentation

◆ ufo_rttovonedvarcheck_check_geovals()

subroutine, public ufo_rttovonedvarcheck_minimize_utils_mod::ufo_rttovonedvarcheck_check_geovals	(	type(ufo_rttovonedvarcheck), intent(in)	self,
		type(ufo_geovals), intent(inout)	geovals,
		type(ufo_rttovonedvarcheck_profindex), intent(in)	profindex,
		integer, intent(in)	surface_type
	)

Check the geovals are ready for the first iteration.

Heritage: Ops_SatRad_SetUpRTprofBg_RTTOV12.f90

Check the geovals profile is ready for the first iteration. The only check included at the moment if the first calculation for q total.

Author: Met Office

Date: 09/06/2020: Created

Parameters

[in,out]	geovals	model data at obs location
[in]	profindex	index array for x vector
[in]	surface_type	surface type for cold surface check

Definition at line 464 of file ufo_rttovonedvarcheck_minimize_utils_mod.f90.

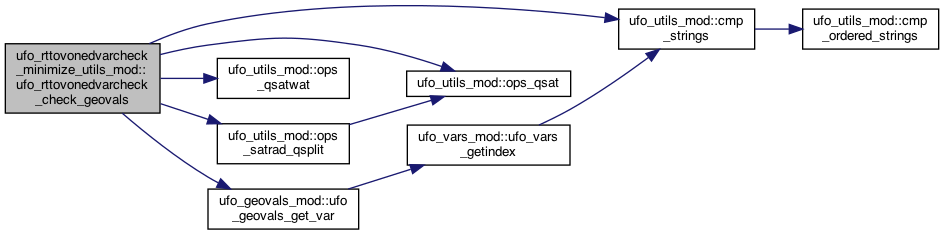

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ufo_rttovonedvarcheck_checkcloudyiteration()

subroutine, public ufo_rttovonedvarcheck_minimize_utils_mod::ufo_rttovonedvarcheck_checkcloudyiteration	(	type(ufo_geovals), intent(in)	geovals,
		type(ufo_rttovonedvarcheck_profindex), intent(in)	profindex,
		integer, intent(in)	nlevels_1dvar,
		logical, intent(out)	OutOfRange,
		real(kind_real), intent(out), optional	OutLWP
	)

Check cloud during iteration.

Heritage: Ops_SatRad_CheckCloudyIteration.f90

For a 1dvar profile using cloud variables, check that the liquid water path and the ice water path are sensible. if they are beyond sensible values stop 1dvar and reject profile

Author: Met Office

Date: 09/06/2020: Created

Definition at line 1053 of file ufo_rttovonedvarcheck_minimize_utils_mod.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ufo_rttovonedvarcheck_checkiteration()

subroutine, public ufo_rttovonedvarcheck_minimize_utils_mod::ufo_rttovonedvarcheck_checkiteration	(	type(ufo_rttovonedvarcheck), intent(in)	self,
		type(ufo_geovals), intent(in)	geovals,
		type(ufo_rttovonedvarcheck_profindex), intent(in)	profindex,
		real(kind_real), dimension(:), intent(inout)	profile,
		logical, intent(out)	OutOfRange
	)

Constrain profile humidity and check temperature values are okay.

Heritage: Ops_SatRad_CheckIteration.f90

Check humidity and temperature profiles.

Author: Met Office

Date: 09/06/2020: Created

Definition at line 790 of file ufo_rttovonedvarcheck_minimize_utils_mod.f90.

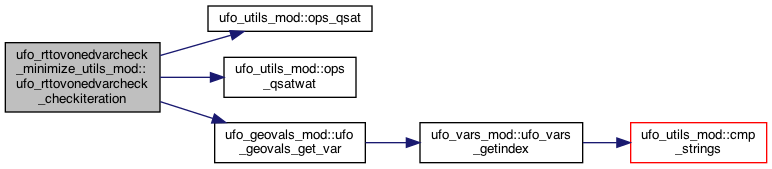

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ufo_rttovonedvarcheck_costfunction()

subroutine, public ufo_rttovonedvarcheck_minimize_utils_mod::ufo_rttovonedvarcheck_costfunction	(	real(kind_real), dimension(:), intent(in)	DeltaProf,
		real(kind_real), dimension(:,:), intent(in)	b_inv,
		real(kind_real), dimension(:), intent(in)	DeltaObs,
		type(ufo_rttovonedvarcheck_rsubmatrix), intent(in)	r_matrix,
		real(kind_real), dimension(3), intent(out)	Jcost
	)

Calculate the cost function.

Heritage: Ops_SatRad_CostFunction.f90

Calculate the cost function from the input delta's and error covariances.

Author: Met Office

Date: 09/06/2020: Created

Definition at line 737 of file ufo_rttovonedvarcheck_minimize_utils_mod.f90.

Here is the caller graph for this function:

◆ ufo_rttovonedvarcheck_geovals2profvec()

subroutine, public ufo_rttovonedvarcheck_minimize_utils_mod::ufo_rttovonedvarcheck_geovals2profvec	(	type(ufo_geovals), intent(in)	geovals,
		type(ufo_rttovonedvarcheck_profindex), intent(in)	profindex,
		type(ufo_rttovonedvarcheck_ob), intent(in)	ob,
		real(kind_real), dimension(:), intent(out)	prof_x
	)

Copy geovals data (and ob) to profile.

Heritage: Ops_SatRad_RTprof2Vec_RTTOV12.f90

Convert profile data from the GeoVaLs format (and ob) into the minimisation format vector profile. We only copy fields that are being retrieved, as indicated by the profindex structure.

Author: Met Office

Date: 09/06/2020: Created

Parameters

[in]	geovals	model data at obs location
[in]	profindex	index array for x vector
[in]	ob	satellite metadata
[out]	prof_x	x vector

Definition at line 54 of file ufo_rttovonedvarcheck_minimize_utils_mod.f90.

Here is the call graph for this function:

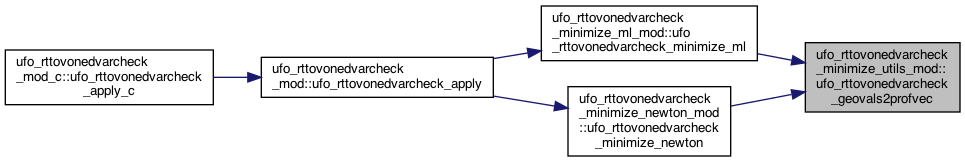

Here is the caller graph for this function:

◆ ufo_rttovonedvarcheck_hofxdiags_levels()

subroutine, public ufo_rttovonedvarcheck_minimize_utils_mod::ufo_rttovonedvarcheck_hofxdiags_levels	(	type(oops_variables), intent(in)	retrieval_vars,
		integer, intent(in)	nlevels,
		integer(c_size_t), dimension(:), intent(inout)	ret_nlevs
	)

Parameters

[in]	retrieval_vars	retrieval variables for 1D-Var
[in,out]	ret_nlevs	number of levels for each retreival val

Definition at line 1241 of file ufo_rttovonedvarcheck_minimize_utils_mod.f90.

Here is the caller graph for this function:

◆ ufo_rttovonedvarcheck_printiterinfo()

subroutine, public ufo_rttovonedvarcheck_minimize_utils_mod::ufo_rttovonedvarcheck_printiterinfo	(	real(kind_real), dimension(:), intent(in)	yob,
		real(kind_real), dimension(:), intent(in)	hofx,
		integer, dimension(:), intent(in)	channels,
		real(kind_real), dimension(:), intent(in)	guessprofile,
		real(kind_real), dimension(:), intent(in)	backprofile,
		real(kind_real), dimension(:), intent(in)	diffprofile,
		real(kind_real), dimension(:,:), intent(in)	binv,
		real(kind_real), dimension(:,:), intent(in)	hmatrix
	)

Print detailed information for each iteration for diagnostics.

Author: Met Office

Date: 29/03/2021: Created

Definition at line 1179 of file ufo_rttovonedvarcheck_minimize_utils_mod.f90.

Here is the caller graph for this function:

◆ ufo_rttovonedvarcheck_profvec2geovals()

subroutine, public ufo_rttovonedvarcheck_minimize_utils_mod::ufo_rttovonedvarcheck_profvec2geovals	(	type(ufo_geovals), intent(inout)	geovals,
		type(ufo_rttovonedvarcheck_profindex), intent(in)	profindex,
		type(ufo_rttovonedvarcheck_ob), intent(inout)	ob,
		real(kind_real), dimension(:), intent(in)	prof_x,
		logical, intent(in)	UseQtsplitRain
	)

Copy profile data to geovals (and ob).

Heritage: Ops_SatRad_Vec2RTprof_RTTOV12.f90

Convert profile data to the GeoVaLs (and ob) format. We only copy fields that are being retrieved, as indicated by the profindex structure.

Author: Met Office

Date: 09/06/2020: Created

Parameters

[in,out]	geovals	model data at obs location
[in]	profindex	index array for x vector
[in,out]	ob	satellite metadata
[in]	prof_x	x vector
[in]	useqtsplitrain	flag to choose whether to split rain in qt
