The main Fortran module for implementing the GNSS-RO onedvar check. More...

Functions/Subroutines
subroutine, public	ufo_gnssroonedvarcheck_create (self, obsspace, bmatrix_filename, capsupersat, cost_funct_test, Delta_ct2, Delta_factor, min_temp_grad, n_iteration_test, OB_test, pseudo_ops, vert_interp_ops, y_test, onedvarflag)
	Setup the main GNSS-RO onedvar object in Fortran. More...

subroutine, public	ufo_gnssroonedvarcheck_delete (self)
	Delete the main GNSS-RO onedvar object in Fortran. More...

subroutine, public	ufo_gnssroonedvarcheck_apply (self, geovals, apply)
	The main routine that applys the GNSS-RO onedvar filter. More...

Detailed Description

The main Fortran module for implementing the GNSS-RO onedvar check.

Function/Subroutine Documentation

subroutine, public ufo_gnssroonedvarcheck_mod::ufo_gnssroonedvarcheck_apply	(	type(ufo_gnssroonedvarcheck), intent(inout)	self,
		type(ufo_geovals), intent(in)	geovals,
		logical, dimension(:), intent(in)	apply
	)

The main routine that applys the GNSS-RO onedvar filter.

Heritage :

This routine is called from the c++ apply method. The filter performs a 1D-Var minimization

Parameters

[in,out]	self	gnssroonedvarcheck main object
[in]	geovals	model values at observation space
[in]	apply	qc manager flags

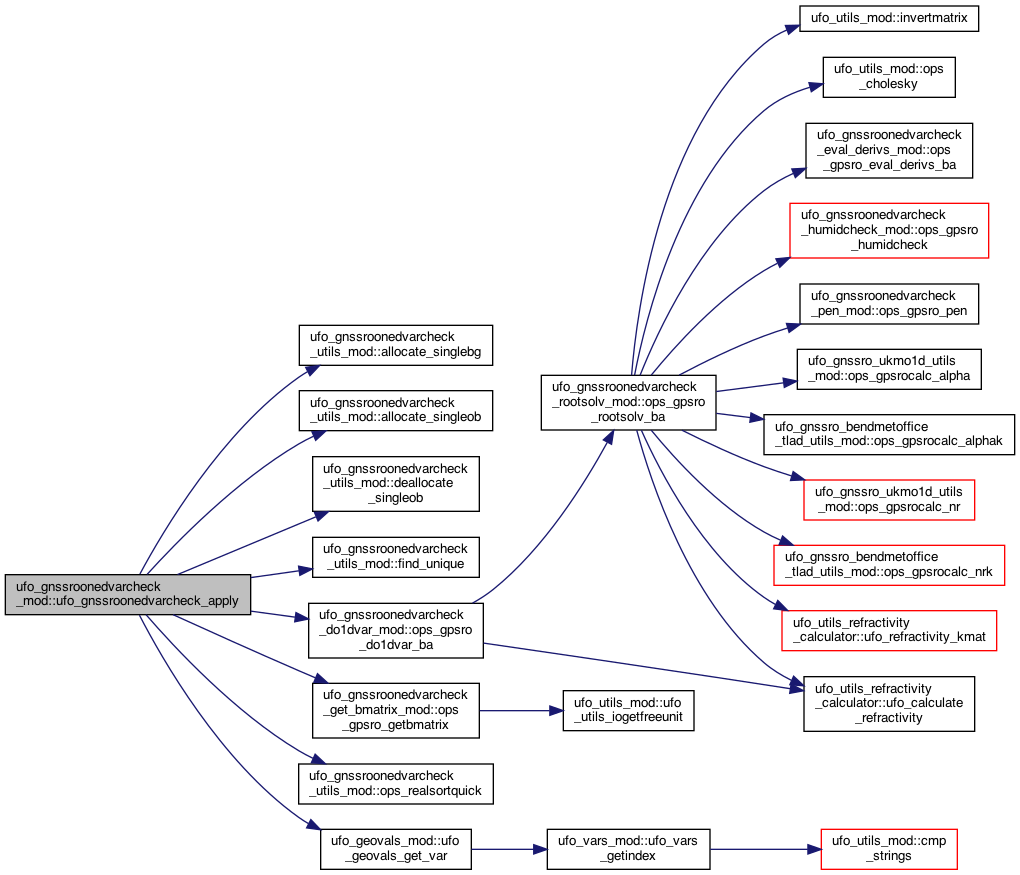

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine, public ufo_gnssroonedvarcheck_mod::ufo_gnssroonedvarcheck_create	(	type(ufo_gnssroonedvarcheck), intent(inout)	self,
		type(c_ptr), intent(in), value	obsspace,
		character(len=*), intent(in)	bmatrix_filename,
		logical(c_bool), intent(in)	capsupersat,
		real(c_float), intent(in)	cost_funct_test,
		real(c_float), intent(in)	Delta_ct2,
		real(c_float), intent(in)	Delta_factor,
		real(c_float), intent(in)	min_temp_grad,
		integer(c_int), intent(in)	n_iteration_test,
		real(c_float), intent(in)	OB_test,
		logical(c_bool), intent(in)	pseudo_ops,
		logical(c_bool), intent(in)	vert_interp_ops,
		real(c_float), intent(in)	y_test,
		integer(c_int), intent(in)	onedvarflag
	)

Setup the main GNSS-RO onedvar object in Fortran.

Makes a call to the main setup routine.

Parameters

[in,out]	self	gnssroonedvarcheck main object
[in]	obsspace	observation database pointer
[in]	bmatrix_filename	Location of the B-matrix file
[in]	capsupersat	Whether to remove super-saturation (wrt ice?)
[in]	cost_funct_test	Threshold value for the cost function convergence test
[in]	delta_ct2	Threshold used in calculating convergence
[in]	delta_factor	Threshold used in calculating convergence
[in]	min_temp_grad	The minimum vertical temperature gradient allowed
[in]	n_iteration_test	Maximum number of iterations in the 1DVar
[in]	ob_test	Threshold for the O-B throughout the profile
[in]	pseudo_ops	Whether to use pseudo levels in forward operator
[in]	vert_interp_ops	Whether to use ln(p) or exner in vertical interpolation
[in]	y_test	Threshold on distance between observed and solution bending angles
[in]	onedvarflag	flag for qc manager

Here is the caller graph for this function:

subroutine, public ufo_gnssroonedvarcheck_mod::ufo_gnssroonedvarcheck_delete ( type(ufo_gnssroonedvarcheck), intent(inout) self )

Delete the main GNSS-RO onedvar object in Fortran.

Parameters

[in,out] self gnssroonedvarcheck main object

Here is the caller graph for this function:
