ufo::Thinning Class Reference

Randomly thin a given percentage of observations. More...

#include <Thinning.h>

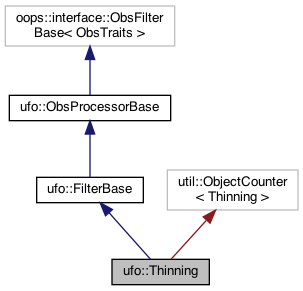

Inheritance diagram for ufo::Thinning:

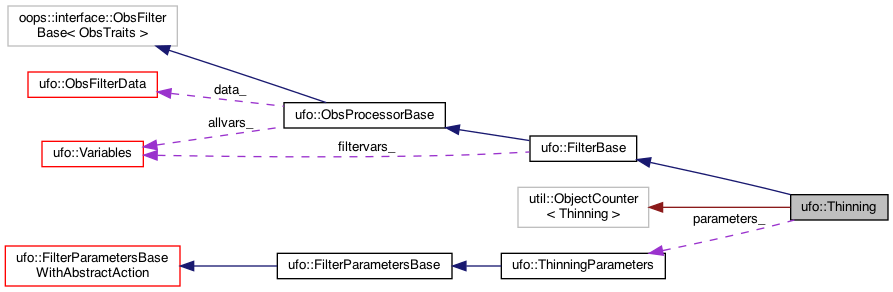

Collaboration diagram for ufo::Thinning:

Public Types
typedef ThinningParameters	Parameters_

Public Member Functions
	Thinning (ioda::ObsSpace &, const Parameters_ &, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)
	~Thinning ()
Public Member Functions inherited from ufo::FilterBase
	FilterBase (ioda::ObsSpace &, const FilterParametersBaseWithAbstractAction &parameters, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)
	FilterBase (ioda::ObsSpace &, const eckit::Configuration &, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)
	~FilterBase ()
Public Member Functions inherited from ufo::ObsProcessorBase
	ObsProcessorBase (ioda::ObsSpace &, bool deferToPost, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)
	~ObsProcessorBase ()
void	preProcess () override
void	priorFilter (const GeoVaLs &) override
void	postFilter (const ioda::ObsVector &, const ioda::ObsVector &, const ObsDiagnostics &) override
oops::Variables	requiredVars () const override
oops::Variables	requiredHdiagnostics () const override

Static Public Member Functions
static const std::string	classname ()

Private Member Functions
void	print (std::ostream &) const override
void	applyFilter (const std::vector< bool > &, const Variables &, std::vector< std::vector< bool >> &) const override
int	qcFlag () const override

Private Attributes
Parameters_	parameters_

Additional Inherited Members
Protected Attributes inherited from ufo::FilterBase
const eckit::LocalConfiguration	config_
ufo::Variables	filtervars_
Protected Attributes inherited from ufo::ObsProcessorBase
ioda::ObsSpace &	obsdb_
std::shared_ptr< ioda::ObsDataVector< int > >	flags_
std::shared_ptr< ioda::ObsDataVector< float > >	obserr_
ufo::Variables	allvars_
ObsFilterData	data_

Detailed Description

Randomly thin a given percentage of observations.

See ThinningParameters for the documentation of the parameters controlling this filter.

Definition at line 55 of file Thinning.h.

Member Typedef Documentation

Parameters_

typedef ThinningParameters ufo::Thinning::Parameters_

The type of parameters accepted by the constructor of this filter. This typedef is used by the FilterFactory.

Definition at line 60 of file Thinning.h.

Constructor & Destructor Documentation

Thinning()

ufo::Thinning::Thinning	(	ioda::ObsSpace &	obsdb,
		const Parameters_ &	parameters,
		std::shared_ptr< ioda::ObsDataVector< int > >	flags,
		std::shared_ptr< ioda::ObsDataVector< float > >	obserr
	)

Definition at line 25 of file Thinning.cc.

~Thinning()

ufo::Thinning::~Thinning

(

)

Definition at line 35 of file Thinning.cc.

Member Function Documentation

applyFilter()

void ufo::Thinning::applyFilter ( const std::vector< bool > &  apply, const Variables &  filtervars, std::vector< std::vector< bool >> &  flagged  ) const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 39 of file Thinning.cc.

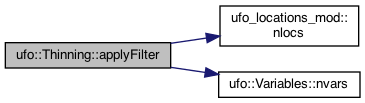

Here is the call graph for this function:

classname()

static const std::string ufo::Thinning::classname ( )

inlinestatic

Definition at line 62 of file Thinning.h.

print()

void ufo::Thinning::print ( std::ostream &  os ) const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 66 of file Thinning.cc.

qcFlag()

int ufo::Thinning::qcFlag ( ) const

inlineoverrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 73 of file Thinning.h.

Member Data Documentation

parameters_

Parameters_ ufo::Thinning::parameters_

private

Definition at line 75 of file Thinning.h.

---

The documentation for this class was generated from the following files:

• Thinning.h
• Thinning.cc
