UFO
Public Types | Public Member Functions | Static Public Member Functions | Private Member Functions | Private Attributes | List of all members
ufo::StuckCheck Class Reference

#include <StuckCheck.h>

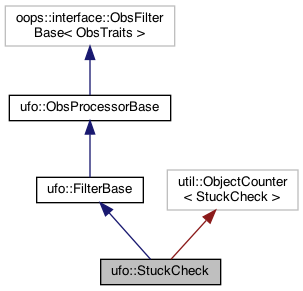

Inheritance diagram for ufo::StuckCheck:
Inheritance graph
[legend]

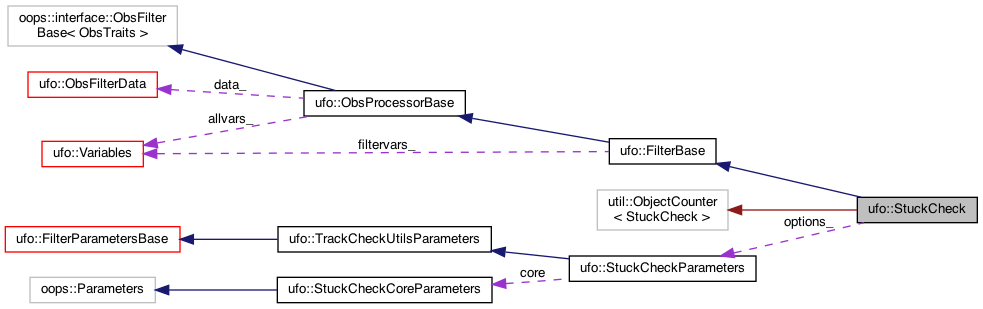

Collaboration diagram for ufo::StuckCheck:
Collaboration graph
[legend]

Public Types

typedef StuckCheckParameters Parameters_


Public Member Functions

 StuckCheck (ioda::ObsSpace &obsdb, const Parameters_ &parameters, std::shared_ptr< ioda::ObsDataVector< int > > flags, std::shared_ptr< ioda::ObsDataVector< float > > obserr)

 ~StuckCheck () override

- Public Member Functions inherited from ufo::FilterBase
 FilterBase (ioda::ObsSpace &, const FilterParametersBaseWithAbstractAction &parameters, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)

 FilterBase (ioda::ObsSpace &, const eckit::Configuration &, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)

 ~FilterBase ()

- Public Member Functions inherited from ufo::ObsProcessorBase
 ObsProcessorBase (ioda::ObsSpace &, bool deferToPost, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)

 ~ObsProcessorBase ()

void preProcess () override

void priorFilter (const GeoVaLs &) override

void postFilter (const ioda::ObsVector &, const ioda::ObsVector &, const ObsDiagnostics &) override

oops::Variables requiredVars () const override

oops::Variables requiredHdiagnostics () const override


Static Public Member Functions

static const std::string classname ()


Private Member Functions

void print (std::ostream &) const override

void applyFilter (const std::vector< bool > &, const Variables &, std::vector< std::vector< bool >> &) const override

int qcFlag () const override

std::vector< float > collectStationVariableData (std::vector< size_t >::const_iterator stationObsIndicesBegin, std::vector< size_t >::const_iterator stationObsIndicesEnd, const std::vector< size_t > &validObsIds, const std::vector< float > &globalData) const

void potentiallyRejectStreak (std::vector< size_t >::const_iterator stationIndicesBegin, std::vector< size_t >::const_iterator stationIndicesEnd, const std::vector< size_t > &validObsIds, size_t startOfStreakIndex, size_t endOfStreakIndex, std::vector< bool > &isRejected, std::string stationId) const


Private Attributes

Parameters_ options_

std::unique_ptr< std::vector< util::DateTime > > obsGroupDateTimes_


Additional Inherited Members

- Protected Attributes inherited from ufo::FilterBase
const eckit::LocalConfiguration config_

ufo::Variables filtervars_

- Protected Attributes inherited from ufo::ObsProcessorBase
ioda::ObsSpace & obsdb_

std::shared_ptr< ioda::ObsDataVector< int > > flags_

std::shared_ptr< ioda::ObsDataVector< float > > obserr_

ufo::Variables allvars_

ObsFilterData data_


Detailed Description

Flags sequential observations whose filter variables have streaks of unchanging measurements over a time span such that the following two conditions are satisfied:

  1. The streak exceeds a user-specified number of observations (numberStuckTolerance)
  2. The streak continues for longer than a user-specified duration (timeStuckTolerance) and/or the streak continues throughout every one of the observations within the observation grouping.

Types of observations that this check might apply to include the following: LNDSYN, LNDSYB, SHPSYN, SHPSYB, BUOY, MOBSYN, and OPENROAD

Definition at line 47 of file src/ufo/filters/StuckCheck.h.

Member Typedef Documentation

◆ Parameters_

typedef StuckCheckParameters ufo::StuckCheck::Parameters_

Definition at line 50 of file src/ufo/filters/StuckCheck.h.

Constructor & Destructor Documentation

◆ StuckCheck()

ufo::StuckCheck::StuckCheck ( ioda::ObsSpace &  obsdb,
const Parameters_ &  parameters,
std::shared_ptr< ioda::ObsDataVector< int > >  flags,
std::shared_ptr< ioda::ObsDataVector< float > >  obserr
)

Definition at line 31 of file StuckCheck.cc.

◆ ~StuckCheck()

ufo::StuckCheck::~StuckCheck ( )
override

Definition at line 41 of file StuckCheck.cc.

Member Function Documentation

◆ applyFilter()

void ufo::StuckCheck::applyFilter ( const std::vector< bool > &  apply,
const Variables &  filtervars,
std::vector< std::vector< bool >> &  flagged
) const
overrideprivatevirtual

The filter removes observations if they are part of a 'streak'. A streak is where the number of identical observation values in sequence (for a given variable) is greater than a user defined count. To be a streak, it must also continue for longer than a user-defined duration or every observation in the station's group must have an identical value.

Implements ufo::FilterBase.

Definition at line 49 of file StuckCheck.cc.

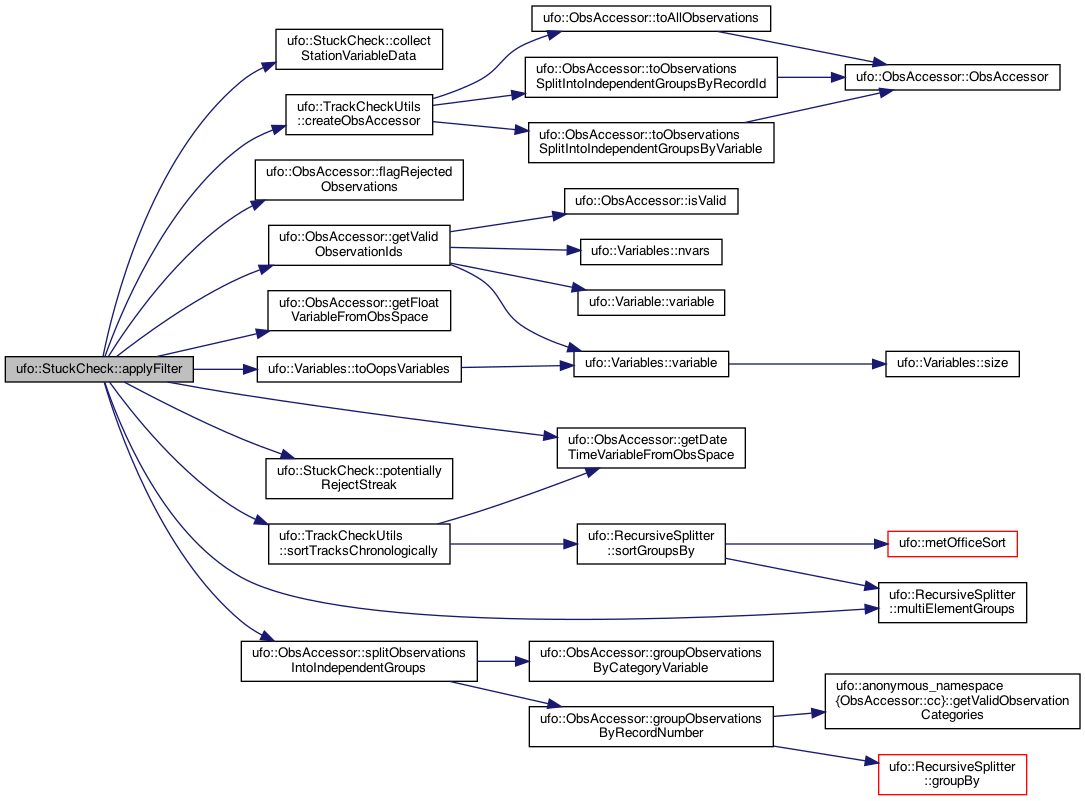

Here is the call graph for this function:

◆ classname()

static const std::string ufo::StuckCheck::classname ( )
inlinestatic

Definition at line 52 of file src/ufo/filters/StuckCheck.h.

◆ collectStationVariableData()

std::vector< float > ufo::StuckCheck::collectStationVariableData ( std::vector< size_t >::const_iterator  stationObsIndicesBegin,
std::vector< size_t >::const_iterator  stationObsIndicesEnd,
const std::vector< size_t > &  validObsIds,
const std::vector< float > &  globalData
) const
private
Returns
a vector containing all of the necessary data to run this filter for each observation, stored by observation.

Definition at line 124 of file StuckCheck.cc.

Here is the caller graph for this function:

◆ potentiallyRejectStreak()

void ufo::StuckCheck::potentiallyRejectStreak ( std::vector< size_t >::const_iterator  stationIndicesBegin,
std::vector< size_t >::const_iterator  stationIndicesEnd,
const std::vector< size_t > &  validObsIds,
size_t  startOfStreakIndex,
size_t  endOfStreakIndex,
std::vector< bool > &  isRejected,
std::string  stationId = ""
) const
private

Definition at line 141 of file StuckCheck.cc.

Here is the caller graph for this function:

◆ print()

void ufo::StuckCheck::print ( std::ostream &  os) const
overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 118 of file StuckCheck.cc.

◆ qcFlag()

int ufo::StuckCheck::qcFlag ( ) const
inlineoverrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 68 of file src/ufo/filters/StuckCheck.h.

Member Data Documentation

◆ obsGroupDateTimes_

std::unique_ptr<std::vector<util::DateTime> > ufo::StuckCheck::obsGroupDateTimes_
private

Definition at line 63 of file src/ufo/filters/StuckCheck.h.

◆ options_

Parameters_ ufo::StuckCheck::options_
private

Definition at line 61 of file src/ufo/filters/StuckCheck.h.

The documentation for this class was generated from the following files:
