The default action of a QC filter: reject observations flagged by the filter. More...

#include <RejectObs.h>

Inheritance diagram for ufo::RejectObs:

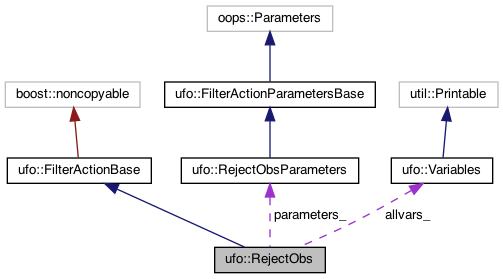

Collaboration diagram for ufo::RejectObs:

[legend]

Public Types
typedef RejectObsParameters	Parameters_

Public Member Functions
	RejectObs (const Parameters_ &)

	~RejectObs ()

void	apply (const Variables &, const std::vector< std::vector< bool >> &, const ObsFilterData &, int, ioda::ObsDataVector< int > &, ioda::ObsDataVector< float > &) const override

const ufo::Variables &	requiredVariables () const override

Public Member Functions inherited from ufo::FilterActionBase
	FilterActionBase ()

virtual	~FilterActionBase ()

Private Attributes
Variables	allvars_

Parameters_	parameters_

Detailed Description

The default action of a QC filter: reject observations flagged by the filter.

Definition at line 32 of file RejectObs.h.

Member Typedef Documentation

◆ Parameters_

typedef RejectObsParameters ufo::RejectObs::Parameters_

The type of parameters accepted by the constructor of this action. This typedef is used by the FilterActionFactory.

Definition at line 36 of file RejectObs.h.

Constructor & Destructor Documentation

◆ RejectObs()

ufo::RejectObs::RejectObs ( const Parameters_ & parameters )

explicit

Definition at line 22 of file RejectObs.cc.

◆ ~RejectObs()

ufo::RejectObs::~RejectObs ( )

inline

Definition at line 39 of file RejectObs.h.

Member Function Documentation

◆ apply()

void ufo::RejectObs::apply	(	const Variables &	vars,
		const std::vector< std::vector< bool >> &	flagged,
		const ObsFilterData &	data,
		int	filterQCflag,
		ioda::ObsDataVector< int > &	flags,
		ioda::ObsDataVector< float > &	obserr
	)		const

overridevirtual

Parameters

vars	The list of filter variables.
flagged	If flagged[i][j] is true, it means that the action should be performed on jth observation of ith filter variable.
data	Accessor to obs filter data.
filterQCflag	QC flag identifying observations rejected by the type of filter performing the action. (Relevant only for actions rejecting observations.)
flags	QC flags of all "simulated variables".
obserr	Obs error estimates of all "simulated variables".

Implements ufo::FilterActionBase.

Definition at line 28 of file RejectObs.cc.

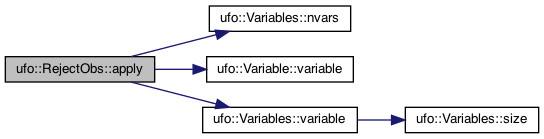

Here is the call graph for this function:

◆ requiredVariables()

const ufo::Variables& ufo::RejectObs::requiredVariables ( ) const

inlineoverridevirtual

Implements ufo::FilterActionBase.

Definition at line 44 of file RejectObs.h.

Member Data Documentation

◆ allvars_

Variables ufo::RejectObs::allvars_

private

Definition at line 46 of file RejectObs.h.

◆ parameters_

Parameters_ ufo::RejectObs::parameters_
