ufo::ROobserror Class Reference

ROobserror: calculate observational errors. More...

#include <ROobserror.h>

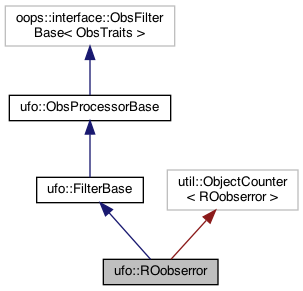

Inheritance diagram for ufo::ROobserror:

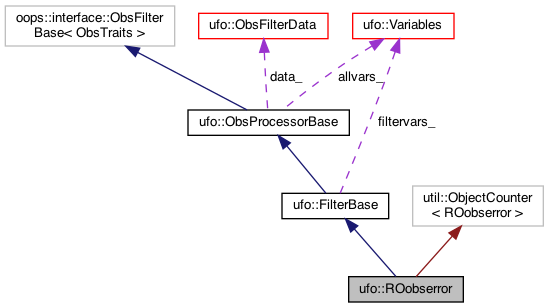

Collaboration diagram for ufo::ROobserror:

Public Member Functions
	ROobserror (ioda::ObsSpace &, const eckit::Configuration &, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)
	~ROobserror ()
Public Member Functions inherited from ufo::FilterBase
	FilterBase (ioda::ObsSpace &, const FilterParametersBaseWithAbstractAction &parameters, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)
	FilterBase (ioda::ObsSpace &, const eckit::Configuration &, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)
	~FilterBase ()
Public Member Functions inherited from ufo::ObsProcessorBase
	ObsProcessorBase (ioda::ObsSpace &, bool deferToPost, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)
	~ObsProcessorBase ()
void	preProcess () override
void	priorFilter (const GeoVaLs &) override
void	postFilter (const ioda::ObsVector &, const ioda::ObsVector &, const ObsDiagnostics &) override
oops::Variables	requiredVars () const override
oops::Variables	requiredHdiagnostics () const override

Static Public Member Functions
static const std::string	classname ()

Private Member Functions
void	print (std::ostream &) const override
void	applyFilter (const std::vector< bool > &, const Variables &, std::vector< std::vector< bool >> &) const override
int	qcFlag () const override
Eigen::ArrayXXf	get_geovals (const std::string &) const

Private Attributes
int	n_horiz = 1
F90roerr	key_

Additional Inherited Members
Protected Attributes inherited from ufo::FilterBase
const eckit::LocalConfiguration	config_
ufo::Variables	filtervars_
Protected Attributes inherited from ufo::ObsProcessorBase
ioda::ObsSpace &	obsdb_
std::shared_ptr< ioda::ObsDataVector< int > >	flags_
std::shared_ptr< ioda::ObsDataVector< float > >	obserr_
ufo::Variables	allvars_
ObsFilterData	data_

Detailed Description

ROobserror: calculate observational errors.

Definition at line 35 of file ROobserror.h.

Constructor & Destructor Documentation

ROobserror()

ufo::ROobserror::ROobserror	(	ioda::ObsSpace &	obsdb,
		const eckit::Configuration &	config,
		std::shared_ptr< ioda::ObsDataVector< int > >	qc,
		std::shared_ptr< ioda::ObsDataVector< float > >	oberr
	)

Definition at line 22 of file ROobserror.cc.

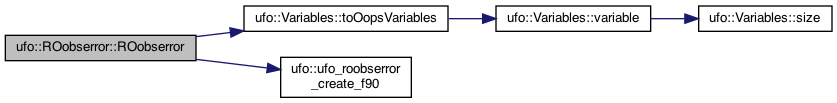

Here is the call graph for this function:

~ROobserror()

ufo::ROobserror::~ROobserror

(

)

Definition at line 46 of file ROobserror.cc.

Here is the call graph for this function:

Member Function Documentation

applyFilter()

void ufo::ROobserror::applyFilter ( const std::vector< bool > &  apply, const Variables &  filtervars, std::vector< std::vector< bool >> &  flagged  ) const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 53 of file ROobserror.cc.

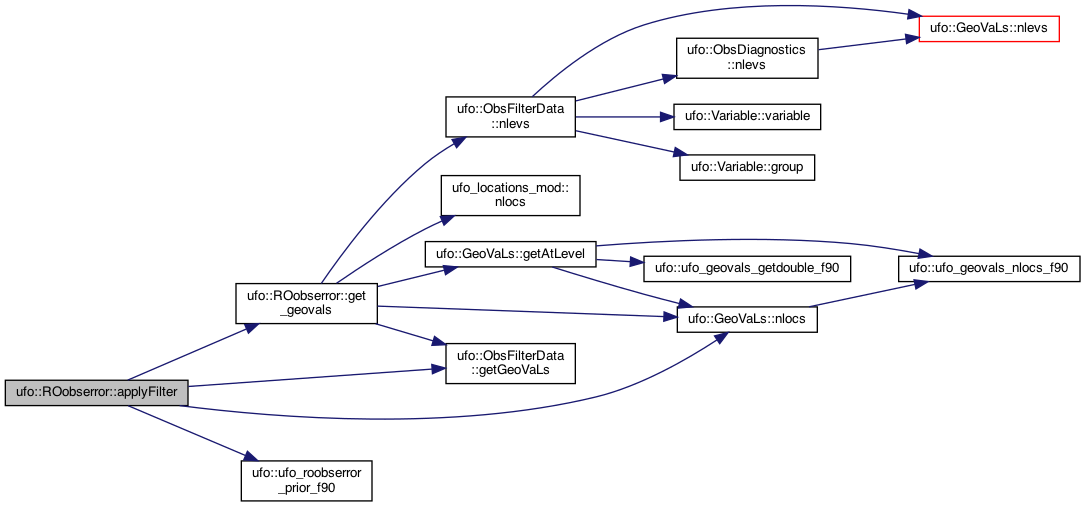

Here is the call graph for this function:

classname()

static const std::string ufo::ROobserror::classname ( )

inlinestatic

Definition at line 38 of file ROobserror.h.

get_geovals()

Eigen::ArrayXXf ufo::ROobserror::get_geovals ( const std::string &  var_name ) const

private

Definition at line 77 of file ROobserror.cc.

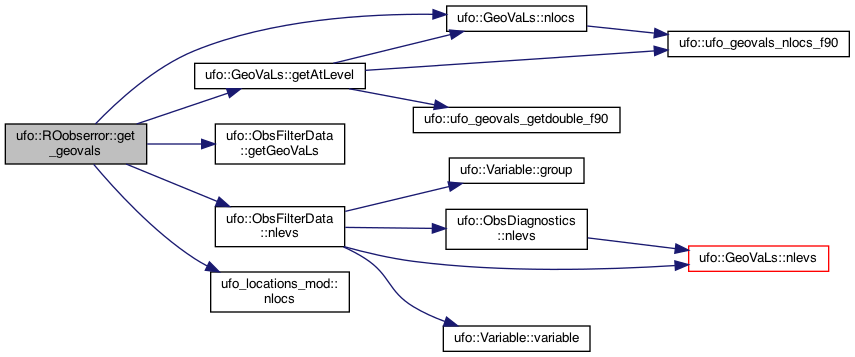

Here is the call graph for this function:

Here is the caller graph for this function:

print()

void ufo::ROobserror::print ( std::ostream &  os ) const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 99 of file ROobserror.cc.

qcFlag()

int ufo::ROobserror::qcFlag ( ) const

inlineoverrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 49 of file ROobserror.h.

Member Data Documentation

key_

F90roerr ufo::ROobserror::key_

private

Definition at line 53 of file ROobserror.h.

n_horiz

int ufo::ROobserror::n_horiz = 1

private

Definition at line 51 of file ROobserror.h.

---

The documentation for this class was generated from the following files:

• ROobserror.h
• ROobserror.cc
