ufo::ProfileCheckInterpolation Class Reference
Profile QC: interpolation check. More...
#include <ProfileCheckInterpolation.h>

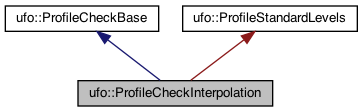

Inheritance diagram for ufo::ProfileCheckInterpolation:

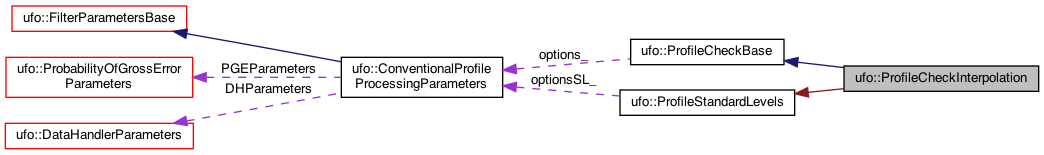

Collaboration diagram for ufo::ProfileCheckInterpolation:
Public Member Functions | |
| ProfileCheckInterpolation (const ConventionalProfileProcessingParameters &options) | |
| void | runCheck (ProfileDataHandler &profileDataHandler) override |
| Run check. More... | |
| void | fillValidationData (ProfileDataHandler &profileDataHandler) override |
| Fill variables in validator. More... | |
 Public Member Functions inherited from ufo::ProfileCheckBase | |
| ProfileCheckBase (const ConventionalProfileProcessingParameters &options) | |
| virtual | ~ProfileCheckBase () |
| virtual bool | getResult () |
| Get result of check (default fail) More... | |
| virtual bool | runOnEntireSample () |
| Run this check on the entire sample? More... | |
| virtual oops::Variables | getGeoVaLNames () |
| List of names of required GeoVaLs. More... | |
| virtual oops::Variables | getValidationGeoVaLNames () |
| List of names of GeoVaLs used in check validation. More... | |
| virtual oops::Variables | getObsDiagNames () |
| List of names of required obs diagnostics. More... | |
Private Attributes | |
| std::vector< int > | LevErrors_ |
| Number of failed checks by level. More... | |
| std::vector< float > | tInterp_ |
| Interpolated value of T. More... | |
| Private Attributes inherited from ufo::ProfileStandardLevels | |
| std::vector< float > | StandardLevels_ |
| Standard levels (hPa) More... | |
| std::vector< float > | BigGaps_ |
| Big gaps (hPa) used in interpolation check. More... | |
| const ConventionalProfileProcessingParameters & | optionsSL_ |
| Configurable parameters. More... | |
| int | NumSig_ |
| Number of significant levels. More... | |
| int | NumStd_ |
| Number of standard levels. More... | |
| std::vector< int > | StdLev_ |
| Index of standard levels. More... | |
| std::vector< int > | SigBelow_ |
| Significant level below standard level. More... | |
| std::vector< int > | SigAbove_ |
| Significant level above standard level. More... | |
| std::vector< float > | LogP_ |
| Log(Pressure) - used for vertical interpolation. More... | |
| std::vector< int > | IndStd_ |
| Indices of standard levels. More... | |
| int | Ind925_ = 1 |
| Standard level index closest to 925 hPa. More... | |
| int | Ind100_ = 10 |
| Standard level index closest to 100 hPa. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ufo::ProfileCheckBase | |
| template<typename T > | |
| void | correctVector (const std::vector< T > &v1, const std::vector< T > &v2, std::vector< T > &vout) |
| Apply correction to vector of values. More... | |
| template<typename T > | |
| void | SetQCFlag (const int &flag, const size_t &jlev, std::vector< T > &vec) |
| template<typename T , typename... Args> | |
| void | SetQCFlag (const int &flag, const size_t &jlev, std::vector< T > &vec1, Args &... vecs) |
| Protected Attributes inherited from ufo::ProfileCheckBase | |
| const ConventionalProfileProcessingParameters & | options_ |
| Configurable parameters. More... | |
| const int | missingValueInt = util::missingValue(1) |
| Missing value (int) More... | |
| const float | missingValueFloat = util::missingValue(1.0f) |
| Missing value (float) More... | |
| Private Member Functions inherited from ufo::ProfileStandardLevels | |
| ProfileStandardLevels (const ConventionalProfileProcessingParameters &options) | |
| virtual | ~ProfileStandardLevels () |
| void | calcStdLevels (const int numProfileLevels, const std::vector< float > &pressures, const std::vector< float > &tObs, const std::vector< int > &tFlags) |
| Calculate standard levels. More... | |
| void | findHCheckStdLevs () |
| Compute indices of particular standard levels for the hydrostatic check. More... | |
| void | calcStdLevelsUV (const int numProfileLevels, const std::vector< float > &pressures, const std::vector< float > &uObs, const std::vector< float > &vObs, const std::vector< int > &uFlags) |
| Calculate standard levels for U and V data. More... | |
Detailed Description
Profile QC: interpolation check.
Definition at line 26 of file ProfileCheckInterpolation.h.
Constructor & Destructor Documentation
◆ ProfileCheckInterpolation()
|
explicit |
Definition at line 16 of file ProfileCheckInterpolation.cc.
Member Function Documentation
◆ fillValidationData()
|
overridevirtual |
Fill variables in validator.
Reimplemented from ufo::ProfileCheckBase.
Definition at line 140 of file ProfileCheckInterpolation.cc.
Here is the call graph for this function:
◆ runCheck()
|
overridevirtual |
Run check.
BigGap - see 6.3.2.2.2 of the Guide on the Global Data-Processing System. Reduced to 50 hPa for standard levels at 150 and 100 hPa
Implements ufo::ProfileCheckBase.
Definition at line 22 of file ProfileCheckInterpolation.cc.

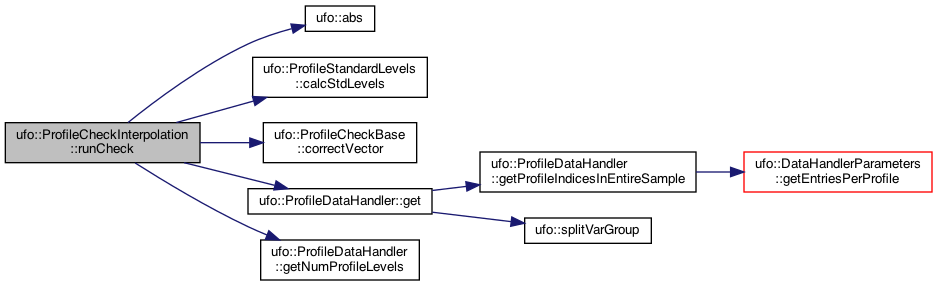

Here is the call graph for this function:
Member Data Documentation
◆ LevErrors_
|
private |
Number of failed checks by level.
Definition at line 39 of file ProfileCheckInterpolation.h.
◆ tInterp_
|
private |
Interpolated value of T.
Definition at line 42 of file ProfileCheckInterpolation.h.
The documentation for this class was generated from the following files:
