Profile QC: average relative humidity observations onto model levels. More...

#include <ProfileAverageRelativeHumidity.h>

Inheritance diagram for ufo::ProfileAverageRelativeHumidity:

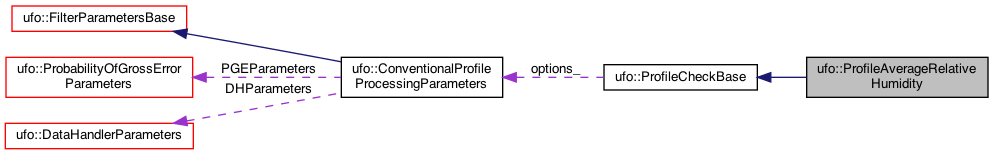

Collaboration diagram for ufo::ProfileAverageRelativeHumidity:

[legend]

Public Member Functions
	ProfileAverageRelativeHumidity (const ConventionalProfileProcessingParameters &options)

void	runCheck (ProfileDataHandler &profileDataHandler) override

void	fillValidationData (ProfileDataHolder &profileDataHolder)
	Fill variables in validator (for comparison with OPS output). More...

bool	runOnEntireSample () override
	Run this check on the entire sample? More...

oops::Variables	getGeoVaLNames () override
	List of names of required GeoVaLs. More...

oops::Variables	getValidationGeoVaLNames () override
	List of names of GeoVaLs used in check validation. More...

Public Member Functions inherited from ufo::ProfileCheckBase
	ProfileCheckBase (const ConventionalProfileProcessingParameters &options)

virtual	~ProfileCheckBase ()

virtual void	fillValidationData (ProfileDataHandler &profileDataHandler)

virtual bool	getResult ()
	Get result of check (default fail) More...

virtual oops::Variables	getObsDiagNames ()
	List of names of required obs diagnostics. More...

Private Member Functions
void	runCheckOnProfiles (ProfileDataHolder &profileOriginal, ProfileDataHolder &profileExtended)

Additional Inherited Members
Protected Member Functions inherited from ufo::ProfileCheckBase
template<typename T >
void	correctVector (const std::vector< T > &v1, const std::vector< T > &v2, std::vector< T > &vout)
	Apply correction to vector of values. More...

template<typename T >
void	SetQCFlag (const int &flag, const size_t &jlev, std::vector< T > &vec)

template<typename T , typename... Args>
void	SetQCFlag (const int &flag, const size_t &jlev, std::vector< T > &vec1, Args &... vecs)

Protected Attributes inherited from ufo::ProfileCheckBase
const ConventionalProfileProcessingParameters &	options_
	Configurable parameters. More...

const int	missingValueInt = util::missingValue(1)
	Missing value (int) More...

const float	missingValueFloat = util::missingValue(1.0f)
	Missing value (float) More...

Detailed Description

Profile QC: average relative humidity observations onto model levels.

Vectors produced by the AveragePressure routine must be present otherwise the exception eckit::BadValue will be thrown.

By default, relative humidities are interpolated onto model layer boundaries rather than averaged across layers in order to avoid unwanted smoothing. This behaviour can be controlled with the AvgRH_Interp option.

The interpolated/averaged relative humidity values are rejected at any layer where the averaged temperature value is less than or equal to the threshold AvgRH_AvgTThreshold. This threshold can be modified to an instrument-dependent value with the parameter AvgRH_InstrTThresholds, which is a map between WMO sonde instrument codes and the associated temperature thresholds.

Definition at line 43 of file ProfileAverageRelativeHumidity.h.
