A filter to convert new BUFR formatted data into variables with names corressponding to the wind generating application. More...

#include <ProcessAMVQI.h>

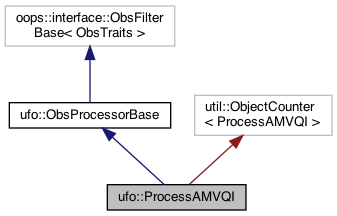

Inheritance diagram for ufo::ProcessAMVQI:

[legend]

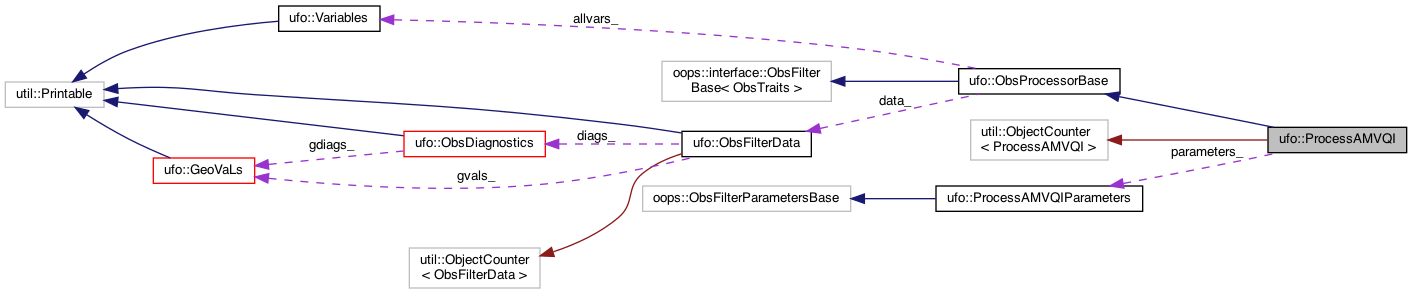

Collaboration diagram for ufo::ProcessAMVQI:

[legend]

Public Types
typedef ProcessAMVQIParameters	Parameters_

Public Member Functions
	ProcessAMVQI (ioda::ObsSpace &obsdb, const Parameters_ &parameters, std::shared_ptr< ioda::ObsDataVector< int >> flags, std::shared_ptr< ioda::ObsDataVector< float >> obserr)

	~ProcessAMVQI () override

Public Member Functions inherited from ufo::ObsProcessorBase
	ObsProcessorBase (ioda::ObsSpace &, bool deferToPost, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)

	~ObsProcessorBase ()

void	preProcess () override

void	priorFilter (const GeoVaLs &) override

void	postFilter (const ioda::ObsVector &, const ioda::ObsVector &, const ObsDiagnostics &) override

oops::Variables	requiredVars () const override

oops::Variables	requiredHdiagnostics () const override

Static Public Member Functions
static const std::string	classname ()

Private Member Functions
void	print (std::ostream &) const override

void	doFilter () const override
	A filter to convert new BUFR formatted data into variables with names corressponding to the wind generating application. More...

Private Attributes
Parameters_	parameters_

Additional Inherited Members
Protected Attributes inherited from ufo::ObsProcessorBase
ioda::ObsSpace &	obsdb_

std::shared_ptr< ioda::ObsDataVector< int > >	flags_

std::shared_ptr< ioda::ObsDataVector< float > >	obserr_

ufo::Variables	allvars_

ObsFilterData	data_

Detailed Description

A filter to convert new BUFR formatted data into variables with names corressponding to the wind generating application.

This filter will convert variables of "percent_confidence_<number>" and "wind_generating_application_<number>" to variables named corresponding to the wind_generating_application (see Table 1).

Table 1: Wind generating application number = QI type 1 = Full weighted mixture of individual quality tests 2 = Weighted mixture of individual tests, but excluding forecast comparison 3 = Recursive filter function 4 = Common quality index (QI) without forecast 5 = QI without forecast 6 = QI with forecast 7 = Estimated Error (EE) in m/s converted to a percent confidence

See ProcessAMVQIParameters for the documentation of the parameters controlling this filter.

Definition at line 55 of file ProcessAMVQI.h.

Member Typedef Documentation

◆ Parameters_

typedef ProcessAMVQIParameters ufo::ProcessAMVQI::Parameters_

The type of parameters accepted by the constructor of this filter. This typedef is used by the FilterFactory.

Definition at line 60 of file ProcessAMVQI.h.

Constructor & Destructor Documentation

◆ ProcessAMVQI()

ufo::ProcessAMVQI::ProcessAMVQI	(	ioda::ObsSpace &	obsdb,
		const Parameters_ &	parameters,
		std::shared_ptr< ioda::ObsDataVector< int >>	flags,
		std::shared_ptr< ioda::ObsDataVector< float >>	obserr
	)

Definition at line 24 of file ProcessAMVQI.cc.

◆ ~ProcessAMVQI()

ufo::ProcessAMVQI::~ProcessAMVQI ( )

override

Definition at line 35 of file ProcessAMVQI.cc.

Member Function Documentation

◆ classname()

static const std::string ufo::ProcessAMVQI::classname ( )

inlinestatic

Definition at line 62 of file ProcessAMVQI.h.

◆ doFilter()

void ufo::ProcessAMVQI::doFilter ( ) const

overrideprivatevirtual

A filter to convert new BUFR formatted data into variables with names corressponding to the wind generating application.

Example:

obs filter:
- filter: Process AMV QI
  number of generating apps: 4

Author: A.Martins (Met Office)

Date: 02/08/2021: Created

Implements ufo::ObsProcessorBase.

Definition at line 54 of file ProcessAMVQI.cc.

Here is the call graph for this function:

◆ print()

void ufo::ProcessAMVQI::print ( std::ostream & os ) const

overrideprivate

Definition at line 157 of file ProcessAMVQI.cc.

Member Data Documentation

◆ parameters_

Parameters_ ufo::ProcessAMVQI::parameters_

private

Definition at line 73 of file ProcessAMVQI.h.

The documentation for this class was generated from the following files:
