Thins observations by iterating over them in random order and retaining each observation lying outside the exclusion volumes (ellipsoids or cylinders) surrounding observations that have already been retained. More...

#include <PoissonDiskThinning.h>

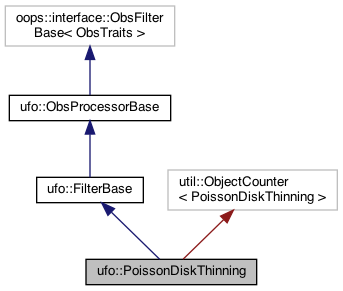

Inheritance diagram for ufo::PoissonDiskThinning:

[legend]

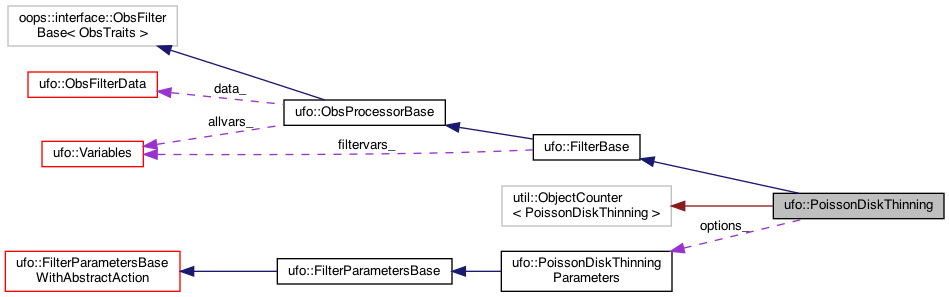

Collaboration diagram for ufo::PoissonDiskThinning:

[legend]

Classes
struct	ObsData

Public Types
typedef PoissonDiskThinningParameters	Parameters_

Public Member Functions
	PoissonDiskThinning (ioda::ObsSpace &obsdb, const Parameters_ &parameters, std::shared_ptr< ioda::ObsDataVector< int > > flags, std::shared_ptr< ioda::ObsDataVector< float > > obserr)

	~PoissonDiskThinning () override

Public Member Functions inherited from ufo::FilterBase
	FilterBase (ioda::ObsSpace &, const FilterParametersBaseWithAbstractAction &parameters, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)

	FilterBase (ioda::ObsSpace &, const eckit::Configuration &, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)

	~FilterBase ()

Public Member Functions inherited from ufo::ObsProcessorBase
	ObsProcessorBase (ioda::ObsSpace &, bool deferToPost, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)

	~ObsProcessorBase ()

void	preProcess () override

void	priorFilter (const GeoVaLs &) override

void	postFilter (const ioda::ObsVector &, const ioda::ObsVector &, const ObsDiagnostics &) override

oops::Variables	requiredVars () const override

oops::Variables	requiredHdiagnostics () const override

Static Public Member Functions
static const std::string	classname ()

Private Member Functions
void	print (std::ostream &) const override

void	applyFilter (const std::vector< bool > &, const Variables &, std::vector< std::vector< bool >> &) const override

int	qcFlag () const override

ObsAccessor	createObsAccessor () const

ObsData	getObsData (const ObsAccessor &obsAccessor, int &numSpatialDims, int &numNonspatialDims) const
	Collect all observation data components used for thinning. More...

template<typename ValueType >
void	validateSpacings (const util::ScalarOrMap< int, ValueType > &spacingsByPriority, const std::string &parameterName) const

std::vector< size_t >	getValidObservationIds (const std::vector< bool > &apply, const Variables &filtervars, const ObsAccessor &obsAccessor) const

void	synchroniseRandomNumberGenerators (const eckit::mpi::Comm &comm) const

void	groupObservationsByPriority (const std::vector< size_t > &validObsIds, const ObsAccessor &obsAccessor, RecursiveSplitter &splitter) const

void	thinCategory (const ObsData &obsData, const std::vector< size_t > &obsIdsInCategory, const RecursiveSplitter &prioritySplitter, int numSpatialDims, int numNonspatialDims, std::vector< bool > &isThinned) const

template<int numDims>
void	thinCategory (const ObsData &obsData, const std::vector< size_t > &obsIdsInCategory, const RecursiveSplitter &prioritySplitter, int numSpatialDims, std::vector< bool > &isThinned) const
	Thin observations belonging to a single category. More...

template<int numDims>
std::array< float, numDims >	getObservationPosition (size_t obsId, const ObsData &obsData) const

template<int numDims>
std::array< float, numDims >	getExclusionVolumeSemiAxes (size_t obsId, const ObsData &obsData) const

Private Attributes
Parameters_	options_

Additional Inherited Members
Protected Attributes inherited from ufo::FilterBase
const eckit::LocalConfiguration	config_

ufo::Variables	filtervars_

Protected Attributes inherited from ufo::ObsProcessorBase
ioda::ObsSpace &	obsdb_

std::shared_ptr< ioda::ObsDataVector< int > >	flags_

std::shared_ptr< ioda::ObsDataVector< float > >	obserr_

ufo::Variables	allvars_

ObsFilterData	data_

Detailed Description

Thins observations by iterating over them in random order and retaining each observation lying outside the exclusion volumes (ellipsoids or cylinders) surrounding observations that have already been retained.

See PoissonDiskThinningParameters for the documentation of the available options.

Definition at line 52 of file src/ufo/filters/PoissonDiskThinning.h.

Member Typedef Documentation

◆ Parameters_

typedef PoissonDiskThinningParameters ufo::PoissonDiskThinning::Parameters_

Definition at line 55 of file src/ufo/filters/PoissonDiskThinning.h.

Constructor & Destructor Documentation

◆ PoissonDiskThinning()

ufo::PoissonDiskThinning::PoissonDiskThinning	(	ioda::ObsSpace &	obsdb,
		const Parameters_ &	parameters,
		std::shared_ptr< ioda::ObsDataVector< int > >	flags,
		std::shared_ptr< ioda::ObsDataVector< float > >	obserr
	)

Definition at line 146 of file PoissonDiskThinning.cc.

◆ ~PoissonDiskThinning()

ufo::PoissonDiskThinning::~PoissonDiskThinning ( )

override

Definition at line 156 of file PoissonDiskThinning.cc.

Member Function Documentation

◆ applyFilter()

void ufo::PoissonDiskThinning::applyFilter	(	const std::vector< bool > &	apply,
		const Variables &	filtervars,
		std::vector< std::vector< bool >> &	flagged
	)		const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 159 of file PoissonDiskThinning.cc.

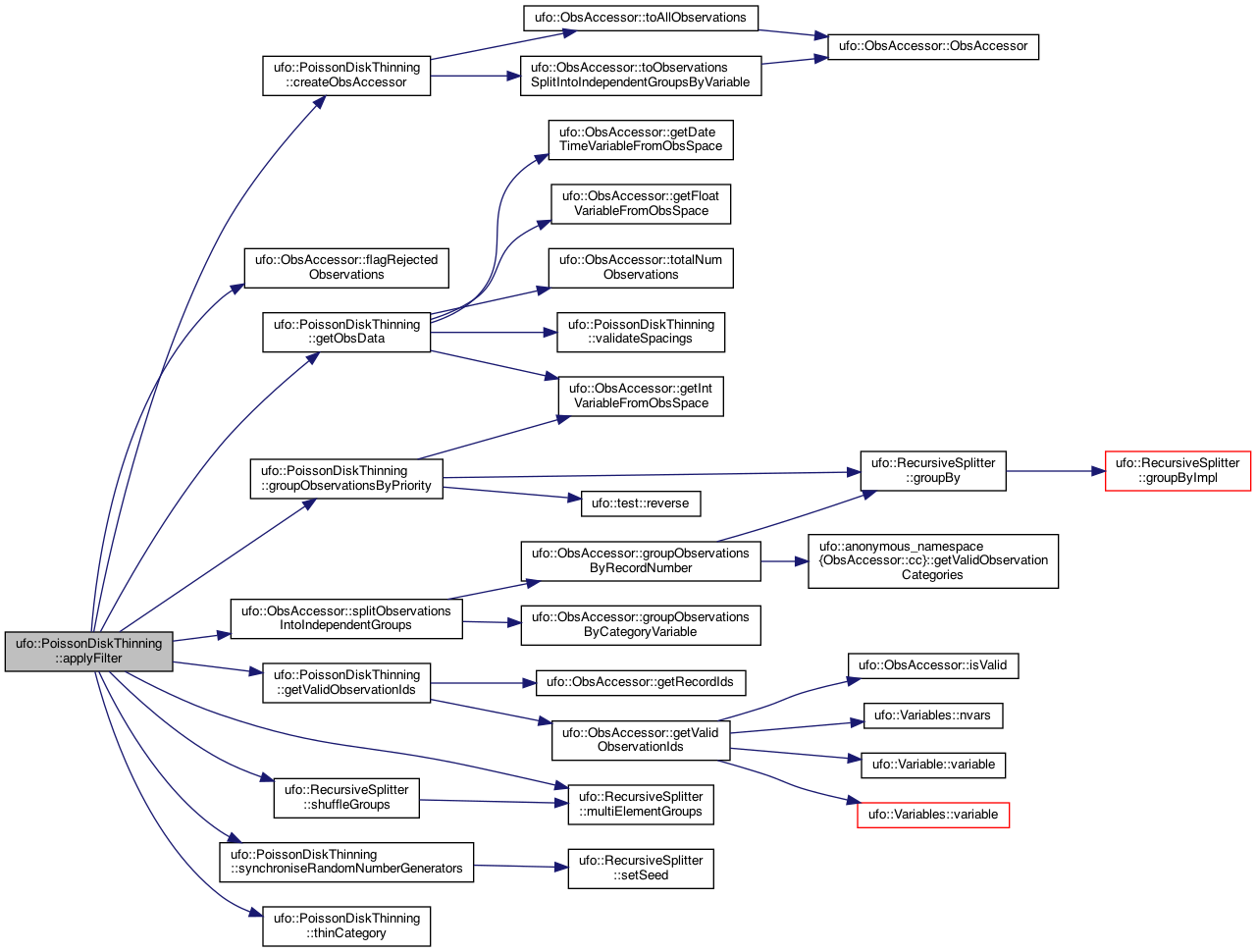

Here is the call graph for this function:

◆ classname()

static const std::string ufo::PoissonDiskThinning::classname ( )

inlinestatic

Definition at line 57 of file src/ufo/filters/PoissonDiskThinning.h.

◆ createObsAccessor()

ObsAccessor ufo::PoissonDiskThinning::createObsAccessor ( ) const

private

Definition at line 213 of file PoissonDiskThinning.cc.

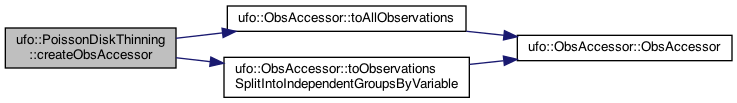

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getExclusionVolumeSemiAxes()

template<int numDims>

std::array< float, numDims > ufo::PoissonDiskThinning::getExclusionVolumeSemiAxes	(	size_t	obsId,
		const ObsData &	obsData
	)		const

private

Definition at line 431 of file PoissonDiskThinning.cc.

◆ getObsData()

PoissonDiskThinning::ObsData ufo::PoissonDiskThinning::getObsData	(	const ObsAccessor &	obsAccessor,
		int &	numSpatialDims,
		int &	numNonspatialDims
	)		const

private

Collect all observation data components used for thinning.

Parameters

[out]	numSpatialDims	Number of spatial dimensions used for thinning (3 if thinning by latitude and longitude, 0 otherwise).
[out]	numNonspatialDims	Number of non-spatial dimensions used for thinning.

Definition at line 222 of file PoissonDiskThinning.cc.

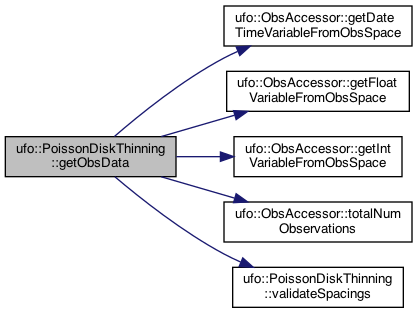

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getObservationPosition()

template<int numDims>

std::array< float, numDims > ufo::PoissonDiskThinning::getObservationPosition	(	size_t	obsId,
		const ObsData &	obsData
	)		const

private

Definition at line 395 of file PoissonDiskThinning.cc.

◆ getValidObservationIds()

std::vector< size_t > ufo::PoissonDiskThinning::getValidObservationIds	(	const std::vector< bool > &	apply,
		const Variables &	filtervars,
		const ObsAccessor &	obsAccessor
	)		const

private

Definition at line 285 of file PoissonDiskThinning.cc.

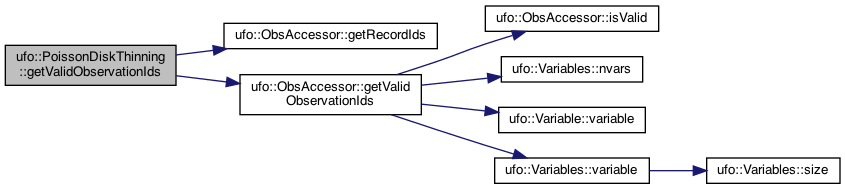

Here is the call graph for this function:

Here is the caller graph for this function:

◆ groupObservationsByPriority()

void ufo::PoissonDiskThinning::groupObservationsByPriority	(	const std::vector< size_t > &	validObsIds,
		const ObsAccessor &	obsAccessor,
		RecursiveSplitter &	splitter
	)		const

private

Definition at line 322 of file PoissonDiskThinning.cc.

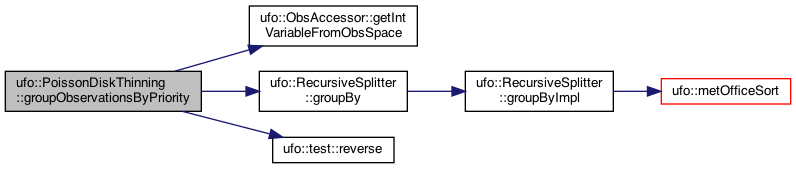

Here is the call graph for this function:

Here is the caller graph for this function:

◆ print()

void ufo::PoissonDiskThinning::print ( std::ostream & os ) const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 464 of file PoissonDiskThinning.cc.

◆ qcFlag()

int ufo::PoissonDiskThinning::qcFlag ( ) const

inlineoverrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 71 of file src/ufo/filters/PoissonDiskThinning.h.

◆ synchroniseRandomNumberGenerators()

void ufo::PoissonDiskThinning::synchroniseRandomNumberGenerators ( const eckit::mpi::Comm & comm ) const

private

Initialise random number generators used for shuffling with the same seed on all processes belonging to the given communicator.

Definition at line 304 of file PoissonDiskThinning.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ thinCategory() [1/2]

void ufo::PoissonDiskThinning::thinCategory	(	const ObsData &	obsData,
		const std::vector< size_t > &	obsIdsInCategory,
		const RecursiveSplitter &	prioritySplitter,
		int	numSpatialDims,
		int	numNonspatialDims,
		std::vector< bool > &	isThinned
	)		const

private

Definition at line 345 of file PoissonDiskThinning.cc.

Here is the caller graph for this function:

◆ thinCategory() [2/2]

template<int numDims>

void ufo::PoissonDiskThinning::thinCategory	(	const ObsData &	obsData,
		const std::vector< size_t > &	obsIdsInCategory,
		const RecursiveSplitter &	prioritySplitter,
		int	numSpatialDims,
		std::vector< bool > &	isThinned
	)		const

private

Thin observations belonging to a single category.

Definition at line 370 of file PoissonDiskThinning.cc.

Here is the call graph for this function:

◆ validateSpacings()

template<typename ValueType >

void ufo::PoissonDiskThinning::validateSpacings	(	const util::ScalarOrMap< int, ValueType > &	spacingsByPriority,
		const std::string &	parameterName
	)		const

private

Definition at line 264 of file PoissonDiskThinning.cc.

Here is the caller graph for this function:

Member Data Documentation

◆ options_

Parameters_ ufo::PoissonDiskThinning::options_

private

Definition at line 125 of file src/ufo/filters/PoissonDiskThinning.h.

The documentation for this class was generated from the following files:
