Parameterize the observation error as a piece-wise quadratic function of a ufo::Variable. More...

#include <ObsErrorModelQuad.h>

Inheritance diagram for ufo::ObsErrorModelQuad:

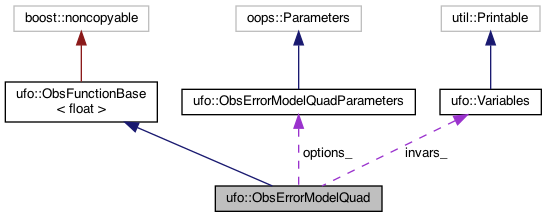

Collaboration diagram for ufo::ObsErrorModelQuad:

[legend]

Public Member Functions
	ObsErrorModelQuad (const eckit::LocalConfiguration &)

	~ObsErrorModelQuad ()

void	compute (const ObsFilterData &, ioda::ObsDataVector< float > &) const
	compute the result of the function More...

const ufo::Variables &	requiredVariables () const
	geovals required to compute the function More...

Public Member Functions inherited from ufo::ObsFunctionBase< float >
	ObsFunctionBase (const eckit::LocalConfiguration conf=eckit::LocalConfiguration())

virtual	~ObsFunctionBase ()

Static Public Member Functions
static const std::string	classname ()

Private Attributes
ufo::Variables	invars_

ObsErrorModelQuadParameters	options_

Additional Inherited Members
Public Types inherited from ufo::ObsFunctionBase< float >
typedef float	Value_
	Type of the values produced by the function. More...

Detailed Description

Parameterize the observation error as a piece-wise quadratic function of a ufo::Variable.

The piece-wise function includes:

initial constant value
quadratic or inverse-quadratic growth
final constant value

and is specified by a, b, err0, and err1 as follows:

p0 * x^2 + p1 * x + p2 ≡ a * (x - b)^2 + c

a = p0
b = p1 / 2p0
c = p2 - p1^2 / (4 * p0)

For a < 0
c = err1 |-   -  _,.-----
         |     .'   '
         |   ,'     '
    err0 |__/       '
         |          '
         '----------+-----
                    '
                    b
For a > 0
    err1 |-   -   - ,-----
         |         /
         |      _.'
c = err0 |___.-'
         |  .
         '--+-------------
            '
            b

example configurations for a FilterBase derived class:

- Filter: {Filter Name}

ABI/AHI

  filter variables:
  - name: brightness_temperature
    channels: &errassignchan 8-10
  action:
    name: assign error
    error function:
      name: ObsErrorModelQuad@ObsFunction
      channels: *errassignchan
      options:
        channels: *errassignchan
        xvar:
          name: OkamotoSCIforIR@ObsFunction
          channels: *errassignchan
          options:
            channels: *errassignchan
        a: [-0.069, -0.045, -0.032]
        b: [15.0,  20.0,  25.0]
        err0: [ 2.5,  3.2,  3.2]
        err1: [17.0, 20.5, 21.1]
       {save: true}

Definition at line 116 of file ObsErrorModelQuad.h.

Constructor & Destructor Documentation

◆ ObsErrorModelQuad()

ufo::ObsErrorModelQuad::ObsErrorModelQuad ( const eckit::LocalConfiguration & config )

explicit

Definition at line 31 of file ObsErrorModelQuad.cc.

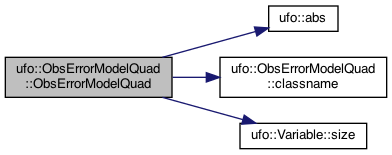

Here is the call graph for this function:

◆ ~ObsErrorModelQuad()

ufo::ObsErrorModelQuad::~ObsErrorModelQuad ( )

Definition at line 77 of file ObsErrorModelQuad.cc.

Member Function Documentation

◆ classname()

static const std::string ufo::ObsErrorModelQuad::classname ( )

inlinestatic

Definition at line 118 of file ObsErrorModelQuad.h.

Here is the caller graph for this function:

◆ compute()

void ufo::ObsErrorModelQuad::compute	(	const ObsFilterData &	,
		ioda::ObsDataVector< float > &
	)		const

virtual

compute the result of the function

Implements ufo::ObsFunctionBase< float >.

Definition at line 81 of file ObsErrorModelQuad.cc.

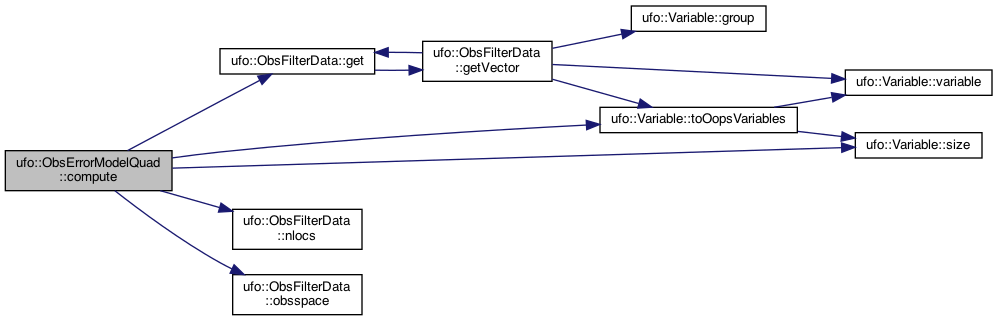

Here is the call graph for this function:

◆ requiredVariables()

const ufo::Variables & ufo::ObsErrorModelQuad::requiredVariables ( ) const

virtual

geovals required to compute the function

Implements ufo::ObsFunctionBase< float >.

Definition at line 137 of file ObsErrorModelQuad.cc.

Member Data Documentation

◆ invars_

ufo::Variables ufo::ObsErrorModelQuad::invars_

private

Definition at line 127 of file ObsErrorModelQuad.h.

◆ options_

ObsErrorModelQuadParameters ufo::ObsErrorModelQuad::options_
