Calculate the ratio of two variables, typically related to ObsError. More...

#include <ObsErrorFactorQuotient.h>

Inheritance diagram for ufo::ObsErrorFactorQuotient:

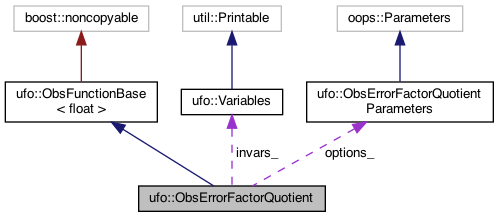

Collaboration diagram for ufo::ObsErrorFactorQuotient:

[legend]

Public Member Functions
	ObsErrorFactorQuotient (const eckit::LocalConfiguration)

	~ObsErrorFactorQuotient ()

void	compute (const ObsFilterData &, ioda::ObsDataVector< float > &) const
	compute the result of the function More...

const ufo::Variables &	requiredVariables () const
	geovals required to compute the function More...

Public Member Functions inherited from ufo::ObsFunctionBase< float >
	ObsFunctionBase (const eckit::LocalConfiguration conf=eckit::LocalConfiguration())

virtual	~ObsFunctionBase ()

Static Public Member Functions
static const std::string	classname ()

Private Attributes
ufo::Variables	invars_

ObsErrorFactorQuotientParameters	options_

Additional Inherited Members
Public Types inherited from ufo::ObsFunctionBase< float >
typedef float	Value_
	Type of the values produced by the function. More...

Detailed Description

Calculate the ratio of two variables, typically related to ObsError.

This routine was designed to mimic the GSI-Observer method of rejecting obs data when the ratio of the final ObsError, after inflation, is more than a threshold amount greater than the starting ObsError. A boolean optional save variable is available, false by default. The ObsFunction is simple division expected to be used with Bounds Check above a maximum threshold.

example configurations for a FilterBase derived class:

- Filter: Bounds Check
  filter variables:
  - name: air_temperature
  action:
    name: reject
  maxvalue: 3.6
  test variables:
  - name: ObsErrorFactorQuotient@ObsFunction
      options:
        numerator:
          name: air_temperature@ObsErrorData   # After inflation step
        denominator:
          name: air_temperature@ObsError
  defer to post: true                         # Likely necessary for order of filters

Definition at line 65 of file ObsErrorFactorQuotient.h.

Constructor & Destructor Documentation

◆ ObsErrorFactorQuotient()

ufo::ObsErrorFactorQuotient::ObsErrorFactorQuotient ( const eckit::LocalConfiguration config )

explicit

Definition at line 23 of file ObsErrorFactorQuotient.cc.

Here is the call graph for this function:

◆ ~ObsErrorFactorQuotient()

ufo::ObsErrorFactorQuotient::~ObsErrorFactorQuotient ( )

Definition at line 43 of file ObsErrorFactorQuotient.cc.

Member Function Documentation

◆ classname()

static const std::string ufo::ObsErrorFactorQuotient::classname ( )

inlinestatic

Definition at line 67 of file ObsErrorFactorQuotient.h.

◆ compute()

void ufo::ObsErrorFactorQuotient::compute	(	const ObsFilterData &	,
		ioda::ObsDataVector< float > &
	)		const

virtual

compute the result of the function

Implements ufo::ObsFunctionBase< float >.

Definition at line 47 of file ObsErrorFactorQuotient.cc.

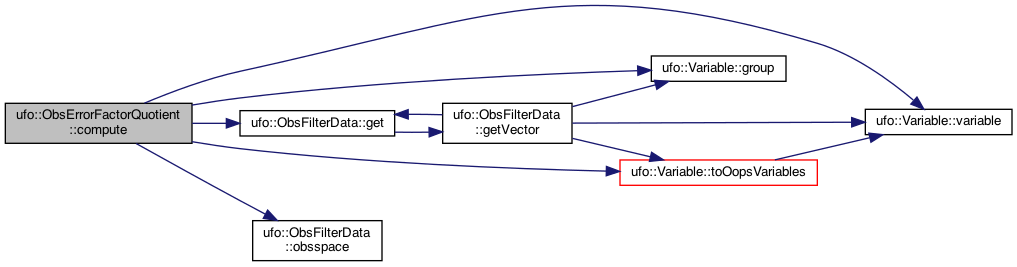

Here is the call graph for this function:

◆ requiredVariables()

const ufo::Variables & ufo::ObsErrorFactorQuotient::requiredVariables ( ) const

virtual

geovals required to compute the function

Implements ufo::ObsFunctionBase< float >.

Definition at line 90 of file ObsErrorFactorQuotient.cc.

Member Data Documentation

◆ invars_

ufo::Variables ufo::ObsErrorFactorQuotient::invars_

private

Definition at line 75 of file ObsErrorFactorQuotient.h.

◆ options_

ObsErrorFactorQuotientParameters ufo::ObsErrorFactorQuotient::options_

private

Definition at line 76 of file ObsErrorFactorQuotient.h.

The documentation for this class was generated from the following files:
