ufo::ObsDomainCheck Class Reference

Domain check: generic check that obs are within domain. More...

#include <ObsDomainCheck.h>

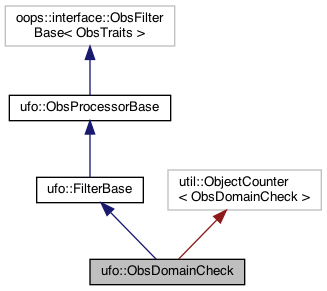

Inheritance diagram for ufo::ObsDomainCheck:

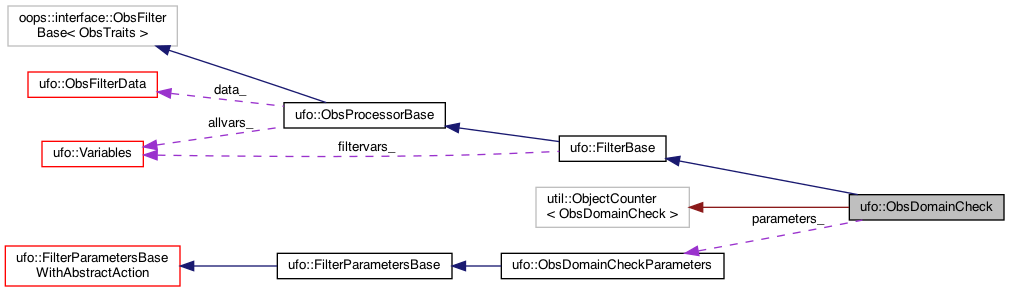

Collaboration diagram for ufo::ObsDomainCheck:

Public Types
typedef ObsDomainCheckParameters	Parameters_

Public Member Functions
	ObsDomainCheck (ioda::ObsSpace &, const Parameters_ &, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)
	~ObsDomainCheck ()
Public Member Functions inherited from ufo::FilterBase
	FilterBase (ioda::ObsSpace &, const FilterParametersBaseWithAbstractAction &parameters, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)
	FilterBase (ioda::ObsSpace &, const eckit::Configuration &, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)
	~FilterBase ()
Public Member Functions inherited from ufo::ObsProcessorBase
	ObsProcessorBase (ioda::ObsSpace &, bool deferToPost, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)
	~ObsProcessorBase ()
void	preProcess () override
void	priorFilter (const GeoVaLs &) override
void	postFilter (const ioda::ObsVector &, const ioda::ObsVector &, const ObsDiagnostics &) override
oops::Variables	requiredVars () const override
oops::Variables	requiredHdiagnostics () const override

Static Public Member Functions
static const std::string	classname ()

Private Member Functions
void	print (std::ostream &) const override
void	applyFilter (const std::vector< bool > &, const Variables &, std::vector< std::vector< bool >> &) const override
int	qcFlag () const override

Private Attributes
Parameters_	parameters_

Additional Inherited Members
Protected Attributes inherited from ufo::FilterBase
const eckit::LocalConfiguration	config_
ufo::Variables	filtervars_
Protected Attributes inherited from ufo::ObsProcessorBase
ioda::ObsSpace &	obsdb_
std::shared_ptr< ioda::ObsDataVector< int > >	flags_
std::shared_ptr< ioda::ObsDataVector< float > >	obserr_
ufo::Variables	allvars_
ObsFilterData	data_

Detailed Description

Domain check: generic check that obs are within domain.

Definition at line 45 of file ObsDomainCheck.h.

Member Typedef Documentation

Parameters_

typedef ObsDomainCheckParameters ufo::ObsDomainCheck::Parameters_

The type of parameters accepted by the constructor of this filter. This typedef is used by the FilterFactory.

Definition at line 50 of file ObsDomainCheck.h.

Constructor & Destructor Documentation

ObsDomainCheck()

ufo::ObsDomainCheck::ObsDomainCheck	(	ioda::ObsSpace &	obsdb,
		const Parameters_ &	parameters,
		std::shared_ptr< ioda::ObsDataVector< int > >	flags,
		std::shared_ptr< ioda::ObsDataVector< float > >	obserr
	)

Definition at line 23 of file ObsDomainCheck.cc.

~ObsDomainCheck()

ufo::ObsDomainCheck::~ObsDomainCheck

(

)

Definition at line 33 of file ObsDomainCheck.cc.

Member Function Documentation

applyFilter()

void ufo::ObsDomainCheck::applyFilter ( const std::vector< bool > &  inside, const Variables &  filtervars, std::vector< std::vector< bool >> &  flagged  ) const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 37 of file ObsDomainCheck.cc.

Here is the call graph for this function:

classname()

static const std::string ufo::ObsDomainCheck::classname ( )

inlinestatic

Definition at line 52 of file ObsDomainCheck.h.

print()

void ufo::ObsDomainCheck::print ( std::ostream &  os ) const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 49 of file ObsDomainCheck.cc.

qcFlag()

int ufo::ObsDomainCheck::qcFlag ( ) const

inlineoverrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 63 of file ObsDomainCheck.h.

Member Data Documentation

parameters_

Parameters_ ufo::ObsDomainCheck::parameters_

private

Definition at line 65 of file ObsDomainCheck.h.

---

The documentation for this class was generated from the following files:

• ObsDomainCheck.h
• ObsDomainCheck.cc
