ufo::ModelObThreshold Class Reference

A filter that interpolates a model profile (GeoVaL) and a height-dependent threshold to the observation location and flags observations which are outside the specified limit. More...

#include <ModelObThreshold.h>

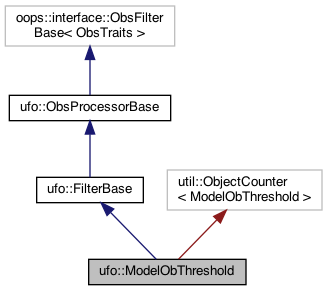

Inheritance diagram for ufo::ModelObThreshold:

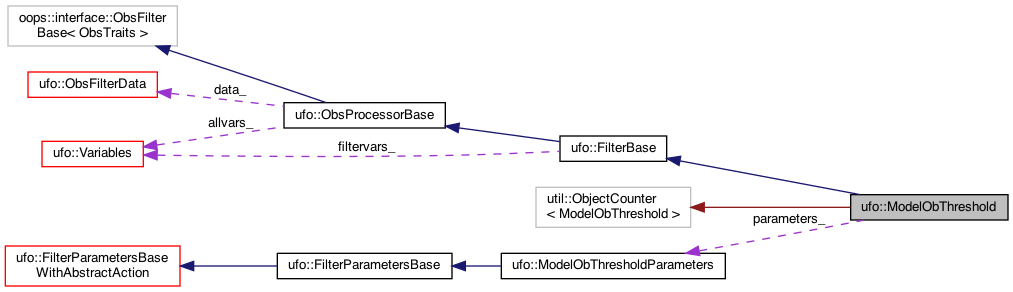

Collaboration diagram for ufo::ModelObThreshold:

Public Types
typedef ModelObThresholdParameters	Parameters_

Public Member Functions
	ModelObThreshold (ioda::ObsSpace &, const Parameters_ &, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)
	~ModelObThreshold ()
Public Member Functions inherited from ufo::FilterBase
	FilterBase (ioda::ObsSpace &, const FilterParametersBaseWithAbstractAction &parameters, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)
	FilterBase (ioda::ObsSpace &, const eckit::Configuration &, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)
	~FilterBase ()
Public Member Functions inherited from ufo::ObsProcessorBase
	ObsProcessorBase (ioda::ObsSpace &, bool deferToPost, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)
	~ObsProcessorBase ()
void	preProcess () override
void	priorFilter (const GeoVaLs &) override
void	postFilter (const ioda::ObsVector &, const ioda::ObsVector &, const ObsDiagnostics &) override
oops::Variables	requiredVars () const override
oops::Variables	requiredHdiagnostics () const override

Static Public Member Functions
static const std::string	classname ()

Private Member Functions
void	print (std::ostream &) const override
void	applyFilter (const std::vector< bool > &, const Variables &, std::vector< std::vector< bool >> &) const override
	Filter to apply a threshold to a model profile interpolated to the observation height. More...
int	qcFlag () const override

Private Attributes
Parameters_	parameters_

Additional Inherited Members
Protected Attributes inherited from ufo::FilterBase
const eckit::LocalConfiguration	config_
ufo::Variables	filtervars_
Protected Attributes inherited from ufo::ObsProcessorBase
ioda::ObsSpace &	obsdb_
std::shared_ptr< ioda::ObsDataVector< int > >	flags_
std::shared_ptr< ioda::ObsDataVector< float > >	obserr_
ufo::Variables	allvars_
ObsFilterData	data_

Detailed Description

A filter that interpolates a model profile (GeoVaL) and a height-dependent threshold to the observation location and flags observations which are outside the specified limit.

See ModelObThresholdParameters for the documentation of the parameters controlling this filter.

Definition at line 88 of file ModelObThreshold.h.

Member Typedef Documentation

Parameters_

typedef ModelObThresholdParameters ufo::ModelObThreshold::Parameters_

The type of parameters accepted by the constructor of this filter. This typedef is used by the FilterFactory.

Definition at line 93 of file ModelObThreshold.h.

Constructor & Destructor Documentation

ModelObThreshold()

ufo::ModelObThreshold::ModelObThreshold	(	ioda::ObsSpace &	obsdb,
		const Parameters_ &	parameters,
		std::shared_ptr< ioda::ObsDataVector< int > >	flags,
		std::shared_ptr< ioda::ObsDataVector< float > >	obserr
	)

Definition at line 29 of file ModelObThreshold.cc.

~ModelObThreshold()

ufo::ModelObThreshold::~ModelObThreshold

(

)

Definition at line 42 of file ModelObThreshold.cc.

Member Function Documentation

applyFilter()

void ufo::ModelObThreshold::applyFilter ( const std::vector< bool > &  apply, const Variables &  filtervars, std::vector< std::vector< bool >> &  flagged  ) const

overrideprivatevirtual

Filter to apply a threshold to a model profile interpolated to the observation height.

The specified model profile variable is linearly (vertical) interpolated to the observation height using the specified model vertical coordinate variable. This is referred to as the "ModelOb". Note that the ModelOb is not necessarily one of the HofX variables.

The observation height must be in the same coordinate system as that specified for the model vertical coordinate, e.g. both pressure.

The thresholds to compare the ModelOb against is specified as height-dependent. We supply a vector of threshold values, and a vector of vertical coordinate values corresponding to those thresholds. The coordinate values must be in the same vertical coordinate as the observation, e.g. pressure. The threshold values are then linearly interpolated to the observation height.

The observation is flagged for rejection if the ModelOb lies outside the threshold value according to threshold type - min or max. E.g. if the threshold type is min, then the observation is flagged if ModelOb is less than the interpolated threshold value.

Example for relative humidity:

obs filters:
- filter: ModelOb Threshold
  model profile:
    name: relative_humidity@GeoVaLs
  model vertical coordinate:
    name: air_pressure@GeoVaLs
  observation height:
    name: air_pressure_levels@MetaData
  thresholds: [50,50,40,30]
  coordinate values: [100000,80000,50000,20000]
  threshold type: min

Author

J.Cotton (Met Office)

Date

12/03/2021: Created

Implements ufo::FilterBase.

Definition at line 89 of file ModelObThreshold.cc.

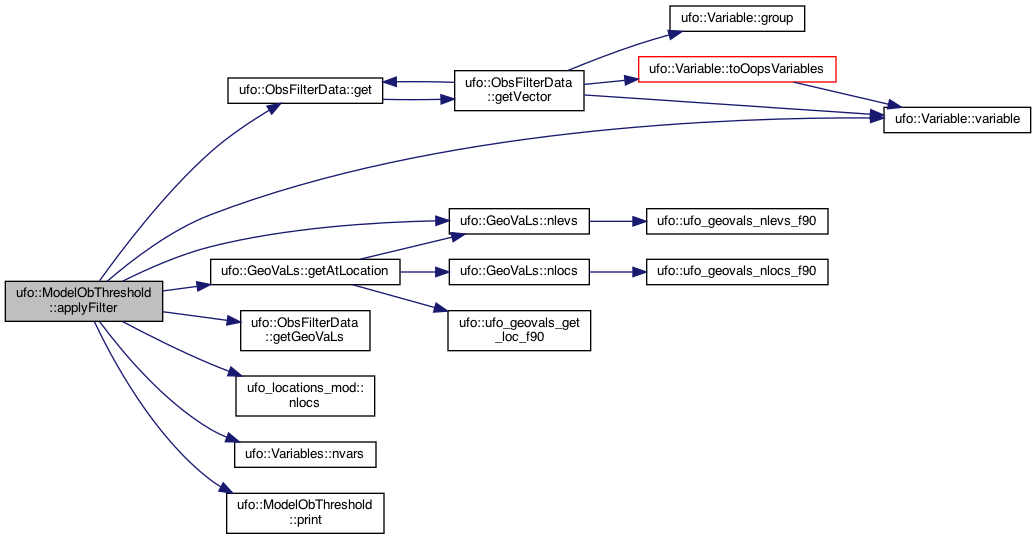

Here is the call graph for this function:

classname()

static const std::string ufo::ModelObThreshold::classname ( )

inlinestatic

Definition at line 95 of file ModelObThreshold.h.

print()

void ufo::ModelObThreshold::print ( std::ostream &  os ) const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 174 of file ModelObThreshold.cc.

Here is the caller graph for this function:

qcFlag()

int ufo::ModelObThreshold::qcFlag ( ) const

inlineoverrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 106 of file ModelObThreshold.h.

Member Data Documentation

parameters_

Parameters_ ufo::ModelObThreshold::parameters_

private

Definition at line 108 of file ModelObThreshold.h.

---

The documentation for this class was generated from the following files:

• ModelObThreshold.h
• ModelObThreshold.cc
