Function to calculate surface marine wind value adjusted from anemometer height to reference height of 10m. Outputs a derived eastward or northward wind adjusted to the reference height. Observed winds are adjusted to the reference height by multiplying by a scaling factor (S) based on a simple stability-independent adjustment based on one of the TurboWin options (Eqn 1 of Thomas et al, 2005; doi.org/10.1002/joc.1176). Observations where the anemometer height is 0m are NOT corrected, instead a missing data indicator is assigned. More...

#include <ModelHeightAdjustedMarineWind.h>

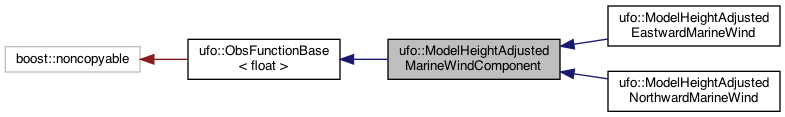

Inheritance diagram for ufo::ModelHeightAdjustedMarineWindComponent:

[legend]

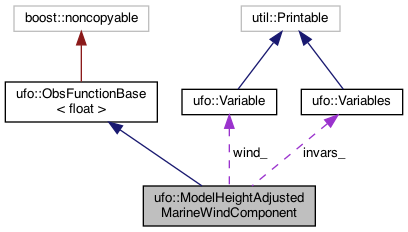

Collaboration diagram for ufo::ModelHeightAdjustedMarineWindComponent:

[legend]

Public Member Functions
void	compute (const ObsFilterData &, ioda::ObsDataVector< float > &) const
	compute the result of the function More...

const ufo::Variables &	requiredVariables () const
	geovals required to compute the function More...

Public Member Functions inherited from ufo::ObsFunctionBase< float >
	ObsFunctionBase (const eckit::LocalConfiguration conf=eckit::LocalConfiguration())

virtual	~ObsFunctionBase ()

Protected Member Functions
	ModelHeightAdjustedMarineWindComponent (const eckit::LocalConfiguration &conf, const Variable &windComponent)

Private Attributes
ufo::Variables	invars_

ufo::Variable	wind_

Additional Inherited Members
Public Types inherited from ufo::ObsFunctionBase< float >
typedef float	Value_
	Type of the values produced by the function. More...

Detailed Description

Function to calculate surface marine wind value adjusted from anemometer height to reference height of 10m. Outputs a derived eastward or northward wind adjusted to the reference height. Observed winds are adjusted to the reference height by multiplying by a scaling factor (S) based on a simple stability-independent adjustment based on one of the TurboWin options (Eqn 1 of Thomas et al, 2005; doi.org/10.1002/joc.1176). Observations where the anemometer height is 0m are NOT corrected, instead a missing data indicator is assigned.

Definition at line 33 of file ModelHeightAdjustedMarineWind.h.

Constructor & Destructor Documentation

◆ ModelHeightAdjustedMarineWindComponent()

ufo::ModelHeightAdjustedMarineWindComponent::ModelHeightAdjustedMarineWindComponent	(	const eckit::LocalConfiguration &	conf,
		const Variable &	windComponent
	)
