ufo::HydrometeorCheckATMS Class Reference

Cloud and precipitation checks for ATMS Checks for all observations: (1) Sanity check on observaton values (2) Sanity check on retrieved CLW values Checks for observation over ocean include: (1) Scattering check based on 54.4GHz channel (2) Scattering check based on 53.6GHz channel (3) Sensitivity to surface emissivity Checks observation over non-ocean surface include: (1) Scattering check based on 54.4GHz channel (2) Thick cloud check based on 52.8GHz channel (3) Sensitivity to surface emissivity Output of this function: 0 = channel is not affected by thick clouds and precipitation 1 = channel is affected by thick clouds and precipitataion. More...

#include <HydrometeorCheckATMS.h>

Inheritance diagram for ufo::HydrometeorCheckATMS:

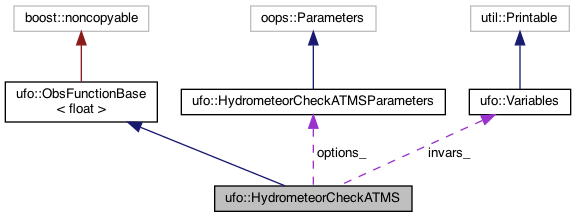

Collaboration diagram for ufo::HydrometeorCheckATMS:

Public Member Functions
	HydrometeorCheckATMS (const eckit::LocalConfiguration &)
	~HydrometeorCheckATMS ()
void	compute (const ObsFilterData &, ioda::ObsDataVector< float > &) const
	compute the result of the function More...
const ufo::Variables &	requiredVariables () const
	geovals required to compute the function More...
Public Member Functions inherited from ufo::ObsFunctionBase< float >
	ObsFunctionBase (const eckit::LocalConfiguration conf=eckit::LocalConfiguration())
virtual	~ObsFunctionBase ()

Private Attributes
ufo::Variables	invars_
std::vector< int >	channels_
HydrometeorCheckATMSParameters	options_

Additional Inherited Members
Public Types inherited from ufo::ObsFunctionBase< float >
typedef float	Value_
	Type of the values produced by the function. More...

Detailed Description

Cloud and precipitation checks for ATMS Checks for all observations: (1) Sanity check on observaton values (2) Sanity check on retrieved CLW values Checks for observation over ocean include: (1) Scattering check based on 54.4GHz channel (2) Scattering check based on 53.6GHz channel (3) Sensitivity to surface emissivity Checks observation over non-ocean surface include: (1) Scattering check based on 54.4GHz channel (2) Thick cloud check based on 52.8GHz channel (3) Sensitivity to surface emissivity Output of this function: 0 = channel is not affected by thick clouds and precipitation 1 = channel is affected by thick clouds and precipitataion.

Definition at line 81 of file HydrometeorCheckATMS.h.

Constructor & Destructor Documentation

HydrometeorCheckATMS()

ufo::HydrometeorCheckATMS::HydrometeorCheckATMS ( const eckit::LocalConfiguration &  conf )

explicit

Definition at line 33 of file HydrometeorCheckATMS.cc.

~HydrometeorCheckATMS()

ufo::HydrometeorCheckATMS::~HydrometeorCheckATMS

(

)

Definition at line 78 of file HydrometeorCheckATMS.cc.

Member Function Documentation

compute()

void ufo::HydrometeorCheckATMS::compute ( const ObsFilterData &  , ioda::ObsDataVector< float > &    ) const

virtual

compute the result of the function

Implements ufo::ObsFunctionBase< float >.

Definition at line 82 of file HydrometeorCheckATMS.cc.

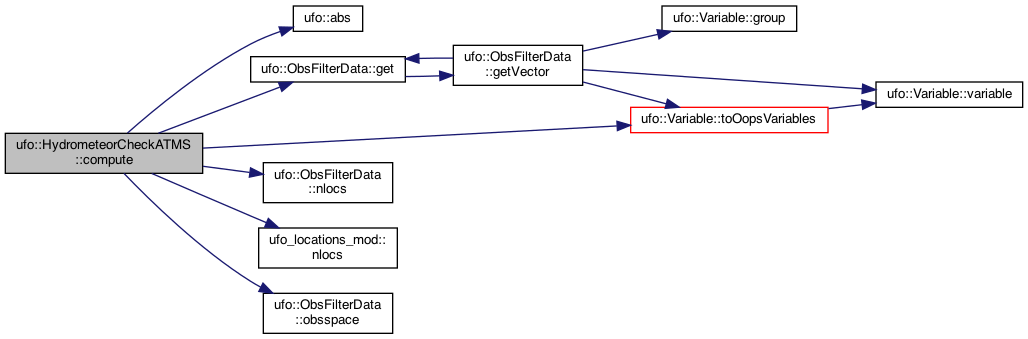

Here is the call graph for this function:

requiredVariables()

const ufo::Variables & ufo::HydrometeorCheckATMS::requiredVariables ( ) const

virtual

geovals required to compute the function

Implements ufo::ObsFunctionBase< float >.

Definition at line 386 of file HydrometeorCheckATMS.cc.

Member Data Documentation

channels_

std::vector<int> ufo::HydrometeorCheckATMS::channels_

private

Definition at line 91 of file HydrometeorCheckATMS.h.

invars_

ufo::Variables ufo::HydrometeorCheckATMS::invars_

private

Definition at line 90 of file HydrometeorCheckATMS.h.

options_

HydrometeorCheckATMSParameters ufo::HydrometeorCheckATMS::options_

private

Definition at line 92 of file HydrometeorCheckATMS.h.

---

The documentation for this class was generated from the following files:

• HydrometeorCheckATMS.h
• HydrometeorCheckATMS.cc
