ufo::DistanceCalculator Class Reference

Calculates distances between observations and centres of bins used during thinning. More...

#include <DistanceCalculator.h>

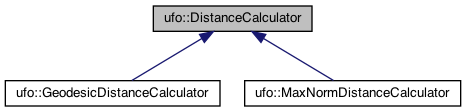

Inheritance diagram for ufo::DistanceCalculator:

Public Member Functions
virtual	~DistanceCalculator ()
virtual float	spatialDistanceComponent (float obsLatitude, float obsLongitude, float latitudeBinCenter, float longitudeBinCenter, float inverseLatitudeBinWidth, float inverseLongitudeBinWidth) const =0
virtual float	nonspatialDistanceComponent (float obs, float binCenter, float inverseBinWidth) const =0
virtual float	combineDistanceComponents (float componentA, float componentB) const =0
virtual float	finalise (float combinedComponents) const =0

Detailed Description

Calculates distances between observations and centres of bins used during thinning.

It is assumed that the location of each point can be expressed in terms of its latitude x1, longitude x2 and possibly other nonspatial coordinates xi (i >= 3), and that scale factors si (i >= 1) are used to make all coordinates dimensionless. The distance between two points is given by

distance((x1, x2, x3, x4, ...), (y1, y2, y3, y4, ...), (s1, s2, s3, s4, ...)) = finalise( spatialDistanceComponent((x1, x2), (y1, y2), (s1, s2)) @ nonspatialDistanceComponent(x3, y3, s3) @ nonspatialDistanceComponent(x4, y4, s4) @ ...),

where @ is the binary operator implemented by combineDistanceComponents(). For example, to use the Euclidean norm as the distance function, one would use

spatialDistanceComponent((x1, x2), (y1, y2), (s1, s2)) = (s1*(x1 - y1))**2 + (s2*(x2 - y2))**2 nonspatialDistanceComponent(x, y, s) = (s*(x - y))**2 combineDistanceComponents(x, y) = x + y finalise(x) = sqrt(x).

Definition at line 33 of file DistanceCalculator.h.

Constructor & Destructor Documentation

~DistanceCalculator()

virtual ufo::DistanceCalculator::~DistanceCalculator ( )

inlinevirtual

Definition at line 35 of file DistanceCalculator.h.

Member Function Documentation

combineDistanceComponents()

virtual float ufo::DistanceCalculator::combineDistanceComponents ( float  componentA, float  componentB  ) const

pure virtual

Implemented in ufo::MaxNormDistanceCalculator, and ufo::GeodesicDistanceCalculator.

Here is the caller graph for this function:

finalise()

virtual float ufo::DistanceCalculator::finalise ( float  combinedComponents ) const

pure virtual

Implemented in ufo::MaxNormDistanceCalculator, and ufo::GeodesicDistanceCalculator.

nonspatialDistanceComponent()

virtual float ufo::DistanceCalculator::nonspatialDistanceComponent ( float  obs, float  binCenter, float  inverseBinWidth  ) const

pure virtual

Implemented in ufo::GeodesicDistanceCalculator, and ufo::MaxNormDistanceCalculator.

Here is the caller graph for this function:

spatialDistanceComponent()

virtual float ufo::DistanceCalculator::spatialDistanceComponent ( float  obsLatitude, float  obsLongitude, float  latitudeBinCenter, float  longitudeBinCenter, float  inverseLatitudeBinWidth, float  inverseLongitudeBinWidth  ) const

pure virtual

Implemented in ufo::GeodesicDistanceCalculator, and ufo::MaxNormDistanceCalculator.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• DistanceCalculator.h
