#include <DifferenceCheck.h>
Public Types | |
| typedef DifferenceCheckParameters | Parameters_ |
Public Member Functions | |
| DifferenceCheck (ioda::ObsSpace &, const Parameters_ &, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >) | |
| ~DifferenceCheck () | |

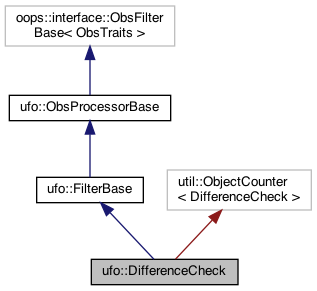

 Public Member Functions inherited from ufo::FilterBase | |
| FilterBase (ioda::ObsSpace &, const FilterParametersBaseWithAbstractAction ¶meters, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >) | |
| FilterBase (ioda::ObsSpace &, const eckit::Configuration &, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >) | |
| ~FilterBase () | |
| Public Member Functions inherited from ufo::ObsProcessorBase | |
| ObsProcessorBase (ioda::ObsSpace &, bool deferToPost, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >) | |
| ~ObsProcessorBase () | |
| void | preProcess () override |
| void | priorFilter (const GeoVaLs &) override |
| void | postFilter (const ioda::ObsVector &, const ioda::ObsVector &, const ObsDiagnostics &) override |
| oops::Variables | requiredVars () const override |
| oops::Variables | requiredHdiagnostics () const override |
Static Public Member Functions | |
| static const std::string | classname () |
Private Member Functions | |
| void | print (std::ostream &) const override |
| void | applyFilter (const std::vector< bool > &, const Variables &, std::vector< std::vector< bool >> &) const override |
| int | qcFlag () const override |
Private Attributes | |
| Parameters_ | parameters_ |
Additional Inherited Members | |
| Protected Attributes inherited from ufo::FilterBase | |
| const eckit::LocalConfiguration | config_ |
| ufo::Variables | filtervars_ |
| Protected Attributes inherited from ufo::ObsProcessorBase | |
| ioda::ObsSpace & | obsdb_ |
| std::shared_ptr< ioda::ObsDataVector< int > > | flags_ |
| std::shared_ptr< ioda::ObsDataVector< float > > | obserr_ |
| ufo::Variables | allvars_ |
| ObsFilterData | data_ |
Detailed Description
A filter that compares the difference between a test variable and a reference variable and flags observations for which this difference is outside of a prescribed range.
See DifferenceCheckParameters for the documentation of the parameters controlling this filter.
Definition at line 62 of file DifferenceCheck.h.
Member Typedef Documentation
◆ Parameters_
The type of parameters accepted by the constructor of this filter. This typedef is used by the FilterFactory.
Definition at line 67 of file DifferenceCheck.h.
Constructor & Destructor Documentation
◆ DifferenceCheck()
| ufo::DifferenceCheck::DifferenceCheck | ( | ioda::ObsSpace & | obsdb, |
| const Parameters_ & | parameters, | ||
| std::shared_ptr< ioda::ObsDataVector< int > > | flags, | ||
| std::shared_ptr< ioda::ObsDataVector< float > > | obserr | ||
| ) |
Definition at line 24 of file DifferenceCheck.cc.
◆ ~DifferenceCheck()
| ufo::DifferenceCheck::~DifferenceCheck | ( | ) |
Definition at line 37 of file DifferenceCheck.cc.
Member Function Documentation

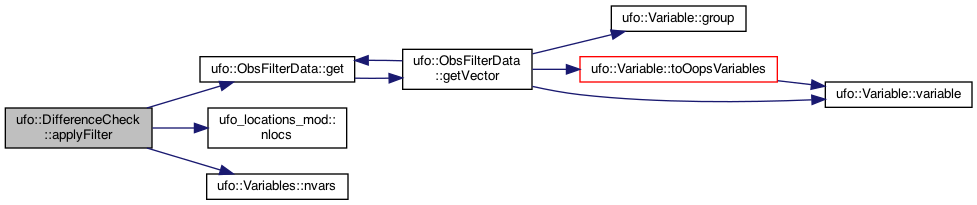

◆ applyFilter()
|
overrideprivatevirtual |
Implements ufo::FilterBase.
Definition at line 43 of file DifferenceCheck.cc.
◆ classname()
|
inlinestatic |
Definition at line 69 of file DifferenceCheck.h.
◆ print()
|
overrideprivatevirtual |
Implements ufo::FilterBase.
Definition at line 90 of file DifferenceCheck.cc.
◆ qcFlag()
|
inlineoverrideprivatevirtual |
Implements ufo::FilterBase.
Definition at line 80 of file DifferenceCheck.h.
Member Data Documentation
◆ parameters_
|
private |
Definition at line 82 of file DifferenceCheck.h.
The documentation for this class was generated from the following files:
