ufo::Conditional< FunctionValue > Class Template Reference

Creates an array with values for specified variables selected by a series of where statements. More...

#include <Conditional.h>

Inheritance diagram for ufo::Conditional< FunctionValue >:

Collaboration diagram for ufo::Conditional< FunctionValue >:

Public Member Functions
	Conditional (const eckit::LocalConfiguration &=eckit::LocalConfiguration())
void	compute (const ObsFilterData &, ioda::ObsDataVector< FunctionValue > &) const
	compute the result of the function More...
const ufo::Variables &	requiredVariables () const
	geovals required to compute the function More...
Public Member Functions inherited from ufo::ObsFunctionBase< FunctionValue >
	ObsFunctionBase (const eckit::LocalConfiguration conf=eckit::LocalConfiguration())
virtual	~ObsFunctionBase ()

Private Attributes
ufo::Variables	invars_
ConditionalParameters< FunctionValue >	options_

Additional Inherited Members
Public Types inherited from ufo::ObsFunctionBase< FunctionValue >
typedef FunctionValue	Value_
	Type of the values produced by the function. More...

Detailed Description

template<typename FunctionValue>
class ufo::Conditional< FunctionValue >

Creates an array with values for specified variables selected by a series of where statements.

The obs function has been designed primarily to work with the Variable assignment filter to simplify the assignment of more complicated variables. Any functionality in the processWhere class can be used with this obs function.

This template is used to define four ObsFunctions, each producing values of a different type:

• Conditional@ObsFunction produces floats
• Conditional@IntObsFunction produces ints
• Conditional@StringObsFunction produces strings
• Conditional@DateTimeObsFunction produces datetimes.

Example 1: Create a new floating-point variable emissivity@ObsDerived and assign values based on the surface type.

- filter: Variable Assignment
  assignments:
  - name: emissivity@ObsDerived
    type: float
    function:
      name: Conditional@ObsFunction
      options:
        defaultvalue: 0.0 # default value - rttov to calculate.
        cases:
        - where:
          - variable:
              name: surface_type@MetaData
            is_in: 1
          # if necessary, further conditions could be specified in extra items
          # in the 'where' list
          value: 0.3
        - where:
          - variable:
              name: surface_type@MetaData
            is_in: 2
          value: 0.5

Example 2: Create a new string variable surface_description@MetaData and set it to land, sea or unknown depending on the value of the surface_type@MetaData variable.

- filter: Variable Assignment
  assignments:
  - name: surface_description@MetaData
    type: string
    function:
      name: Conditional@StringObsFunction
      options:
        defaultvalue: unknown
        cases:
        - where:
          - variable:
              name: surface_type@MetaData
            is_in: 1
          value: land
        - where:
          - variable:
              name: surface_type@MetaData
            is_in: 2
          value: sea

Definition at line 135 of file Conditional.h.

Constructor & Destructor Documentation

Conditional()

template<typename FunctionValue >

ufo::Conditional< FunctionValue >::Conditional ( const eckit::LocalConfiguration &  conf = eckit::LocalConfiguration() )

explicit

Definition at line 23 of file Conditional.cc.

Here is the call graph for this function:

Member Function Documentation

compute()

template<typename FunctionValue >

void ufo::Conditional< FunctionValue >::compute ( const ObsFilterData &  , ioda::ObsDataVector< FunctionValue > &    ) const

virtual

compute the result of the function

Implements ufo::ObsFunctionBase< FunctionValue >.

Definition at line 35 of file Conditional.cc.

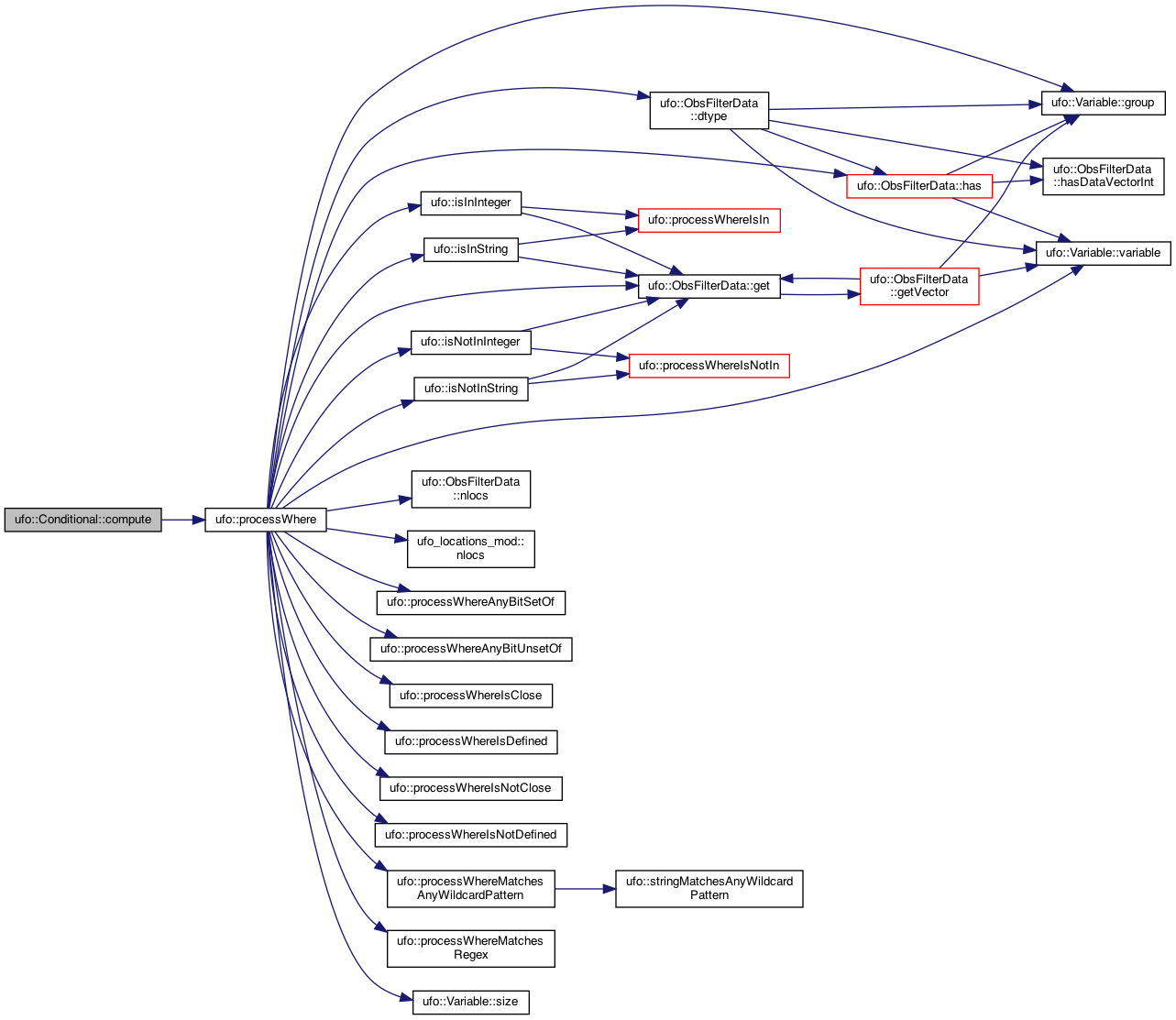

Here is the call graph for this function:

requiredVariables()

template<typename FunctionValue >

const ufo::Variables & ufo::Conditional< FunctionValue >::requiredVariables ( ) const

virtual

geovals required to compute the function

Implements ufo::ObsFunctionBase< FunctionValue >.

Definition at line 61 of file Conditional.cc.

Member Data Documentation

invars_

template<typename FunctionValue >

ufo::Variables ufo::Conditional< FunctionValue >::invars_

private

Definition at line 142 of file Conditional.h.

options_

template<typename FunctionValue >

ConditionalParameters<FunctionValue> ufo::Conditional< FunctionValue >::options_

private

Definition at line 143 of file Conditional.h.

---

The documentation for this class was generated from the following files:

• Conditional.h
• Conditional.cc
