qg::GetValuesTLAD Class Reference

used for getting state values at observation locations More...

#include <GetValuesTLAD.h>

Inheritance diagram for qg::GetValuesTLAD:

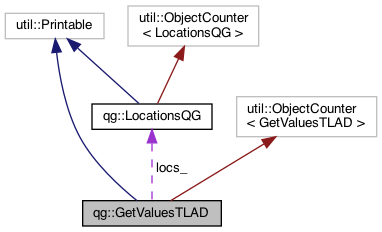

Collaboration diagram for qg::GetValuesTLAD:

Public Member Functions
	GetValuesTLAD (const GeometryQG &, const LocationsQG &locs, const eckit::Configuration &)
	saves all locations locs to use during filling GeoVaLs More...
	~GetValuesTLAD ()
void	setTrajectory (const StateQG &state, const util::DateTime &t1, const util::DateTime &t2, GomQG &geovals)
	fills in geovals for all observations in the timeframe (t1, t2], More...
void	fillGeoVaLsTL (const IncrementQG &inc, const util::DateTime &t1, const util::DateTime &t2, GomQG &geovals) const
	fills in geovals for all observations in the timeframe (t1, t2], More...
void	fillGeoVaLsAD (IncrementQG &inc, const util::DateTime &t1, const util::DateTime &t2, const GomQG &geovals) const
	fills in inc as adjoint operator applied to geovals for all More...

Static Public Member Functions
static const std::string	classname ()

Private Member Functions
void	print (std::ostream &) const
	Data. More...

Private Attributes
LocationsQG	locs_

Detailed Description

used for getting state values at observation locations

Definition at line 32 of file qg/model/GetValuesTLAD.h.

Constructor & Destructor Documentation

GetValuesTLAD()

qg::GetValuesTLAD::GetValuesTLAD	(	const GeometryQG &	geom,
		const LocationsQG &	locs,
		const eckit::Configuration &	linearGetValuesConf
	)

saves all locations locs to use during filling GeoVaLs

Constructor, destructor.

Definition at line 25 of file qg/model/GetValuesTLAD.cc.

~GetValuesTLAD()

qg::GetValuesTLAD::~GetValuesTLAD ( )

inline

Definition at line 40 of file qg/model/GetValuesTLAD.h.

Member Function Documentation

classname()

static const std::string qg::GetValuesTLAD::classname ( )

inlinestatic

Definition at line 35 of file qg/model/GetValuesTLAD.h.

fillGeoVaLsAD()

void qg::GetValuesTLAD::fillGeoVaLsAD	(	IncrementQG &	inc,
		const util::DateTime &	t1,
		const util::DateTime &	t2,
		const GomQG &	geovals
	)		const

fills in inc as adjoint operator applied to geovals for all

Definition at line 47 of file qg/model/GetValuesTLAD.cc.

Here is the call graph for this function:

fillGeoVaLsTL()

void qg::GetValuesTLAD::fillGeoVaLsTL	(	const IncrementQG &	inc,
		const util::DateTime &	t1,
		const util::DateTime &	t2,
		GomQG &	geovals
	)		const

fills in geovals for all observations in the timeframe (t1, t2],

Get increment values at observation locations.

Definition at line 41 of file qg/model/GetValuesTLAD.cc.

Here is the call graph for this function:

print()

void qg::GetValuesTLAD::print ( std::ostream &  os ) const

private

Data.

Definition at line 53 of file qg/model/GetValuesTLAD.cc.

setTrajectory()

void qg::GetValuesTLAD::setTrajectory	(	const StateQG &	state,
		const util::DateTime &	t1,
		const util::DateTime &	t2,
		GomQG &	geovals
	)

fills in geovals for all observations in the timeframe (t1, t2],

Definition at line 33 of file qg/model/GetValuesTLAD.cc.

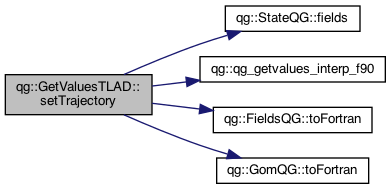

Here is the call graph for this function:

Member Data Documentation

locs_

LocationsQG qg::GetValuesTLAD::locs_

private

Definition at line 58 of file qg/model/GetValuesTLAD.h.

---

The documentation for this class was generated from the following files:

• qg/model/GetValuesTLAD.h
• qg/model/GetValuesTLAD.cc
