Handles post-processing of model fields related to cost function. More...

#include <PostBaseTLAD.h>

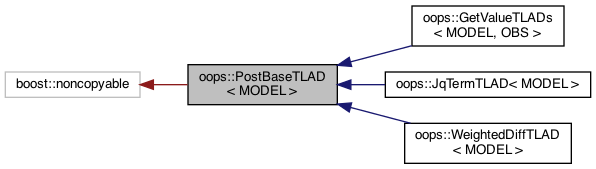

Inheritance diagram for oops::PostBaseTLAD< MODEL >:

[legend]

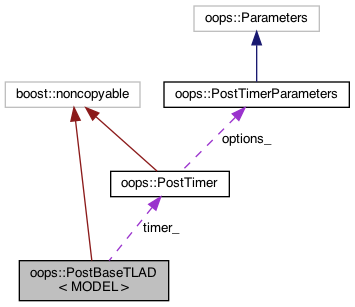

Collaboration diagram for oops::PostBaseTLAD< MODEL >:

[legend]

Public Member Functions
	PostBaseTLAD ()

	PostBaseTLAD (const util::DateTime &start, const util::DateTime &finish, const util::Duration &freq=util::Duration(0))

virtual	~PostBaseTLAD ()

void	initializeTraj (const State_ &xx, const util::DateTime &end, const util::Duration &step)
	Set linearization state. More...

void	processTraj (const State_ &xx)

void	finalizeTraj (const State_ &xx)

void	initializeTL (const Increment_ &dx, const util::DateTime &end, const util::Duration &step)
	Tangent linear methods. More...

void	processTL (const Increment_ &dx)

void	finalizeTL (const Increment_ &dx)

void	initializeAD (Increment_ &dx, const util::DateTime &bgn, const util::Duration &step)
	Adjoint methods. More...

void	processAD (Increment_ &dx)

void	finalizeAD (Increment_ &dx)

Private Types
typedef Increment< MODEL >	Increment_

typedef State< MODEL >	State_

Private Member Functions
virtual void	doInitializeTraj (const State_ &, const util::DateTime &, const util::Duration &)=0

virtual void	doProcessingTraj (const State_ &)=0

virtual void	doFinalizeTraj (const State_ &)=0

virtual void	doInitializeTL (const Increment_ &, const util::DateTime &, const util::Duration &)=0

virtual void	doProcessingTL (const Increment_ &)=0

virtual void	doFinalizeTL (const Increment_ &)=0

virtual void	doFirstAD (Increment_ &, const util::DateTime &, const util::Duration &)=0

virtual void	doProcessingAD (Increment_ &)=0

virtual void	doLastAD (Increment_ &)=0

Private Attributes
PostTimer	timer_

Detailed Description

template<typename MODEL>
class oops::PostBaseTLAD< MODEL >

Handles post-processing of model fields related to cost function.

PostBaseTLAD is the base class for all cost function linearized processors, it is mostly used so that PostProcessorTL can hold a vector of such processors. By default processing is performed on every call. An important difference with PostBase is that the adjoint can modify the increment.

Definition at line 41 of file PostBaseTLAD.h.

Member Typedef Documentation

◆ Increment_

template<typename MODEL >

typedef Increment<MODEL> oops::PostBaseTLAD< MODEL >::Increment_

private

Definition at line 42 of file PostBaseTLAD.h.

◆ State_

template<typename MODEL >

typedef State<MODEL> oops::PostBaseTLAD< MODEL >::State_

private

Definition at line 43 of file PostBaseTLAD.h.

Constructor & Destructor Documentation

◆ PostBaseTLAD() [1/2]

template<typename MODEL >

oops::PostBaseTLAD< MODEL >::PostBaseTLAD ( )

inline

Definition at line 46 of file PostBaseTLAD.h.

◆ PostBaseTLAD() [2/2]

template<typename MODEL >

oops::PostBaseTLAD< MODEL >::PostBaseTLAD	(	const util::DateTime &	start,
		const util::DateTime &	finish,
		const util::Duration &	freq = `util::Duration(0)`
	)

inline

Definition at line 47 of file PostBaseTLAD.h.

◆ ~PostBaseTLAD()

template<typename MODEL >

virtual oops::PostBaseTLAD< MODEL >::~PostBaseTLAD ( )

inlinevirtual

Definition at line 50 of file PostBaseTLAD.h.

Member Function Documentation

◆ doFinalizeTL()

template<typename MODEL >

virtual void oops::PostBaseTLAD< MODEL >::doFinalizeTL ( const Increment_ & )

privatepure virtual

Implemented in oops::WeightedDiffTLAD< MODEL >, oops::GetValueTLADs< MODEL, OBS >, and oops::JqTermTLAD< MODEL >.

Here is the caller graph for this function:

◆ doFinalizeTraj()

template<typename MODEL >

virtual void oops::PostBaseTLAD< MODEL >::doFinalizeTraj ( const State_ & )

privatepure virtual

Implemented in oops::WeightedDiffTLAD< MODEL >, oops::GetValueTLADs< MODEL, OBS >, and oops::JqTermTLAD< MODEL >.

Here is the caller graph for this function:

◆ doFirstAD()

template<typename MODEL >

virtual void oops::PostBaseTLAD< MODEL >::doFirstAD	(	Increment_ &	,
		const util::DateTime &	,
		const util::Duration &
	)

privatepure virtual

Implemented in oops::WeightedDiffTLAD< MODEL >, oops::GetValueTLADs< MODEL, OBS >, and oops::JqTermTLAD< MODEL >.

Here is the caller graph for this function:

◆ doInitializeTL()

template<typename MODEL >

virtual void oops::PostBaseTLAD< MODEL >::doInitializeTL	(	const Increment_ &	,
		const util::DateTime &	,
		const util::Duration &
	)

privatepure virtual

Implemented in oops::WeightedDiffTLAD< MODEL >, oops::GetValueTLADs< MODEL, OBS >, and oops::JqTermTLAD< MODEL >.

Here is the caller graph for this function:

◆ doInitializeTraj()

template<typename MODEL >

virtual void oops::PostBaseTLAD< MODEL >::doInitializeTraj	(	const State_ &	,
		const util::DateTime &	,
		const util::Duration &
	)

privatepure virtual

Implemented in oops::WeightedDiffTLAD< MODEL >, oops::GetValueTLADs< MODEL, OBS >, and oops::JqTermTLAD< MODEL >.

Here is the caller graph for this function:

◆ doLastAD()

template<typename MODEL >

virtual void oops::PostBaseTLAD< MODEL >::doLastAD ( Increment_ & )

privatepure virtual

Implemented in oops::WeightedDiffTLAD< MODEL >, oops::GetValueTLADs< MODEL, OBS >, and oops::JqTermTLAD< MODEL >.

Here is the caller graph for this function:

◆ doProcessingAD()

template<typename MODEL >

virtual void oops::PostBaseTLAD< MODEL >::doProcessingAD ( Increment_ & )

privatepure virtual

Implemented in oops::WeightedDiffTLAD< MODEL >, oops::GetValueTLADs< MODEL, OBS >, and oops::JqTermTLAD< MODEL >.

Here is the caller graph for this function:

◆ doProcessingTL()

template<typename MODEL >

virtual void oops::PostBaseTLAD< MODEL >::doProcessingTL ( const Increment_ & )

privatepure virtual

Implemented in oops::WeightedDiffTLAD< MODEL >, oops::GetValueTLADs< MODEL, OBS >, and oops::JqTermTLAD< MODEL >.

Here is the caller graph for this function:

◆ doProcessingTraj()

template<typename MODEL >

virtual void oops::PostBaseTLAD< MODEL >::doProcessingTraj ( const State_ & )

privatepure virtual

Implemented in oops::WeightedDiffTLAD< MODEL >, oops::GetValueTLADs< MODEL, OBS >, and oops::JqTermTLAD< MODEL >.

Here is the caller graph for this function:

◆ finalizeAD()

template<typename MODEL >

void oops::PostBaseTLAD< MODEL >::finalizeAD ( Increment_ & dx )

inline

Definition at line 93 of file PostBaseTLAD.h.

Here is the call graph for this function:

◆ finalizeTL()

template<typename MODEL >

void oops::PostBaseTLAD< MODEL >::finalizeTL ( const Increment_ & dx )

inline

Definition at line 78 of file PostBaseTLAD.h.

Here is the call graph for this function:

◆ finalizeTraj()

template<typename MODEL >

void oops::PostBaseTLAD< MODEL >::finalizeTraj ( const State_ & xx )

inline

Definition at line 63 of file PostBaseTLAD.h.

Here is the call graph for this function:

◆ initializeAD()

template<typename MODEL >

void oops::PostBaseTLAD< MODEL >::initializeAD	(	Increment_ &	dx,
		const util::DateTime &	bgn,
		const util::Duration &	step
	)

inline

Adjoint methods.

Definition at line 83 of file PostBaseTLAD.h.

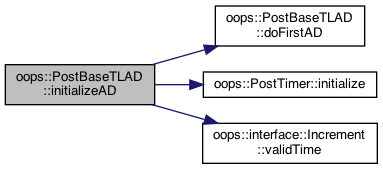

Here is the call graph for this function:

◆ initializeTL()

template<typename MODEL >

void oops::PostBaseTLAD< MODEL >::initializeTL	(	const Increment_ &	dx,
		const util::DateTime &	end,
		const util::Duration &	step
	)

inline

Tangent linear methods.

Definition at line 68 of file PostBaseTLAD.h.

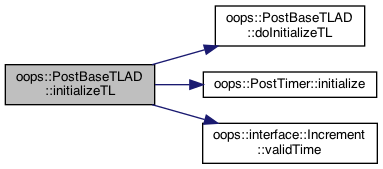

Here is the call graph for this function:

◆ initializeTraj()

template<typename MODEL >

void oops::PostBaseTLAD< MODEL >::initializeTraj	(	const State_ &	xx,
		const util::DateTime &	end,
		const util::Duration &	step
	)

inline

Set linearization state.

Definition at line 53 of file PostBaseTLAD.h.

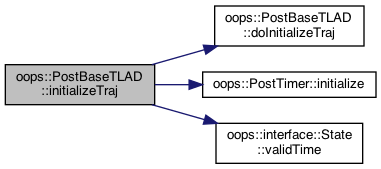

Here is the call graph for this function:

◆ processAD()

template<typename MODEL >

void oops::PostBaseTLAD< MODEL >::processAD ( Increment_ & dx )

inline

Definition at line 89 of file PostBaseTLAD.h.

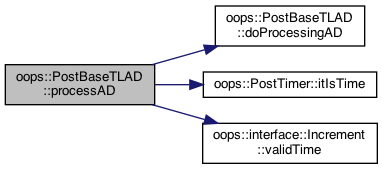

Here is the call graph for this function:

◆ processTL()

template<typename MODEL >

void oops::PostBaseTLAD< MODEL >::processTL ( const Increment_ & dx )

inline

Definition at line 74 of file PostBaseTLAD.h.

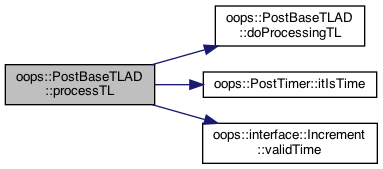

Here is the call graph for this function:

◆ processTraj()

template<typename MODEL >

void oops::PostBaseTLAD< MODEL >::processTraj ( const State_ & xx )

inline

Definition at line 59 of file PostBaseTLAD.h.

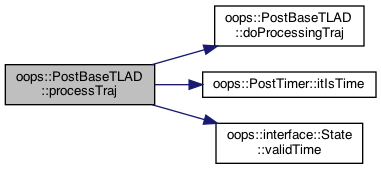

Here is the call graph for this function:

Member Data Documentation

◆ timer_

template<typename MODEL >

PostTimer oops::PostBaseTLAD< MODEL >::timer_

private

Definition at line 98 of file PostBaseTLAD.h.

The documentation for this class was generated from the following file:

PostBaseTLAD.h
