oops::DRPFOMMinimizer< MODEL, OBS > Class Template Reference

DRPFOM Minimizer. More...

#include <DRPFOMMinimizer.h>

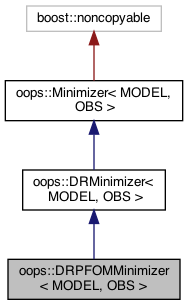

Inheritance diagram for oops::DRPFOMMinimizer< MODEL, OBS >:
Inheritance graph
[legend]

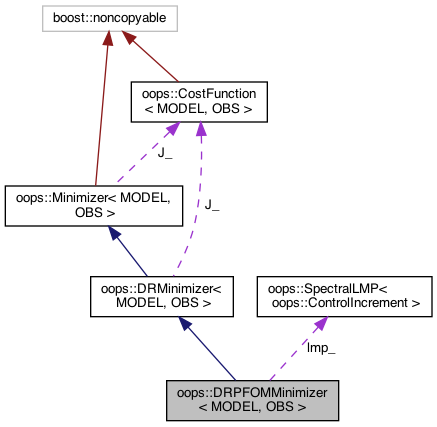

Collaboration diagram for oops::DRPFOMMinimizer< MODEL, OBS >:
Collaboration graph
[legend]

Public Member Functions

const std::string classname () const override

 DRPFOMMinimizer (const eckit::Configuration &, const CostFct_ &)

 ~DRPFOMMinimizer ()

- Public Member Functions inherited from oops::DRMinimizer< MODEL, OBS >
 DRMinimizer (const CostFct_ &J)

 ~DRMinimizer ()

- Public Member Functions inherited from oops::Minimizer< MODEL, OBS >
 Minimizer (const CostFct_ &J)

virtual ~Minimizer ()

ControlIncrement< MODEL, OBS > * minimize (const eckit::Configuration &)


Private Types

typedef BMatrix< MODEL, OBS > Bmat_

typedef CostFunction< MODEL, OBS > CostFct_

typedef ControlIncrement< MODEL, OBS > CtrlInc_

typedef HtRinvHMatrix< MODEL, OBS > HtRinvH_


Private Member Functions

double solve (CtrlInc_ &, CtrlInc_ &, CtrlInc_ &, const Bmat_ &, const HtRinvH_ &, const double, const double, const int, const double) override


Private Attributes

SpectralLMP< CtrlInc_ > lmp_

std::vector< std::unique_ptr< CtrlInc_ > > hvecs_

std::vector< std::unique_ptr< CtrlInc_ > > vvecs_

std::vector< std::unique_ptr< CtrlInc_ > > zvecs_

std::vector< double > alphas_

std::vector< double > betas_


Detailed Description

template<typename MODEL, typename OBS>
class oops::DRPFOMMinimizer< MODEL, OBS >

DRPFOM Minimizer.

Preconditioned Full Orthogonal Method (FOM) solver.

This solver is the generalization of the Lanczos method to the unsymmetric case. It solves \( Ax=b\) for the particular case \( A=B^{-1}+C\), without requiring the application of \( B^{-1}\).

On entry:

  • dx = starting point.
  • dxh = starting point, \( B^{-1} dx_{0}\).
  • rr = residual at starting point.
  • B = \( B \).
  • C = \( C \).
  • precond = preconditioner \( F_k \approx (AB)^{-1} \).

On exit, dxh will contain \( B^{-1} x\) where x is the solution. The return value is the achieved reduction in residual norm.

Iteration will stop if the maximum iteration limit "maxiter" is reached or if the residual norm reduces by a factor of "tolerance".

Each matrix must implement a method:

  • void multiply(const VECTOR&, VECTOR&) const

which applies the matrix to the first argument, and returns the matrix-vector product in the second. (Note: the const is optional, but recommended.)

Definition at line 67 of file DRPFOMMinimizer.h.

Member Typedef Documentation

◆ Bmat_

template<typename MODEL , typename OBS >
typedef BMatrix<MODEL, OBS> oops::DRPFOMMinimizer< MODEL, OBS >::Bmat_
private

Definition at line 68 of file DRPFOMMinimizer.h.

◆ CostFct_

template<typename MODEL , typename OBS >
typedef CostFunction<MODEL, OBS> oops::DRPFOMMinimizer< MODEL, OBS >::CostFct_
private

Definition at line 69 of file DRPFOMMinimizer.h.

◆ CtrlInc_

template<typename MODEL , typename OBS >
typedef ControlIncrement<MODEL, OBS> oops::DRPFOMMinimizer< MODEL, OBS >::CtrlInc_
private

Definition at line 70 of file DRPFOMMinimizer.h.

◆ HtRinvH_

template<typename MODEL , typename OBS >
typedef HtRinvHMatrix<MODEL, OBS> oops::DRPFOMMinimizer< MODEL, OBS >::HtRinvH_
private

Definition at line 71 of file DRPFOMMinimizer.h.

Constructor & Destructor Documentation

◆ DRPFOMMinimizer()

template<typename MODEL , typename OBS >
oops::DRPFOMMinimizer< MODEL, OBS >::DRPFOMMinimizer ( const eckit::Configuration &  conf,
const CostFct_ &  J
)

Definition at line 95 of file DRPFOMMinimizer.h.

◆ ~DRPFOMMinimizer()

template<typename MODEL , typename OBS >
oops::DRPFOMMinimizer< MODEL, OBS >::~DRPFOMMinimizer ( )
inline

Definition at line 76 of file DRPFOMMinimizer.h.

Member Function Documentation

◆ classname()

template<typename MODEL , typename OBS >
const std::string oops::DRPFOMMinimizer< MODEL, OBS >::classname ( ) const
inlineoverridevirtual

Implements oops::DRMinimizer< MODEL, OBS >.

Definition at line 74 of file DRPFOMMinimizer.h.

◆ solve()

template<typename MODEL , typename OBS >
double oops::DRPFOMMinimizer< MODEL, OBS >::solve ( CtrlInc_ &  dx,
CtrlInc_ &  dxh,
CtrlInc_ &  rr,
const Bmat_ &  B,
const HtRinvH_ &  HtRinvH,
const double  costJ0Jb,
const double  costJ0JoJc,
const int  maxiter,
const double  tolerance
)
overrideprivatevirtual

Implements oops::DRMinimizer< MODEL, OBS >.

Definition at line 103 of file DRPFOMMinimizer.h.

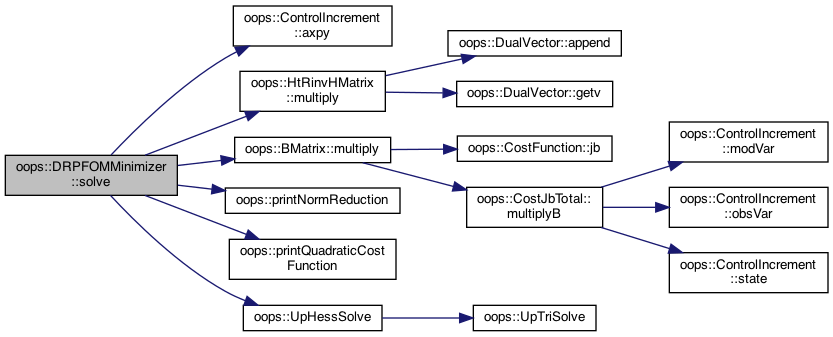

Here is the call graph for this function:

Member Data Documentation

◆ alphas_

template<typename MODEL , typename OBS >
std::vector<double> oops::DRPFOMMinimizer< MODEL, OBS >::alphas_
private

Definition at line 88 of file DRPFOMMinimizer.h.

◆ betas_

template<typename MODEL , typename OBS >
std::vector<double> oops::DRPFOMMinimizer< MODEL, OBS >::betas_
private

Definition at line 89 of file DRPFOMMinimizer.h.

◆ hvecs_

template<typename MODEL , typename OBS >
std::vector<std::unique_ptr<CtrlInc_> > oops::DRPFOMMinimizer< MODEL, OBS >::hvecs_
private

Definition at line 85 of file DRPFOMMinimizer.h.

◆ lmp_

template<typename MODEL , typename OBS >
SpectralLMP<CtrlInc_> oops::DRPFOMMinimizer< MODEL, OBS >::lmp_
private

Definition at line 82 of file DRPFOMMinimizer.h.

◆ vvecs_

template<typename MODEL , typename OBS >
std::vector<std::unique_ptr<CtrlInc_> > oops::DRPFOMMinimizer< MODEL, OBS >::vvecs_
private

Definition at line 86 of file DRPFOMMinimizer.h.

◆ zvecs_

template<typename MODEL , typename OBS >
std::vector<std::unique_ptr<CtrlInc_> > oops::DRPFOMMinimizer< MODEL, OBS >::zvecs_
private

Definition at line 87 of file DRPFOMMinimizer.h.

The documentation for this class was generated from the following file:
