Policy used for setting locations for Variable access. More...

#include <Layout.h>

Inheritance diagram for ioda::detail::DataLayoutPolicy:

[legend]

Collaboration diagram for ioda::detail::DataLayoutPolicy:

Public Types
enum class	Policies { None , ObsGroup , ObsGroupODB }

enum class	MergeMethod { Concat }

Public Member Functions
virtual	~DataLayoutPolicy ()

virtual void	initializeStructure (Group_Base &) const

virtual std::string	doMap (const std::string &) const
	Map a user-specified Variable path to the correct location. More...

virtual bool	isComplementary (const std::string &) const
	Check if the named variable will be a part of a derived variable. More...

virtual bool	isMapped (const std::string &) const
	Check if the named variable is in the Variables section of the ODB mapping file. More...

virtual size_t	getComplementaryPosition (const std::string &) const

virtual std::string	getOutputNameFromComponent (const std::string &) const

virtual std::type_index	getOutputVariableDataType (const std::string &) const

virtual MergeMethod	getMergeMethod (const std::string &) const

virtual size_t	getInputsNeeded (const std::string &) const

virtual std::pair< bool, std::string >	getUnit (const std::string &) const

virtual std::string	name () const
	A descriptive name for the policy. More...

	DataLayoutPolicy ()

Static Public Member Functions
static std::shared_ptr< const DataLayoutPolicy >	generate (const std::string &polid="")
	Factory generator. More...

static std::shared_ptr< const DataLayoutPolicy >	generate (const std::string &polid, const std::string &mapPath)

static std::shared_ptr< const DataLayoutPolicy >	generate (Policies pol=Policies::None)
	Factory generator. More...

static std::shared_ptr< const DataLayoutPolicy >	generate (Policies pol, const std::string &mapPath)

static std::shared_ptr< const DataLayoutPolicy >	_py_generate1 (const std::string &polid)

static std::shared_ptr< const DataLayoutPolicy >	_py_generate2 (Policies pol)

Detailed Description

Policy used for setting locations for Variable access.

Note: Using std::enable_shared_from_this as part of the pybind11 interface. We pass this to ObsGroup as a shared_ptr. See https://pybind11.readthedocs.io/en/stable/advanced/smart_ptrs.html#std-shared-ptr

Definition at line 35 of file Layout.h.

Member Enumeration Documentation

◆ MergeMethod

enum ioda::detail::DataLayoutPolicy::MergeMethod

strong

Enumerator
Concat	Concatenate complementary variables entry-by-entry.

Definition at line 49 of file Layout.h.

◆ Policies

enum ioda::detail::DataLayoutPolicy::Policies

strong

Enumerator
None	Do no manipulation of the Group / Variable layout.
ObsGroup	Transform "Variable@Group" into "Group/Variable". Ensure that group names match a few predefined keys.
ObsGroupODB	Uses an auxiliary YAML dictionary to convert ODB variable/group naming conventions to IODA equivalents. Transform "Variable@Group" into "Group/Variable". Ensure that the new group names match a few predefined keys.

Definition at line 38 of file Layout.h.

Constructor & Destructor Documentation

◆ ~DataLayoutPolicy()

ioda::detail::DataLayoutPolicy::~DataLayoutPolicy ( )

virtual

Definition at line 62 of file Layout.cpp.

◆ DataLayoutPolicy()

ioda::detail::DataLayoutPolicy::DataLayoutPolicy ( )

Definition at line 63 of file Layout.cpp.

Member Function Documentation

◆ _py_generate1()

static std::shared_ptr<const DataLayoutPolicy> ioda::detail::DataLayoutPolicy::_py_generate1 ( const std::string & polid )

inlinestatic

Definition at line 69 of file Layout.h.

Here is the caller graph for this function:

◆ _py_generate2()

static std::shared_ptr<const DataLayoutPolicy> ioda::detail::DataLayoutPolicy::_py_generate2 ( Policies pol )

inlinestatic

Definition at line 73 of file Layout.h.

Here is the caller graph for this function:

◆ doMap()

std::string ioda::detail::DataLayoutPolicy::doMap ( const std::string & str ) const

virtual

Map a user-specified Variable path to the correct location.

This allows us to keep the frontend paths consistent, and we can instead do a path transformation to hide implementation details from end users.

The default policy is to pass paths expressed with forward slashes ("MetaData/Longitude") unchanged. If we pass paths using '@' notation, then reverse the path component (i.e. "TB@ObsValue" becomes "ObsValue/TB").

Note: We can apply these policies in both the frontend and inside of the engines.

Parameters

inStr is the user-provided string. Ex: "TB@ObsValue" or "MetaData/Latitude", or even a fundamental dimension ("ChannelNumber").

Returns: A canonical path, always of the form "Group/Variable". In case of a dimension scale, then there is no group name, but for every other Variable, there is a Group name.

Reimplemented in ioda::detail::DataLayoutPolicy_ObsGroup_ODB, and ioda::detail::DataLayoutPolicy_ObsGroup.

Definition at line 70 of file Layout.cpp.

Here is the caller graph for this function:

◆ generate() [1/4]

std::shared_ptr< const DataLayoutPolicy > ioda::detail::DataLayoutPolicy::generate	(	const std::string &	polid,
		const std::string &	mapPath
	)

static

Factory generator (ODB-specific) mapPath path to a yaml file that defines how input file variables should be renamed upon import to ioda.

Definition at line 39 of file Layout.cpp.

◆ generate() [2/4]

std::shared_ptr< const DataLayoutPolicy > ioda::detail::DataLayoutPolicy::generate ( const std::string & polid = "" )

static

Factory generator.

Definition at line 28 of file Layout.cpp.

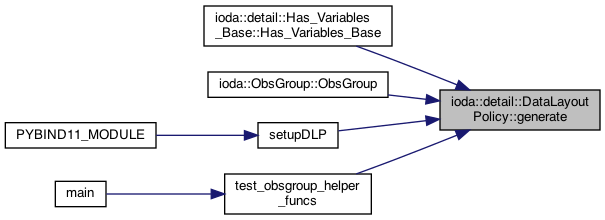

Here is the caller graph for this function:

◆ generate() [3/4]

std::shared_ptr< const DataLayoutPolicy > ioda::detail::DataLayoutPolicy::generate	(	Policies	pol,
		const std::string &	mapPath
	)

static

Factory generator (ODB-specific) mapPath path to a yaml file that defines how input file variables should be renamed upon import to ioda.

Definition at line 50 of file Layout.cpp.

◆ generate() [4/4]

std::shared_ptr< const DataLayoutPolicy > ioda::detail::DataLayoutPolicy::generate ( Policies pol = Policies::None )

static

Factory generator.

Definition at line 34 of file Layout.cpp.

◆ getComplementaryPosition()

size_t ioda::detail::DataLayoutPolicy::getComplementaryPosition ( const std::string & str ) const

virtual

Returns the position of the input variable in the derived variable.

Exceptions

If	the input is not part of a derived variable.

Reimplemented in ioda::detail::DataLayoutPolicy_ObsGroup_ODB.

Definition at line 76 of file Layout.cpp.

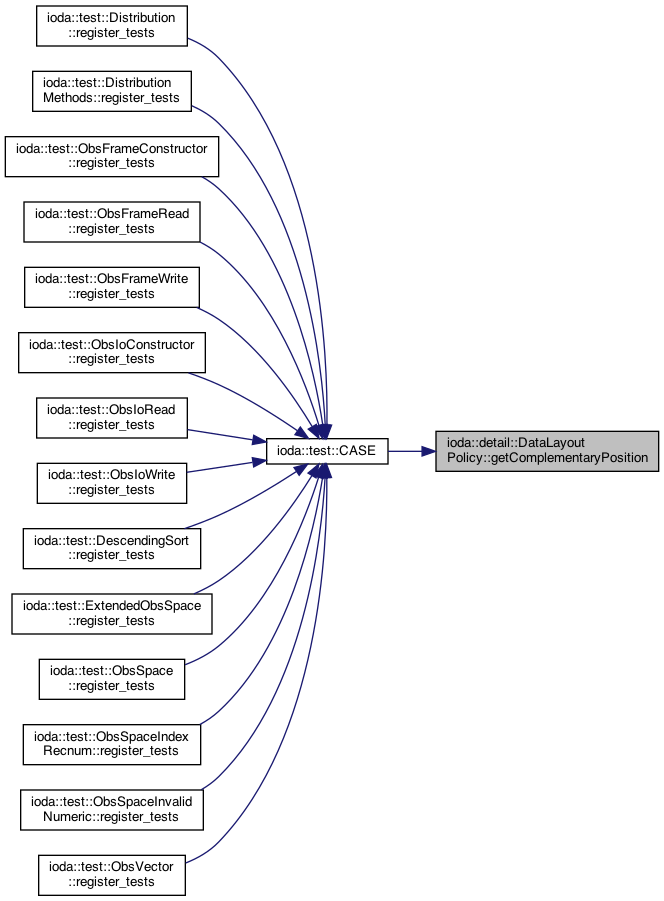

Here is the caller graph for this function:

◆ getInputsNeeded()

size_t ioda::detail::DataLayoutPolicy::getInputsNeeded ( const std::string & str ) const

virtual

Returns the count of input variables needed.

Exceptions

If	the input is not part of a derived variable.

Reimplemented in ioda::detail::DataLayoutPolicy_ObsGroup_ODB.

Definition at line 92 of file Layout.cpp.

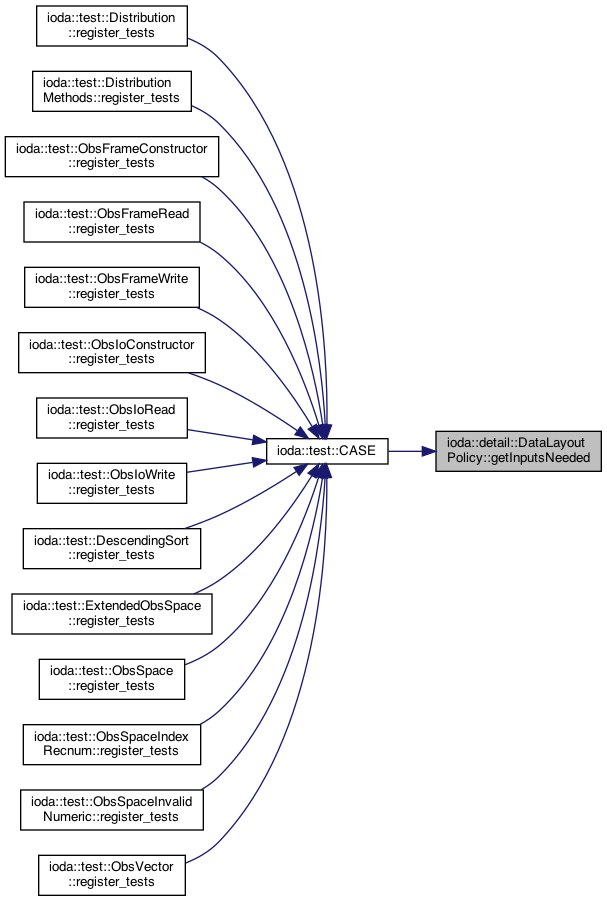

Here is the caller graph for this function:

◆ getMergeMethod()

DataLayoutPolicy::MergeMethod ioda::detail::DataLayoutPolicy::getMergeMethod ( const std::string & str ) const

virtual

Returns the merge method for derived variables.

Exceptions

If	the input is not part of a derived variable.

Reimplemented in ioda::detail::DataLayoutPolicy_ObsGroup_ODB.

Definition at line 88 of file Layout.cpp.

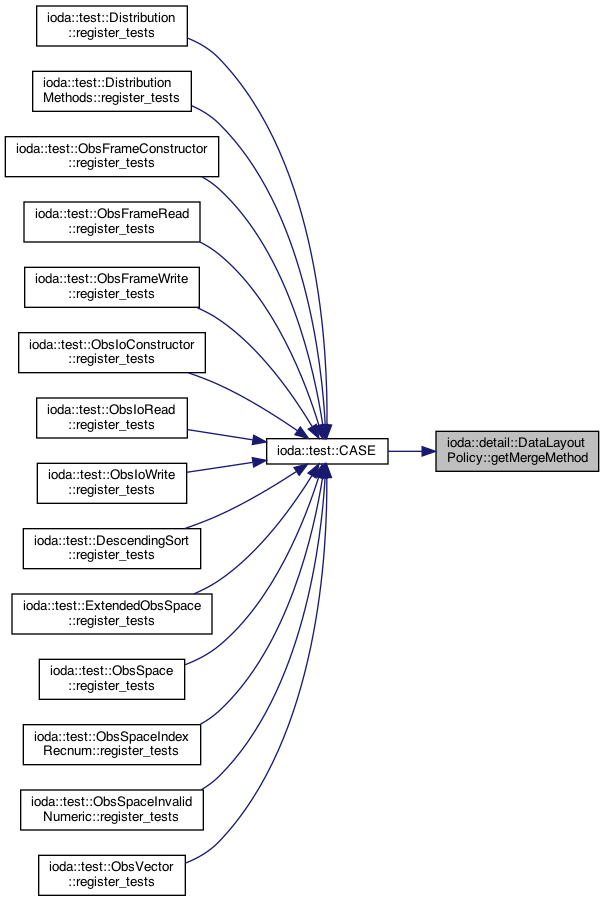

Here is the caller graph for this function:

◆ getOutputNameFromComponent()

std::string ioda::detail::DataLayoutPolicy::getOutputNameFromComponent ( const std::string & str ) const

virtual

Returns the derived variable name to be used in ioda.

Exceptions

If	the input is not part of a derived variable.

Reimplemented in ioda::detail::DataLayoutPolicy_ObsGroup_ODB.

Definition at line 80 of file Layout.cpp.

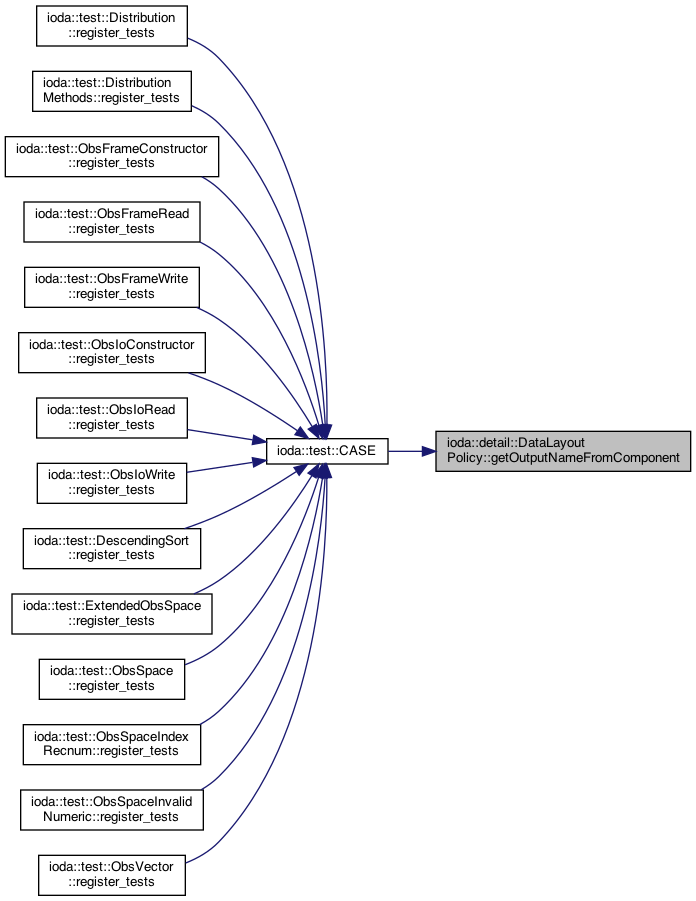

Here is the caller graph for this function:

◆ getOutputVariableDataType()

std::type_index ioda::detail::DataLayoutPolicy::getOutputVariableDataType ( const std::string & str ) const

virtual

Returns the data type of the derived variable.

Exceptions

If	the input is not part of a derived variable.

Reimplemented in ioda::detail::DataLayoutPolicy_ObsGroup_ODB.

Definition at line 84 of file Layout.cpp.

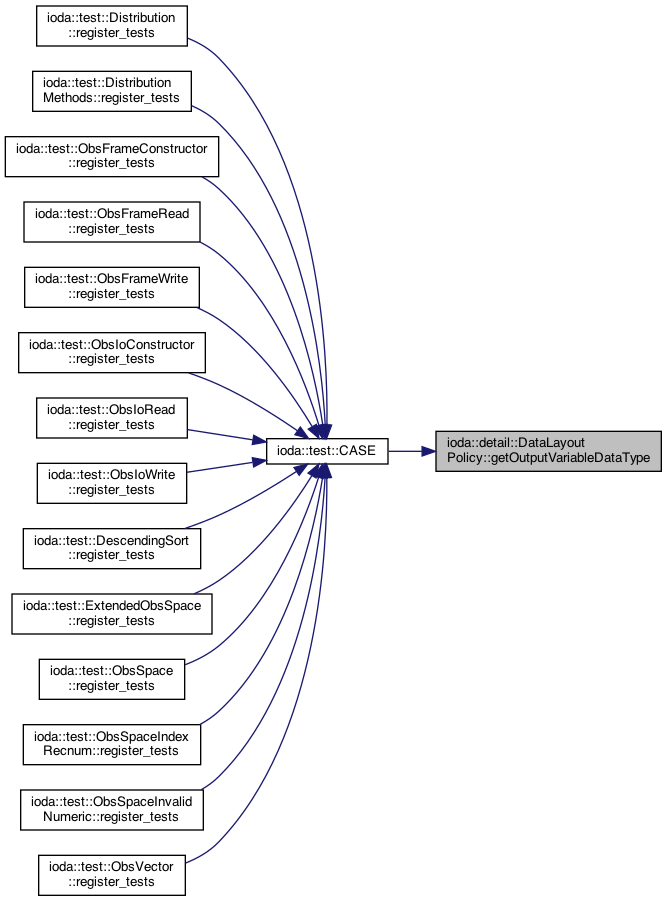

Here is the caller graph for this function:

◆ getUnit()

std::pair< bool, std::string > ioda::detail::DataLayoutPolicy::getUnit ( const std::string & ) const

virtual

Returns the variable's unit if it has been specified.

Returns: A pair of (found, unit) indicating if a unit was found and what it is.

Exceptions

If	the input is not listed in Variables section of mapping file.

Reimplemented in ioda::detail::DataLayoutPolicy_ObsGroup_ODB.

Definition at line 96 of file Layout.cpp.

Here is the caller graph for this function:

◆ initializeStructure()

void ioda::detail::DataLayoutPolicy::initializeStructure ( Group_Base & ) const

virtual

Create default groups and write default attributes upon object creation / initialization.

Reimplemented in ioda::detail::DataLayoutPolicy_ObsGroup_ODB, and ioda::detail::DataLayoutPolicy_ObsGroup.

Definition at line 64 of file Layout.cpp.

◆ isComplementary()

bool ioda::detail::DataLayoutPolicy::isComplementary ( const std::string & str ) const

virtual

Check if the named variable will be a part of a derived variable.

Reimplemented in ioda::detail::DataLayoutPolicy_ObsGroup_ODB.

Definition at line 72 of file Layout.cpp.

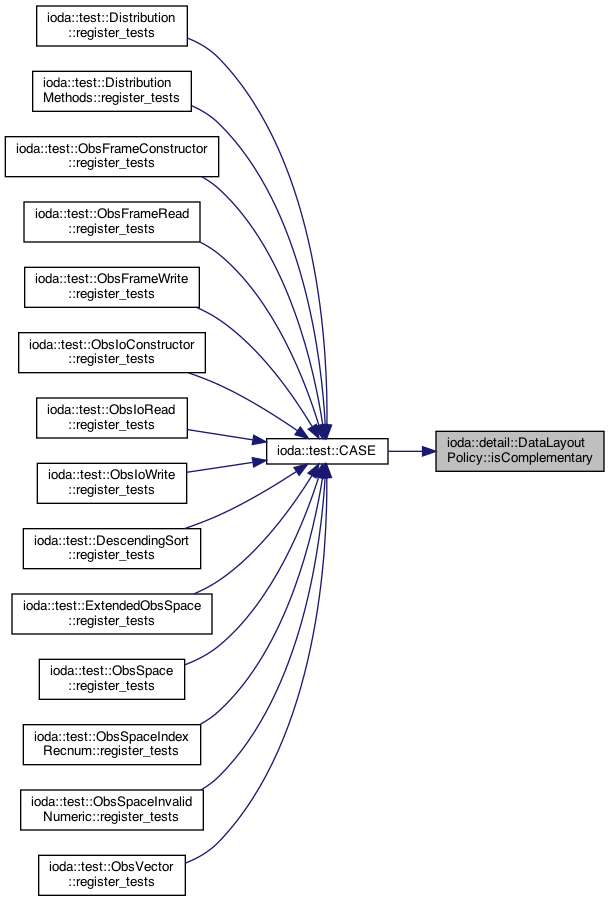

Here is the caller graph for this function:

◆ isMapped()

bool ioda::detail::DataLayoutPolicy::isMapped ( const std::string & ) const

virtual

Check if the named variable is in the Variables section of the ODB mapping file.

Reimplemented in ioda::detail::DataLayoutPolicy_ObsGroup_ODB.

Definition at line 74 of file Layout.cpp.

Here is the caller graph for this function:

◆ name()

std::string ioda::detail::DataLayoutPolicy::name ( ) const

virtual

A descriptive name for the policy.

Reimplemented in ioda::detail::DataLayoutPolicy_ObsGroup_ODB, and ioda::detail::DataLayoutPolicy_ObsGroup.

Definition at line 68 of file Layout.cpp.

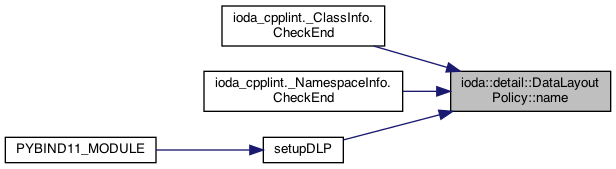

Here is the caller graph for this function:

The documentation for this class was generated from the following files:
