Fortran module to provide code shared between nonlinear and tlm/adm radiance calculations. More...

Data Types
type	rttov_conf

type	ufo_rttov_io

Functions/Subroutines
subroutine, public	rttov_conf_setup (conf, f_confOpts, f_confOper)

subroutine, public	rttov_conf_delete (conf)

subroutine, public	load_atm_data_rttov (geovals, obss, profiles, prof_start, conf, layer_quantities, obs_info)

subroutine, public	load_geom_data_rttov (obss, profiles, prof_start1, obs_info)

subroutine	set_options_rttov (self, f_confOpts)

subroutine	setup_rttov (self, f_confOpts, asw)

subroutine	get_var_name (n, varname)

subroutine	alloc_rttov (self, errorstatus, conf, nprofiles, nchannels, nlevels, init, asw)

subroutine, public	ufo_rttov_skip_profiles (nprofiles, nchannels, channels, obss, Skip_Profiles)

subroutine	ufo_rttov_init_emissivity (self, conf)

subroutine	set_defaults_rttov (self, default_opts_set)

subroutine, public	populate_hofxdiags (RTProf, chanprof, hofxdiags)

subroutine, public	parse_hofxdiags (hofxdiags, jacobian_needed)

subroutine	ops_satrad_qsplit (output_type, p, t, qtotal, q, ql, qi, UseQtSplitRain)

Variables
integer, parameter, public	max_string =800

integer, parameter, public	maxvarin = 50

character(len=maxvarlen), dimension(maxvarin), public	varin_temp

character(len=max_string), public	message

integer, public	nvars_in

integer, public	rttov_errorstatus

character(len=maxvarlen), dimension(:), allocatable	ystr_diags

character(len=maxvarlen), dimension(:), allocatable	xstr_diags

integer, dimension(:), allocatable	ch_diags

real(c_double)	missing

character(len=maxvarlen), dimension(21), target	varin_default_crtm = (/var_ts, var_prs, var_prsi, var_sfc_wfrac, var_sfc_lfrac, var_sfc_ifrac, var_sfc_sfrac, var_sfc_wtmp, var_sfc_ltmp, var_sfc_itmp, var_sfc_stmp, var_sfc_vegfrac, var_sfc_wspeed, var_sfc_wdir, var_sfc_lai, var_sfc_soilm, var_sfc_soilt, var_sfc_landtyp, var_sfc_vegtyp, var_sfc_soiltyp, var_sfc_sdepth/)

character(len=maxvarlen), dimension(11), target	varin_default_satrad = (/var_prs, var_ts, var_q, var_sfc_t2m, var_u, var_v, var_sfc_p2m, var_sfc_q2m, var_sfc_tskin, var_water_type_rttov, var_surf_type_rttov /)

character(len=maxvarlen), dimension(:), pointer, public	varin_default

character(len= *), dimension(ngases_max+1), parameter	rttov_absorbers = [gas_name(1:ngases_max),'CLW']

integer, dimension(ngases_max+1), parameter	rttov_absorber_id = [gas_id_mixed, gas_id_watervapour, gas_id_ozone, gas_id_wvcont, gas_id_co2, gas_id_n2o, gas_id_co, gas_id_ch4, gas_id_so2, 99]

character(len=maxvarlen), parameter	null_str = ''

character(len=maxvarlen), dimension(ngases_max+1), parameter	ufo_absorbers = [ null_str, var_mixr, var_oz, null_str, var_co2, 'mole_fraction_of_nitrous_oxide_in_air', 'mole_fraction_of_carbon_monoxide_in_air', 'mole_fraction_of_methane_in_air', 'mole_fraction_of_sulfur_dioxide_in_air', var_clw]

integer, public	nchan_inst

integer, public	nchan_sim

integer, public	nlocs_total

logical, public	debug

integer	iprof

Detailed Description

Fortran module to provide code shared between nonlinear and tlm/adm radiance calculations.

Function/Subroutine Documentation

◆ alloc_rttov()

subroutine ufo_radiancerttov_utils_mod::alloc_rttov	(	class(ufo_rttov_io), intent(inout)	self,
		integer, intent(out)	errorstatus,
		type(rttov_conf), intent(in)	conf,
		integer, intent(in)	nprofiles,
		integer, intent(in)	nchannels,
		integer, intent(in)	nlevels,
		logical, intent(in), optional	init,
		integer, intent(in)	asw
	)

private

Definition at line 1170 of file ufo_radiancerttov_utils_mod.F90.

◆ get_var_name()

subroutine ufo_radiancerttov_utils_mod::get_var_name	(	integer, intent(in)	n,
		character(len=*), intent(out)	varname
	)

private

Definition at line 1157 of file ufo_radiancerttov_utils_mod.F90.

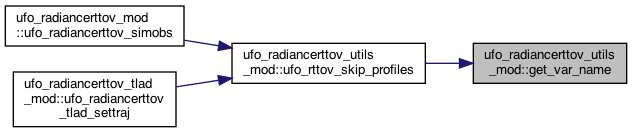

Here is the caller graph for this function:

◆ load_atm_data_rttov()

subroutine, public ufo_radiancerttov_utils_mod::load_atm_data_rttov	(	type(ufo_geovals), intent(in)	geovals,
		type(c_ptr), intent(in), value	obss,
		type(rttov_profile), dimension(:), intent(inout)	profiles,
		integer, intent(in)	prof_start,
		type(rttov_conf), intent(in)	conf,
		logical, intent(inout)	layer_quantities,
		logical, intent(in), optional	obs_info
	)

Definition at line 317 of file ufo_radiancerttov_utils_mod.F90.

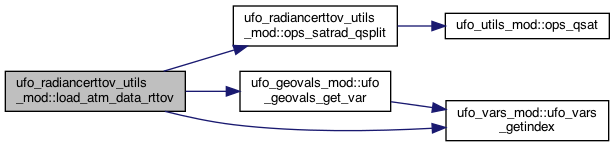

Here is the call graph for this function:

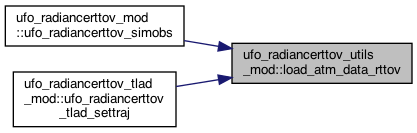

Here is the caller graph for this function:

◆ load_geom_data_rttov()

subroutine, public ufo_radiancerttov_utils_mod::load_geom_data_rttov	(	type(c_ptr), intent(in), value	obss,
		type(rttov_profile), dimension(:), intent(inout)	profiles,
		integer, intent(in), optional	prof_start1,
		logical, intent(in), optional	obs_info
	)

Definition at line 778 of file ufo_radiancerttov_utils_mod.F90.

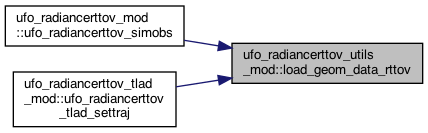

Here is the caller graph for this function:

◆ ops_satrad_qsplit()

subroutine ufo_radiancerttov_utils_mod::ops_satrad_qsplit	(	integer, intent(in)	output_type,
		real(kind_real), dimension(:), intent(in)	p,
		real(kind_real), dimension(:), intent(in)	t,
		real(kind_real), dimension(:), intent(in)	qtotal,
		real(kind_real), dimension(size(qtotal)), intent(out)	q,
		real(kind_real), dimension(size(qtotal)), intent(out)	ql,
		real(kind_real), dimension(size(qtotal)), intent(out)	qi,
		logical, intent(in)	UseQtSplitRain
	)

private

Definition at line 1800 of file ufo_radiancerttov_utils_mod.F90.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parse_hofxdiags()

subroutine, public ufo_radiancerttov_utils_mod::parse_hofxdiags	(	type(ufo_geovals), intent(inout)	hofxdiags,
		logical, intent(out)	jacobian_needed
	)

Definition at line 1725 of file ufo_radiancerttov_utils_mod.F90.

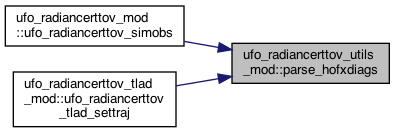

Here is the caller graph for this function:

◆ populate_hofxdiags()

subroutine, public ufo_radiancerttov_utils_mod::populate_hofxdiags	(	type(ufo_rttov_io), intent(in)	RTProf,
		type(rttov_chanprof), dimension(:), intent(in)	chanprof,
		type(ufo_geovals), intent(inout)	hofxdiags
	)

Definition at line 1546 of file ufo_radiancerttov_utils_mod.F90.

Here is the caller graph for this function:

◆ rttov_conf_delete()

subroutine, public ufo_radiancerttov_utils_mod::rttov_conf_delete ( type(rttov_conf), intent(inout) conf )

Definition at line 304 of file ufo_radiancerttov_utils_mod.F90.

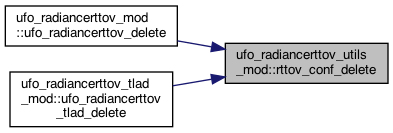

Here is the caller graph for this function:

◆ rttov_conf_setup()

subroutine, public ufo_radiancerttov_utils_mod::rttov_conf_setup	(	type(rttov_conf), intent(inout)	conf,
		type(fckit_configuration), intent(in)	f_confOpts,
		type(fckit_configuration), intent(in)	f_confOper
	)

Definition at line 160 of file ufo_radiancerttov_utils_mod.F90.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_defaults_rttov()

subroutine ufo_radiancerttov_utils_mod::set_defaults_rttov	(	class(rttov_conf), intent(inout)	self,
		character(8), intent(in)	default_opts_set
	)

private

Parameters

[in]	default_opts_set	Switch to enable atmospheric refraction
[in]	default_opts_set	Switch for input units in AD/K models
[in]	default_opts_set	Switch to enable use of 2m q variable
[in]	default_opts_set	Switch for setting Lambertian reflection (IR and MW)
[in]	default_opts_set	Switch for fixed/parameterised effective angle for Lambertian option
[in]	default_opts_set	Switch to ignore atmospheric curvature
[in]	default_opts_set	Linear-in-tau or layer-mean for downwelling radiances
[in]	default_opts_set	Switch to apply dtau test in transmit/integrate calculations
[in]	default_opts_set	Solar sea BRDF model (1-2)
[in]	default_opts_set	IR sea emissivity model (1-2)
[in]	default_opts_set	Switch to enable solar simulations
[in]	default_opts_set	Switch to enable Rayleigh single-scattering for VIS/NIR channels
[in]	default_opts_set	Switch to enable NLTE bias correction
[in]	default_opts_set	Switch to enable IR aerosol calculations
[in]	default_opts_set	Switch to supply aerosol optical properties explicitly per channel
[in]	default_opts_set	Switch to enable IR cloudy calculations
[in]	default_opts_set	Switch to supply cloud optical properties explicitly per channel
[in]	default_opts_set	Switch to supply grid-box average cloud concentration or cloud concentration in cloudy fraction of each layer
[in]	default_opts_set	Ignore cloud streams with weights lower than this
[in]	default_opts_set	Switch for simplified cloud stream option - USE WITH CAUTION
[in]	default_opts_set	Upper pressure limit for cldstr_simple option (hPa)
[in]	default_opts_set	IR scattering model to use
[in]	default_opts_set	VIS/NIR scattering model to use
[in]	default_opts_set	Number of DOM streams, must be even and not less than 2
[in]	default_opts_set	Convergence criterion for termination of DOM azimuthal loop
[in]	default_opts_set	DOM ignores levels below this optical depth: is reasonable, not applied if < = 0
[in]	default_opts_set	Switch to enable input of O3 profile
[in]	default_opts_set	Switch to enable input of CO2 profile
[in]	default_opts_set	Switch to enable input of N2O profile
[in]	default_opts_set	Switch to enable input of CO profile
[in]	default_opts_set	Switch to enable input of CH4 profile
[in]	default_opts_set	Switch to enable input of SO2 profile
[in]	default_opts_set	Switch to enable PC-RTTOV
[in]	default_opts_set	PC spectral band
[in]	default_opts_set	PC predictor channel set
[in]	default_opts_set	Number of PC scores to compute, if less than 1 npcscores is derived from the size of the pccomppcscores array
[in]	default_opts_set	Switch for calculation of reconstructed radiances
[in]	default_opts_set	FASTEM version (0-6); 0 => TESSEM2
[in]	default_opts_set	Supply a foam fraction to FASTEM
[in]	default_opts_set	Switch to enable input of cloud liquid water profile
[in]	default_opts_set	MW CLW scheme: 1 => Liebe, 2 => Rosenkranz, 3 => TKC
[in]	default_opts_set	Apply MW CLW calculations on coef/user levels (true/false resp.)
[in]	default_opts_set	Lower pressure limit for MW CLW calculations (hPa)
[in]	default_opts_set	Apply band-correction for Planck radiance and BT calculations
[in]	default_opts_set	Switch to enable RTTOV interpolator
[in]	default_opts_set	Interpolation mode (1-5, see user guide)
[in]	default_opts_set	Switch to make pressure an active variable in TL/AD/K models
[in]	default_opts_set	Switch to assume space boundary at top-most input pressure level
[in]	default_opts_set	Switch to extrapolate input profiles using regression limits
[in]	default_opts_set	Switch to use htfrtc
[in]	default_opts_set	Number of principal components to be used
[in]	default_opts_set	Switch to select reconstructed radiances
[in]	default_opts_set	Calculate simple cloud
[in]	default_opts_set	Calculate overcast cloud on all levels

Definition at line 1373 of file ufo_radiancerttov_utils_mod.F90.

◆ set_options_rttov()

subroutine ufo_radiancerttov_utils_mod::set_options_rttov	(	class(rttov_conf), intent(inout)	self,
		type(fckit_configuration), intent(in)	f_confOpts
	)

Parameters

[in]	f_confopts	Switch to enable atmospheric refraction
[in]	f_confopts	Switch for input units in AD/K models
[in]	f_confopts	Switch to enable use of 2m q variable
[in]	f_confopts	Switch for setting Lambertian reflection (IR and MW)
[in]	f_confopts	Switch for fixed/parameterised effective angle for Lambertian option
[in]	f_confopts	Switch to ignore atmospheric curvature
[in]	f_confopts	Linear-in-tau or layer-mean for downwelling radiances
[in]	f_confopts	Switch to apply dtau test in transmit/integrate calculations
[in]	f_confopts	FASTEM version (0-6); 0 => TESSEM2
[in]	f_confopts	Supply a foam fraction to FASTEM
[in]	f_confopts	Switch to enable input of cloud liquid water profile
[in]	f_confopts	MW CLW scheme: 1 => Liebe, 2 => Rosenkranz, 3 => TKC
[in]	f_confopts	Apply MW CLW calculations on coef/user levels (true/false resp.)
[in]	f_confopts	Lower pressure limit for MW CLW calculations (hPa)
[in]	f_confopts	Apply band-correction for Planck radiance and BT calculations
[in]	f_confopts	Switch to enable RTTOV interpolator
[in]	f_confopts	Interpolation mode (1-5, see user guide)
[in]	f_confopts	Switch to make pressure an active variable in TL/AD/K models
[in]	f_confopts	Switch to assume space boundary at top-most input pressure l
[in]	f_confopts	Switch to extrapolate input profiles using regression limits
[in]	f_confopts	Solar sea BRDF model (1-2)
[in]	f_confopts	IR sea emissivity model (1-2)
[in]	f_confopts	Switch to enable solar simulations
[in]	f_confopts	Switch to enable Rayleigh single-scattering for VIS/NIR channel
[in]	f_confopts	Switch to enable NLTE bias correction
[in]	f_confopts	Switch to enable IR aerosol calculations
[in]	f_confopts	Switch to supply aerosol optical properties explicitly per channel
[in]	f_confopts	Switch to enable IR cloudy calculations
[in]	f_confopts	Switch to supply cloud optical properties explicitly per channel
[in]	f_confopts	Switch to supply grid-box average cloud concentration or cloud
[in]	f_confopts	Ignore cloud streams with weights lower than this
[in]	f_confopts	Switch for simplified cloud stream option - USE WITH CAUTION
[in]	f_confopts	Upper pressure limit for cldstr_simple option (hPa)
[in]	f_confopts	IR scattering model to use
[in]	f_confopts	VIS/NIR scattering model to use
[in]	f_confopts	Number of DOM streams, must be even and not less than 2
[in]	f_confopts	Convergence criterion for termination of DOM azimuthal loop
[in]	f_confopts	DOM ignores levels below this optical depth:
[in]	f_confopts	Switch to enable input of O3 profile
[in]	f_confopts	Switch to enable input of CO2 profile
[in]	f_confopts	Switch to enable input of N2O profile
[in]	f_confopts	Switch to enable input of CO profile
[in]	f_confopts	Switch to enable input of CH4 profile
[in]	f_confopts	Switch to enable input of SO2 profile

Definition at line 851 of file ufo_radiancerttov_utils_mod.F90.

◆ setup_rttov()

subroutine ufo_radiancerttov_utils_mod::setup_rttov	(	class(rttov_conf), intent(inout)	self,
		type(fckit_configuration), intent(in)	f_confOpts,
		integer, intent(in)	asw
	)

private

Definition at line 1104 of file ufo_radiancerttov_utils_mod.F90.

◆ ufo_rttov_init_emissivity()

subroutine ufo_radiancerttov_utils_mod::ufo_rttov_init_emissivity	(	class(ufo_rttov_io), intent(inout)	self,
		type(rttov_conf), intent(in)	conf
	)

private

Definition at line 1313 of file ufo_radiancerttov_utils_mod.F90.

◆ ufo_rttov_skip_profiles()

subroutine, public ufo_radiancerttov_utils_mod::ufo_rttov_skip_profiles	(	integer, intent(in)	nprofiles,
		integer, intent(in)	nchannels,
		integer(c_int), dimension(:), intent(in)	channels,
		type(c_ptr), intent(in), value	obss,
		logical, dimension(:), intent(inout)	Skip_Profiles
	)

Definition at line 1271 of file ufo_radiancerttov_utils_mod.F90.

Here is the call graph for this function:

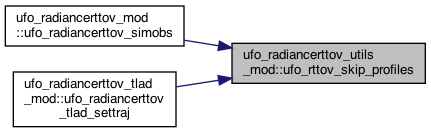

Here is the caller graph for this function:

Variable Documentation

◆ ch_diags

integer, dimension(:), allocatable ufo_radiancerttov_utils_mod::ch_diags

private

Definition at line 51 of file ufo_radiancerttov_utils_mod.F90.

◆ debug

logical, public ufo_radiancerttov_utils_mod::debug

Definition at line 100 of file ufo_radiancerttov_utils_mod.F90.

◆ iprof

integer ufo_radiancerttov_utils_mod::iprof

private

Definition at line 102 of file ufo_radiancerttov_utils_mod.F90.

◆ max_string

integer, parameter, public ufo_radiancerttov_utils_mod::max_string =800

Definition at line 39 of file ufo_radiancerttov_utils_mod.F90.

◆ maxvarin

integer, parameter, public ufo_radiancerttov_utils_mod::maxvarin = 50

Definition at line 40 of file ufo_radiancerttov_utils_mod.F90.

◆ message

character(len=max_string), public ufo_radiancerttov_utils_mod::message

Definition at line 45 of file ufo_radiancerttov_utils_mod.F90.

◆ missing

real(c_double) ufo_radiancerttov_utils_mod::missing

private

Definition at line 53 of file ufo_radiancerttov_utils_mod.F90.

◆ nchan_inst

integer, public ufo_radiancerttov_utils_mod::nchan_inst

Definition at line 97 of file ufo_radiancerttov_utils_mod.F90.

◆ nchan_sim

integer, public ufo_radiancerttov_utils_mod::nchan_sim

Definition at line 98 of file ufo_radiancerttov_utils_mod.F90.

◆ nlocs_total

integer, public ufo_radiancerttov_utils_mod::nlocs_total

Definition at line 99 of file ufo_radiancerttov_utils_mod.F90.

◆ null_str

character(len=maxvarlen), parameter ufo_radiancerttov_utils_mod::null_str = ''

private

Definition at line 88 of file ufo_radiancerttov_utils_mod.F90.

◆ nvars_in

integer, public ufo_radiancerttov_utils_mod::nvars_in

Definition at line 47 of file ufo_radiancerttov_utils_mod.F90.

◆ rttov_absorber_id

integer, dimension(ngases_max+1), parameter ufo_radiancerttov_utils_mod::rttov_absorber_id = [gas_id_mixed, gas_id_watervapour, gas_id_ozone, gas_id_wvcont, gas_id_co2, gas_id_n2o, gas_id_co, gas_id_ch4, gas_id_so2, 99]

private

Definition at line 76 of file ufo_radiancerttov_utils_mod.F90.

◆ rttov_absorbers

character(len=*), dimension(ngases_max+1), parameter ufo_radiancerttov_utils_mod::rttov_absorbers = [gas_name(1:ngases_max),'CLW']

private

Definition at line 72 of file ufo_radiancerttov_utils_mod.F90.

◆ rttov_errorstatus

integer, public ufo_radiancerttov_utils_mod::rttov_errorstatus

Definition at line 48 of file ufo_radiancerttov_utils_mod.F90.

◆ ufo_absorbers

character(len=maxvarlen), dimension(ngases_max+1), parameter ufo_radiancerttov_utils_mod::ufo_absorbers = [ null_str, var_mixr, var_oz, null_str, var_co2, 'mole_fraction_of_nitrous_oxide_in_air', 'mole_fraction_of_carbon_monoxide_in_air', 'mole_fraction_of_methane_in_air', 'mole_fraction_of_sulfur_dioxide_in_air', var_clw]

private

Definition at line 91 of file ufo_radiancerttov_utils_mod.F90.

◆ varin_default

character(len=maxvarlen), dimension(:), pointer, public ufo_radiancerttov_utils_mod::varin_default

Definition at line 69 of file ufo_radiancerttov_utils_mod.F90.

◆ varin_default_crtm

character(len=maxvarlen), dimension(21), target ufo_radiancerttov_utils_mod::varin_default_crtm = (/var_ts, var_prs, var_prsi, var_sfc_wfrac, var_sfc_lfrac, var_sfc_ifrac, var_sfc_sfrac, var_sfc_wtmp, var_sfc_ltmp, var_sfc_itmp, var_sfc_stmp, var_sfc_vegfrac, var_sfc_wspeed, var_sfc_wdir, var_sfc_lai, var_sfc_soilm, var_sfc_soilt, var_sfc_landtyp, var_sfc_vegtyp, var_sfc_soiltyp, var_sfc_sdepth/)

private

Definition at line 55 of file ufo_radiancerttov_utils_mod.F90.

◆ varin_default_satrad

character(len=maxvarlen), dimension(11), target ufo_radiancerttov_utils_mod::varin_default_satrad = (/var_prs, var_ts, var_q, var_sfc_t2m, var_u, var_v, var_sfc_p2m, var_sfc_q2m, var_sfc_tskin, var_water_type_rttov, var_surf_type_rttov /)

private

Definition at line 64 of file ufo_radiancerttov_utils_mod.F90.

◆ varin_temp

character(len=maxvarlen), dimension(maxvarin), public ufo_radiancerttov_utils_mod::varin_temp

Definition at line 44 of file ufo_radiancerttov_utils_mod.F90.

◆ xstr_diags

character(len=maxvarlen), dimension(:), allocatable ufo_radiancerttov_utils_mod::xstr_diags

private

Definition at line 50 of file ufo_radiancerttov_utils_mod.F90.

◆ ystr_diags

character(len=maxvarlen), dimension(:), allocatable ufo_radiancerttov_utils_mod::ystr_diags

private

Definition at line 50 of file ufo_radiancerttov_utils_mod.F90.

Data Types

Functions/Subroutines

Variables

Detailed Description

Function/Subroutine Documentation

◆ alloc_rttov()

◆ get_var_name()

◆ load_atm_data_rttov()

◆ load_geom_data_rttov()

◆ ops_satrad_qsplit()

◆ parse_hofxdiags()

◆ populate_hofxdiags()

◆ rttov_conf_delete()

◆ rttov_conf_setup()

◆ set_defaults_rttov()

◆ set_options_rttov()

◆ setup_rttov()

◆ ufo_rttov_init_emissivity()

◆ ufo_rttov_skip_profiles()

Variable Documentation

◆ ch_diags

◆ debug

◆ iprof

◆ max_string

◆ maxvarin

◆ message

◆ missing

◆ nchan_inst

◆ nchan_sim

◆ nlocs_total

◆ null_str

◆ nvars_in

◆ rttov_absorber_id

◆ rttov_absorbers

◆ rttov_errorstatus

◆ ufo_absorbers

◆ varin_default

◆ varin_default_crtm

◆ varin_default_satrad

◆ varin_temp

◆ xstr_diags

◆ ystr_diags
