Checks tracks of ships and buoys, rejecting observations whose locations and timestamps make them inconsistent with the rest of the track. More...

#include <TrackCheckShip.h>

Inheritance diagram for ufo::TrackCheckShip:

[legend]

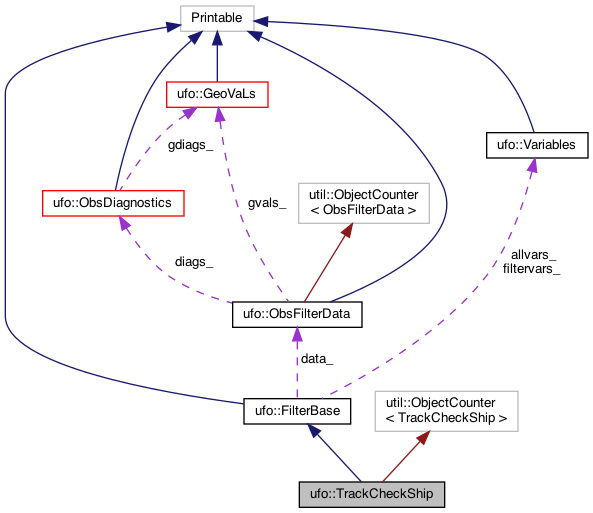

Collaboration diagram for ufo::TrackCheckShip:

[legend]

Classes
struct	ObservationStatistics
	Relevant calculated values that are specific to each pair or triplet of adjacent/alternating observations. More...

class	TrackObservation

struct	TrackStatistics
	A container for all track-wise counters and calculations that indicate the overall quality of the tracks' data. More...

Public Member Functions
	TrackCheckShip (ioda::ObsSpace &obsdb, const eckit::Configuration &config, std::shared_ptr< ioda::ObsDataVector< int > > flags, std::shared_ptr< ioda::ObsDataVector< float > > obserr)

	~TrackCheckShip () override

const TrackCheckShipDiagnostics *	diagnostics () const

Public Member Functions inherited from ufo::FilterBase
	FilterBase (ioda::ObsSpace &, const eckit::Configuration &, std::shared_ptr< ioda::ObsDataVector< int > >, std::shared_ptr< ioda::ObsDataVector< float > >)

	~FilterBase ()

void	preProcess ()

void	priorFilter (const GeoVaLs &)

void	postFilter (const ioda::ObsVector &, const ObsDiagnostics &)

oops::Variables	requiredVars () const

oops::Variables	requiredHdiagnostics () const

Static Public Member Functions
static const std::string	classname ()

static double	distance (const TrackObservation &a, const TrackObservation &b)
	Extends `distance` for `TrackObservation` inputs `a` and `b`. More...

static double	speedEstimate (const TrackCheckShip::TrackObservation &obs1, const TrackCheckShip::TrackObservation &obs2, const TrackCheckShipParameters &options)
	Estimate of speed as calculated in Ops_CheckShipTrack. More...

static float	angle (const TrackCheckShip::TrackObservation &a, const TrackCheckShip::TrackObservation &b, const TrackCheckShip::TrackObservation &c)
	Returns the angle in degrees (rounded to the nearest .1 degree) formed by the track segment going from observation `a` to `b` to `c`. More...

Private Types
enum	CalculationMethod { FIRSTITERATION, SIMULTANEOUSDEFERRAL, MAINLOOP }

Private Member Functions
void	flagRejectedTrackObservations (std::vector< size_t >::const_iterator trackObsIndicesBegin, std::vector< size_t >::const_iterator trackObsIndicesEnd, const std::vector< size_t > &validObsIds, const std::vector< TrackObservation > &trackObservations, std::vector< bool > &isRejected) const

void	print (std::ostream &) const override

void	applyFilter (const std::vector< bool > &, const Variables &, std::vector< std::vector< bool >> &) const override

int	qcFlag () const override

void	calculateTrackSegmentProperties (const std::vector< std::reference_wrapper< TrackObservation >> &trackObservations, CalculationMethod calculationMethod=MAINLOOP) const

std::vector< TrackObservation >	collectTrackObservations (std::vector< size_t >::const_iterator trackObsIndicesBegin, std::vector< size_t >::const_iterator trackObsIndicesEnd, const std::vector< size_t > &validObsIds, const TrackCheckUtils::ObsGroupLocationTimes &obsLoc) const

std::vector< std::reference_wrapper< TrackObservation > >	removeSimultaneousObservations (const std::vector< std::reference_wrapper< TrackObservation >> &trackObs) const
	Filters out all observations that have been marked simultaneous for rechecking at the end. More...

bool	earlyBreak (const std::vector< std::reference_wrapper< TrackObservation >> &trackObs) const

void	removeFaultyObservation (std::vector< std::reference_wrapper< TrackObservation > > &track, const std::vector< std::reference_wrapper< TrackObservation > >::iterator &it, bool firstIterativeRemoval=false) const
	Chooses which of the observations surrounding the speediest segment to remove, flagging it accordingly. More...

Private Attributes
std::unique_ptr< TrackCheckShipParameters >	options_

std::unique_ptr< TrackCheckShipDiagnostics >	diagnostics_

Additional Inherited Members
Protected Attributes inherited from ufo::FilterBase
ioda::ObsSpace &	obsdb_

const eckit::LocalConfiguration	config_

std::shared_ptr< ioda::ObsDataVector< int > >	flags_

std::shared_ptr< ioda::ObsDataVector< float > >	obserr_

ufo::Variables	allvars_

ufo::Variables	filtervars_

ObsFilterData	data_

Detailed Description

Checks tracks of ships and buoys, rejecting observations whose locations and timestamps make them inconsistent with the rest of the track.

Each track is checked separately. The algorithm will first calculate speeds and distances between every two adjacent and alternating observations, and angles between any three adjacent observations. Based on these values, it will increment a set of "error counters" that reflect how many errors exist within the track. By default, if the "error counters" sum up to a value greater than or equal to half of the segments, the filter will be stopped.

Todo:: the implementation of the remainder of the filter is still in progress.

See TrackCheckShipsParameters for the documentation of this filter's parameters.

Definition at line 58 of file src/ufo/filters/TrackCheckShip.h.

Member Enumeration Documentation

◆ CalculationMethod

enum ufo::TrackCheckShip::CalculationMethod

private

Enumerator
FIRSTITERATION
SIMULTANEOUSDEFERRAL
MAINLOOP

Definition at line 214 of file src/ufo/filters/TrackCheckShip.h.

Constructor & Destructor Documentation

◆ TrackCheckShip()

ufo::TrackCheckShip::TrackCheckShip	(	ioda::ObsSpace &	obsdb,
		const eckit::Configuration &	config,
		std::shared_ptr< ioda::ObsDataVector< int > >	flags,
		std::shared_ptr< ioda::ObsDataVector< float > >	obserr
	)

Definition at line 36 of file TrackCheckShip.cc.

◆ ~TrackCheckShip()

ufo::TrackCheckShip::~TrackCheckShip ( )

override

Definition at line 111 of file TrackCheckShip.cc.

Member Function Documentation

◆ angle()

float ufo::TrackCheckShip::angle	(	const TrackCheckShip::TrackObservation &	a,
		const TrackCheckShip::TrackObservation &	b,
		const TrackCheckShip::TrackObservation &	c
	)

static

Returns the angle in degrees (rounded to the nearest .1 degree) formed by the track segment going from observation a to b to c.

Definition at line 73 of file TrackCheckShip.cc.

Here is the call graph for this function:

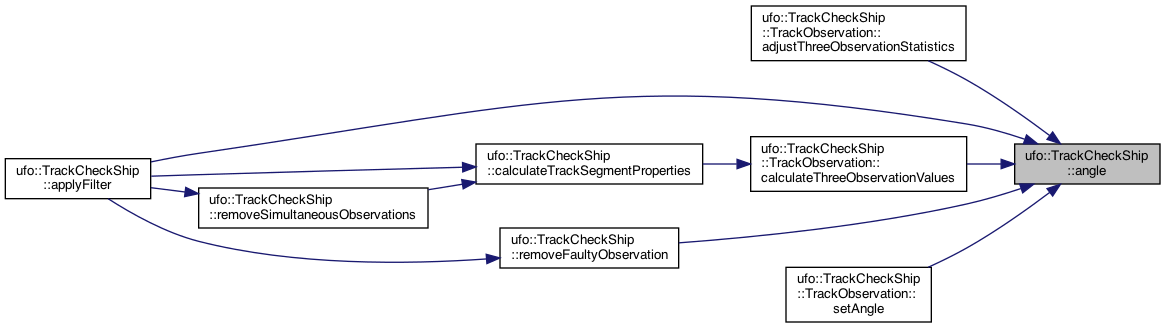

Here is the caller graph for this function:

◆ applyFilter()

void ufo::TrackCheckShip::applyFilter	(	const std::vector< bool > &	apply,
		const Variables &	filtervars,
		std::vector< std::vector< bool >> &	flagged
	)		const

overrideprivatevirtual

Todo:: This section is not yet fully implemented. Current implementation includes separating observations into tracks based on Station_Id, calculating distances, speeds, and angles between observations, and incrementing track-specific counters should the calculations produce unexpected values. Based on the counter values, the filter may be stopped early. Simultaneous observations are then optionally ignored for later re-inclusion or rejection. Using the above calculations and additional ones if necessary, the observation directly before and/or after the fastest segment is chosen for rejection. Re-checking of simultaneous observations is not yet implemented.

Implements ufo::FilterBase.

Definition at line 151 of file TrackCheckShip.cc.

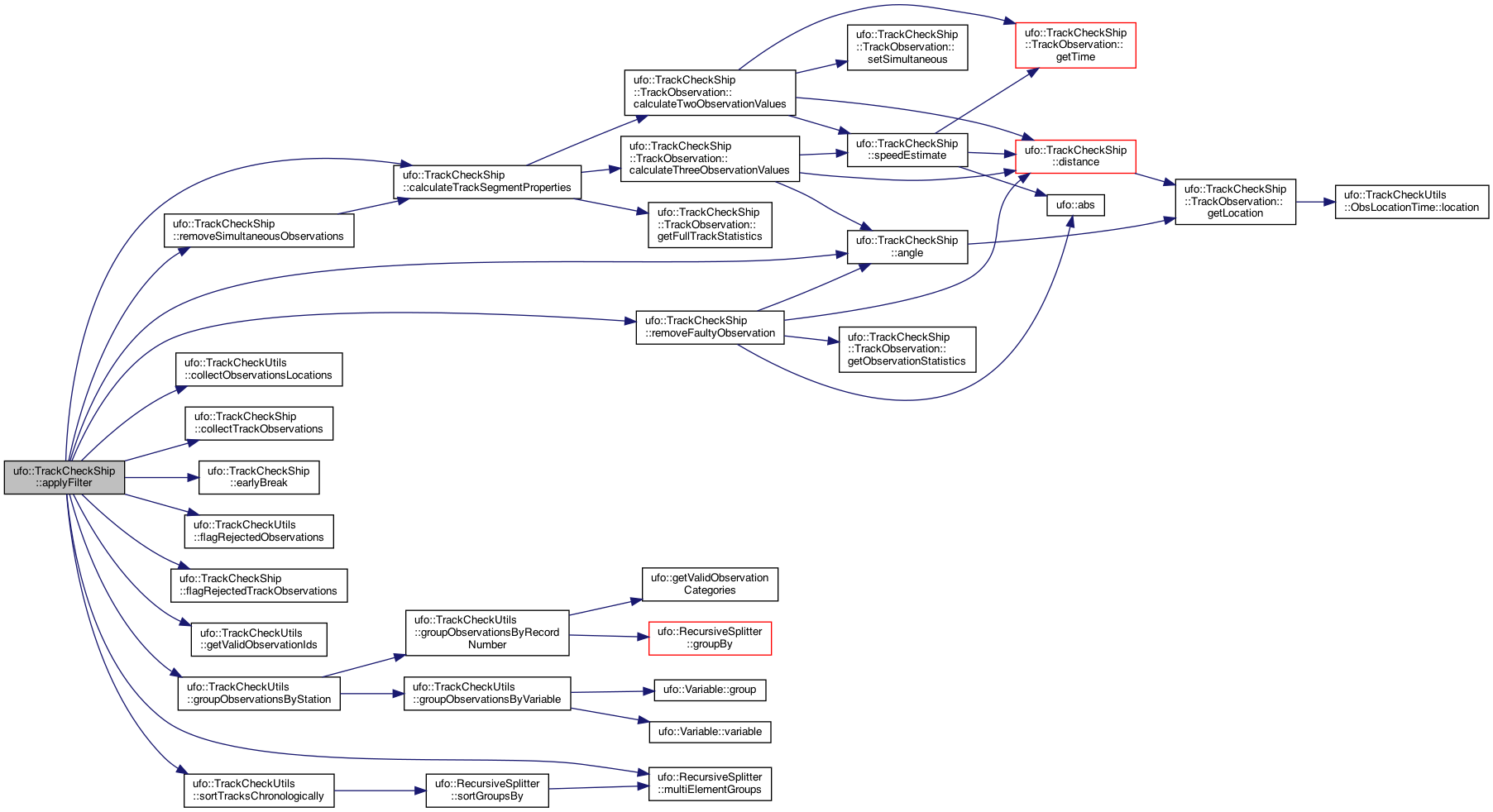

Here is the call graph for this function:

◆ calculateTrackSegmentProperties()

void ufo::TrackCheckShip::calculateTrackSegmentProperties	(	const std::vector< std::reference_wrapper< TrackObservation >> &	trackObservations,
		CalculationMethod	calculationMethod = `MAINLOOP`
	)		const

private

This performs all of the necessary calculations based on the observations' locations and timestamps by calling calculateTwoObservationValues and calculateThreeObservationValues for the non-edge-case observations.

Definition at line 567 of file TrackCheckShip.cc.

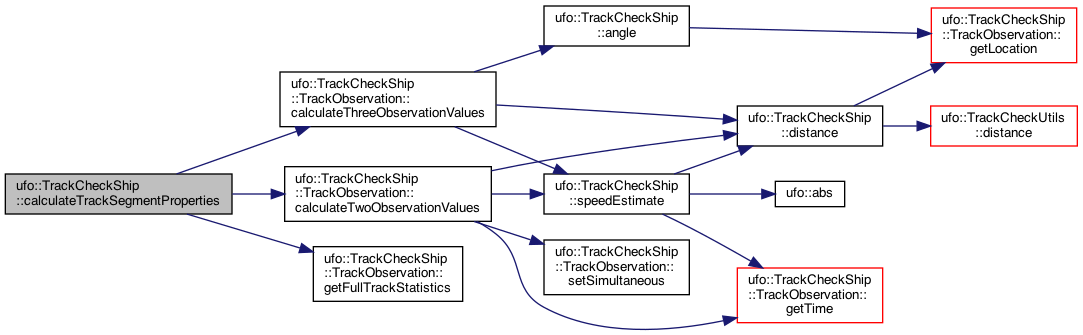

Here is the call graph for this function:

Here is the caller graph for this function:

◆ classname()

static const std::string ufo::TrackCheckShip::classname ( )

inlinestatic

Definition at line 61 of file src/ufo/filters/TrackCheckShip.h.

◆ collectTrackObservations()

std::vector< TrackCheckShip::TrackObservation > ufo::TrackCheckShip::collectTrackObservations	(	std::vector< size_t >::const_iterator	trackObsIndicesBegin,
		std::vector< size_t >::const_iterator	trackObsIndicesEnd,
		const std::vector< size_t > &	validObsIds,
		const TrackCheckUtils::ObsGroupLocationTimes &	obsLocTime
	)		const

private

Returns: a vector of TrackObservations that all hold a shared_ptr to an instance of TrackStatistics, which holds all of the track-specific counters.

Definition at line 217 of file TrackCheckShip.cc.

Here is the caller graph for this function:

◆ diagnostics()

const TrackCheckShipDiagnostics * ufo::TrackCheckShip::diagnostics ( ) const

Definition at line 86 of file TrackCheckShip.cc.

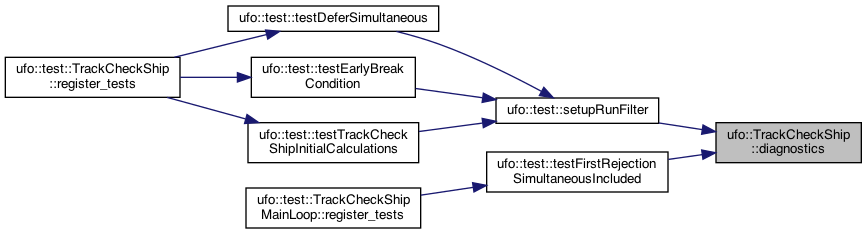

Here is the caller graph for this function:

◆ distance()

static double ufo::TrackCheckShip::distance	(	const TrackObservation &	a,
		const TrackObservation &	b
	)

inlinestatic

Extends distance for TrackObservation inputs a and b.

Definition at line 184 of file src/ufo/filters/TrackCheckShip.h.

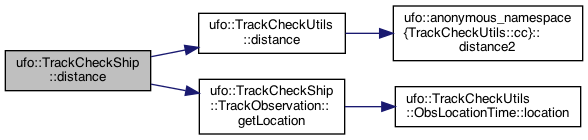

Here is the call graph for this function:

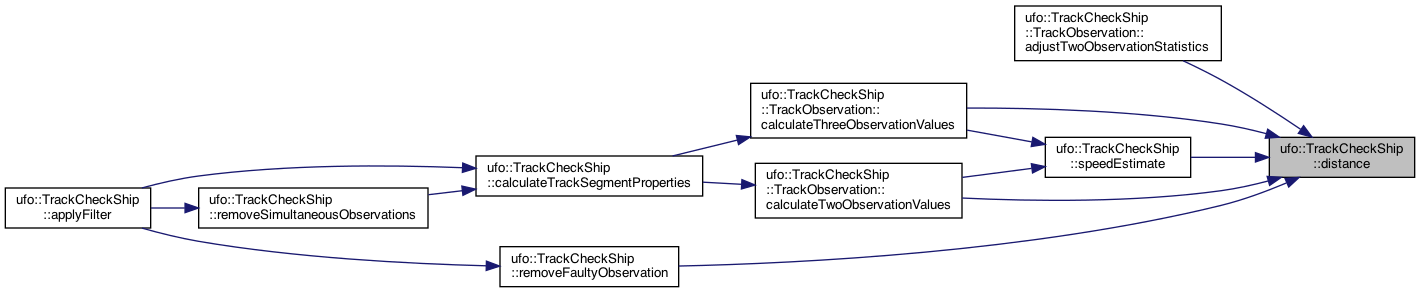

Here is the caller graph for this function:

◆ earlyBreak()

bool ufo::TrackCheckShip::earlyBreak ( const std::vector< std::reference_wrapper< TrackObservation >> & trackObs ) const

private

Returns: true if at least half of the track segments have incremented the relevant rejection counters

This filter is best for mostly-accurate observation tracks. If the track has many "errors" (as indicated by the counters that are incremented before any observations are removed), it will stop early by default.

Definition at line 246 of file TrackCheckShip.cc.

Here is the caller graph for this function:

◆ flagRejectedTrackObservations()

void ufo::TrackCheckShip::flagRejectedTrackObservations	(	std::vector< size_t >::const_iterator	trackObsIndicesBegin,
		std::vector< size_t >::const_iterator	trackObsIndicesEnd,
		const std::vector< size_t > &	validObsIds,
		const std::vector< TrackObservation > &	trackObservations,
		std::vector< bool > &	isRejected
	)		const

private

Detects whether each observation in a track has been rejected, and marks the corresponding space in isRejected as true if so.

Parameters

trackObsIndicesBegin	the begin iterator of the track
trackObsIndicesEnd	the end iterator
validObsIds	the vector marking all of the observations' global positions
trackObservations	the full vector of observations within the single track
isRejected	the boolean vector whose indices correspond to all of the rejected observations in the full input dataset

Definition at line 124 of file TrackCheckShip.cc.

Here is the caller graph for this function:

◆ print()

void ufo::TrackCheckShip::print ( std::ostream & os ) const

overrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 137 of file TrackCheckShip.cc.

◆ qcFlag()

int ufo::TrackCheckShip::qcFlag ( ) const

inlineoverrideprivatevirtual

Implements ufo::FilterBase.

Definition at line 212 of file src/ufo/filters/TrackCheckShip.h.

◆ removeFaultyObservation()

void ufo::TrackCheckShip::removeFaultyObservation	(	std::vector< std::reference_wrapper< TrackObservation > > &	track,
		const std::vector< std::reference_wrapper< TrackObservation > >::iterator &	it,
		bool	firstIterativeRemoval = `false`
	)		const

private

Chooses which of the observations surrounding the speediest segment to remove, flagging it accordingly.

Definition at line 288 of file TrackCheckShip.cc.

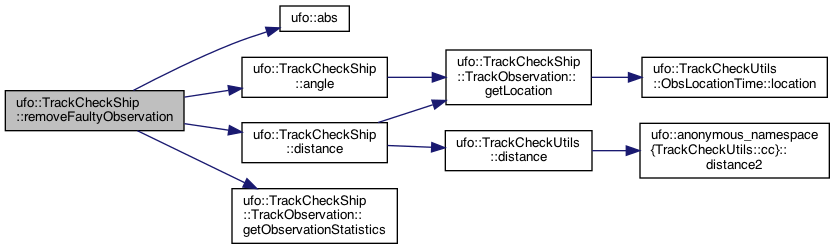

Here is the call graph for this function:

Here is the caller graph for this function:

◆ removeSimultaneousObservations()

std::vector< std::reference_wrapper< TrackCheckShip::TrackObservation > > ufo::TrackCheckShip::removeSimultaneousObservations ( const std::vector< std::reference_wrapper< TrackObservation >> & trackObs ) const

private

Filters out all observations that have been marked simultaneous for rechecking at the end.

Definition at line 276 of file TrackCheckShip.cc.

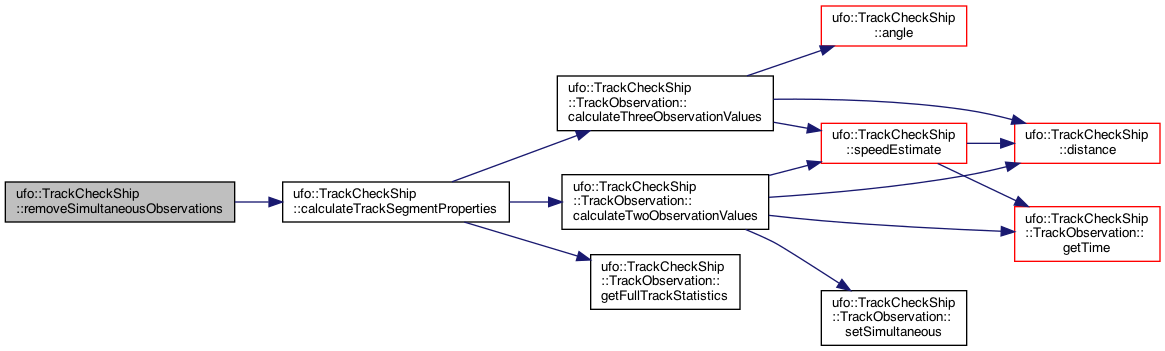

Here is the call graph for this function:

Here is the caller graph for this function:

◆ speedEstimate()

double ufo::TrackCheckShip::speedEstimate	(	const TrackCheckShip::TrackObservation &	obs1,
		const TrackCheckShip::TrackObservation &	obs2,
		const TrackCheckShipParameters &	options
	)

static

Estimate of speed as calculated in Ops_CheckShipTrack.

Speed is calculated between obs1 and obs2, accounting for spatial/temporal uncertainty using the resolution values stored in options.

Definition at line 53 of file TrackCheckShip.cc.

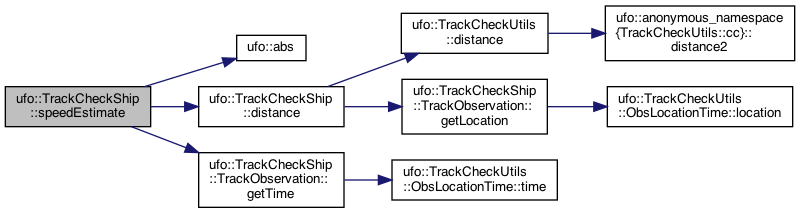

Here is the call graph for this function:

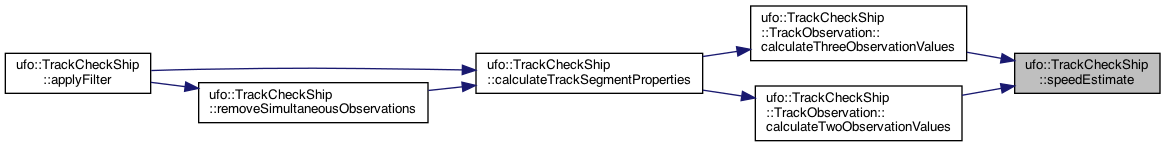

Here is the caller graph for this function:

Member Data Documentation

◆ diagnostics_

std::unique_ptr<TrackCheckShipDiagnostics> ufo::TrackCheckShip::diagnostics_

private

Definition at line 200 of file src/ufo/filters/TrackCheckShip.h.

◆ options_

std::unique_ptr<TrackCheckShipParameters> ufo::TrackCheckShip::options_

private

Definition at line 199 of file src/ufo/filters/TrackCheckShip.h.

The documentation for this class was generated from the following files:
